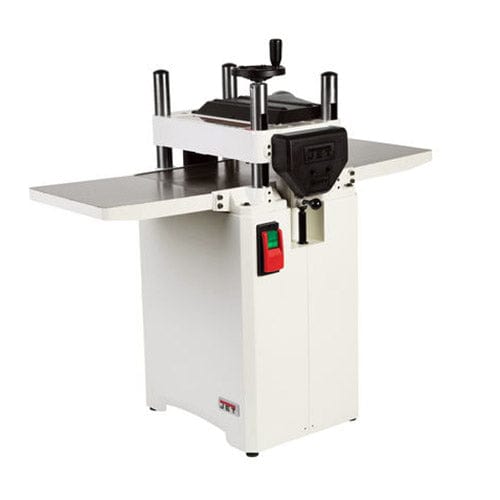

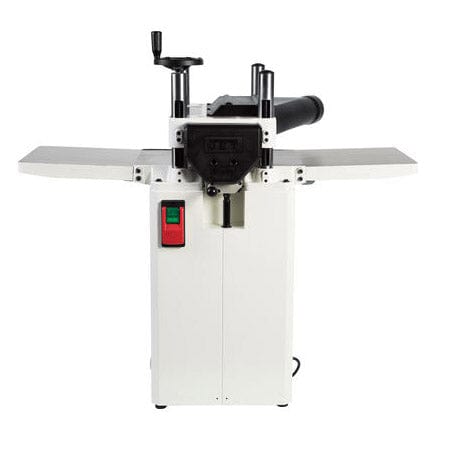

15" Planer - 3 HP 1 Ph 230V - Helical Cutterhead - JWP-15BHH

• Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
• Innovative Precision Air Strut System provides consistent upward pressure on the cutterhead, reducing the chance of board snipe

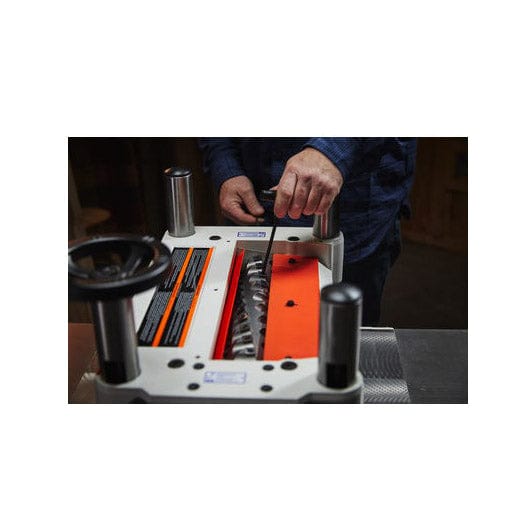

• Helical Cutterhead houses 48 staggered carbide knives that are engineered to align themselves without any adjustment for a superior finish and quieter cut
• Maximum depth of cut 1/8", 6" cutting height and 15" width capacity
• Dual infeed speed control for 16fpm or 20fpm, maximizes cut efficiency
• Large cast iron precision ground infeed/outfeed tables provide support for larger work pieces

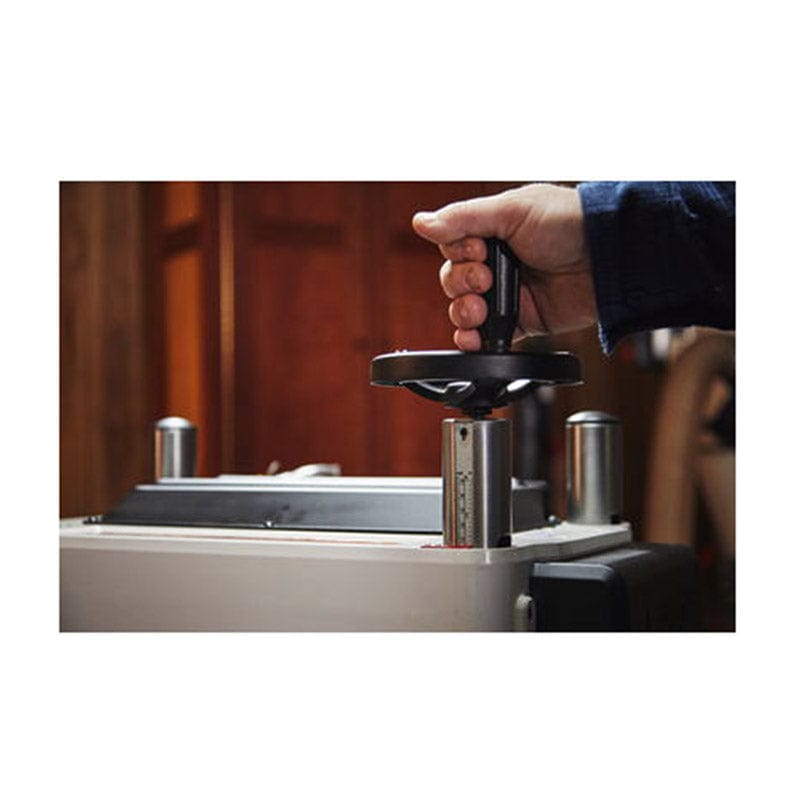

• Large hand wheel with positive gear drive easily moves the head to the desired board thickness

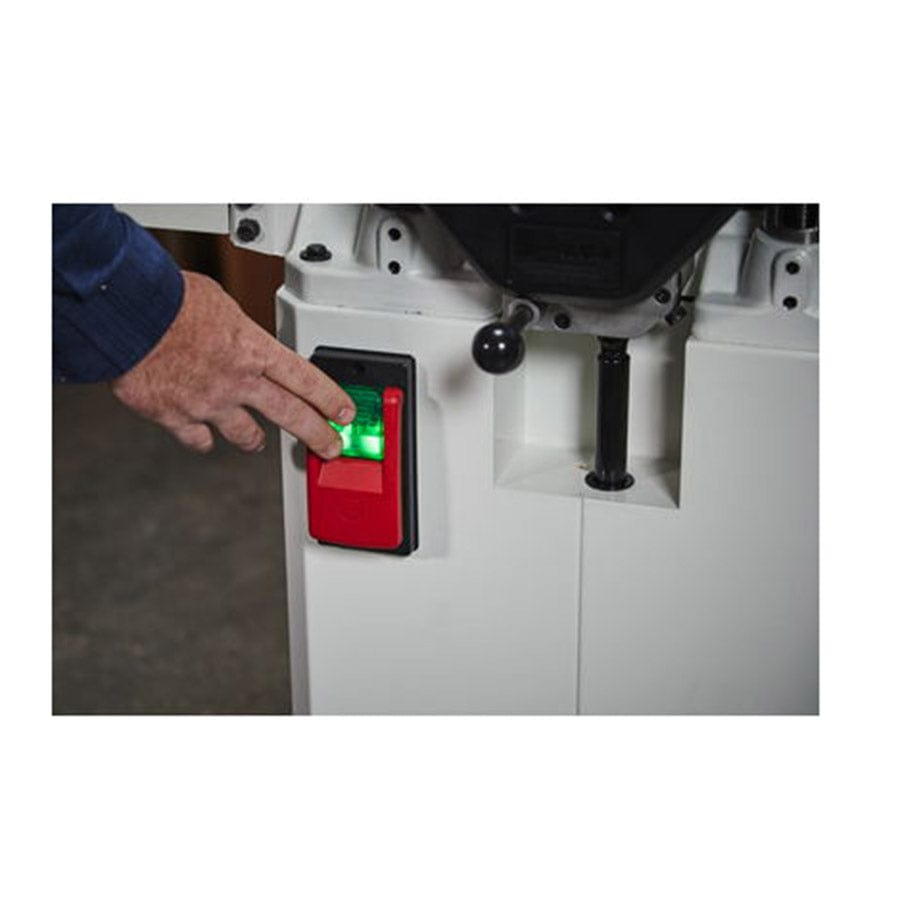

• Magnetic Switch with green safety light illuminates when powered

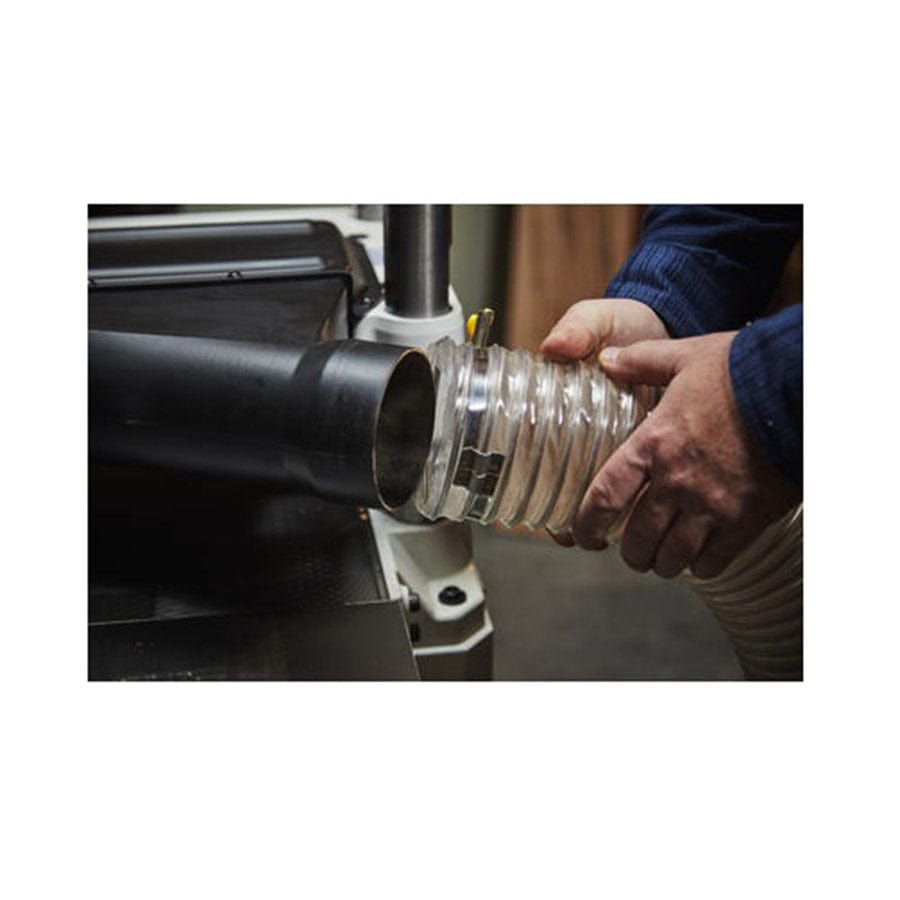

• 4" Dust Port hooks up to dust management system and helps keep shop clean

• Style: Floor Standing Model
• Type of Cutterhead: Helical Head Cutterhead
• Number of Knives: 48
• Cutterhead Diameter: 2-5/8"
• Cutterhead Speed: 5200 RPM
• Maximum Depth of Cut: 1/8"
• Maximum Full Width Depth of Cut: 1/8"
• Maximum Planing Width: 15"
• Maximum Planing Thickness: 6"
• Minimum Planing Length: 21.5"
• Feed Rate: 16 FPM - 20 FPM
• Motor: 3HP
• Motor Amp: 15
• Voltage: 230V
• Motor Phase: 1PH
• Speeds: 2
• Table Size with Extensions: 15" x 49.2"
• Dust Port: 4" (102 mm)
• Dust Collection Minimum CFM Required: 600 CFM

• (1) Jet® 15" Planer - 3 HP 1 Ph 230V - Helical Cutterhead - JWP-15BHH
• (1) Handwheel assembly
• (1) Dust port

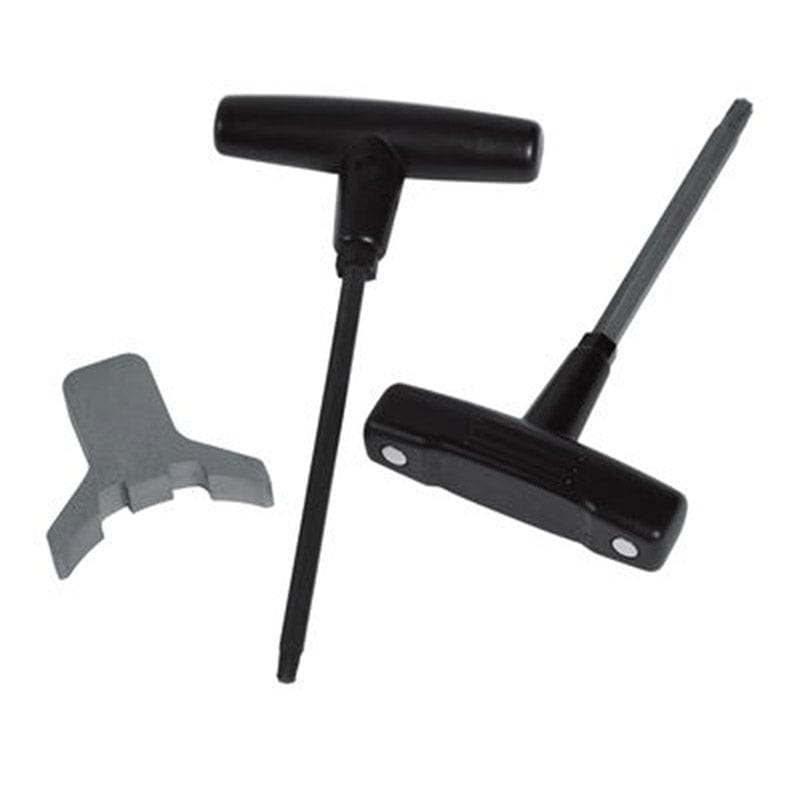

• (1) Torx point screwdriver T30 (with magnets)
• (2) Cast iron extension tables
• (2) Star point screwdrivers
• (5) Knife inserts
• (10) Knife insert screws
• (1) Hardware package (p/n JWP15BHH-HP)
• (1) Operating Instructions and Parts Manual
• (1) Product registration card
