Jet

15" Benchtop Drill Press - 3/4 HP 1 Ph 115V - JDP-15B

Item #865455 Model JT9-716200
$1,099.99
$1,099.99 $1,099.99

This item has an additional shipping charge

1 3

Jet

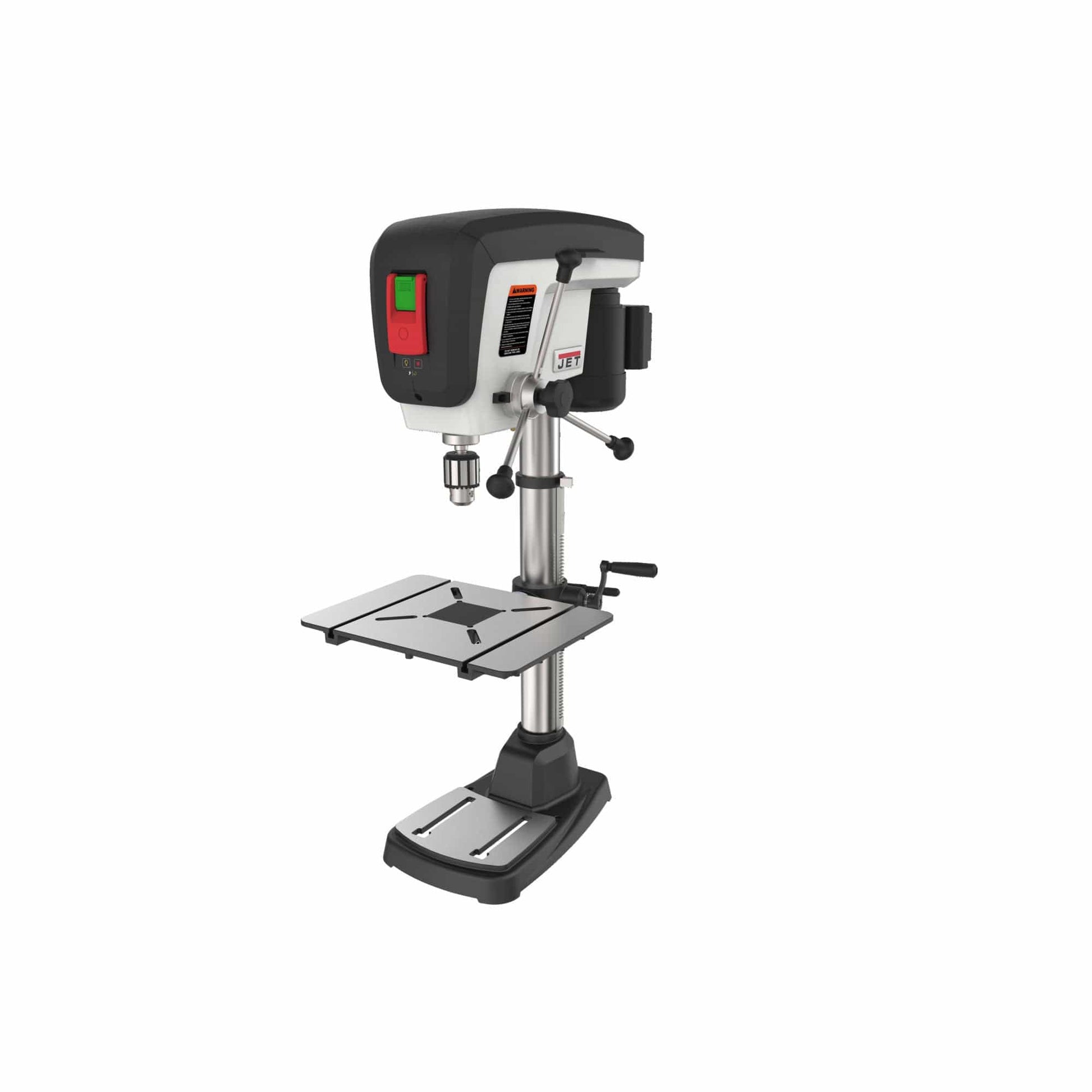

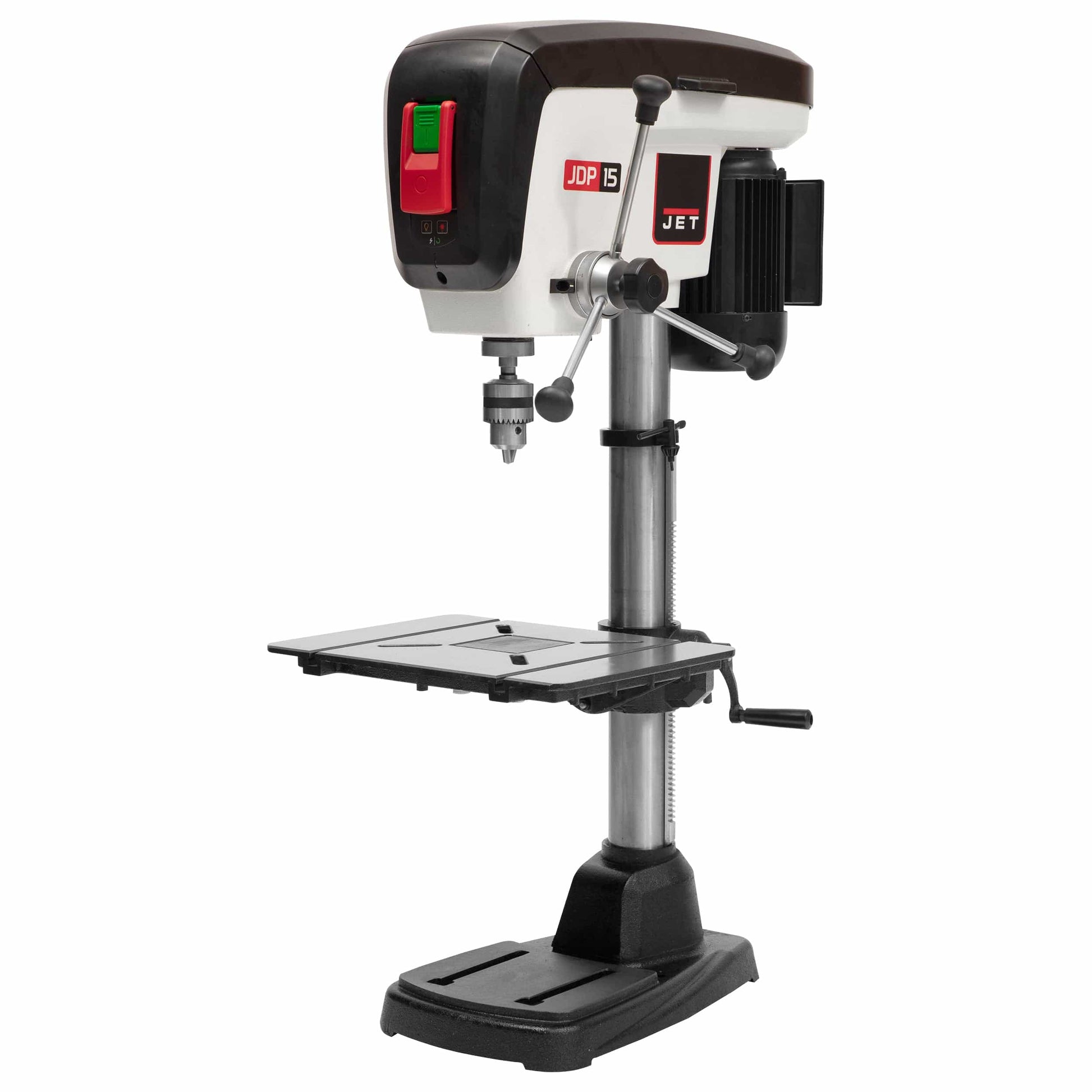

15" Benchtop Drill Press - 3/4 HP 1 Ph 115V - JDP-15B

Item #865455 Model JT9-716200
$1,099.99
$1,099.99 $1,099.99

This item has an additional shipping charge

The Jet® JDP-15B Benchtop Drill Press is a robust and reliable drilling machine designed for professional and home use. The JDP-15B features a pow. . . View More Details

Ships from Manufacturer

Shipping Info

Details



The JetĀ® JDP-15B Benchtop Drill Press is a robust and reliable drilling machine designed for professional and home use. The JDP-15B features a powerful 3/4 horsepower motor, which can deliver speeds of up to 3,500 RPM, making it ideal for a wide range of drilling applications. The 16-speed poly-v belt drive system allows you to tailor the rate to your drilling needs. The sturdy cast iron head and base ensure stability and durability during use. Additionally, the JDP-15B has a large 12-1/2" by 17" worktable, which can be tilted up to 45 degrees in either direction, giving you the flexibility to drill at various angles.

One of the standout features of the JDP-15B is its depth stop system which allows you to set the depth of your drill bit, ensuring consistent and accurate drilling depths every time. Additional features include a laser guide system, a built-in work light, a drill chuck with a key, and a convenient storage tray for your tools and accessories. Overall, the JDP-15B is a versatile and reliable drilling machine that is perfect for anyone who needs to drill precise and consistent holes in a variety of materials.

Features:

  • Change speeds quickly with the one-handed belt tensioning
  • Spindle travels a full 3-1/8" with one revolution of the handle
  • Power switch features a safety key and large, paddle-style off button
  • Integrated depth stop makes repetitive drilling quick and easy
  • Xacta-X laser system easily identifies the drill center
  • Long-lasting, built-in LED work light reduces shadows
  • Table edge lip designed to make clamping easy
  • Replaceable MDF table insert
  • Large cast iron base provides stability

Specifications:

  • Product: Drill Press
  • Product Style: Benchtop
  • Motor Type: TEFC
  • Power Transfer: 2 poly v-belts
  • Motor Power: 3/4 HP
  • Motor Phase: Single
  • Motor Voltage: 115V
  • Motor Amps: 9A
  • Recommended Circuit Size: 15A
  • Number of Spindle Speeds: 16
  • Maximum No-Load Spindle Speed Range: 210-3500 RPM
  • Swing: 15"
  • Maximum Spindle Travel: 3-1/8"
  • Maximum Spindle Distance to Table: 18-1/2"
  • Maximum Spindle Distance to Base: 26-7/8"
  • Spindle Taper: MT2
  • Chuck Style: Keyed
  • Chuck Size: 5/8"
  • Chuck Arbor Taper: JT-3 to MT-2
  • Maximum Chuck Distance to Table: 14-1/2"
  • Maximum Chuck Distance to Base: 22-7/8"
  • Column Diameter: 2-3/4"
  • Table Size (L x W): 12-1/2" x 17"
  • Table Tilt: 45Ā° Left and Right
  • Base Size (L x W x H): 18" x 11-3/8" x 2-1/4"
  • Overall Assembled Dimensions (L x W x H): 26-5/6" x 17" x 43-7/8"
  • Work Lamp: Integrated, pivoting LED
  • Weight: 154 lbs.

What's Included:

  • (1) JetĀ® 15" Benchtop Drill Press - 3/4 HP 1 Ph 115V - JDP-15B
