Jet presents the best of both worlds in planing and jointing boards with the JPJ-12HH Planer/Jointer. Jet designed a machine that allows quick changeo. . .
View More Details
Details

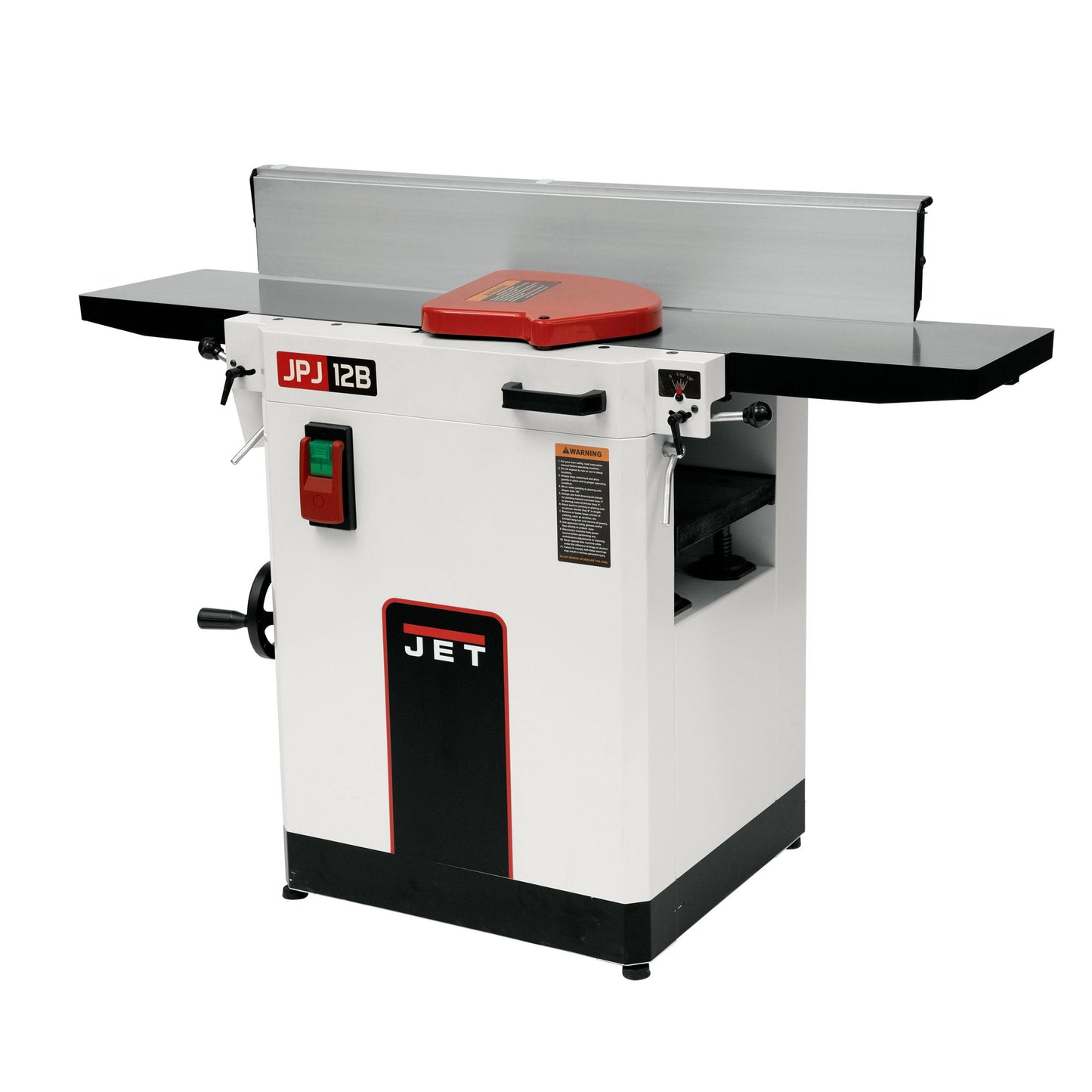

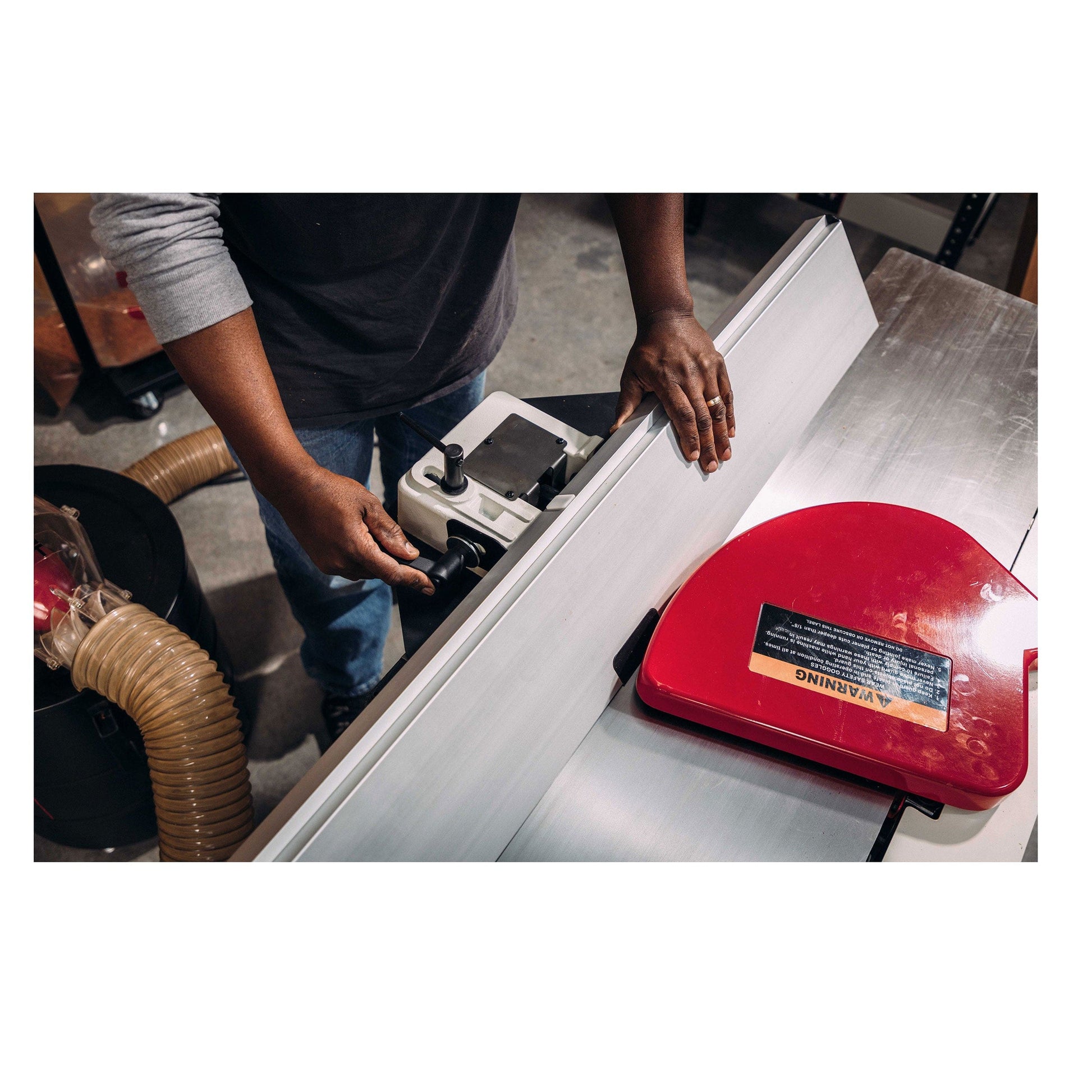

Jet presents the best of both worlds in planing and jointing boards with the JPJ-12HH Planer/Jointer. Jet designed a machine that allows quick changeover between jointing and planing functions. One of the standout features of the JPJ-12HH is its helical cutterhead. This cutterhead uses four-sided carbide inserts arranged in a helical pattern for a smoother, quieter cut. The inserts are also easy to change, making maintenance a breeze. This versatile machine features an extra-large aluminum extruded fence with centered controls for quick adjustments, a built-in dust chute capable of handling both planing and jointing operations, and a powerful 3-horsepower motor that can handle the toughest lumber. A heavy-duty, fully welded steel base cabinet houses the motor and the planer table mechanism, while providing solid mounting for the associated controls and support for the jointer table and fence assemblies. Best of all, the fence can stay put when changing over functions.
Features:

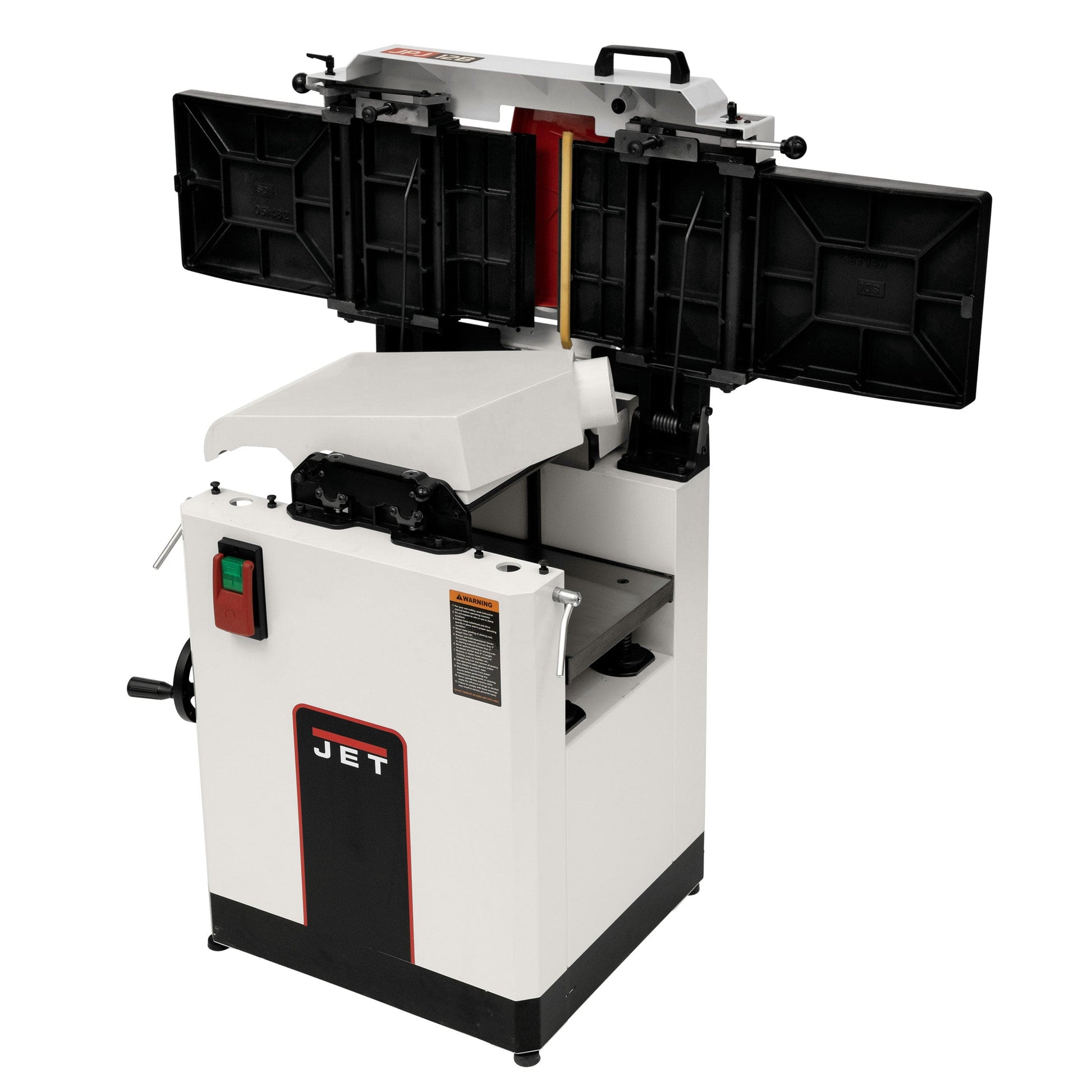

- Quick changeover between jointing and planing functions. Fence doesn't need to be removed
- Heavy-duty cast iron tables with a ground finish to ensure accuracy and flatness
- Parallelogram design keeps the table close to the cutter head for improved finish and allows for precise depth of cut adjustments

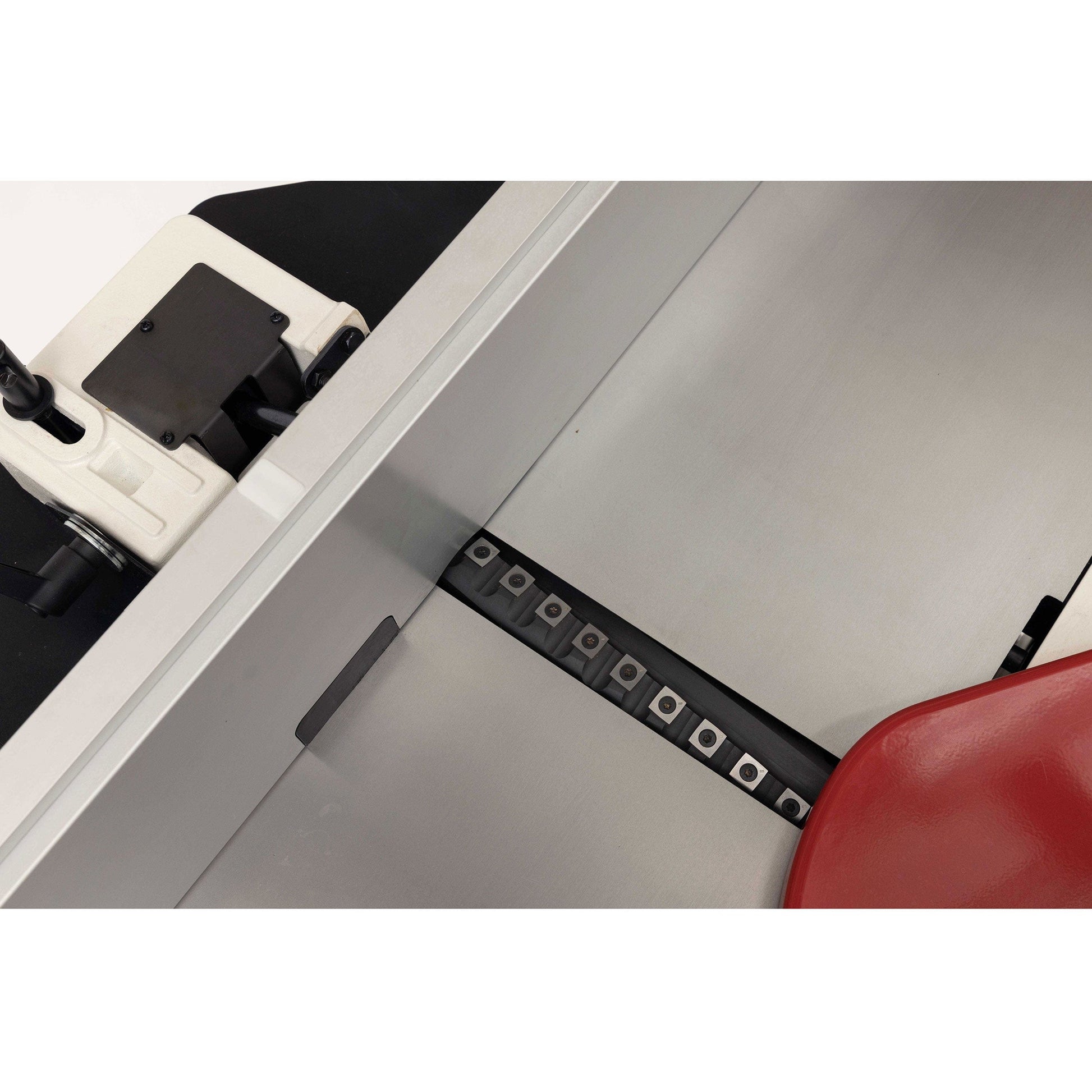

- 42 four-sided inserts (mounted on cutter head)
- Large handwheel for quick and precise adjustments of planer table
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
Specifications:
- Type: Helical Style Cutterhead
- Style: Floor Standing Model
- Motor Type: TEFC - Totally Enclosed, Fan-Cooled
- Motor Power: 3 HP
- Motor Phase: 1 Ph (single phase)
- Motor Voltage:230V only
- Full Load Amps: 15A
- Running Amps: 4.5A
- Cycle: 60 Hz
- Recommended Circuit Size: 30 Amps
- Helical Cutters: 42
- Helical Cutter Size: 0.59" x 0.59" x 0.10"
- Cutterhead Diameter: 2-3/4"
- Cutter Head Speed: 5300 RPM

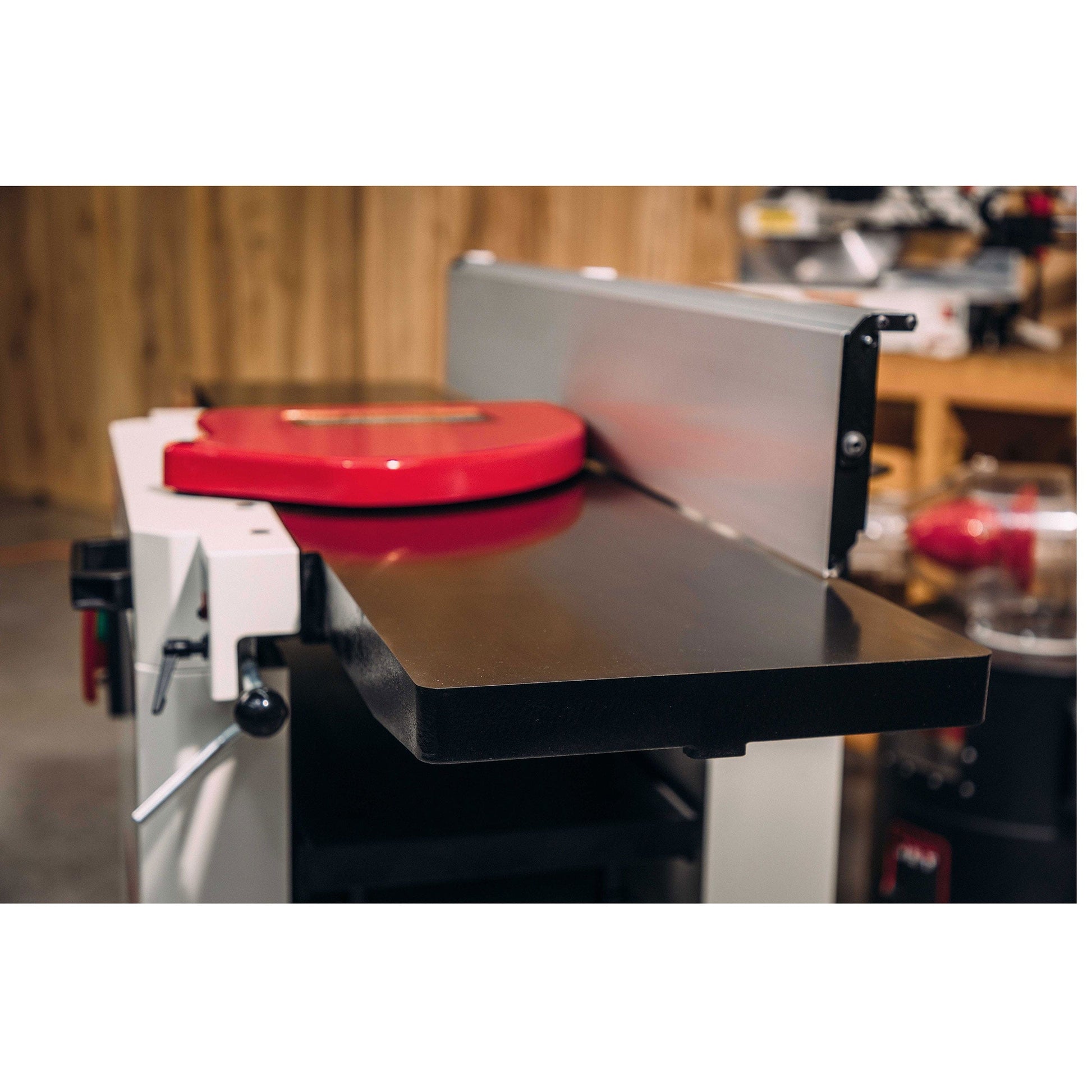

- Jointer Table Size: 55" x 12-1/32"
- Table Height from Floor: 33-1/2"

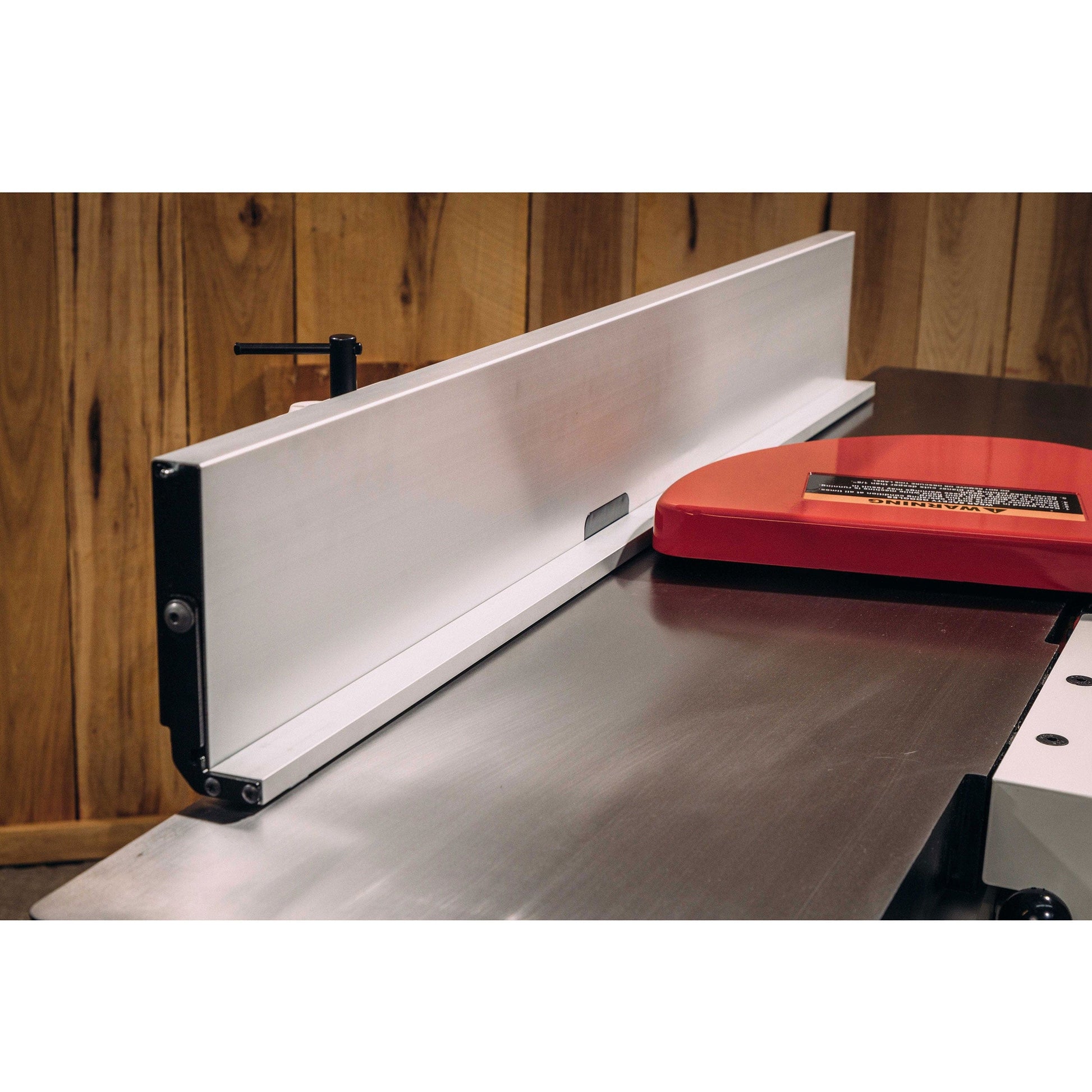

- Fence Size (L x H): 43-1/4" x 5-7/8"
- Fence Tilt: 90° to 45° R
- Fence Positive Stops (degrees): 90° and 45° R
- Fence Travel: 6"
- Planer Table Size (L x W): 25" x 12-1/32"
- Planing Maximum Workpiece Thickness: 8-3/4"

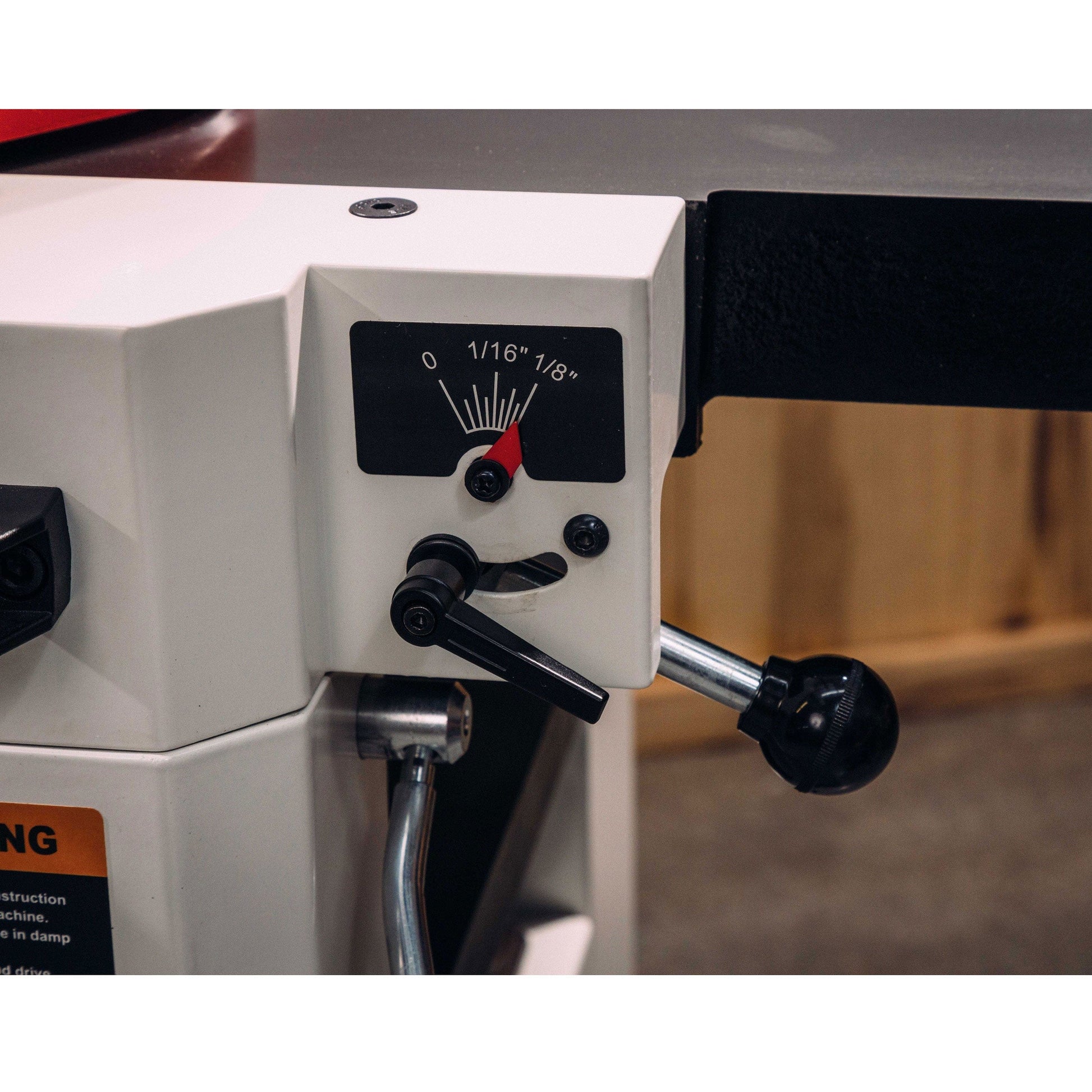

- Planer Maximum Depth of Cut: 5/32"
- Planing Minimum Length of Workpiece: 10"
- Table Movement Per One Handwheel Revolution: 5/32"

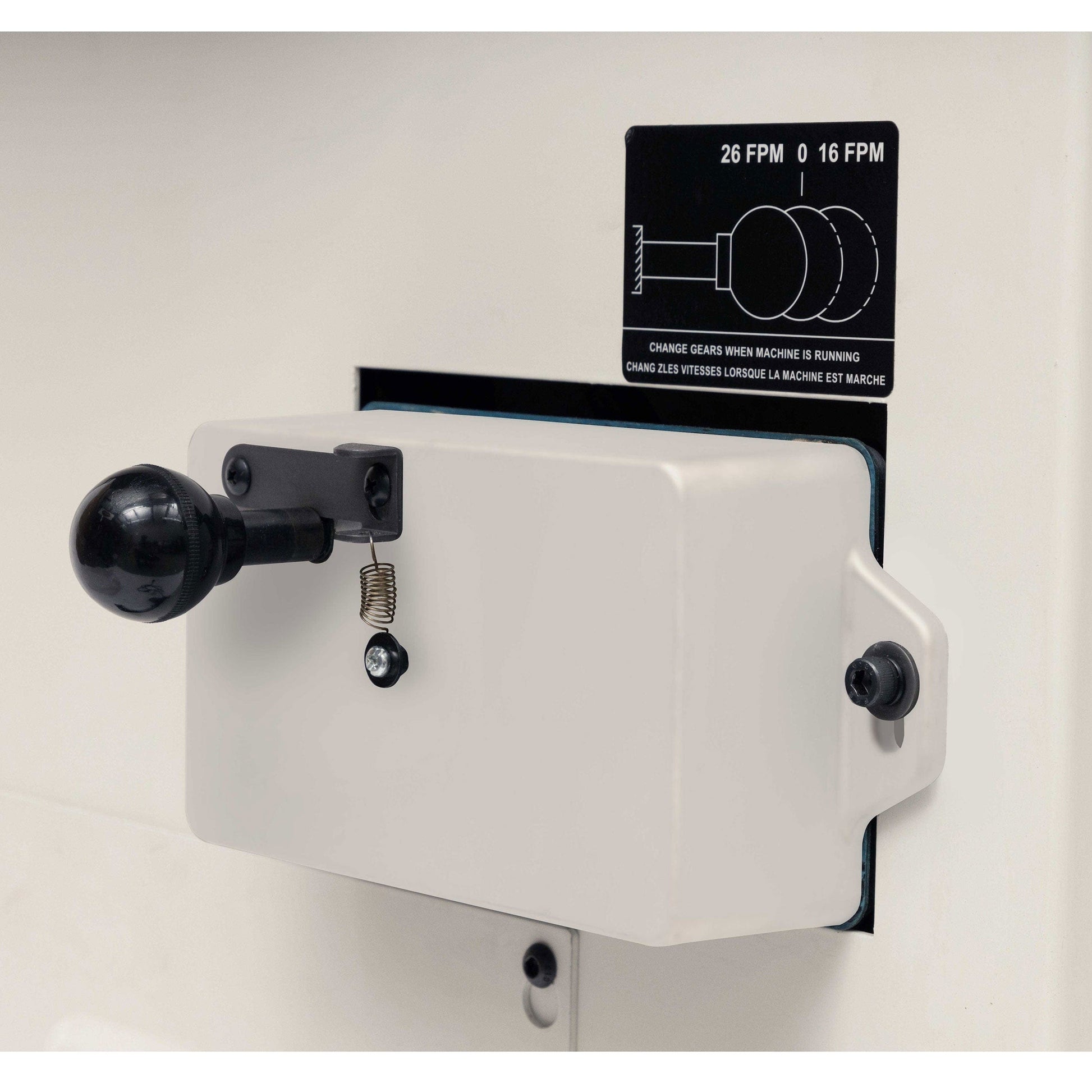

- Feed Rate: 2 speed 16 to 26 FPM
- Dust Port: 4"
- Dust Collection Minimum CFM Required: 550
- Overall Dimensions (L x W x H): 55-7/16" x 28-15/16" x 40"
- Stand Footprint (L x W): 24" x 21-1/4"
- Net Weight: 453 lbs.
What's Included:
- (1) Jet® JPJ-12BHH Planer/Jointer
- (2) Push Blocks
- (1) 6mm Hex Wrench
- (2) Star Point Screwdrivers
- (10) Knife Inserts
- (10) Knife Insert Screws
- (1) Owners manual
- (1) Warranty Card
Notes:
- Jointer-Planer is rated at 230V. This machine is not supplied with a plug.
- Use a plug and outlet rated at least 30 amps.
- The circuit for the machine should also be protected by at least a 30 amp circuit breaker or fuse.
