GREX

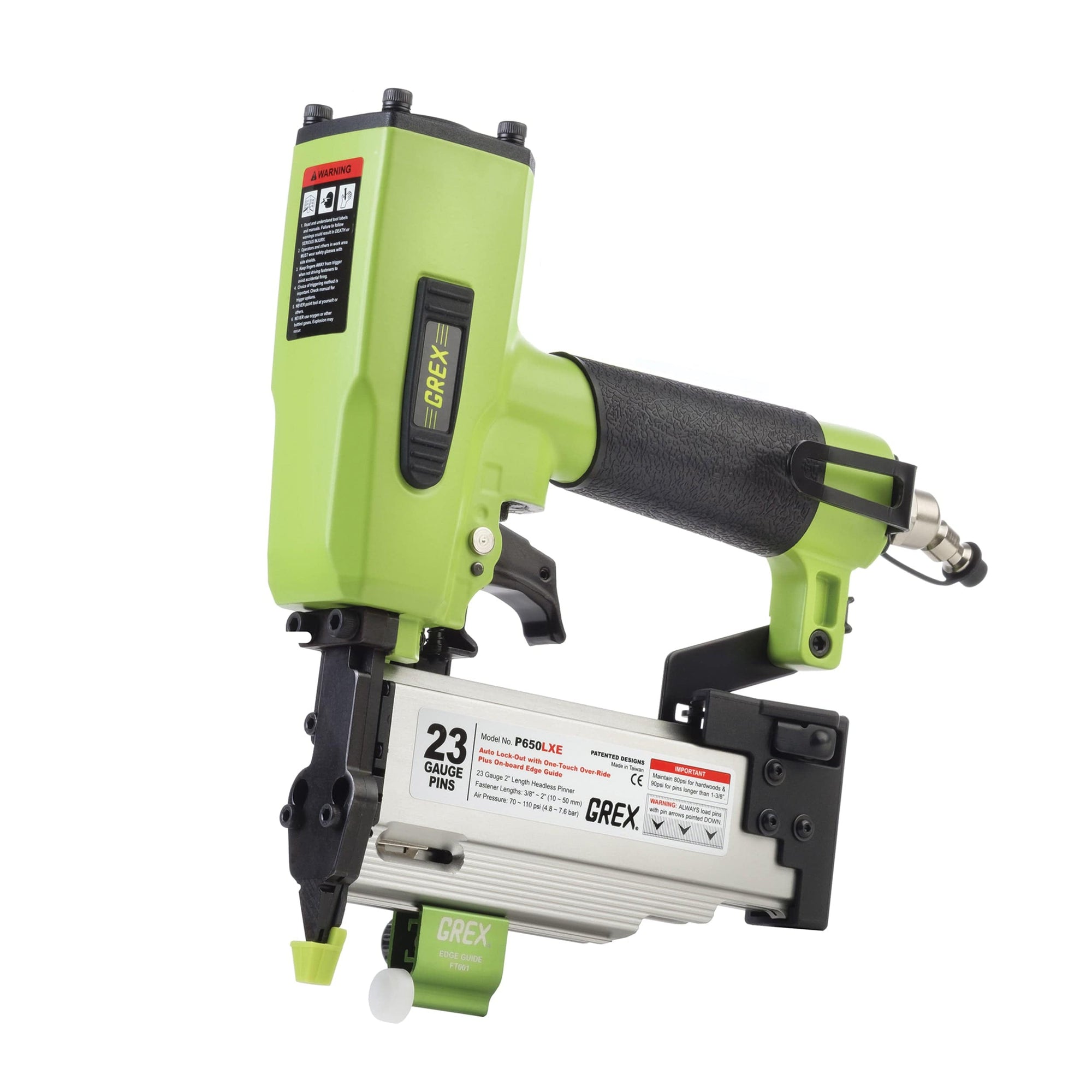

23-Gauge 2" Headless Pinner with One-Touch Override Lock-Out
Item #163997
Model P650LXE
Regular price
$335.99
Sale price
$335.99
Regular price
$335.99
Unit price
per
The Grex® P650LXE 23-Gauge Headless Pinner features an auto lock-out function that prevents the pinner from dry-firing. The lock-out engages when . . .
View More Details
Details
The Grex® P650LXE 23-Gauge Headless Pinner features an auto lock-out function that prevents the pinner from dry-firing. The lock-out engages when there are ten pins left in the magazine. A one-touch override button allows the use of the remaining ten reserve pins if needed.
The industrial strength 23-gauge headless pinner leaves only the tiniest entry holes, ideally suited for finishing and detailed woodworking. It is perfect for light wood assembly, molding and decorative trim, dowel and joint pinning, and mirror and picture frame assembly.
The headless pinner utilizes an innovative and patented magazine that eliminates the need to adjust for different fastener lengths. The powerful motor will easily drive fasteners, even into the hardest of hardwoods. The compact, lightweight, slim profile maximizes maneuverability, and the rear exhaust with a built-in silencer makes the Grex P650LXE the professional's choice.
The industrial strength 23-gauge headless pinner leaves only the tiniest entry holes, ideally suited for finishing and detailed woodworking. It is perfect for light wood assembly, molding and decorative trim, dowel and joint pinning, and mirror and picture frame assembly.
The headless pinner utilizes an innovative and patented magazine that eliminates the need to adjust for different fastener lengths. The powerful motor will easily drive fasteners, even into the hardest of hardwoods. The compact, lightweight, slim profile maximizes maneuverability, and the rear exhaust with a built-in silencer makes the Grex P650LXE the professional's choice.
Features:
- One-Touch Over-Ride button allows the use of the ten remaining "reserve" pins
- Larger powerful motor combined with a newly improved contact safety design
- On-board adjustable edge guide to work faster and more precisely
- On-board edge guide holder for convenient storage when not in use
- Auto lock-out prevents dry-firing and project damage
- Auto lock-out over-ride button allows the use of the remaining pins
- Drives 23-gauge headless pins ranging from 3/8" to 2" in length
- Patented magazine self-adjusts for 14 different fastener lengths
- Narrow nose design for access to more tight areas and angles
- Powerful motor to drive fasteners into hardwood
- Lightweight aluminum body designed for mobility and all-day continuous use
- Precision-machined aluminum cylinder and piston valve
- Drop-in fastener loading for quick and easy reloading
- Fastener indicator window shows the pin supply, alerting the operator to reload
- Posit-Lock™ nose cover for tight tolerance and access to the pin chamber
- Swivel air coupler helps keep air hose tangle-free
- Rear exhaust with a silencer reduces noise and directs exhaust air away
- Steel Belt hook keeps your tool at your side; left- or right-mounted
- No-mar rubber tip prevents marring of the work surface
- No-mar guidelines for accurate pinning
- Rear magazine cap with hex wrench and spare no-mar tip storage
- Rubber handgrip for a firm, comfortable grip
Specifications:
- Dimensions (L x H x W): 9.75" x 8.25" x 2"
- Weight: 3.25 lb.
- Operating Pressure: 60 ~ 100 PSI
- Fastener Type: 23-gauge headless pins
- Fastener Range: 3/8" - 2" (excluding 1-1/4")
- Fastener Capacity: 1 strip (approximately 100 pins)
- Air Inlet: 1/4" Swivel NPT male plug
What's Included:
- (1) Grex P650LXE 23-Gauge 2" Headless Pinner with One-Touch Override Lock-Out
Note:
- This tool uses a contact safety, not a double trigger safety.
