Deluxe Tenoning Jig

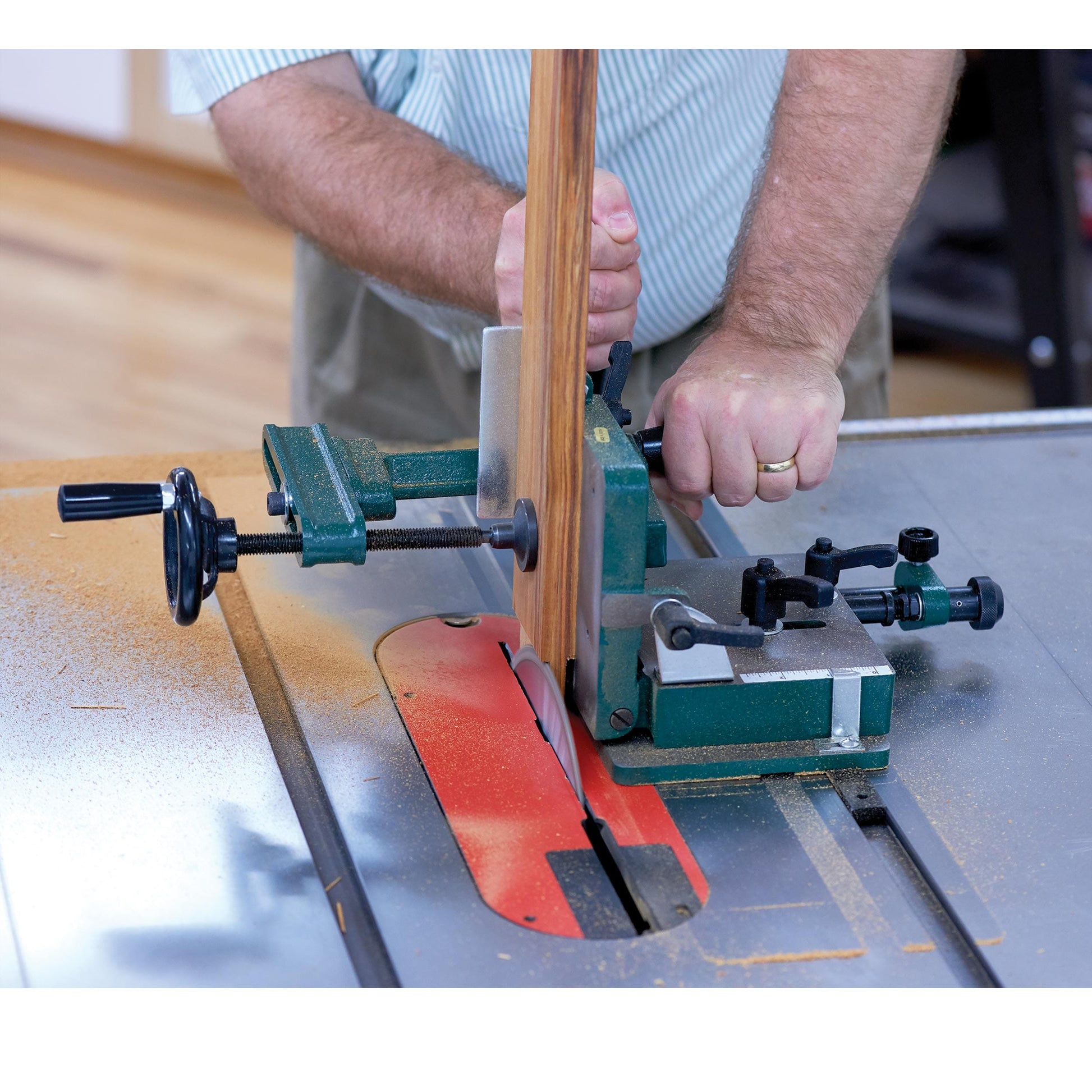

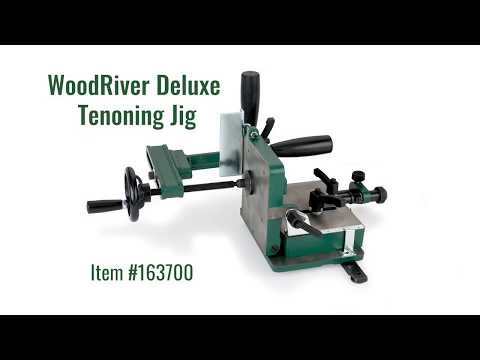

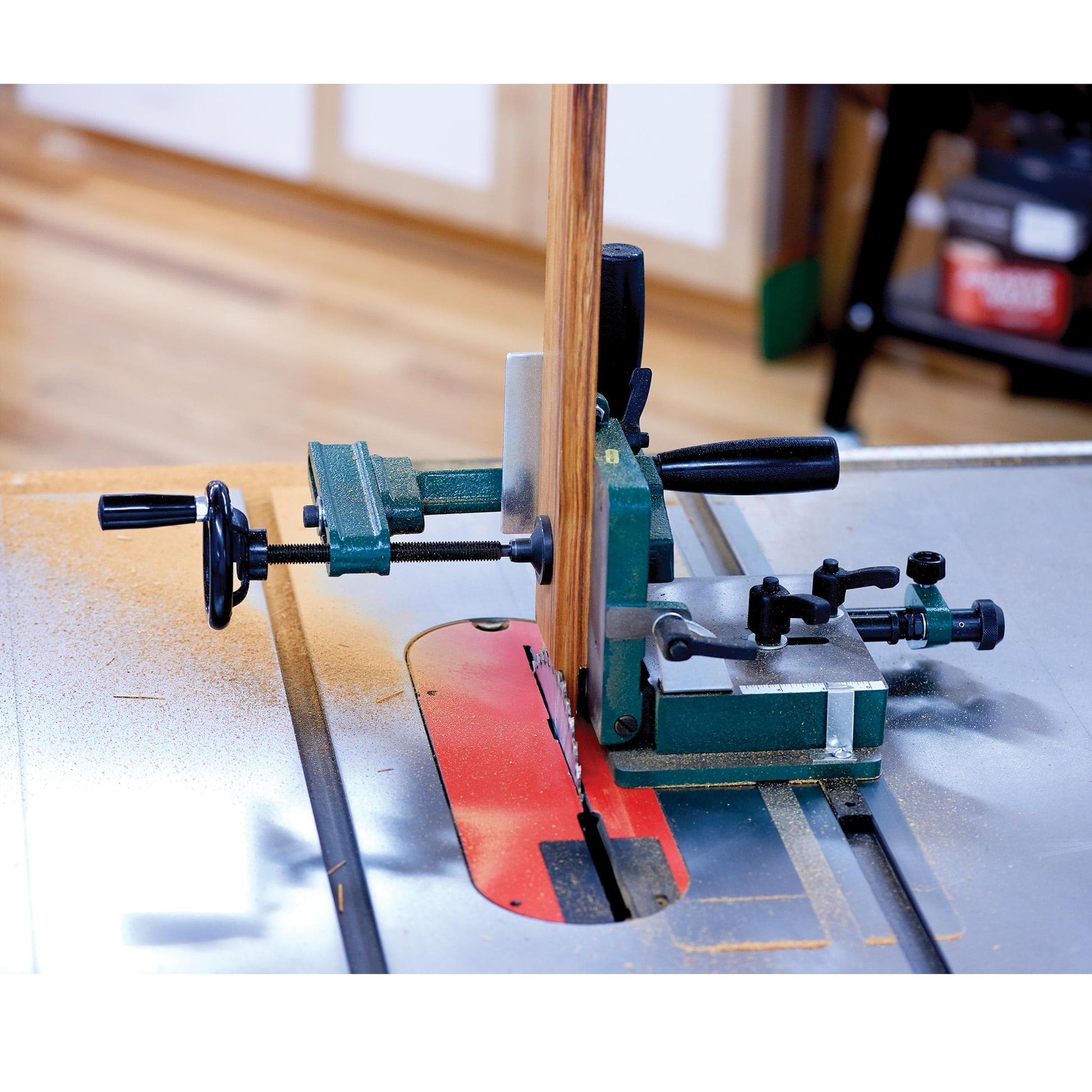

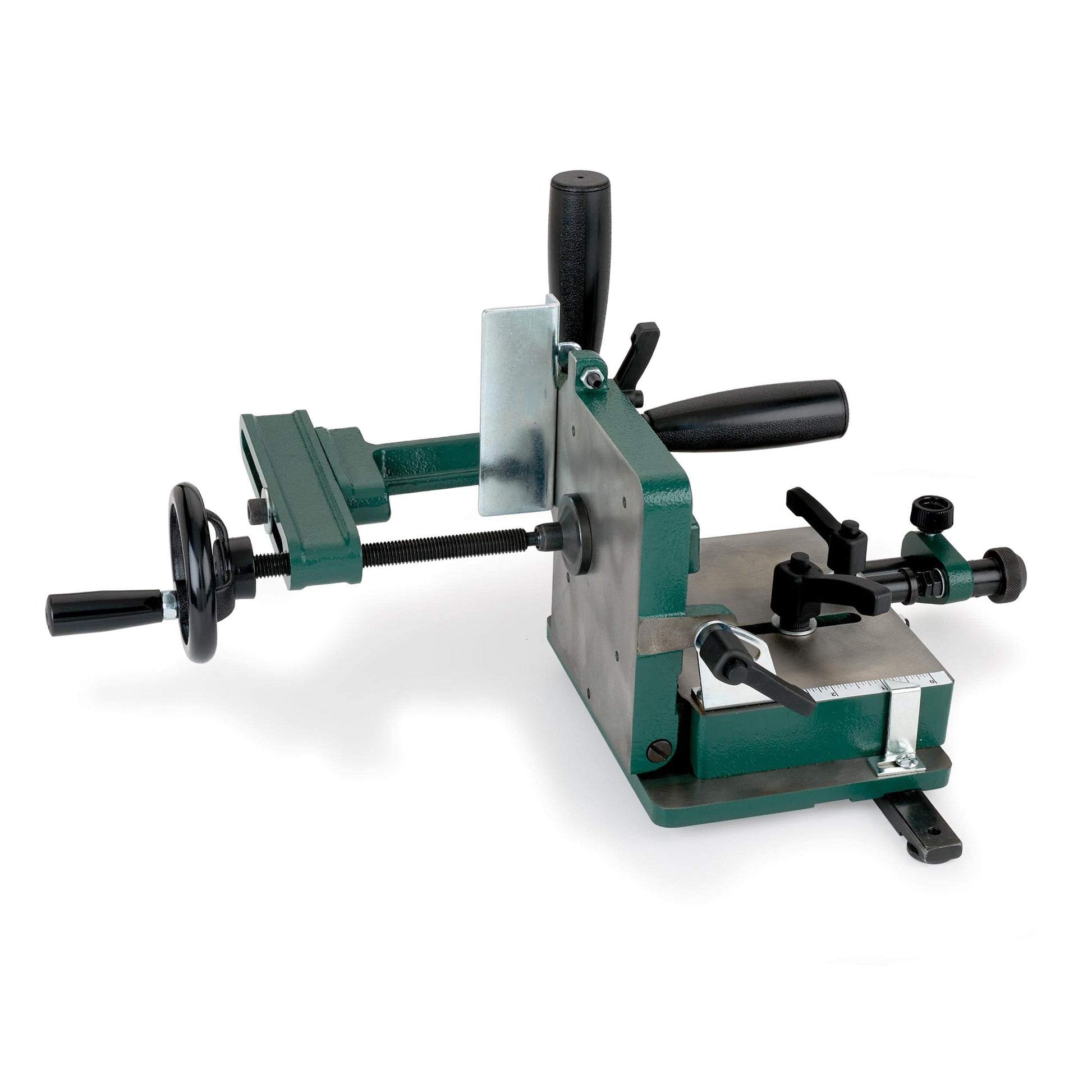

Cut perfect straight, angled, or mitered tenons on your table saw safely and easily with the WoodRiver® Deluxe Tenoning Jig. Oversized feed handles provide positive, safe operating control, while the large handwheel quickly secures stock up to 3-3/8". 0° to 45° adjustable backstop...
Cut perfect straight, angled, or mitered tenons on your table saw safely and easily with the WoodRiver® Deluxe Tenoning Jig. Oversized feed handles provide positive, safe operating control, while the large handwheel quickly secures stock up to 3-3/8". 0° to 45° adjustable backstop supports stock for angular cuts. Its fine adjustment feature guarantees accurate, repeatable cuts. Built-in provisions are included for adjustment and alignment to maintain cutting accuracy.
- Precision machined heavy-duty cast-iron construction
- Fits table saws with 3/4" x 3/8" miter gauge slot
- Accurate control with large feed handles
- Quick-release feature saves setup time
- Allows for both gross and micro depth adjustments
- Maximum Clamping Size of Stock: 3-3/8"
- Fits any table saw with a 3/4" x 3/8" miter groove
- (1) WoodRiver Deluxe Tenoning Jig
Articles & Blogs
WoodRiver Deluxe Tenoning Jig
Cut perfect straight, angled, or mitered tenons on your table saw safely and easily with the WoodRiver® Deluxe Tenoning Jig.
Hot New Tools Issue 84: Classic Cast-Iron Cure for Cutting Tenons
A strong mortise-and-tenon joint requires cheeks that are flat, smooth, and parallel. Good tenons can be cut in many different ways, but it’s hard to beat the results you get with a well-made table saw tenoning jig. With its sliding base and micro-adjustable stop, cutting perfect cheeks with the WoodRiver jig is smooth and simple.
Wood River Tennoning Jig
I liked the jig but could not align it to my saw blade. I checked the blade to saw table channel and it was within a 1/100th of an inch on both sides of the blade, but could not get the jig face to align parallel to it (it was out 1/16th of an inch front to back). The instruction book says there is a way to adjust the jig but it doesn't work. I called tech support at Wood River but he agreed there is now way to adjust it. This is the second jig they sent me (the first one wouldn't align to the blade either) He advised me to send it back again and they would refund my money. Wood River was very nice to deal with and wanted to be helpful. The jig was very robust and had the features I was looking for.
A fix for wobbling
Haven't had a chance to cut anything, and it wouldn't matter if I did, as I've never owned a tenoning jig before, but this does seem pretty nice. When I put the jig in the miter slot on my Shop Fox W1851 table saw, the jig wobbled from side to side. I took the jig out and removed the washers between the miter bar and the two discs that hold the jig from jumping out of the miter slot. The jig was rocking on those two discs, and with them now closer to the miter bar, the jig doesn't wobble any more. I do wish there were adjustment screws on the sides of the miter bar to take out the yaw wobble, but it's not too bad.
Exellent Tenoning Jig
Excellent, solid product for tenon's or the like. It weights a ton and has absolutely no wobble or movement side-to-side. Cuts tenons vertically nicely and safely. I little strange that the assembly manual is written looking from the back of the saw, but that's easily addressed - flip if around.
