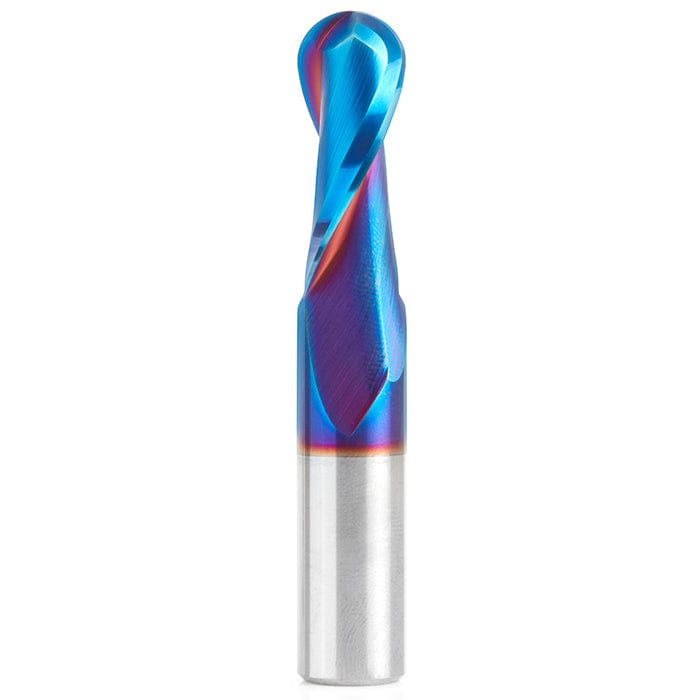

46380-K Spiral Up-Cut Ball Nose Double Flute Router Bit 1/4"R 1-1/4"CH 1/2"D 1/2"SH 3"OL

Item #180653 Model 46380-K
Regular price $102.53
Sale price $102.53 Regular price $102.53
Skip to product information
1 of 1

Amana Tool

46380-K Spiral Up-Cut Ball Nose Double Flute Router Bit 1/4"R 1-1/4"CH 1/2"D 1/2"SH 3"OL

Item #180653 Model 46380-K
Regular price $102.53
Sale price $102.53 Regular price $102.53
The Amana Spiral Up-Cut Ball Nose Double Flute Router Bit is used for carving decorative doors and sign manufacturing. Up-Cut design leaves an excelle. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • SHARK SD120 CNC Machine

    Regular price $1,999.99
    Sale price $1,999.99 Regular price $2,499.99
    SHARK SD120 CNC Machine
  • SHARK HD520 CNC Machine

    Regular price $4,999.99
    Sale price $4,999.99 Regular price $4,999.99
    SHARK HD520 CNC Machine
  • Shark HD500 CNC Machine

    Regular price $2,999.99
    Sale price $2,999.99 Regular price $2,999.99
    Shark HD500 CNC Machine

Details

The Amana Spiral Up-Cut Ball Nose Double Flute Router Bit is used for carving decorative doors and sign manufacturing. Up-Cut design leaves an excellent finish and expels chips quickly.


Excellent for Cutting:


  • Soft/Hard Wood
  • MDF
  • Soft/Hard Plastic
  • Sign Foam

Amana Spektra bits feature a nACo nanocomposite coating with an extreme nano hardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling:


  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off.



Specifications

  • Diameter: 1/2"
  • Radius: 1/4"
  • Cutting Height: 1-1/4"
  • Shank: 1/2"
  • Overall Length: 3"










https://www.woodcraft.com/media/W1siZiIsIjIwMTkvMDUvMDEvMTAvNTQvMTAvNTE1L3ZlY3RyaWNfd2ViX2xvZ29fc21hbGxlci5qcGciXV0/vectric-web-logo-smaller.jpg?sha=fb58496759ac82e1


Download Vectric 46380-K File



Tool #46380-K Vectric Compatible Tool File

46380-K tool file to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve.


This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.


Installation:

1. Download to a safe location such as your desktop.

2. In the software, open the Tool Database and use the import option to load the file from the safe location.


Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
