Richelieu

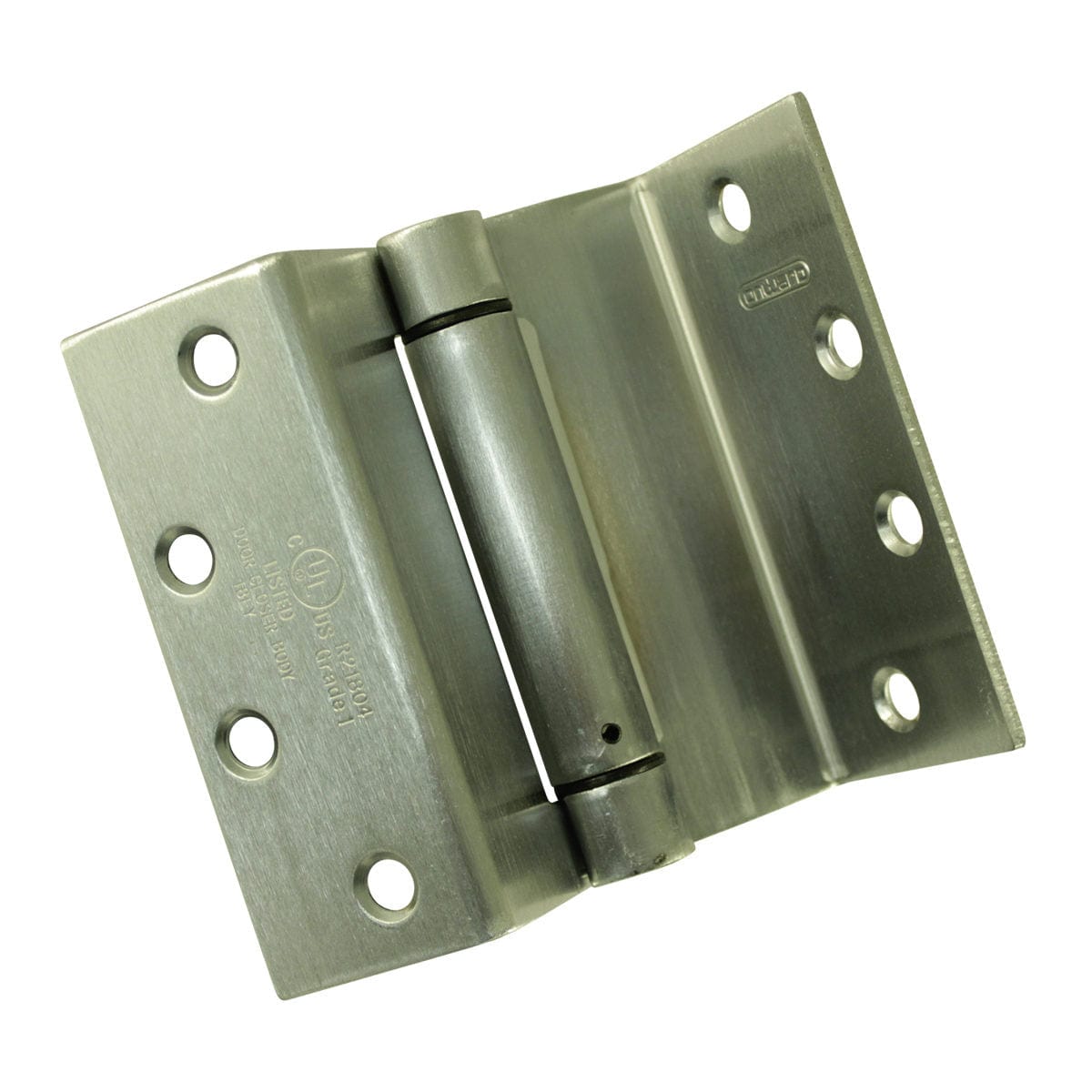

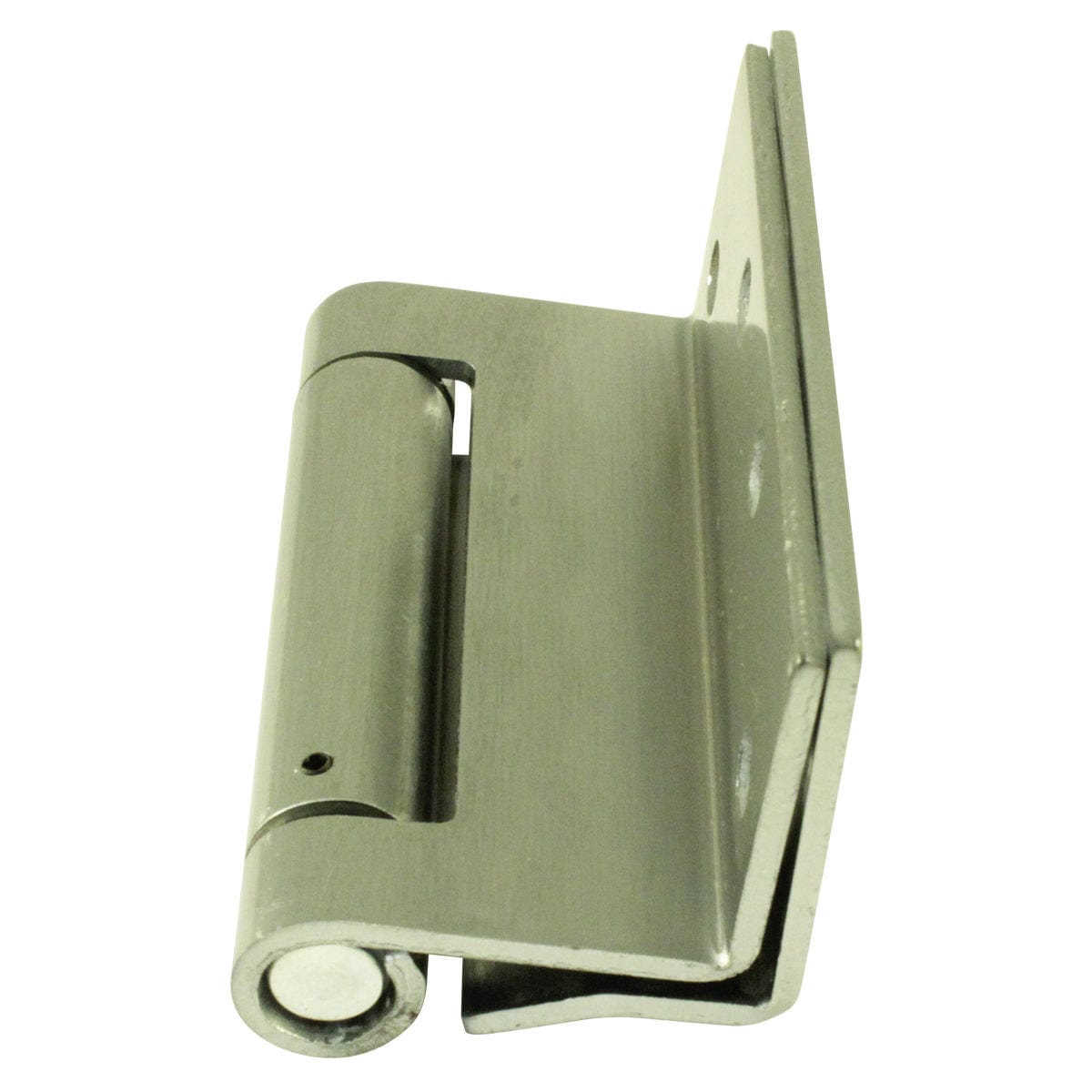

4-1/2" Wrap-Around Swing Clear Spring Hinge Brushed Chrome
Item #183192
Model 65823BCSCB
Regular price
$23.99
Sale price
$23.99
Regular price
$23.99
Unit price
per
The 4-1/2" Wrap-Around Swing Clear Spring Hinge Brushed Chrome is the perfect choice for residential or commercial doors. The unique design allows fo. . .
View More Details
Items you may need
-
Full Mortise Butt Hinge
Regular price From $5.99Sale price From $5.99 Regular priceUnit price per$5.99
-
Double Action Spring Hinge
Regular price From $32.99Sale price From $32.99 Regular priceUnit price per$32.99
-
5-1/2" (140 mm) Design Adjustable Furniture Leg Chrome
Regular price $30.99Sale price $30.99 Regular priceUnit price per$30.99
-
5-1/2" (140 mm) Design Adjustable Furniture Leg Dark Brown
Regular price $24.99Sale price $24.99 Regular priceUnit price per$24.99
Details
The 4-1/2" Wrap-Around Swing Clear Spring Hinge Brushed Chrome is the perfect choice for residential or commercial doors. The unique design allows for maximum clearance by moving the hinge barrel and door edge out of the doorway. This type of hinge has additional clearance also making it easier to move furniture and other large items through door opening.
Specifications
- Allows doors to swing clear of the frame opening for ease of movement
- Additional clearance also makes it easier to move furniture and other large items through door opening
- Self-closing spring design
- For most residential and commercial doors
- ANSI A156.7 Certification
- Type: Wrap-around mount hinge, reversible for left or right hand use
- Load Capacity: 132 lbs. (60 kg)
- Door Thickness: 1-1/2" (38 mm)
- Hinge Opening Angle: +180 Degree
- Dimensions: 4-1/2" (114 mm) L x 4" (102 mm) H x 1/8" (3.4 mm) D
- Finish: Brushed Chrome, made of Steel
- Included: Mounting hardware is included for an easy installation
