1 6

Manpa

3" Multi Cutter Master 5/8"-11

Item #183512 Model MP21-3-M
$351.31
$351.31 $351.31
The Manpa 3” Multi Cutter Master 5/8”-11 consists of 3 different length extensions which are individually fitted to your own 4-1/2” angle grinder havi. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • 16mm Triangle Carbide Replacements for 3" Triangle Cutter

    $42.50
    $42.50 $42.50
    183536.0

  • 3" Circular Cutter

    $103.44
    $103.44 $103.44
    183523.0

  • 12mm Round Carbide Replacements for 3" Circular Cutter

    $64.80
    $64.80 $64.80
    183535.0

  • 3" Square Cutter

    $103.44
    $103.44 $103.44
    183521.0

  • 3" Triangle Cutter

    $103.44
    $103.44 $103.44
    183522.0

  • Timing Belts 348mm for 2" or 3" Belt and Multi Cutters

    $34.55
    $34.55 $34.55
    183541.0

  • 3" Multi Cutter Head Only

    $175.07
    $175.07 $175.07
    183527.0

  • 3" Holes Cutter 5/8"-11

    $137.54
    $137.54 $137.54
    183515.0

Details

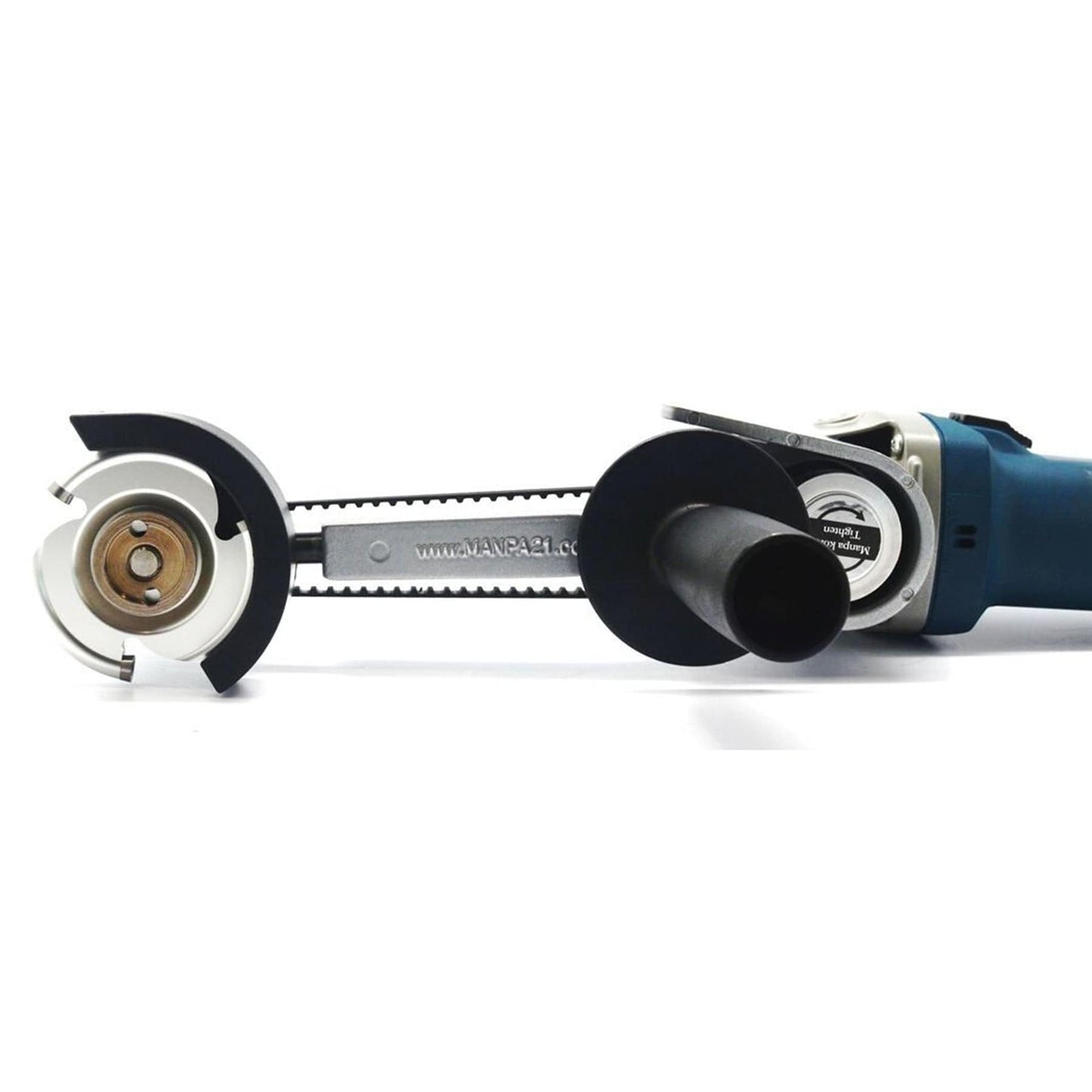

The Manpa 3” Multi Cutter Master 5/8”-11 consists of 3 different length extensions which are individually fitted to your own 4-1/2” angle grinder having a 5/8”-11NC center shaft. It also features multi angled positions from 90 to 180 degree depending on the grinder used. The included 3” and 4” circular (round) cutter will carve in any direction and will accommodate all the 3” cutters (round, triangle, square) and use the 4” square cutter. The 4” round and triangle cutters fit directly onto the grinder. Model MP21-3-M Angle Grinder is not included.

Cuts incredibly fast, smooth and controlled, whether in pushing away or pulling toward you. They can be used in a myriad of general carving and texturing applications for all carvers and turners. Your versatility, with extended reach and angles, will allow you to greatly improve your productivity and creativity.

Recommended for use with thumb controlled ON/OFF slide switch angle grinders. Not recommended for use with paddle or kill switch grinders due to the fitment of the multi cutter.

Features
  • The most complete and largest Multi Extension Carver of the series
  • Fits 4-1/2” (115mm) angle grinders with 5/8”-11NC spindle thread (center shaft) only
  • Cuts incredibly fast, smooth and controlled, whether in pushing away or pulling toward you
  • A myriad of cutting, carving and shaping accessories can be fitted to the grinder, extending the carving reach up 14” (348mm) away from the head of the grinder
  • Interchangeable, replaceable cutters, will work with all Manpa 3” and 4” cutters, (round, triangle, square)
  • Versatility combined with extended reach and angles, will allow you to greatly improve your productivity and creativity
  • Perfect for carving and turning projects

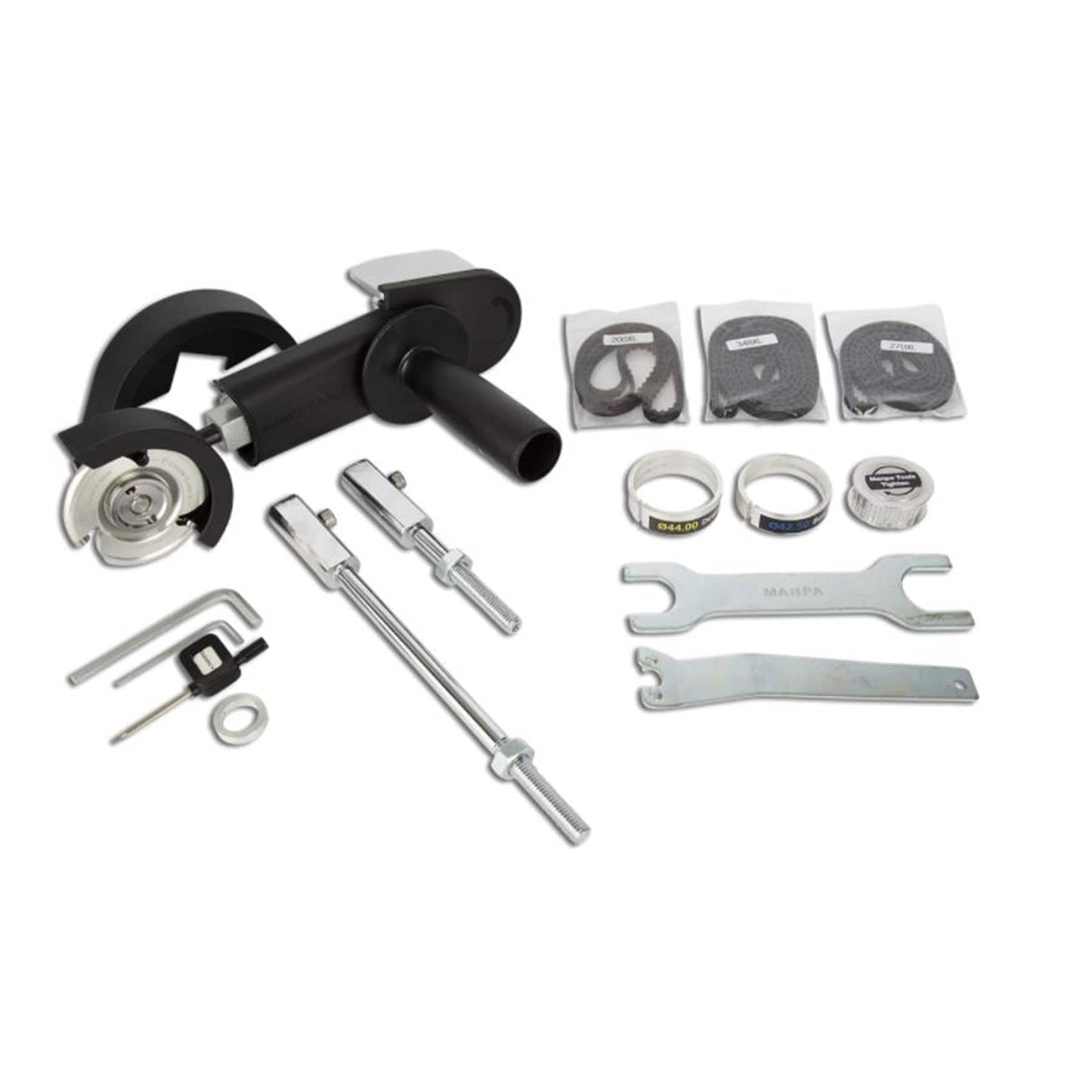

Includes
  • Extensions: 8”, 10-1/2” and 14” (200mm, 270mm, 348mm)
  • Circular Cutters: 3” (8mm) and 4” (8mm)
  • Adaptor Rings: 42.50mm and 44mm diameter, (41.5mm Flange Ring for Fein Angle Grinder sold separately
  • Timing Belts: 200, 270, 348 XL
  • Wrenches: Torx and L
  • Spanner
Fits
  • Bosch:  1375A, GWS8-45, GWS9-45, GWS18V-45
  • Makita:  GA4030K, GA4030, GA4530K, GA4530, GA4534, GA4530X, 9556NB, 9557NB, 9558PB, 9557PB, 9565PCV, GA4542C, XAG042Z, XAG09Z, XAG11Z, XAG16Z, XAG20Z, XAG17ZU, XAG21ZU
  • DeWalt:  DCG405B, DCG412B, DWE4011, DWE4012, DWE4120, DWE4120N
  • Milwaukee:  2783-20(22,22HD), 2781-20(21,22,22HD), 2980-20(21-22), 2981-20(21,22)
  • Hitachi:  G12SE2
  • Porter Cable:  PC750AG

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 5 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships via ground to the 48 contiguous states.

Return Information

King Arthur's Tools accepts returns for defective products only. Contact Woodcraft Customer Service at 800-225-1153 with return issues.

Warranty Information

King Arthur's Tools warranties their products for one year from date of purchase when used correctly as indicated in the instructions for the item. Contact King Arthur Tools at 800-942-1300 with warranty claims.
