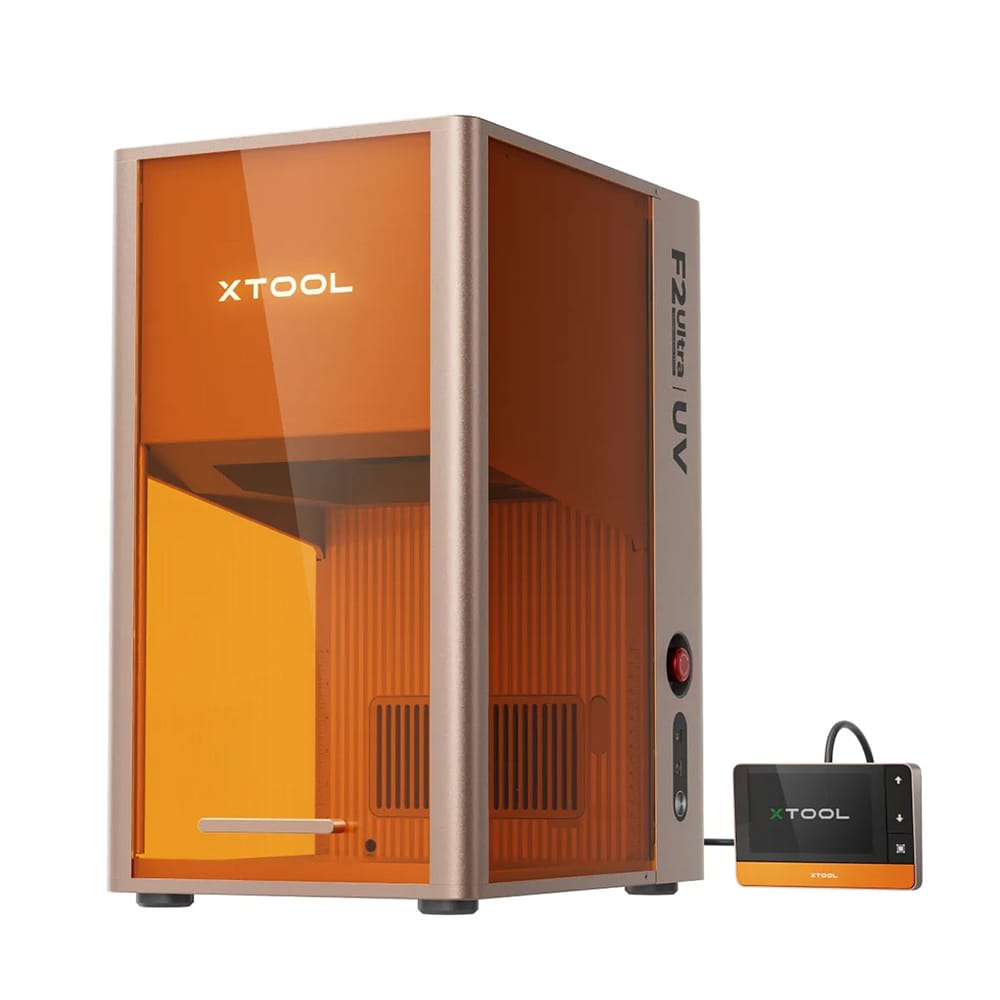

The xTool F2 Ultra UV 5W UV Laser Engraver gives woodworkers and makers access to a cold light engraving system that handles materials traditional lasers struggle to process. It expands production capability across glass, acrylic, ceramics and plastics without introducing heat damage that limits finish quality.
The 5W 355 nm UV laser operates with a spot size under 10 µm, allowing controlled engraving that produces clean edges without burning or discoloration. This removes the need for sanding or polishing to correct surface defects. High-speed engraving at up to 15,000 mm/s improves throughput during batch runs, which keeps production moving when handling multiple orders.
Dual 48 MP cameras guide positioning and alignment, reducing setup adjustments when switching between pieces. The system also supports 2D to 3D generation directly in software, removing the need for complex modeling before engraving. A 200 mm x 500 mm working area combined with support for rotary accessories allows engraving on flat and curved surfaces from a single platform.
Features:
- 5W 355 nm UV laser supports engraving across glass acrylic ceramics and plastic
- Cold light source prevents charring burning or yellowing on sensitive materials
- Spot size under 10 µm delivers micron-level engraving detail
- Engraving speed up to 15,000 mm/s supports higher batch output
- Dual 48 MP cameras improve positioning and alignment accuracy
- 2D to 3D generation reduces need for external modeling steps
- 200 mm x 500 mm work area supports larger projects
- Rotary compatibility enables 360° engraving on curved surfaces
- Fully enclosed system helps contain debris during operation
- Supports engraving embossing cutting and rotary processing
Specifications:
- Laser Type: UV
- Laser Power Output: 5 W (5000 mW)
- Laser Wavelength: 355 nm
- Engraving Speed: Up to 15,000 mm/s
- Work Area: 200 mm x 500 mm
- Spot Size: <10 µm
- Product Dimensions: 11.6" x 16.9" x 20.5"
- Item Weight: 49.6 lb
- Model Number: MXF-K007-002
- ASIN: B0GFHVHXWJ
What's Included:
- (1) F2 Ultra UV Laser Engraver
- (1) Inner Engraving Pack
- (1) Touchscreen Controller
- (1) Pipe
- (1) Power Adapter
- (1) Power Cable
- (1) USB Cable
- (1) Key
- (1) L-Shaped Positioning Piece
- (1) Slatted Panel
- (1) Lint-Free Cloth
- (1) Screwdriver 2.5 mm
- (1) Material Pack
- (1) Quick Start Guide
- (1) Safety Instructions
