The xTool S1 40W Enclosed Diode Laser Cutter delivers high-output laser cutting and engraving in a fully enclosed platform designed for accuracy, safety and workflow efficiency. With a 40W diode laser, fast travel speeds and Wi-Fi or USB connectivity, this wood carving machine handles detailed engraving and production cutting from a compact footprint.
A 0.08 mm x 0.10 mm laser spot supports crisp detail while the 600 mm/second working speed helps complete projects faster. The enclosed design and broad international safety certifications provide confidence in shared workspaces, classrooms and professional shops. A generous 498 mm x 319 mm work area accommodates signs, boxes, decorative panels and other project components without frequent repositioning.
For expanded production capability, the system supports an Automatic Conveyor Feeder with a working area up to 470 mm x 3000 mm when used with the required transmission rail. Integrated compatibility with XCS and LightBurn software provides flexible design and machine control across Windows, macOS, Android, iOS and iPad platforms. The optional Smart Air Assist automatically adjusts airflow to improve cutting performance and help produce cleaner edges.
Features:
- Interchangeable laser modules expand material compatibility across a wide range of engraving and cutting applications
- Pin-point™ positioning system delivers accuracy up to 10 times greater than single-camera systems
- 23.93" x 15.16" bed size supports larger projects and more efficient batch processing

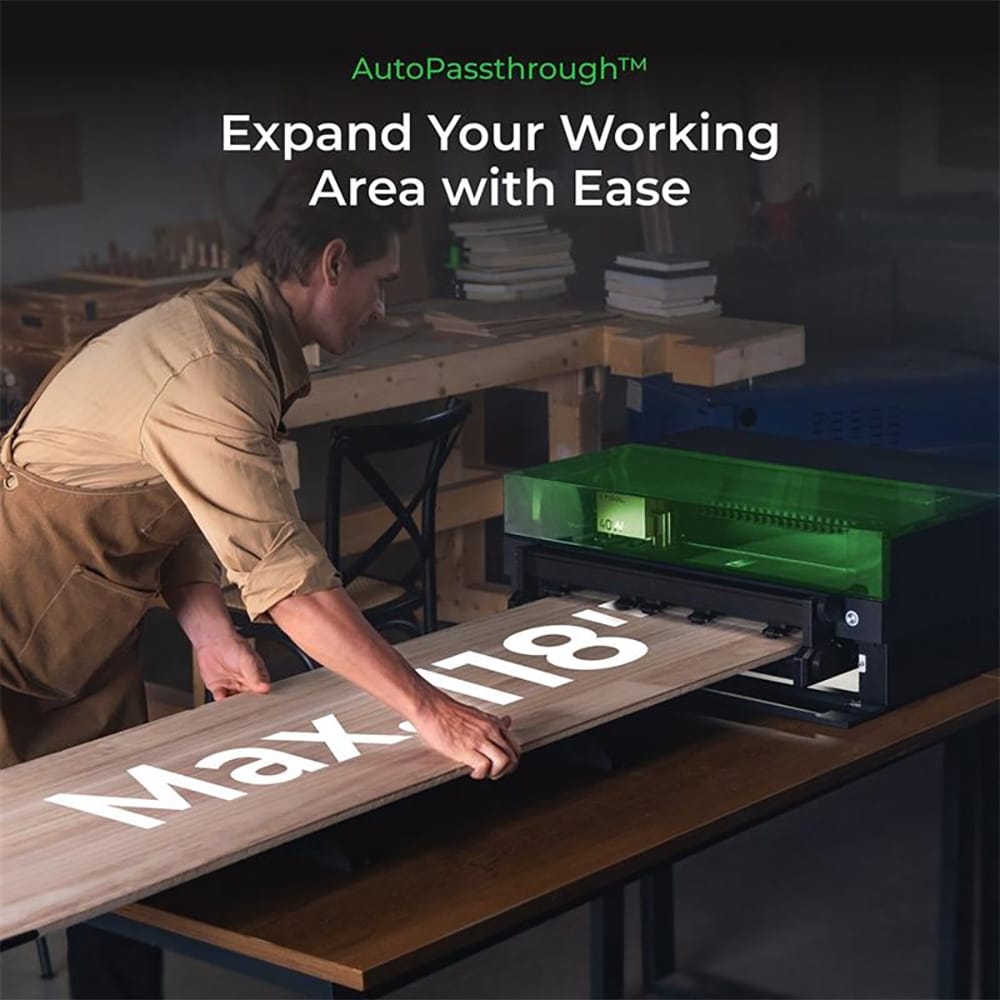

- AutoPassthrough™ accommodates longer materials without manual repositioning
- 3D Curve™ Engraving follows contoured surfaces for consistent engraving results
- Class 1 safety system includes five-direction flame detection
- Emergency stop button provides immediate shutdown when needed
- Lid-open safety stop automatically pauses operation when the enclosure is opened
- Laser key lock helps prevent unauthorized use
Specifications:
- Model Number: P1030657
- Product Type: Enclosed Diode Laser Cutter
- Laser Power: 40W
- Spot Size: 0.003" x 0.004" (0.08 x 0.10 mm)
- Maximum Working Speed: 23.6"/Sec. (600 mm/s)
- Working Area: 19.61" x 12.56"
- Working Area With Automatic Conveyor Feeder: 18.5" x 118.1"
- Output Voltage: 25V
- Current Draw: 11A
- Connectivity: USB/Wi-Fi
- Compatible Software: XCS, LightBurn
- Supported File Formats: SVG, DXF, JPG, JPEG, PNG, BMP, TIF
- Product Weight: 44 lb.
- Dimensions Without Riser Base: 30.1" x 22.1" x 7.2"
- Dimensions With Riser Base: 30.1" x 22.1" x 10.6"
- Certifications: FCC, FDA, IC, RCM, SAA, UKCA, Telec, PSE, CE-RED, RoHS, EN60825, CE-MD

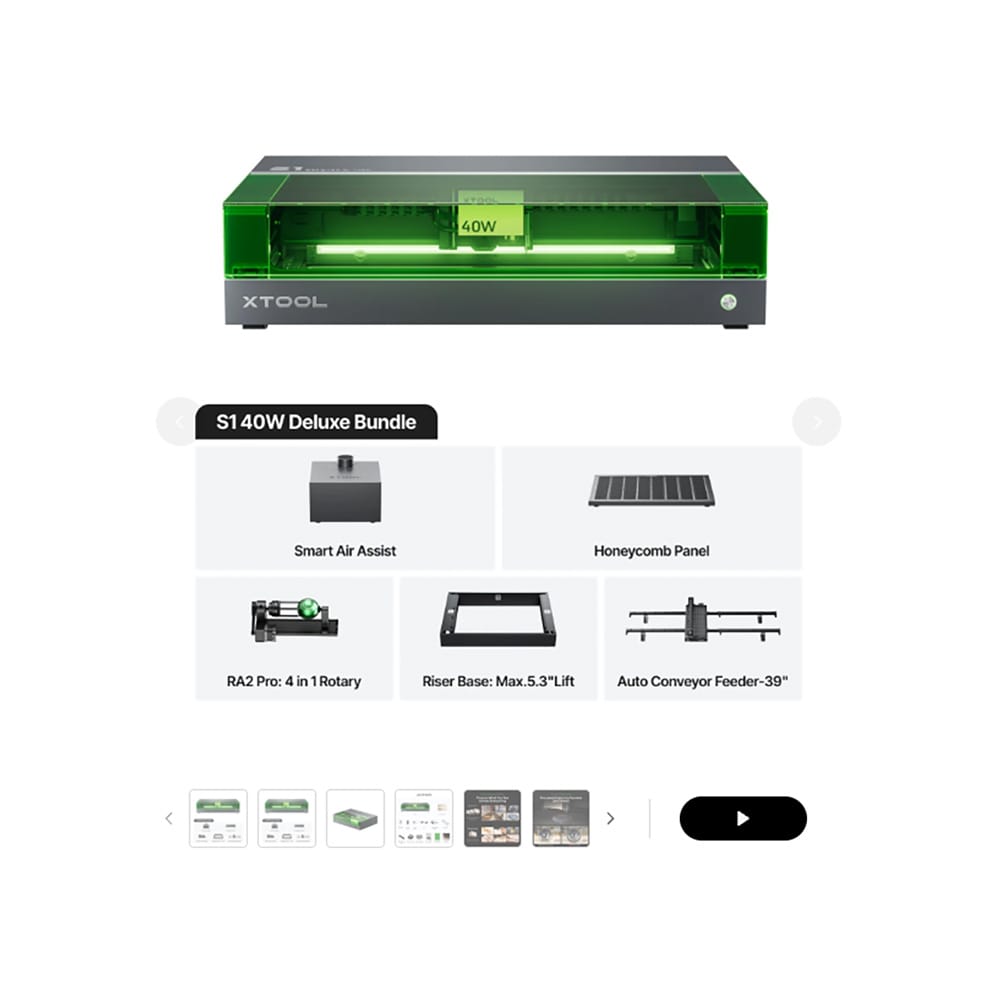

What's Included:
- (1) S1 40W Enclosed Diode Laser Cutter
- (1) Smart Air Assist
- (1) Honeycomb Panel
- (1) RA2 Pro 4-in-1 Rotary Attachment
- (1) Riser Base (Max. 5.3" Lift)
- (1) Auto Conveyor Feeder - 39"
