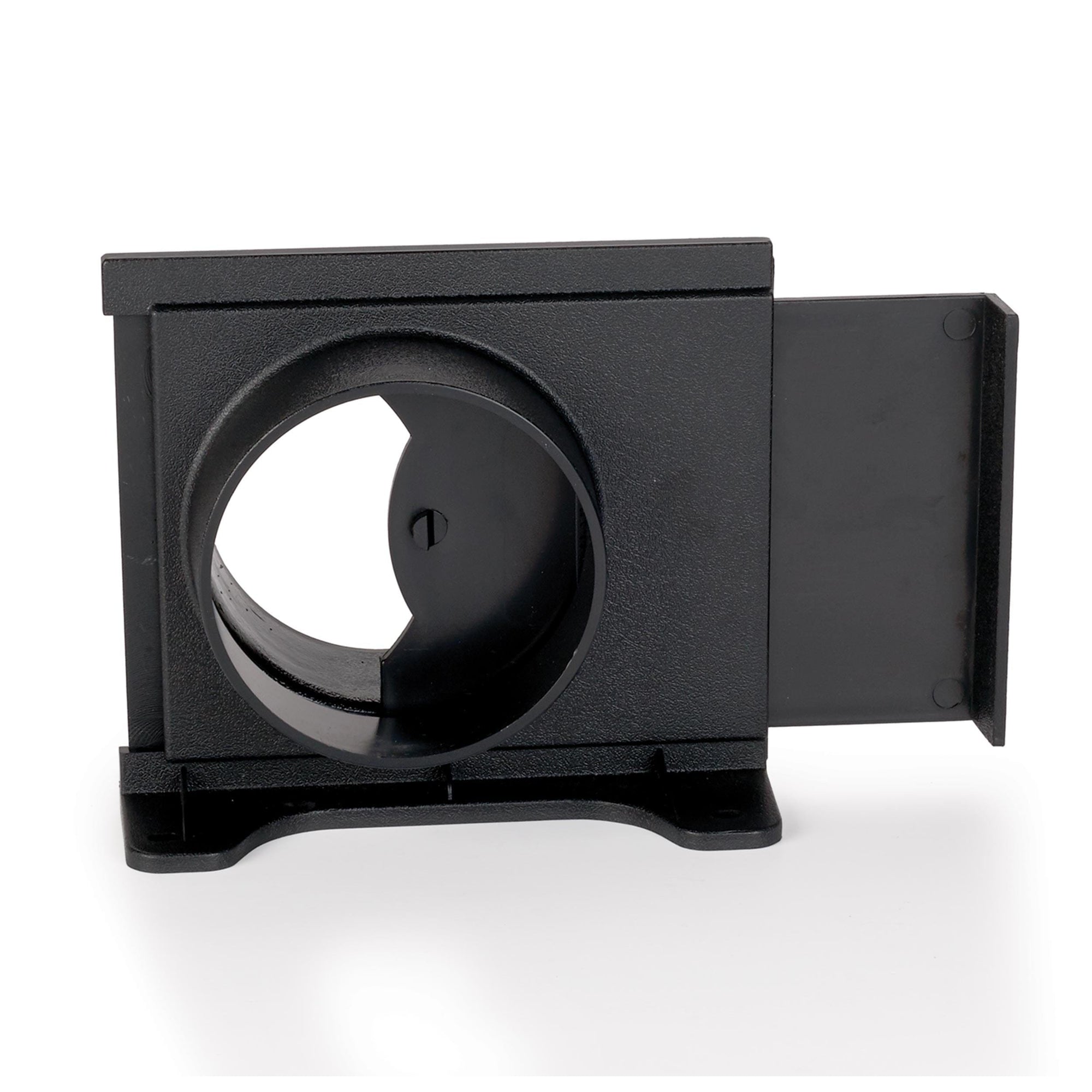

Wall mount feature on this WoodRiver® Dust Connection™ Blast Gate Dust Collection Fitting provides a large, 6-1/2" x 3-1/4" flange with mounting holes to attach the fitting on the wall in either the horizontal or vertical direction. Common blast gate function allows you to close one branch of your central dust collection system while you are using the other. Simple open or shut design has flat, square plate that moves inside a 3-sided frame to provide a pass-through or shut-off to connect your dust collector to your system or a branch line to one of your tools. Molded fitting has overall dimensions of 6-1/2" long and 5-1/2" wide closed; 10-1/4" long and 5-1/2" wide in the open position. Each 4" OD port on either side of the gate is 1-1/2" long to provide room to slide on hose and apply hose clamps at each connection. Molded using ABS material to maintain shape and withstand woodshop environment.

Features:

• Wall mount flange molded on blast gate fitting to shut-off one dust collection line at a time
• Simple open or shut design has flat, square plate that moves inside a 3-sided frame
• Each 4" OD port is 1-1/2" long to provide room to slide on hose and apply hose clamps
• Durable, abrasion resistant construction

Specifications:

• Overall Dimensions: 6-1/2" x 5-1/2" closed and 10-1/4" x 5-1/2" in open position
• Flange Dimensions: 6-1/2" x 3-1/4"
• Size: 4"
• Material: ABS Plastic

What's Included:

• (1) WoodRiver Dust Connection - 4" Wall Mounted Basic Blast Gate for Dust Collection System
