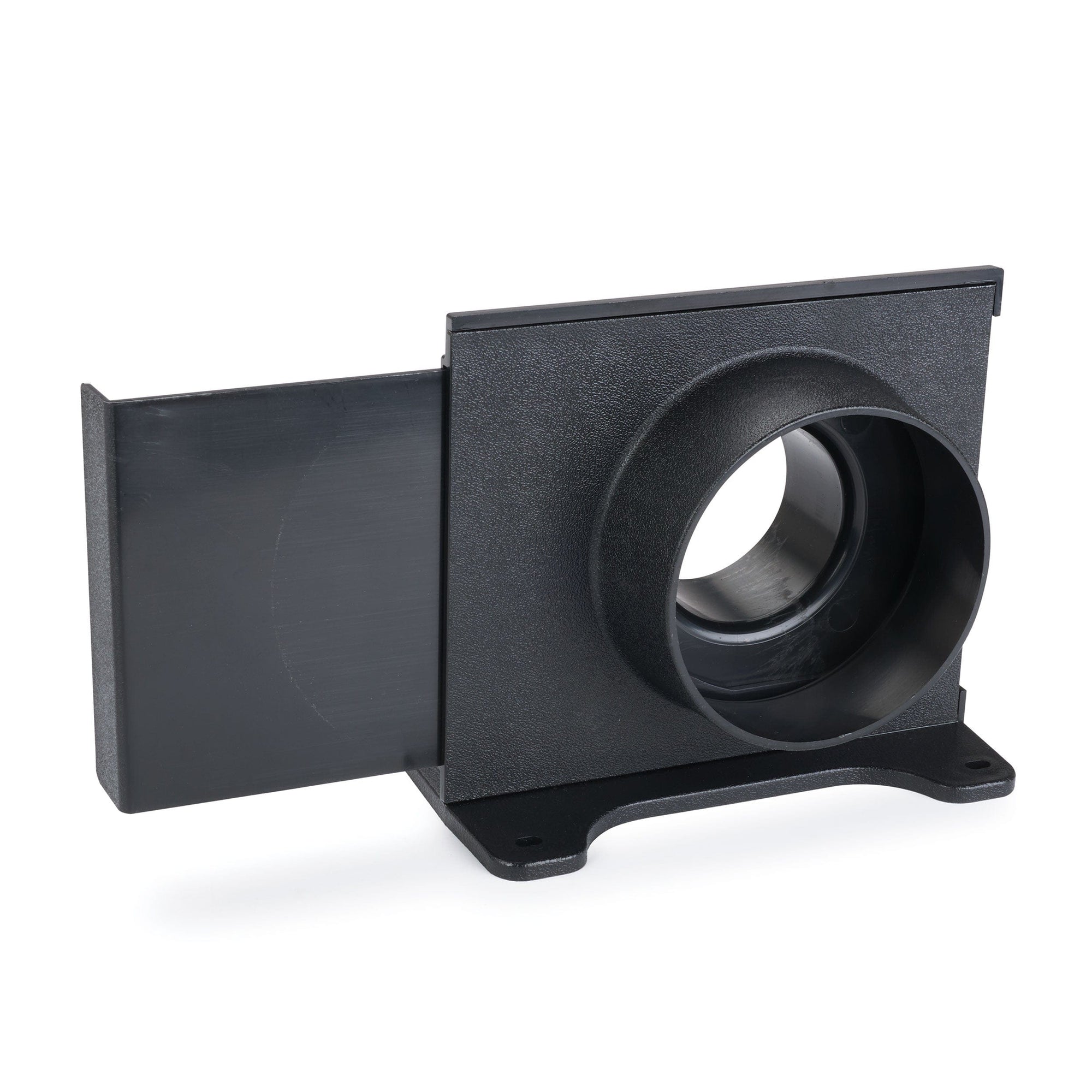

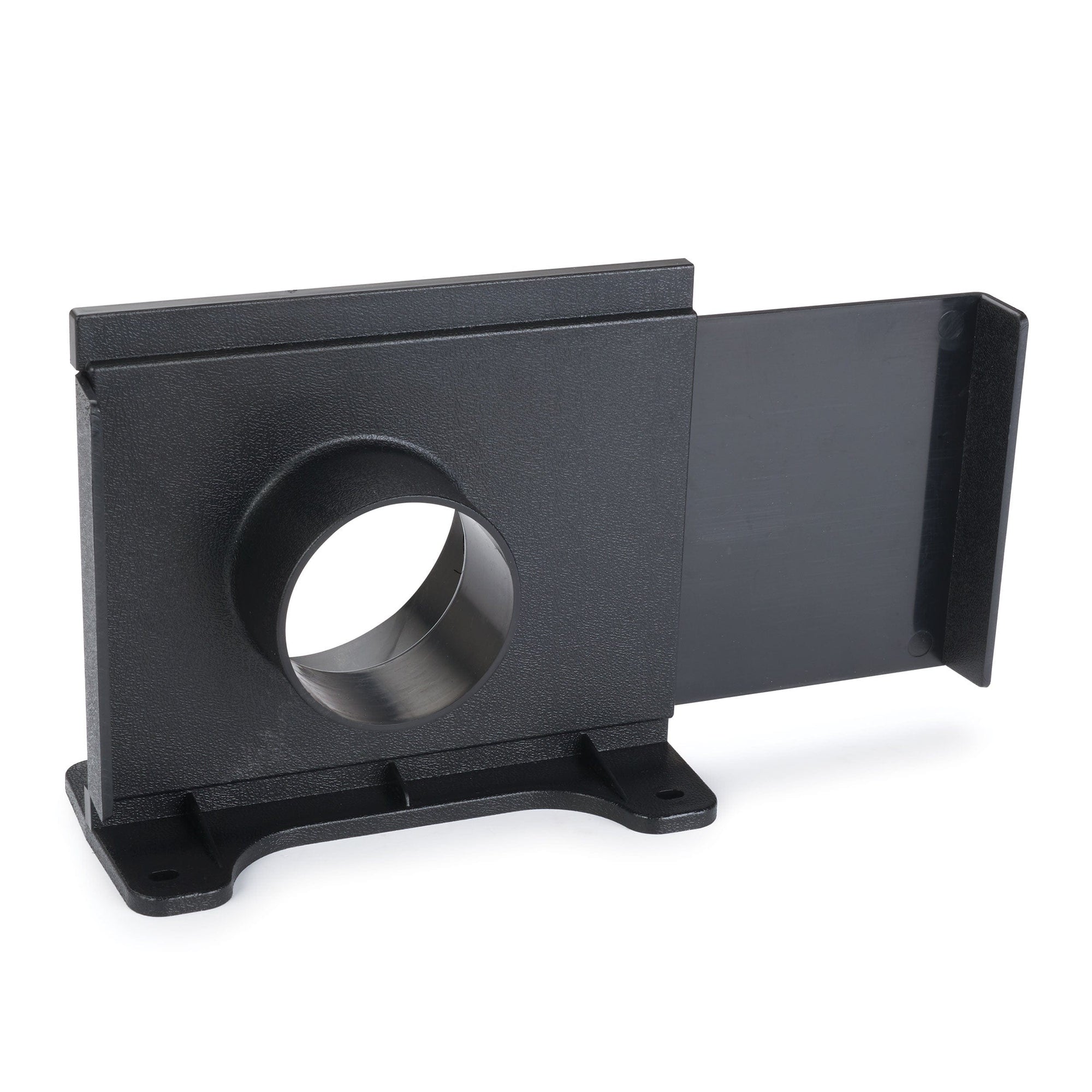

Wall mount feature on this WoodRiver® Dust Connection™ Self-Clean Reducer Blast Gate provides a large, 6-1/2" x 3-1/4" flange with mounting holes to attach the fitting on the wall in either the horizontal or vertical direction. Self-clean design has rectangular plate with opening on one end that moves inside a 2-sided frame to prevent clogging. Blast gate function provides a pass-through or shutoff to connect your shop vacuum to your central dust collection system or a branch line to one of your tools. Molded fitting has overall dimensions of 10-1/4" long and 5-1/2" wide in the open or closed position. 4" OD port on one side of the gate is 1-1/2" long; 2-1/2" OD port on other side is 1-1/4" long. Both ports provide room to slide on hose and apply hose clamps at each connection. Molded using ABS material to maintain shape and withstand woodshop environment.

Features:

• Wall mount flange molded on blast gate
• Durable, abrasion resistant construction
• Self-clearing design helps prevent clogging

Specifications:

• Fitting Dimensions: 10-1/4" x 5-1/2" in open or closed position
• Flange Dimensions: 6-1/2" x 3-1/4"
• Material: ABS plastic
• Port Sizes: 4" OD port is 1-1/2" long; 2-1/2" OD port is 1-1/4" long

What's Included:

• (1) WoodRiver Dust Connection - Self-Clean Reducer Blast Gate
