WoodRiver Dust Connection

2-1/2" Wall Mount Self-Clean Blast Gate

Item #173017 Model YW1138
Regular price $9.99
Sale price $9.99 Regular price $9.99

New Lower Price!

Wall mount feature on this WoodRiver® Dust Connection™ Self-Clean Blast Gate Dust Collection Fitting provides a large, 6-1/2" x 3-1/4" flange with mounting. . . View More Details

In Stock

Shipping Info

Details

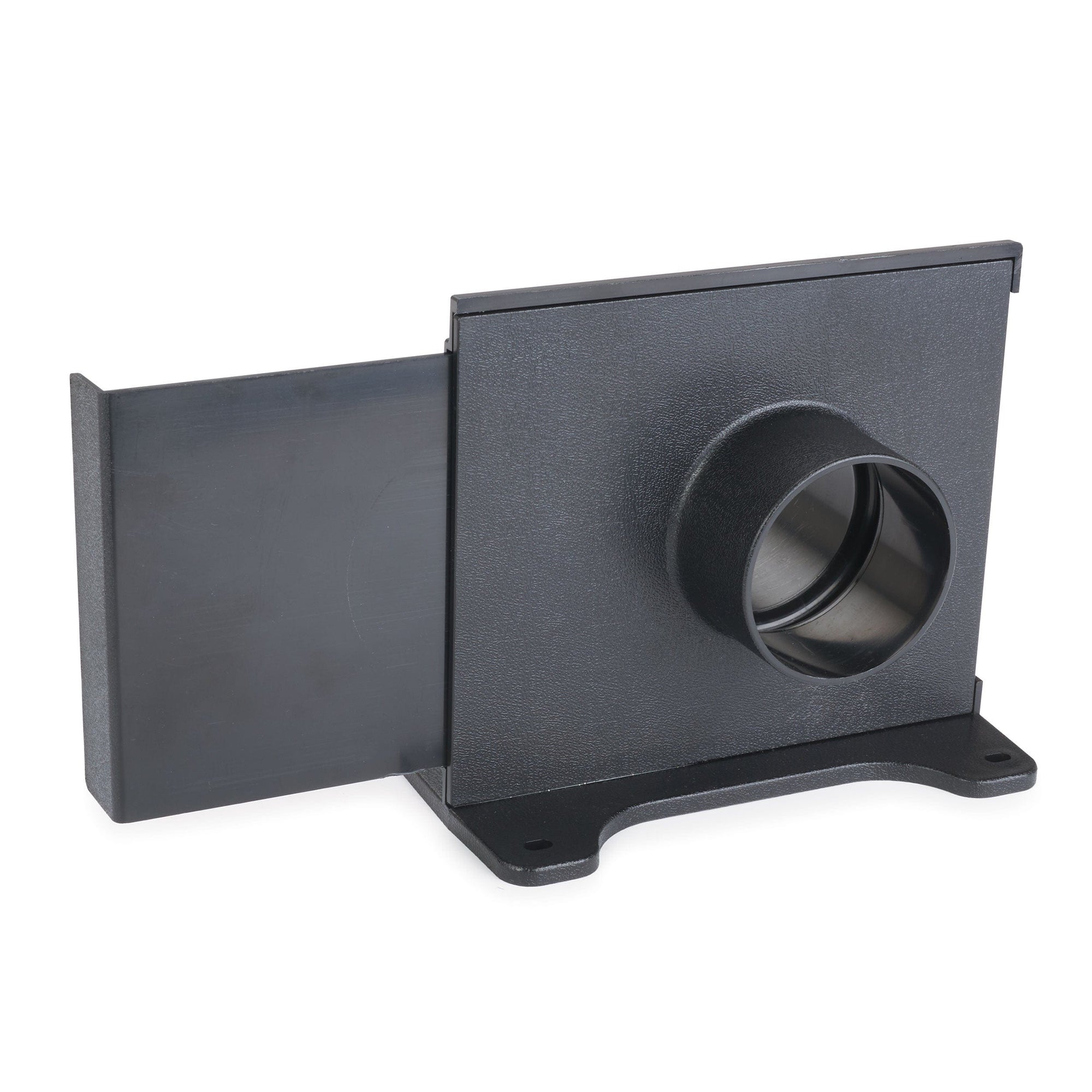

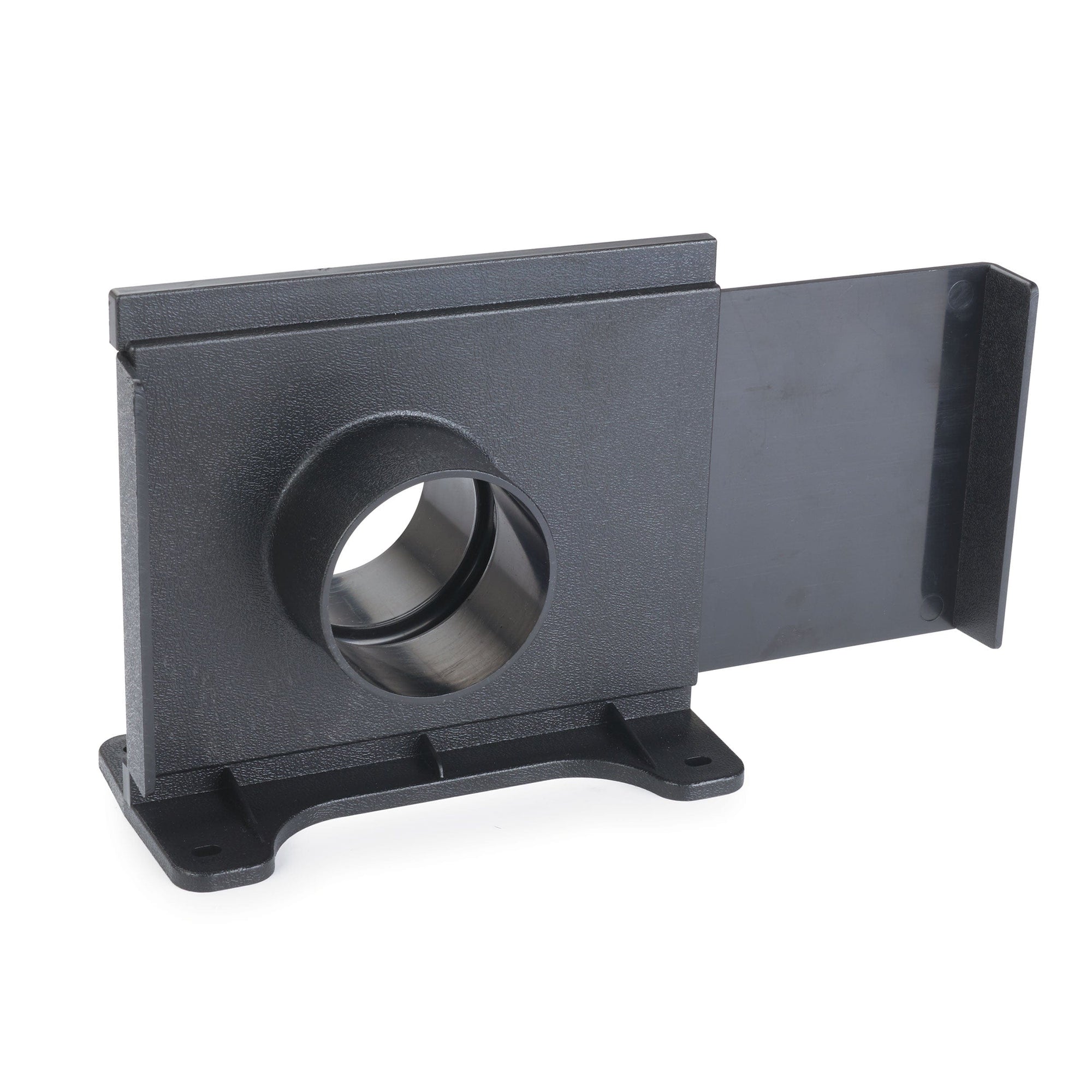

Wall mount feature on this WoodRiver® Dust Connection™ Self-Clean Blast Gate Dust Collection Fitting provides a large, 6-1/2" x 3-1/4" flange with mounting holes to attach the fitting on the wall in either the horizontal or vertical direction. Self-clean design has rectangular plate with opening on one end that moves inside a 2-sided frame to prevent clogging. Blast gate function provides a pass-through or shutoff to connect your shop vacuum to your central dust collection system or a branch line to one of your tools. Molded fitting has overall dimensions of 10-1/4" long and 5-1/2" wide in the open or closed position. Each 2-1/2" OD port on either side of the gate is 1-1/2" long to provide room to slide on hose and apply hose clamps at each connection. Molded using ABS material to maintain shape and withstand woodshop environment.

Features:

  • Wall mount flange molded on blast gate fitting
  • Self-cleaning design minimizes clogging
  • Durable, abrasion resistant construction

Specifications:

  • Fitting Dimensions: 10-1/4" x 5-1/2" in open or closed position
  • Flange Dimensions: 6-1/2" x 3-1/4"
  • Port Size: 2-1/2" OD port is 1-1/4" long
  • Material: ABS plastic

What's Included:

  • (1) WoodRiver Dust Connection - 2-1/2" Wall Mount Self-Clean Blast Gate
