Woodpeckers

Ultra-Shear Carbide Turning Tool - Full Size Round

Item #163465 Model FSR-303
Regular price $ 149 . 99
Sale price $ 149 . 99 Was $149.99

Woodpeckers

Ultra-Shear Carbide Turning Tool - Full Size Round

Item #163465 Model FSR-303
Regular price $ 149 . 99
Sale price $ 149 . 99 Was $149.99
The Woodpeckers Ultra-Shear Turning Tool with Round Carbide Insert is shaped for smooth interior cuts and refined surface control on curved forms. It . . . View More Details
In Stock Online Shipping Info

About This Product

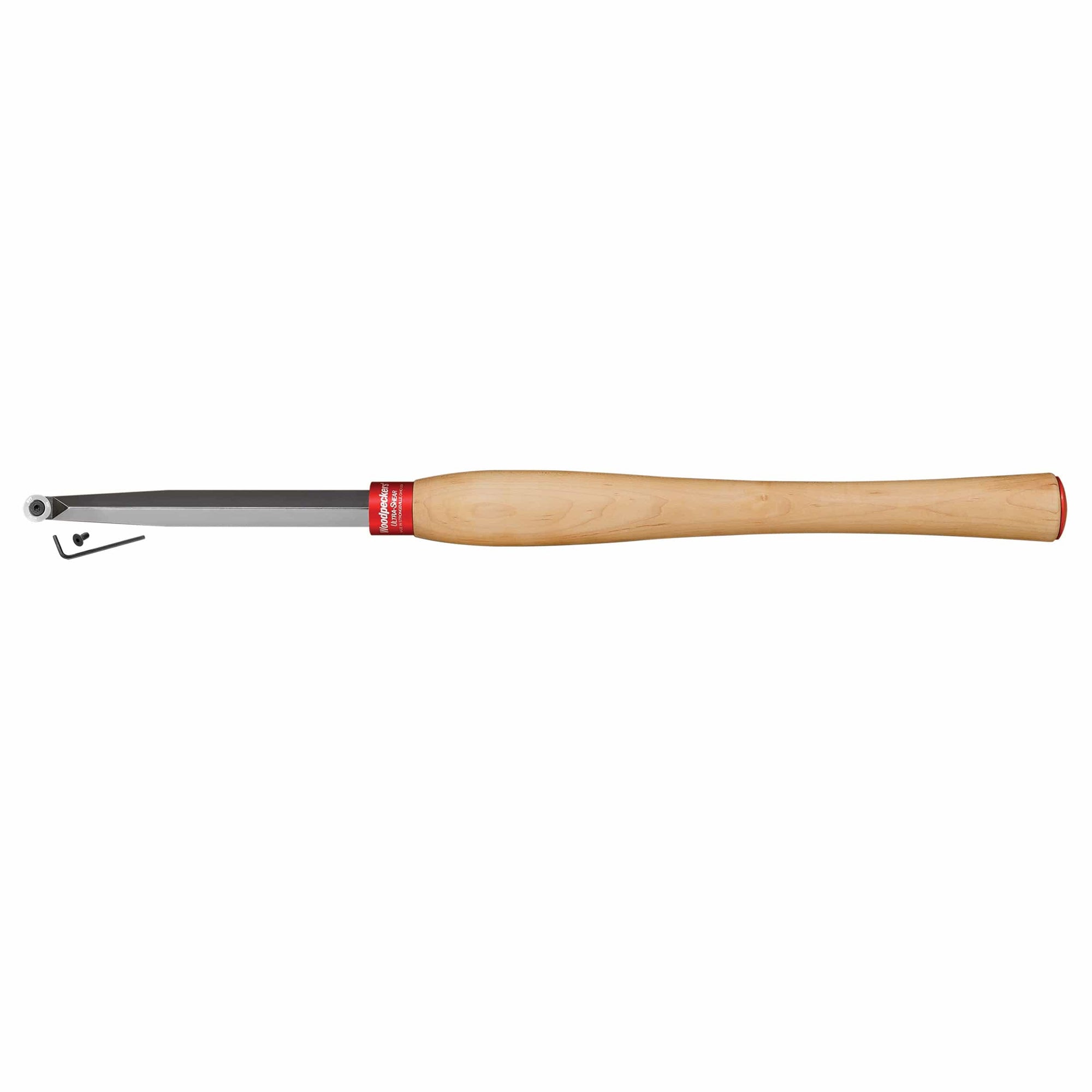

The Woodpeckers Ultra-Shear Turning Tool with Round Carbide Insert is shaped for smooth interior cuts and refined surface control on curved forms. It is suited for bowl and spindle work where consistent contact and clean finishes matter. The round Ultra‑Shear carbide insert tracks smoothly along concave surfaces while maintaining a stable cutting presentation.

The tool performs shaping cuts on centerline, then rolls into the engineered 45° shear scraping angle for finishing passes. That geometry allows the cutter to slice fibers cleanly inside bowls and along coves, reducing sanding time and preserving crisp curves. The ChroMoly steel shaft adds rigidity that keeps the tool steady while the polished surface glides easily across the tool rest.

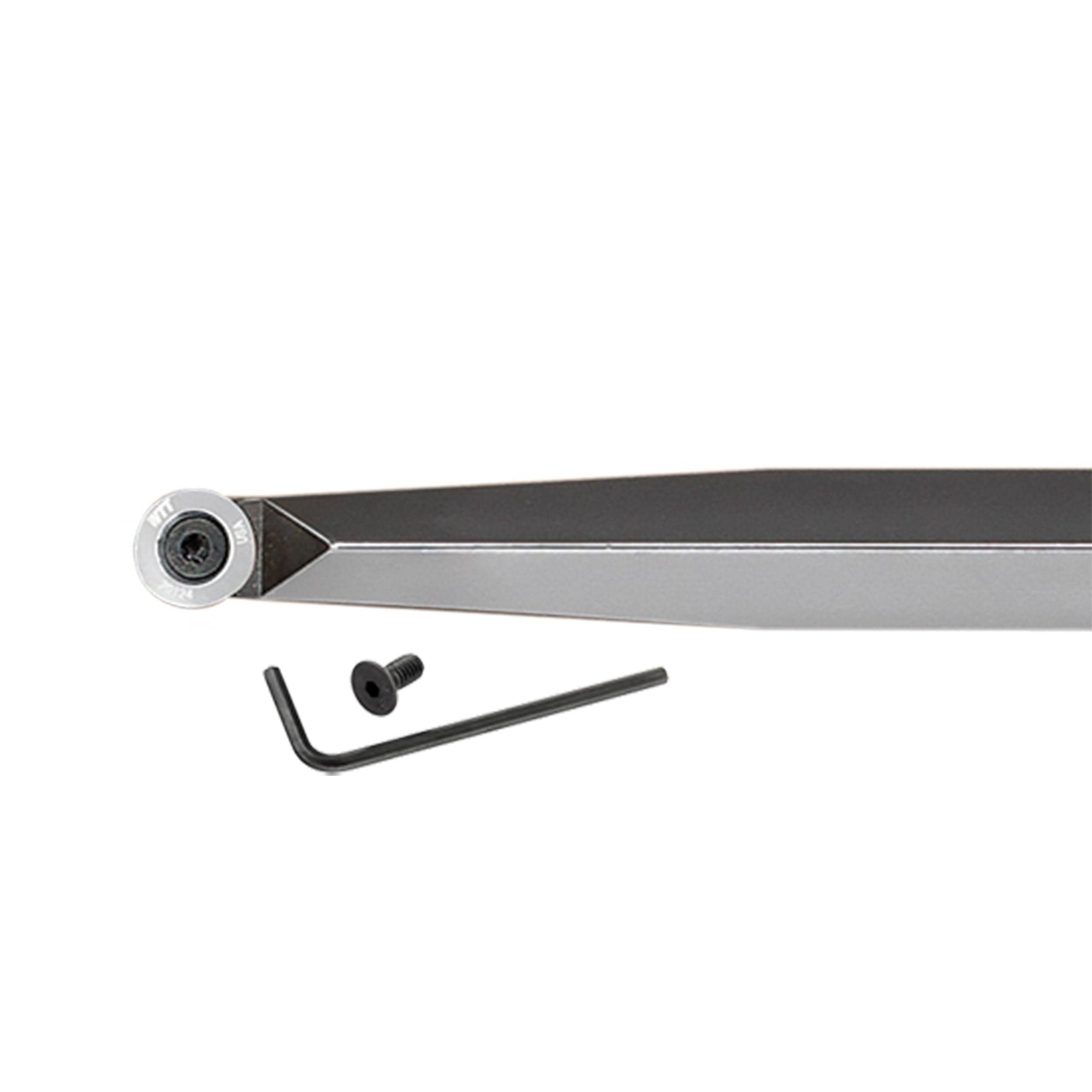

When the edge dulls, simply rotate the insert to a fresh edge, and when all edges are used, replace the insert and continue working without interruption. When removing the locking screw, first ensure the screw head pocket is completely clean of sawdust and residue, and that the wrench is fully seated in the socket before you attempt to remove it. Firmly turn the screw counterclockwise to loosen. When reinstalling the new screw, apply a light dab of anti-seize compound to the threads.

Features:

  • Designed for inside work on smaller bowls and for cutting coves on spindle projects
  • Ideal for producing a smooth, refined finish on curved and concave surfaces, as well as general turning
  • Useful for both bowl and spindle work
  • For woodworkers of all skill levels
  • Utilizes a nano-grain carbide matrix for superior edge retention
  • Polished mirror-finish on the cutting surface enhances performance
  • Precision-ground bevel ensures the sharpest and longest-lasting inserts
  • Induction-hardened ChroMoly alloy tool shafts
  • Balanced, ergonomic hard rock maple handle
  • CNC precision-machined insert seat
  • Protective end cap displays the tool shape and size for quick selection from a tool rack

Specifications:

  • Overall Length: 24"
  • Cutter Type: Round Cutter
  • Insert Material: Nano‑grain carbide
  • Tool Bar Material: ChroMoly alloy steel
  • Tool Bar: 3/4” x 7-1/2”
  • Handle Length: Approximately 16”
  • Handle Material: Rock Maple

What's Included:

  • (1)Full Size Woodturning Tool with Round Carbide Insert
  • (1) Hex Key

Notes:

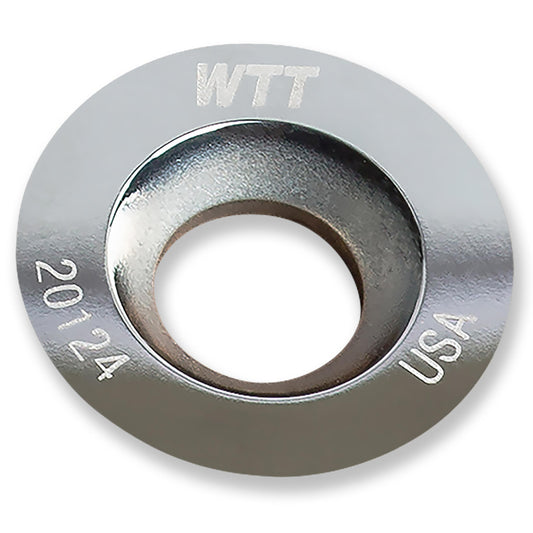

  • Purchase replacement nano-grain carbide inserts separately. Replacement cutter used is #163476: .63 Round Insert.
