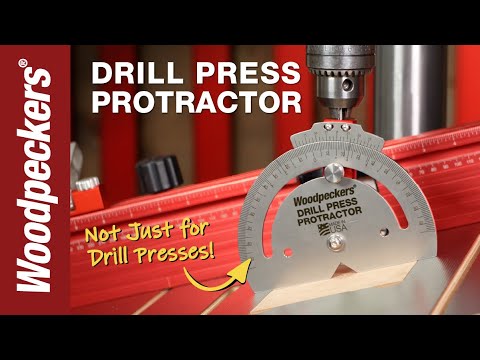

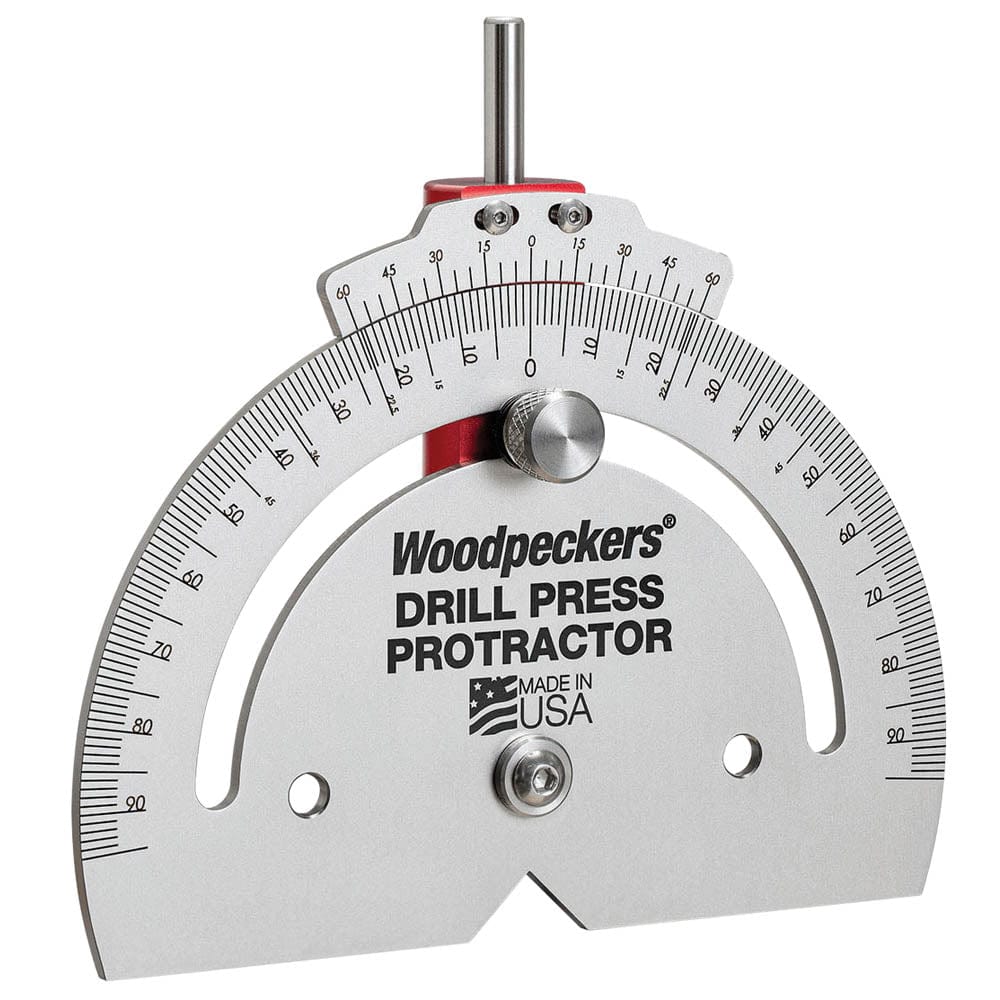

The Woodpeckers Drill Press Protractor is a deceptively simple tool that delivers a high level of accuracy when setting angles on your drill press and other critical tools in your shop. For a woodworker to step away from straight and square and start incorporating angles into joinery and design marks a significant milestone. Accurately setting angles on tools and jigs is a huge part of the challenge. The Drill Press Protractor uses an engraved, easy-to-read Vernier scale that allows you to set an angle as precisely as 5 minutes of a degree. Once your angle is set, simply mount the Drill Press Protractor in your chuck and adjust the table to match.
Features:
- Accurately set a drill press to any angle or return to square
- Widely spaced and easy-to-read scales
- V-machined into the base for setting up on the center of a dowel

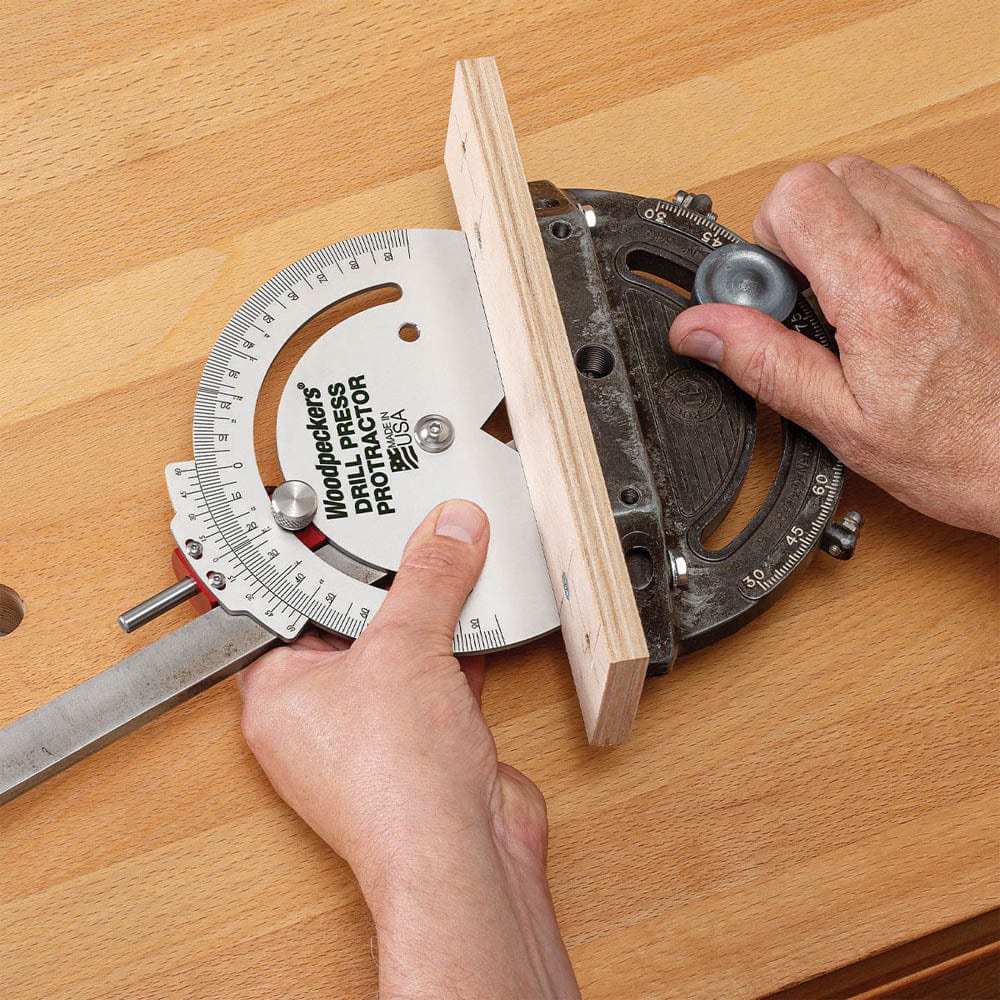

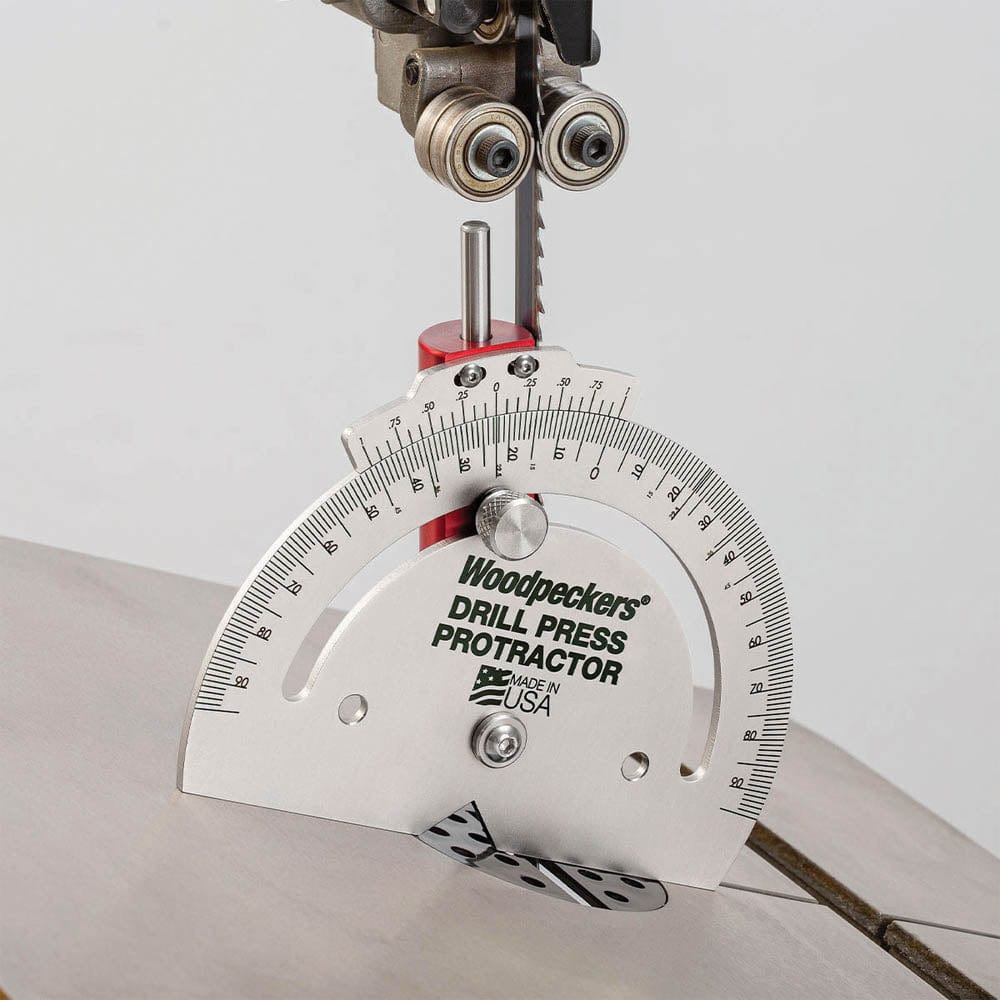

- Can also be used for setting miter gauges and bandsaws
- Made in Strongsville, Ohio
Specifications:
- Angle Range: Can measure from 95 degrees - one side, zero to 95 degrees on the other
- Shaft Diameter: 1/4" Shaft to mount into drill press chuck
- Materials: Stainless Steel and anodized aluminum components
What’s Included:
- (1) Woodpeckers Drill Press Protractor
