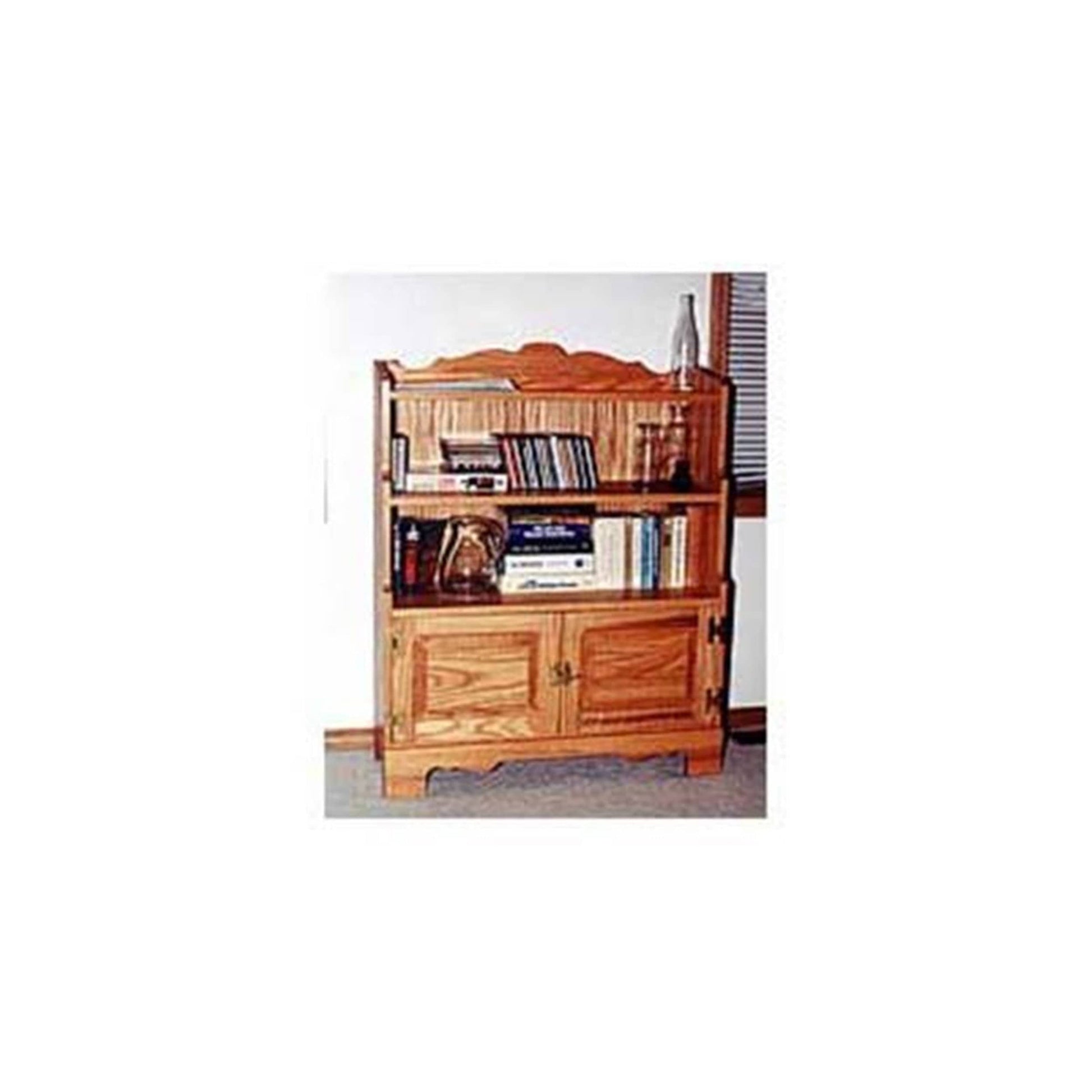

Woodworking Project Paper Plan to Build Bookcase with Cabinet
Recreate this sturdily designed 18th century styled pine cupboard with 21st century upgrades. The raised paneled doors with hammered "H" hinges and the use of a bar latch and strike give this piece an authentic 18th century look.
Pegged mortise and tenon construction of the door frame is shown in full size detail. Includes full-size blueprint style plan with all joinery shown in actual size, bill of materials/cutting list, detailed exploded diagram, and hardware requirements list. You can measure and trace straight from the drawing if necessary.
NOTE: The exploded diagram is so detailed that project specific assembly instructions are not provided.
- Size: 32" W x 11-3/4" D x 41" H
- Project Level: Beginner
