Wood-Mizer

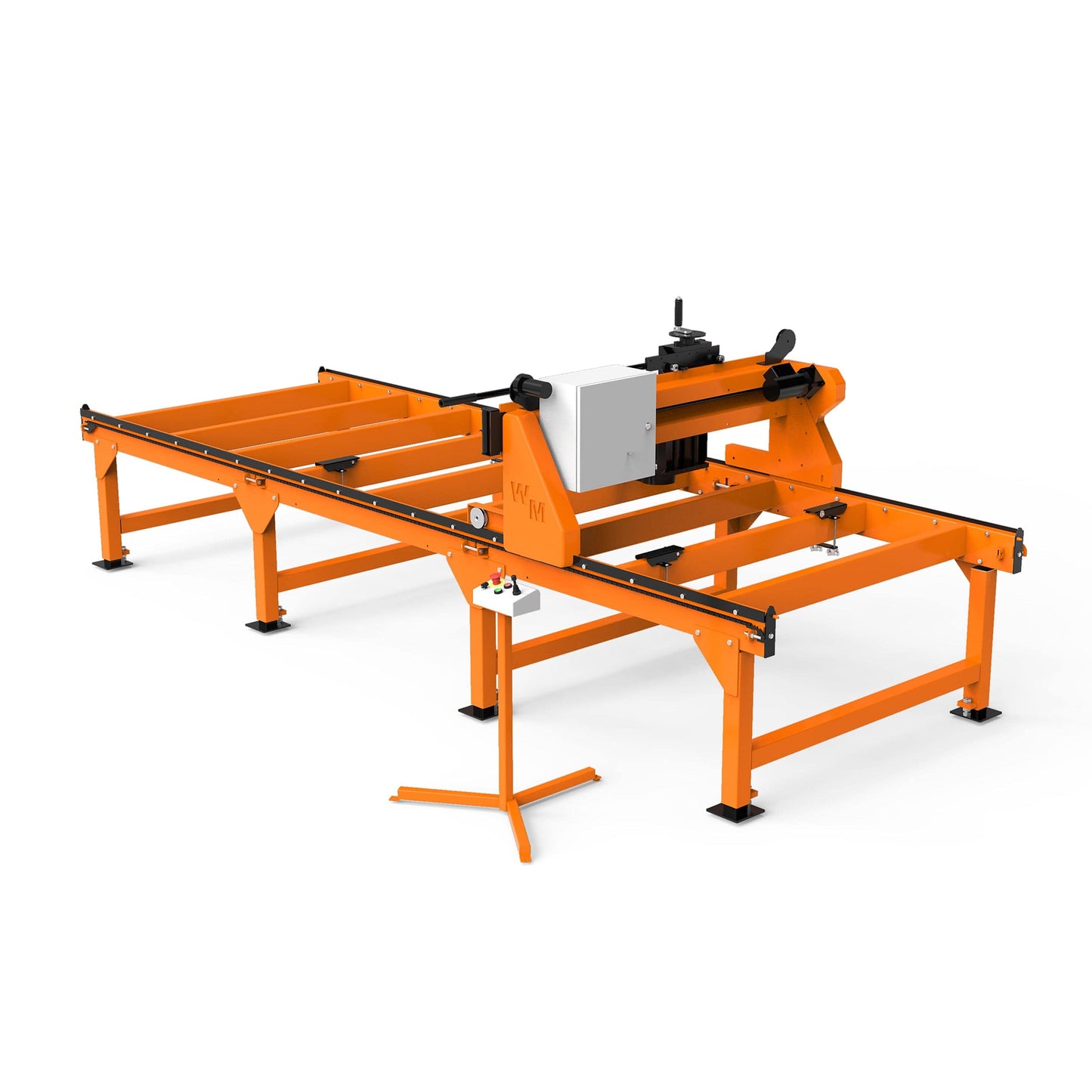

MB200 SlabMizer 54" - 230V 1-Phase with Auto Feed

Item #191719 Model MB200EA3UAF
Regular price $19,995.00
Sale price $19,995.00 Regular price $19,995.00
The SlabMizer MB200 Slab Flattener efficiently surfaces and flattens wood slabs, boards, burls, cookies, and other wide material with minimal labor. C. . . View More Details

Ships from Manufacturer

Shipping Info

Details

The SlabMizer MB200 Slab Flattener efficiently surfaces and flattens wood slabs, boards, burls, cookies, and other wide material with minimal labor. Compared to a traditional router or planer, the SlabMizer flattens wider and thicker material up to 56” wide and 8” thick in less time using powered cutter head directional controls with variable feed speed. For larger capacity, 5’ table extensions can be added to extend the material length. Also, flatten wide slabs hands free with the Auto Feed that automatically flattens material without an operator. The SlabMizer Auto Feed includes three magnetic stops, two electric eye auto-feed sensors, a light indicator, and all required wiring for simple installation and operation.


Features:



  • Flatten Material Up To 56" Wide

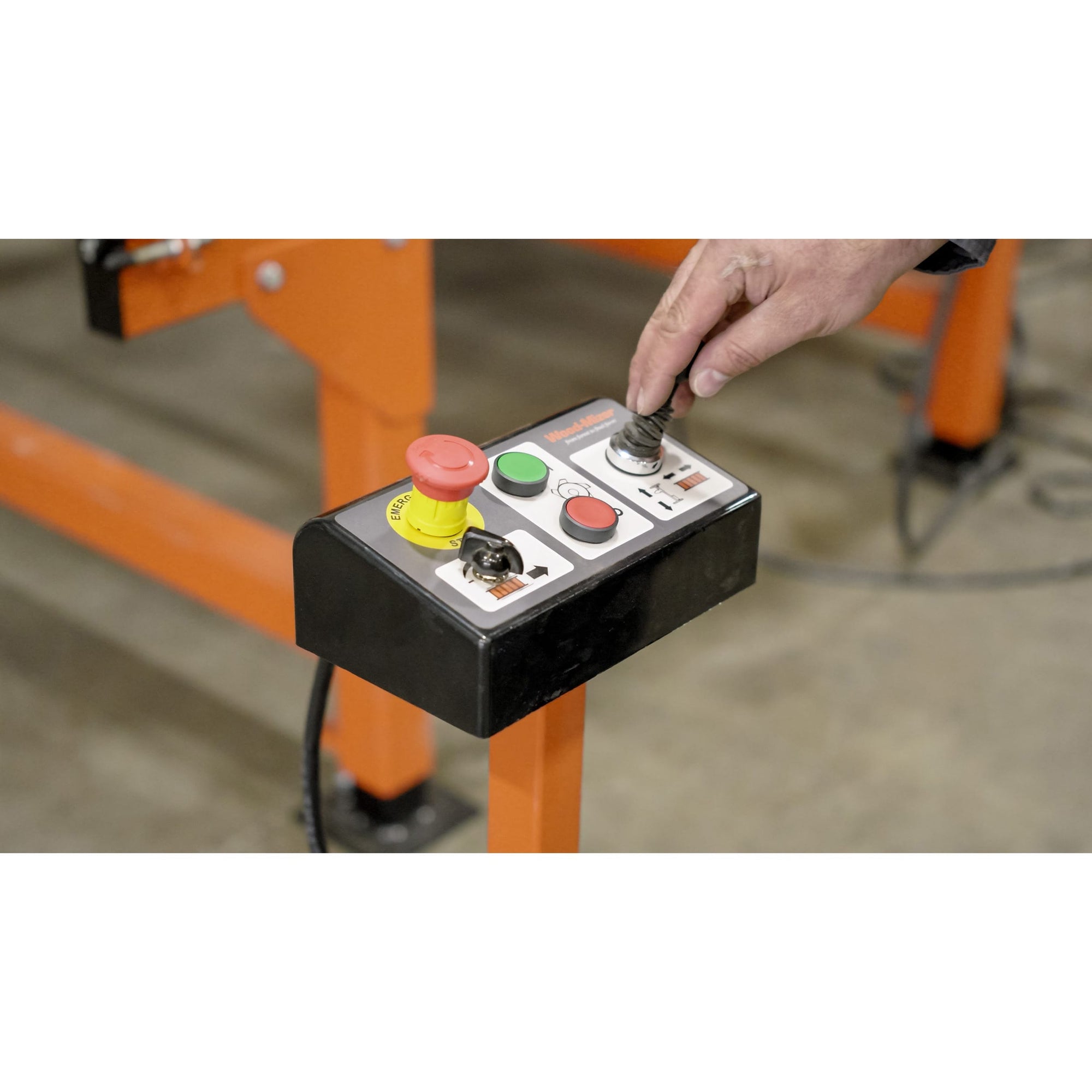

  • Power Feed Controls
  • Modular Table
  • 5" Cutting Head with Carbide Inserts

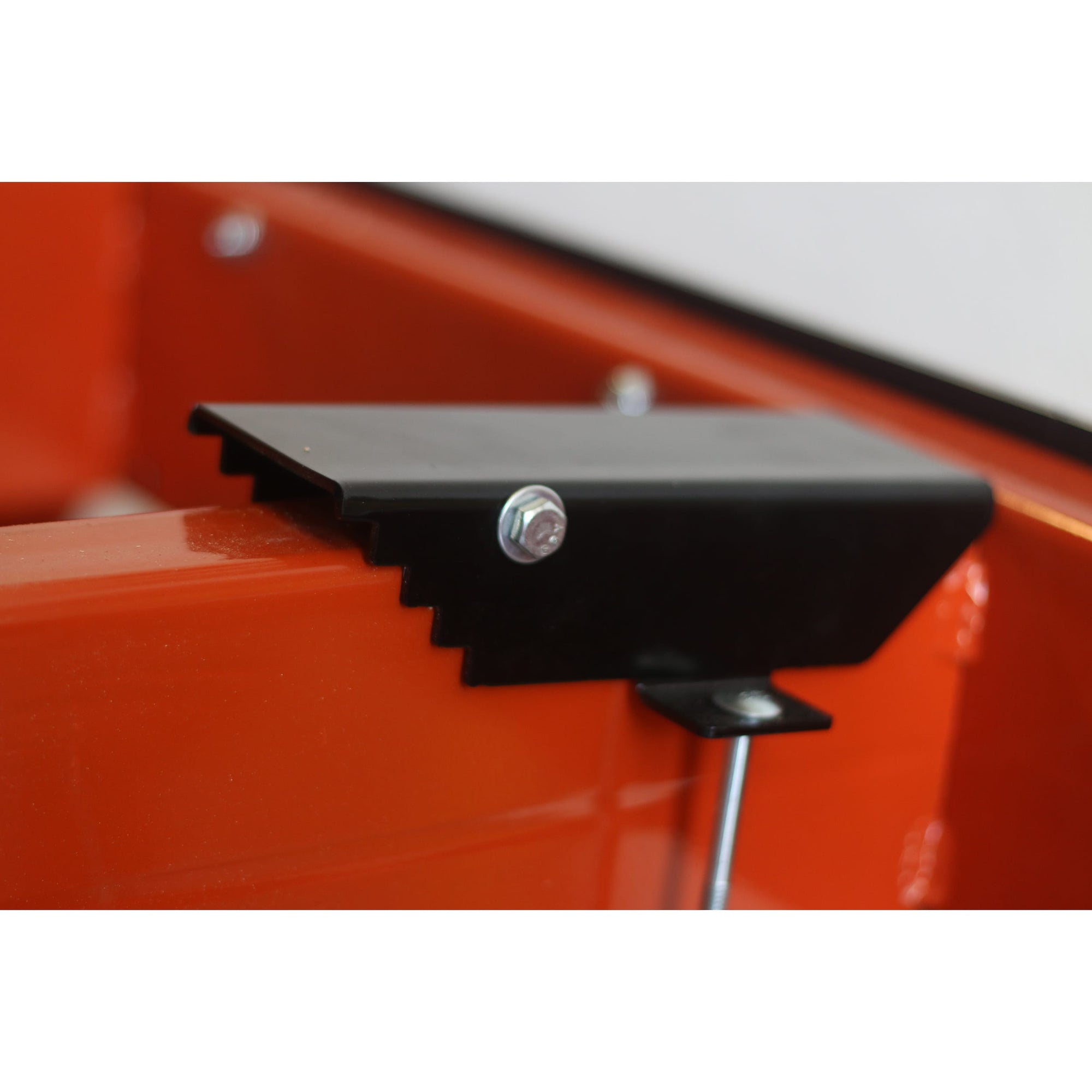

  • Adjustable Clamps

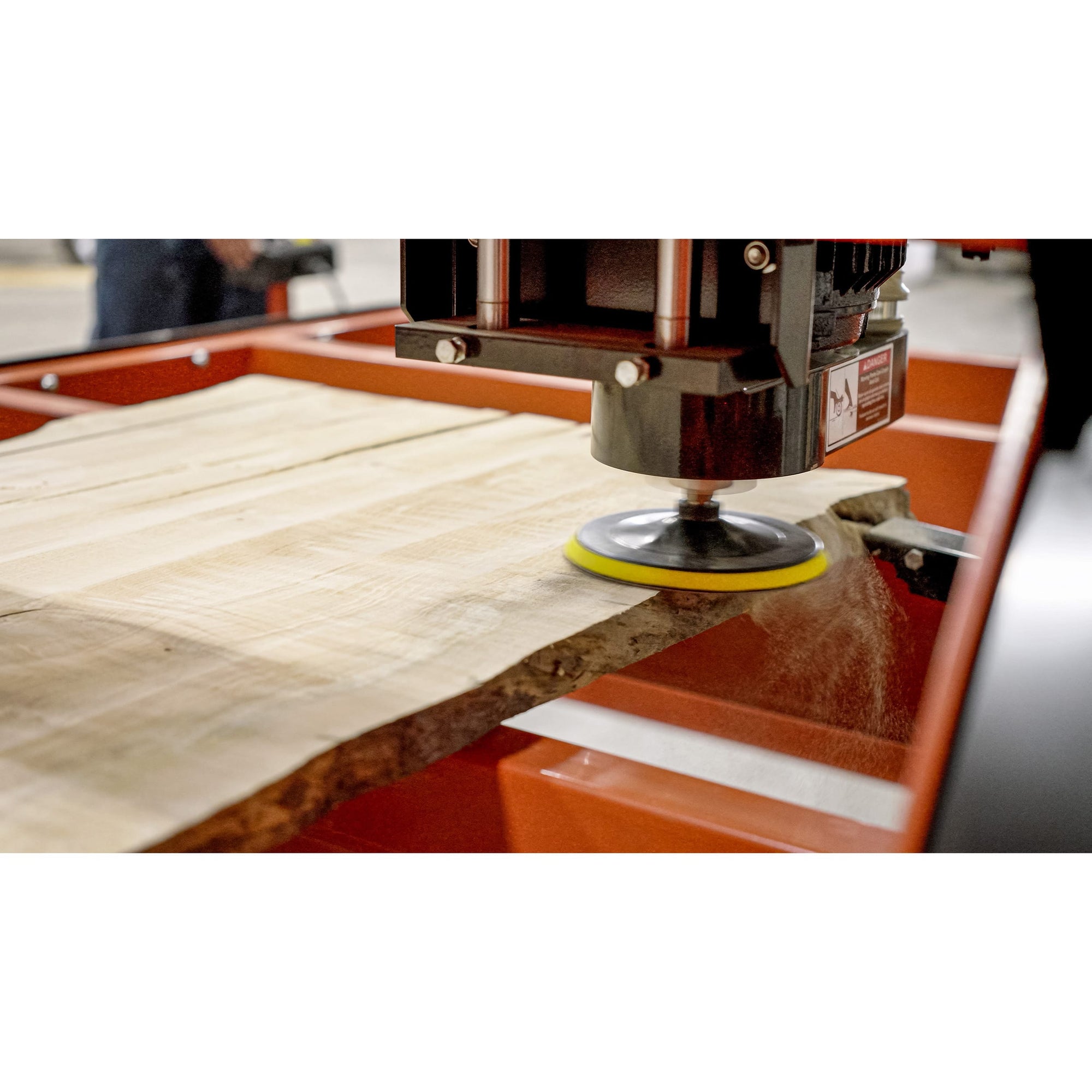

  • 7" Orbital Sanding Head Attachment


Specifications:



  • Min. Material Width: 0" or 3" if not clamped between larger material
  • Max. Material Width: 56"
  • Min. Material Thickness: 1/2"
  • Max. Material Thickness: 8"
  • Min. Material Length: 22"
  • Max. Material Length: 13' or longer with Optional 5' Extensions
  • Table Extensions: Optional 5' Modular Extensions
  • Min. Depth of Cut: 1/64"
  • Max. Depth of Cut: 1/8"

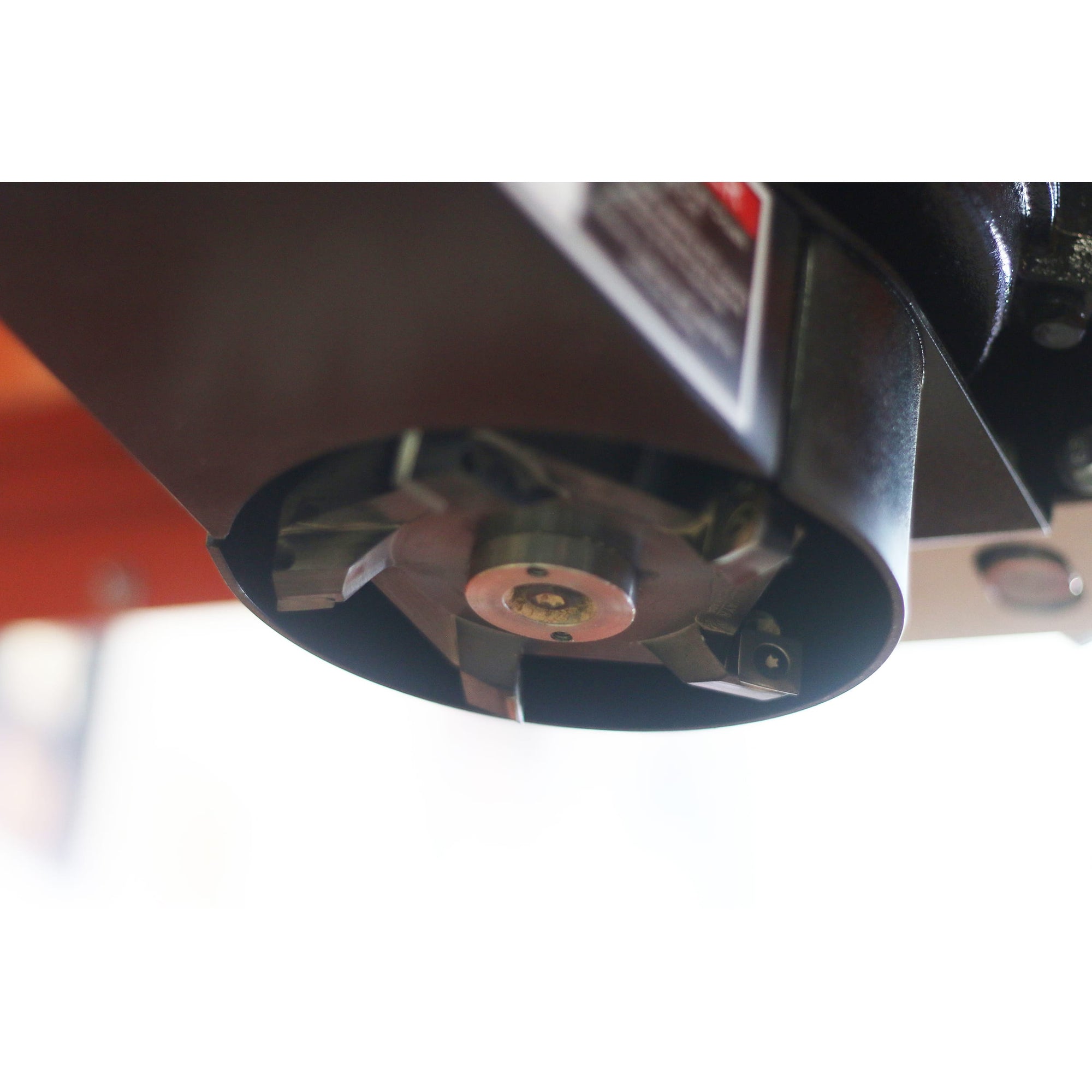

  • Cutter Head: 5" with Five 4-Sided Carbide Knives (15mm x 15mm x 2.5mm - R150)
  • Cutter Head Motor: 3HP, 3-Phase, Electric
  • Sanding Head: 7" Orbital with Hook/Loop Paper
  • Cutter Head Auto Feed: Optional on X and Y Axis
  • Cutter Head Speed: 5,500 RPM
  • Feed Motor: Motor, 1/6HP 90RPM 230V 3HP 19:1 Gear
  • Machine Length: 182"
  • Machine Width: 65"
  • Table Height: 30" - 33" Adjustable with 8 Leveling Legs
  • Max. Machine Height: 71"

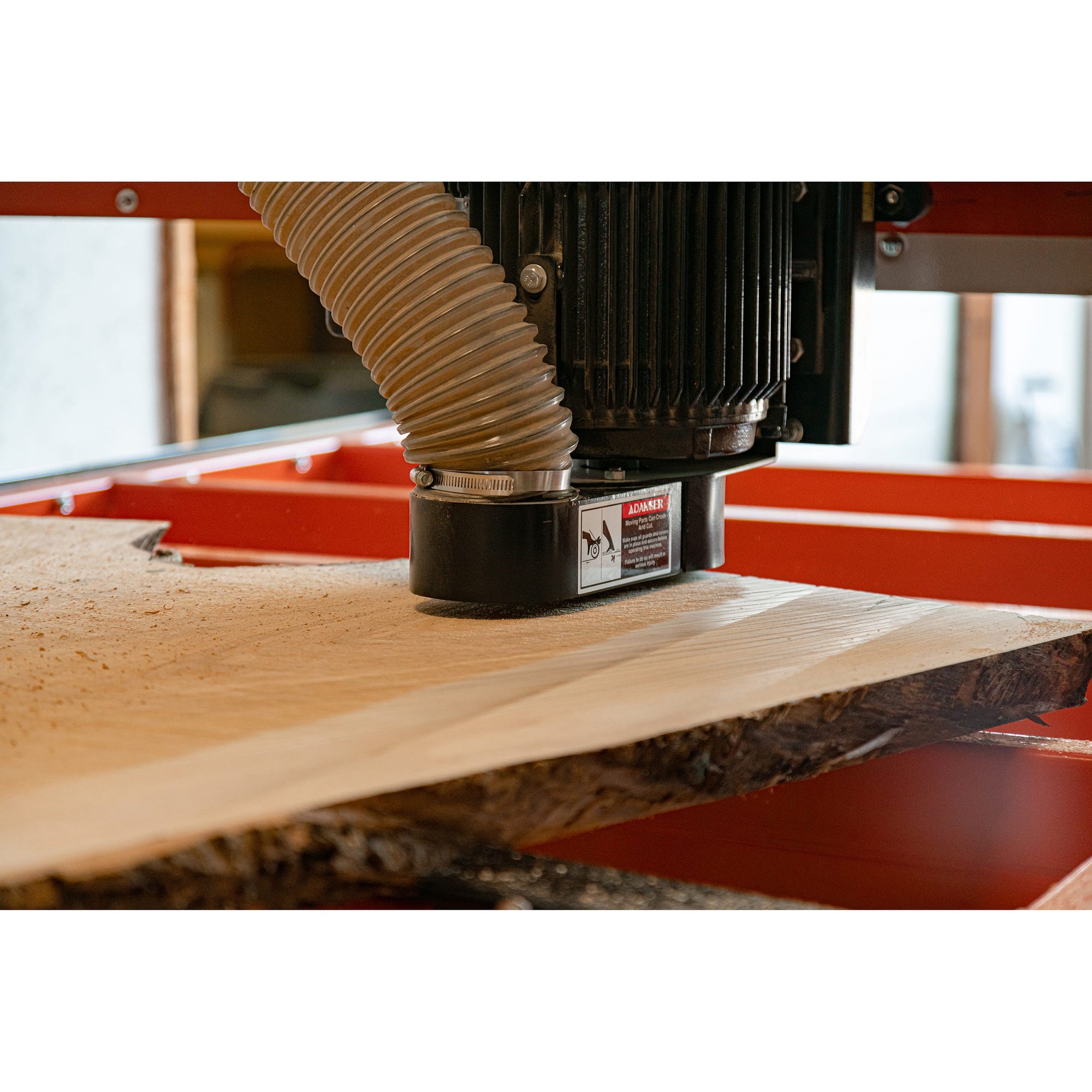

  • Dust Collection Port: 3-1/2" Diameter
  • Power: 3HP 230V 1-Phase, 30A
  • Warranty: 2-Year Limited
  • Country of Manufacture: USA


What's Included:



  • Power Feed Controls
  • 5" Cutting Head with Carbide Inserts
  • 4 Adjustable Clamps
  • 7" Orbital Sanding Head
