Wood-Mizer

LX50 Start 9HP Sawmill

Item #192423 Model LX50G9S
Regular price $3,295.00
Sale price $3,295.00 Regular price $3,295.00
Skip to product information
1 of 1

Wood-Mizer

LX50 Start 9HP Sawmill

Item #192423 Model LX50G9S
Regular price $3,295.00
Sale price $3,295.00 Regular price $3,295.00
START sawing logs into lumber, slabs, and more with the exceptional value LX50START portable sawmill! Combining premium quality features with an entry. . . View More Details

Ships from Manufacturer

Shipping Info

Details

START sawing logs into lumber, slabs, and more with the exceptional value LX50START portable sawmill! Combining premium quality features with an entry-level price, the LX50START is one of the best portable sawmills for the money. This small portable sawmill can take on most of the softwood and hardwood logs you’ll come across with the ability to saw 26” diameter logs with a 23-1/2” width of cut, 8” depth of cut, and 10’ 2” length of cut. Maximize sawing capacity with the rectangular throat design that provides full width sawing at any cutting depth or saw longer logs with optional 4’ 4” bed extensions with no practical limit. The LX50START adds strength and durability where it counts with a premium steel sawmill frame, laser cut steel bed, diagonal bed crossbars for additional stability, and more. Packed with performance-enhancing features, the LX50START includes a reliable 9.5HP KOHLER gas engine, high-performance blade guide rollers, gravity-fed blade lubrication, convenient sawdust port, quick up/down sawhead, and quick-set log handling for a user-friendly sawing experience. These performance-rich features combined with the industry-leading reliability and durability of Wood-Mizer equipment makes the LX50START one of the best portable sawmills for the money in its class.

Features:
  • Maximize Sawing Capacity with Rectangular Throat
  • Reliable Power with 9 HP KOHLER Gas Engine
  • Strong Sawmill Frame with Premium Steel
  • Durable Sawmill Bed with Diagonal Crossbars
  • Precision Sawing with Thin-Kerf Sawmill Blades

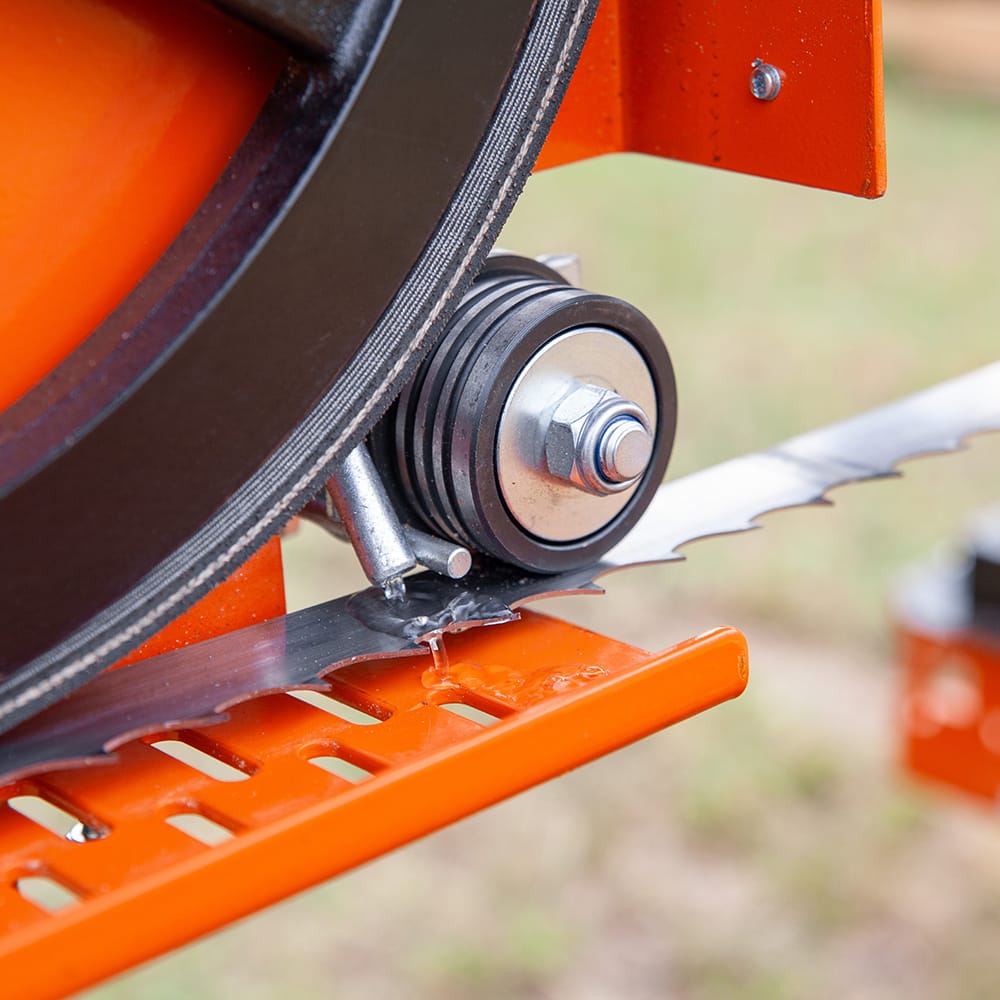

  • High-Performance Sawing with Blade Guide Rollers
  • Clean Blades with Gravity-Fed Blade Lubrication

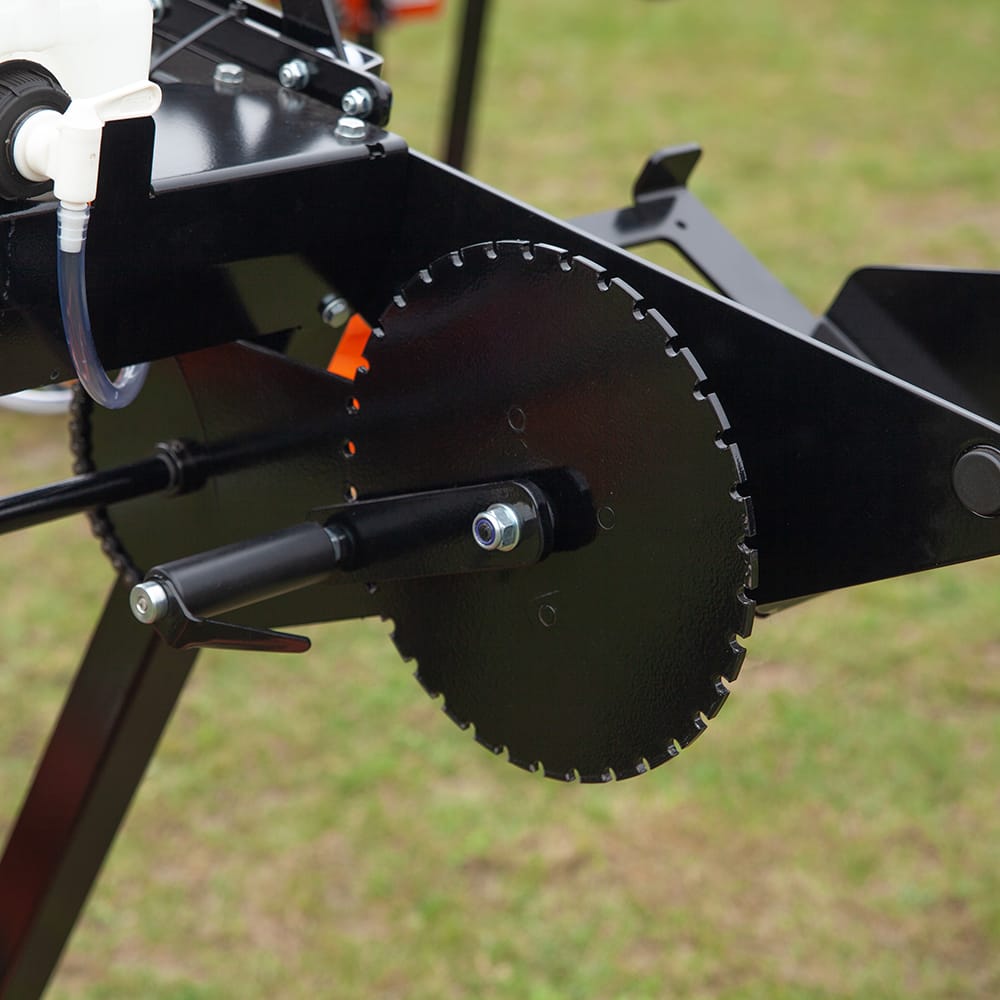

  • Quick Sawhead Up/Down with Crank Handle

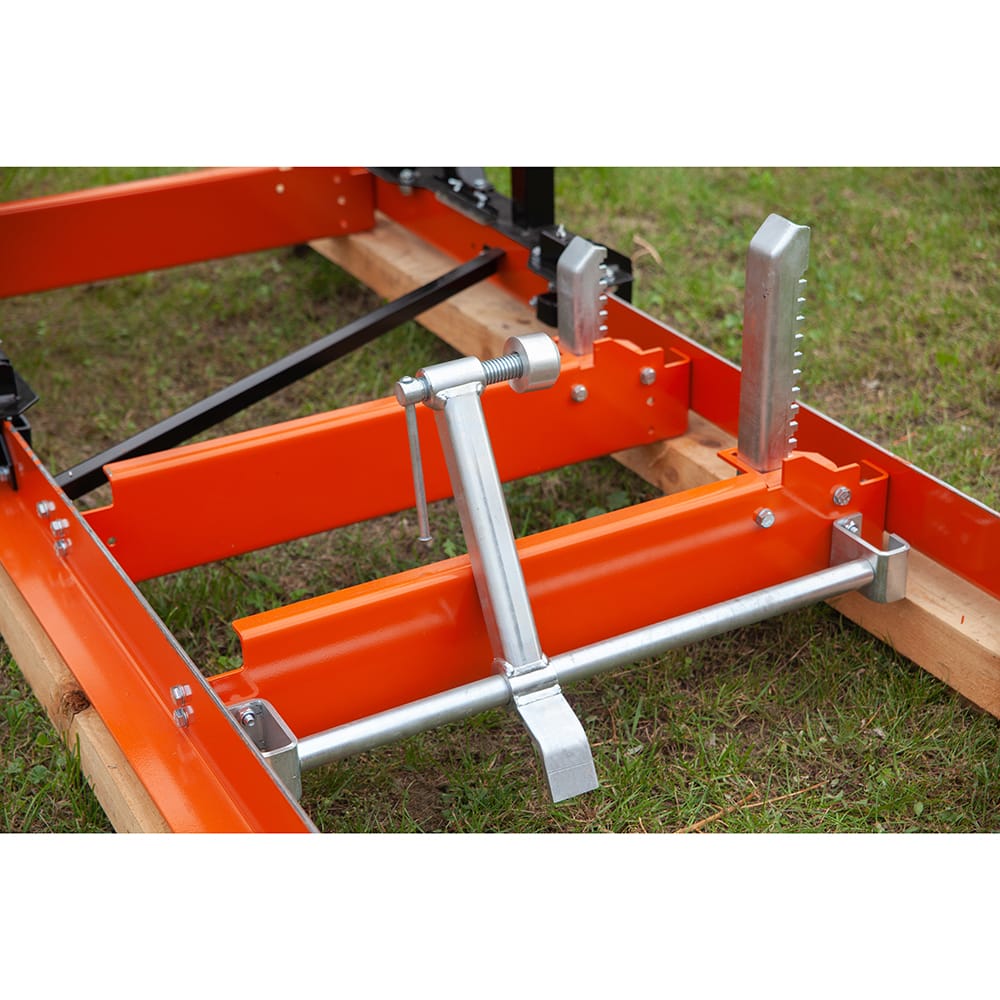

  • Secure Logs with Quick-Set Log Clamp

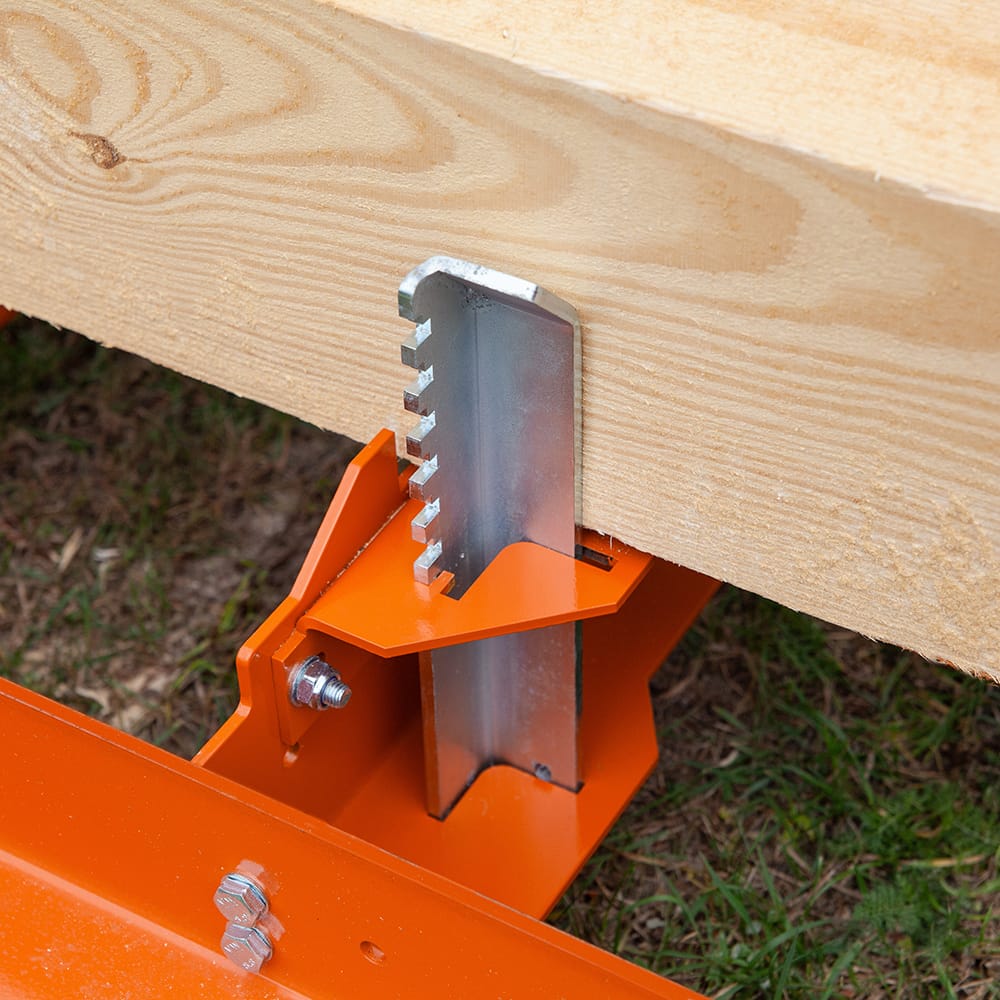

  • Support Logs with 4 Quick-Lock Drop-In Side Supports
  • Easy Blade Changes with One-Piece Sawhead
Specifications:
  • Power - 9.5HP Kohler Gas
  • Max. Log Diameter – 26” (.66m)
  • Max. Width of Cut – 23 ½” (.60m)
  • Max. Cant Width – 21 ½” (.55m)
  • Max. Depth of Cut – 8” (.26m)
  • Max. Length of Cut – 10’ 2” (3.1m)
  • Sawhead Forward/Reverse – Push Feed
  • Sawhead Up/Down – Hand Crank
  • Side Supports – 4 Quick-Lock (2 Short and 2 Long)
  • Log Clamp – 1 Quick Set
  • Bed Leveling Feet– Optional

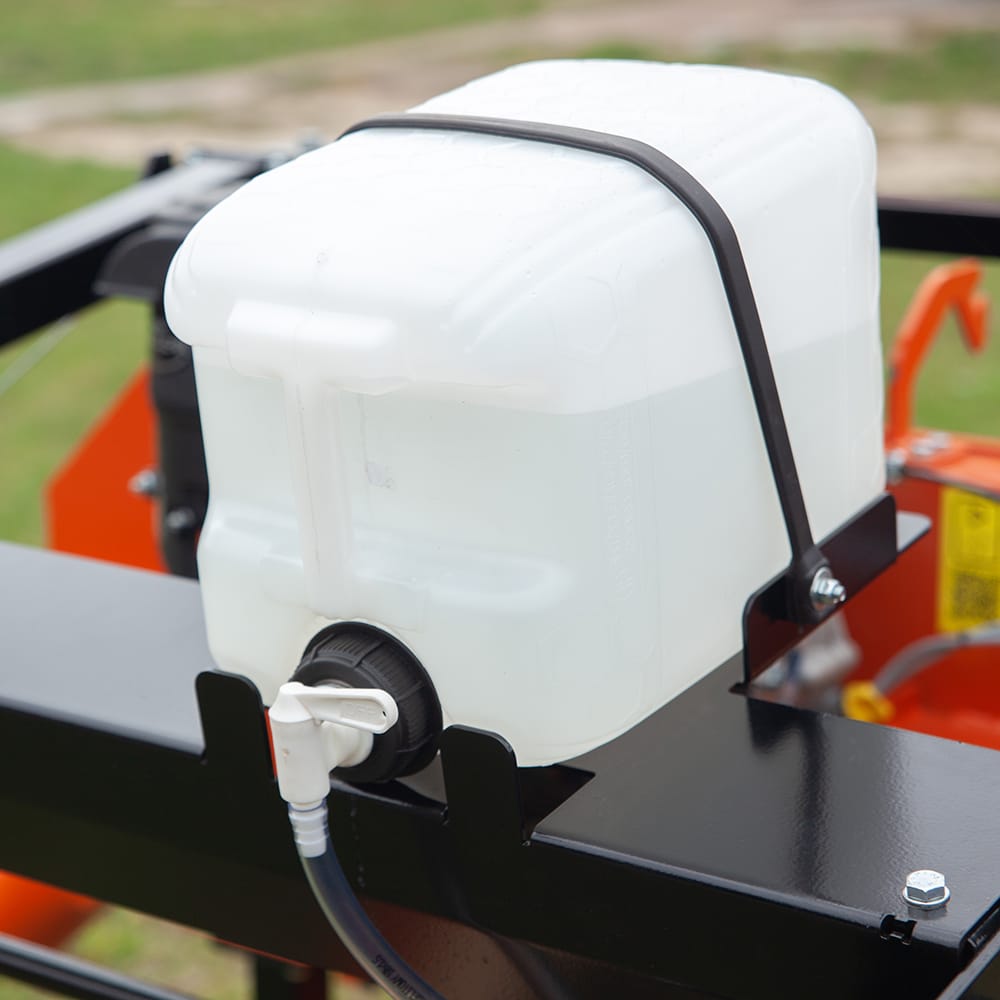

  • Blade Lubrication – 1 Gal (3.8L) Water Tank with On/Off Valve
  • Blade Engagement – Mechanical Clutch
  • Blade Length – 132” (3.35m)
  • Blade Wheels – 16” (400mm) Diameter Cast Iron Belted
  • Machine Weight – 798 (362kg)
  • Shipping Dimensions – 64” x 26” x 59”
  • Delivery Method – Pallet
  • Warranty – 2 Year Warranty
What's Included:
  • 9 HP Kohler Gas Engine
  • Three Bed Sections
  • One Quick-Set Log Clamp
  • High-Performance Blade Guide Rollers
  • Gravity-Fed Blade Lubrication System
  • 4" Diameter Sawdust Port
