Whiteside® Undersized Plywood Dado Router Bits are sized to exactly match today's nominal plywood thicknesses. Make everything fit just right. No more dadoes that are too sloppy or too tight. Each 1/2" shank bit allows you to make dados with different thicknesses of plywood.
Features:
- Perfect for cabinet construction using typically undersized plywood

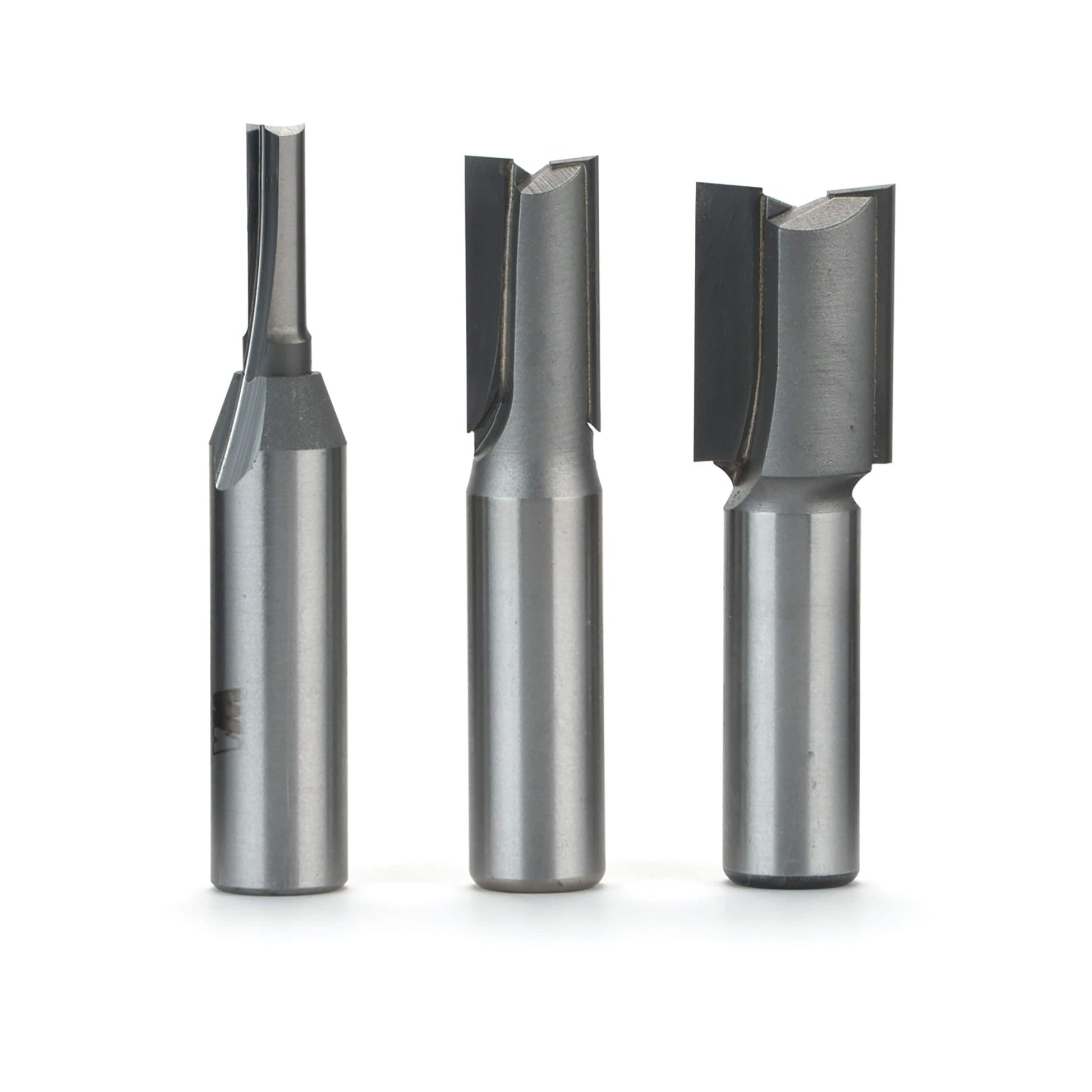

- Set consists of a 7/32” bit for 1/4” plywood, a 31/64” bit for 1/2” plywood, and a 23/32” bit for 3/4” plywood
- Precision ground for proper balance at high RPM
Specifications:
-
SC218: a solid carbide straight bit used for cutting dadoes in 1/4" plywood
- Shank (SC218): 1/2"
- Diameter (SC218): 7/32"
- Cut Length (SC218): 3/4"
- Overall Length (SC218): 2-3/4"
-
1065A: a carbide-tipped straight bit for cutting grooves, dadoes and mortising in 1/2" plywood
- Shank (1065A): 1/2"
- Diameter (1065A): 31/64"
- Cut Length (1065A): 1"
- Overall Length (1065A): 2-5/8"
-
1083A: a carbide-tipped standard straight bit for cutting grooves, dadoes and mortising 3/4" plywood
- Shank (1083A): 1/2"
- Diameter (1083A): 23/32"
- Cut Length (1083A): 1"
- Overall Length (1083A): 2-1/2"
What's Included:

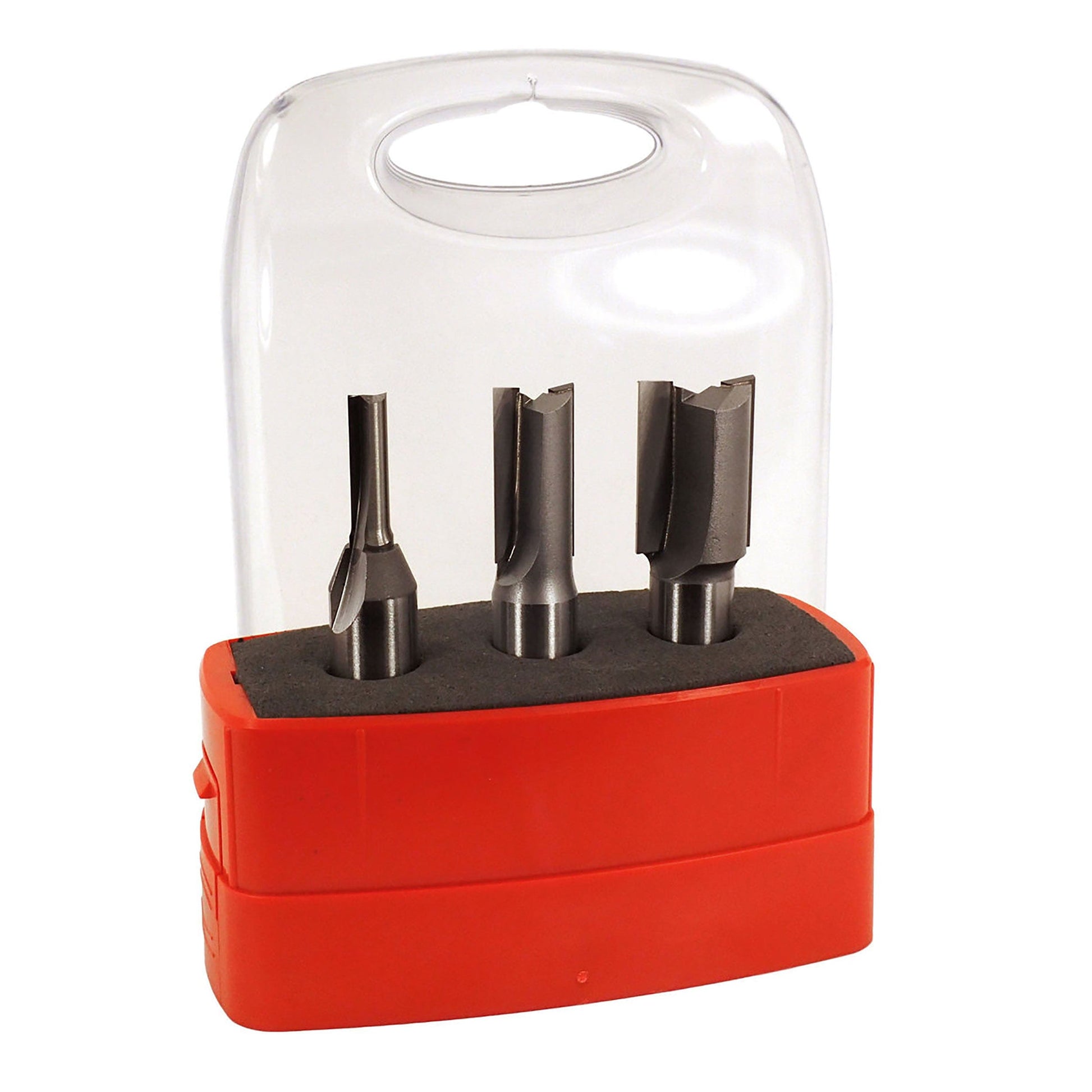

- (1) Whiteside® Undersized Plywood Dado Router Bit Set - 3 Piece
