Item 866162
Model SC55

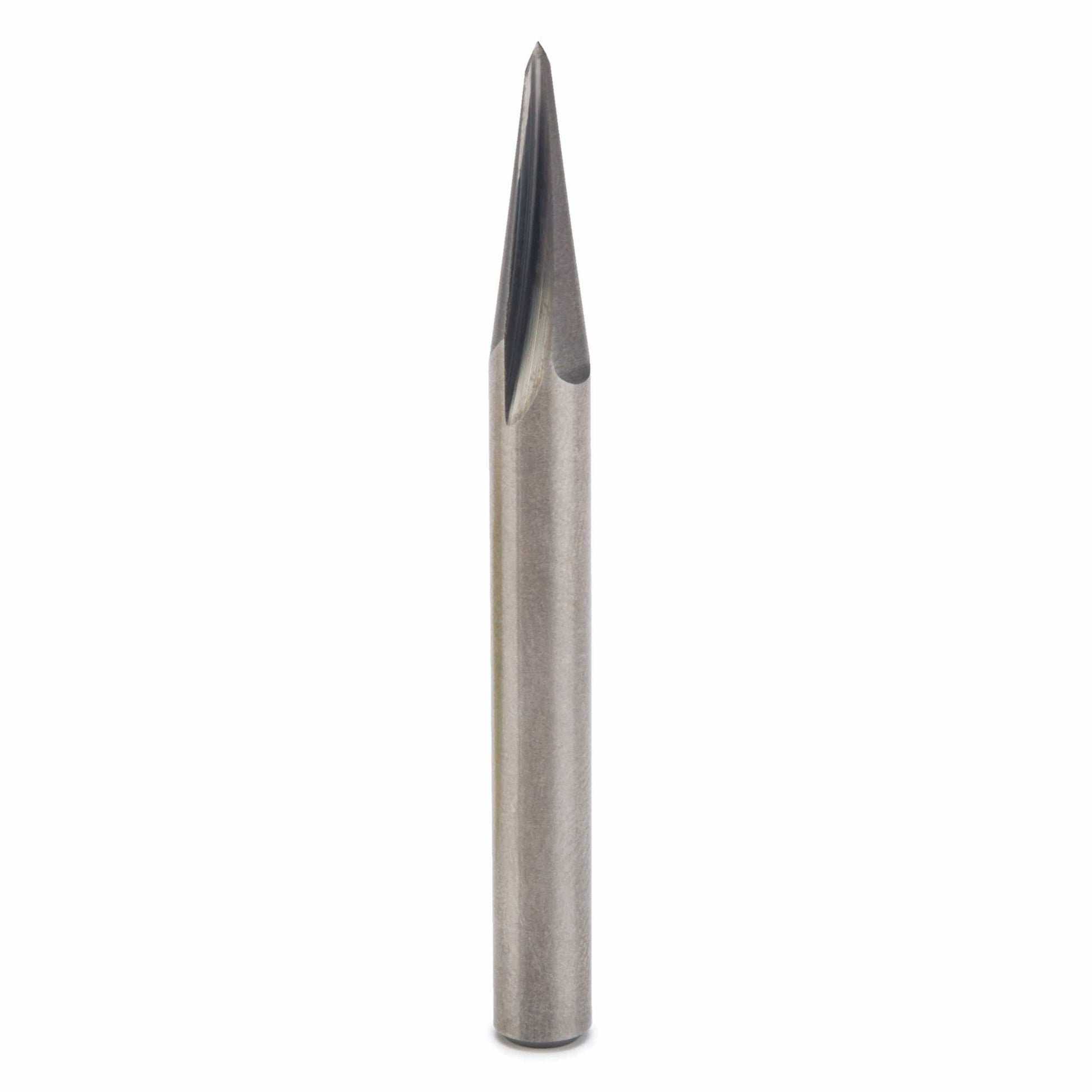

Whiteside - Engraving CNC Router Bit, 3/32" x 45°, 1/4" SH

$33.99

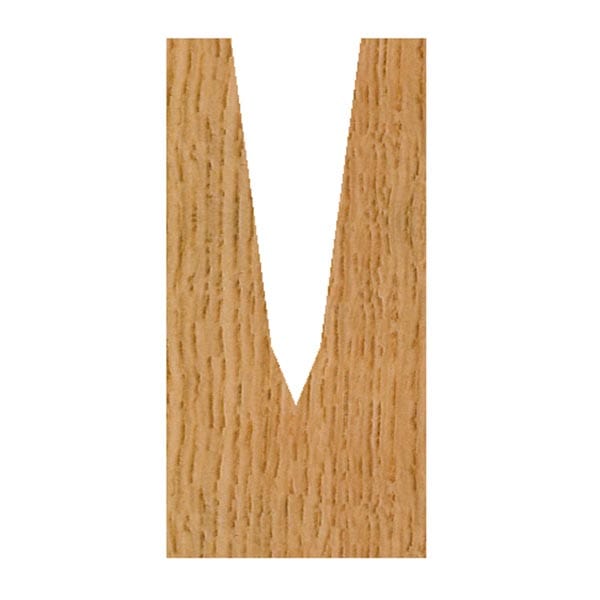

Take your CNC machine to the next level with the Whiteside Engraving CNC Router Bit. The unique 45° point leaves a distinct groove in your project. Ideal for detail carvings, signs and...

Items You May Need

Compare With

Details

Take your CNC machine to the next level with the Whiteside Engraving CNC Router Bit. The unique 45° point leaves a distinct groove in your project. Ideal for detail carvings, signs and more.

Specifications

• Shank: 1/4"

• Point Type: 3/32" x 45°

• Included Angle: 15°

• Overall Length: 2-1/2"



Download Vectric 866162
File
Tool #866162
Vectric Compatible Tool File

866162
tool file to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve.

This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.

Installation:
To add a .tool file, open the Tool Database in your software after safely downloading the .tool file. Select the Import Option to add the downloaded .tool files into the software. Only use the .tool file for the specific Whiteside part number. By downloading any of these .tool files, you acknowledge the safety information below.

Safety:
1) Never use the .tool file for any bit other than the specified Whiteside part number.
2) Always wear eye and ear protection along with dust masks. Avoid using bits while in loose clothing. Keep hands, body, clothing and hair away from the cutter.
3) Do not remove safety guards, and be sure to always feed against the cutter rotation. Never use dull or damaged cutters.
4) Disconnect power when changing bits or making adjustments, and always leave the power disconnected when not in use.
5) Follow all safety recommendations of the power tool manufacturer.
6) Whiteside Machine Company assumes no responsibility for defects, damage, or injury (direct or indirect) caused by misuse, abuse, alteration or modification of any product (including sharpening).
