View a Larger Image of 6004 2 Pc Straight Stile And Rail Door Router Bit Set 1-5/8" OD x 7/8" CL 1/2" SH
Whiteside 6004
Item 820246

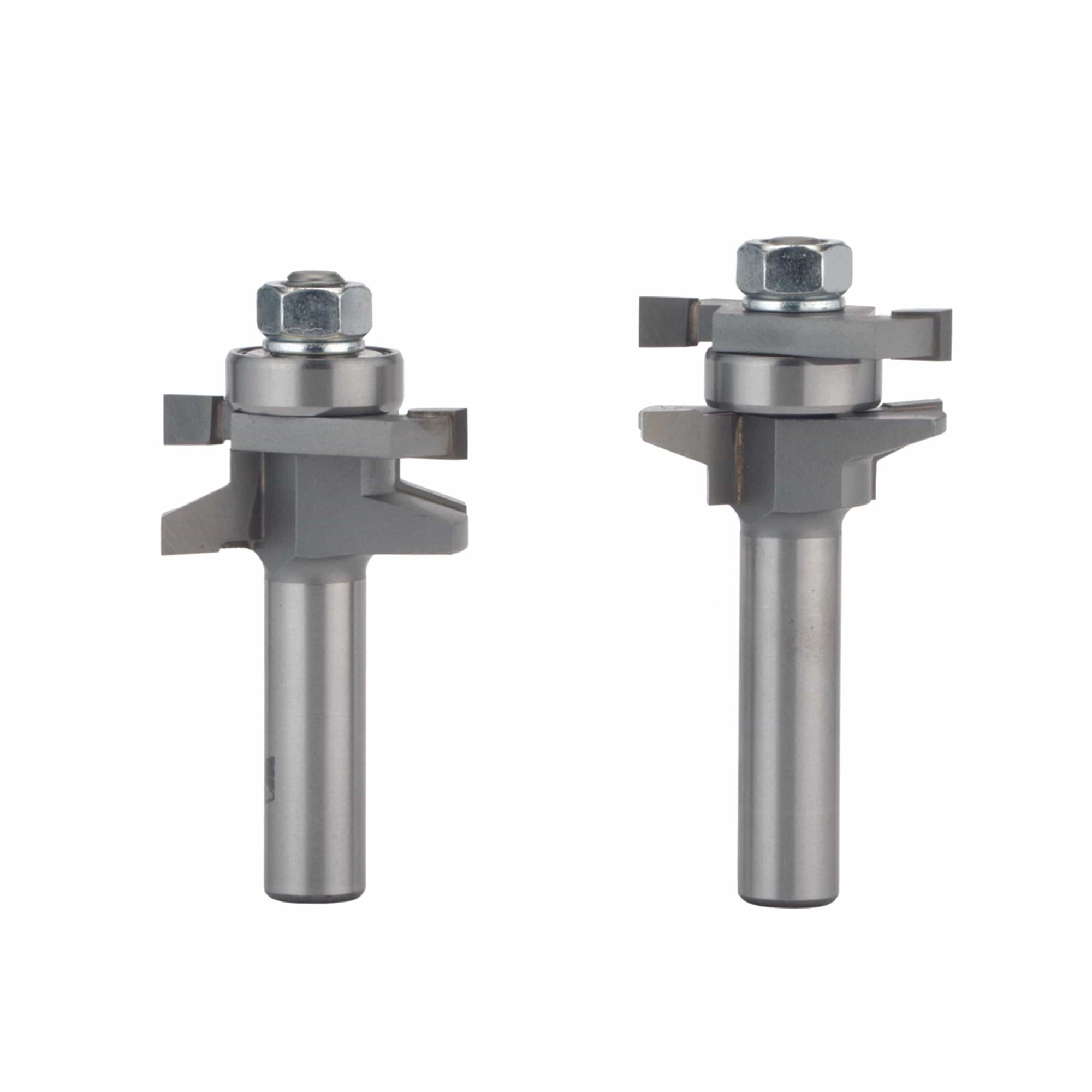

6004 2 Pc Straight Stile And Rail Door Router Bit Set 1-5/8" OD x 7/8" CL 1/2" SH

$121.03

  • - Contiguous 48 States Shipping Only

    Learn More
  • - Not Available for Express and Overnight Shipping.

    Learn More
  • - Ships from manufacturer

Make full size Stile and Rail joints on your router table. The interlocking design plus the raised panel groove are both cut in one pass. Ball bearing guides control the cutting depth an also...

You May Also Like

Details

Make full size Stile and Rail joints on your router table. The interlocking design plus the raised panel groove are both cut in one pass. Ball bearing guides control the cutting depth an also allow use on rounded, arched, or special shaped doors. With these two piece sets, simply switch router bits to change from cutting stile to cutting rails. Ideal for stock from 5/8" to 7/8" thick. Carbide tipped router bits, all are 1/2" shank. Construction Tip: You can make Stile & Rail cuts for glass doors using Whiteside's Door Construction Sets. No extra components are required. All that's needed is to stagger the cutting edges and "stack" both groovers on the Stile bit. Use both bearings (no groover) on the Rail bit. Make your cuts just like in normal door construction. Cut the inside edges of all four pieces with the Stile bit. Trim the ends of the Rails with the Rail bit. Assemble door and insert glass pane. Use clips or corner trim mold on the back side to hold the pane in place.D = Diameter; CL = Cutting Length; RW= Reveal Width; SH = Shank Diameter; OL = Overall Length.Note: Products labeled "Ships Direct from Manufacturer" are shipped directly from the manufacturer, whose warranty supercedes any offered by Woodcraft. In-stock product will ship within 5 business days. All returns after 30 days are subject to a 25% restocking fee. For details, click on the "Ships Direct From Manufacturer" link below.

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 2-4 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

Returns of Whiteside manufacturer-shipped items are subject to a 15% restocking fee. Returns will be accepted for 60 days.Customer pays return shipping. Please call our Customer Service Dept. at 1-800-535-4482 with any further questions.

If purchased at a Woodcraft Store, please return the item directly to the store where your purchase was made.

Warranty Information

Because this item is purchased and shipped directly from the manufacturer, its warranty supercedes any offered by Woodcraft.

Whiteside Product Guarantee:

All Whiteside tools are warranted to be free from defects in workmanship & materials. Warranty is limited to the cost of repair or replacement of the tool. Warranty is void if tools are altered in any way or show signs of abuse or misuse. Whiteside's Customer Service # is 1-800-225-3982.
