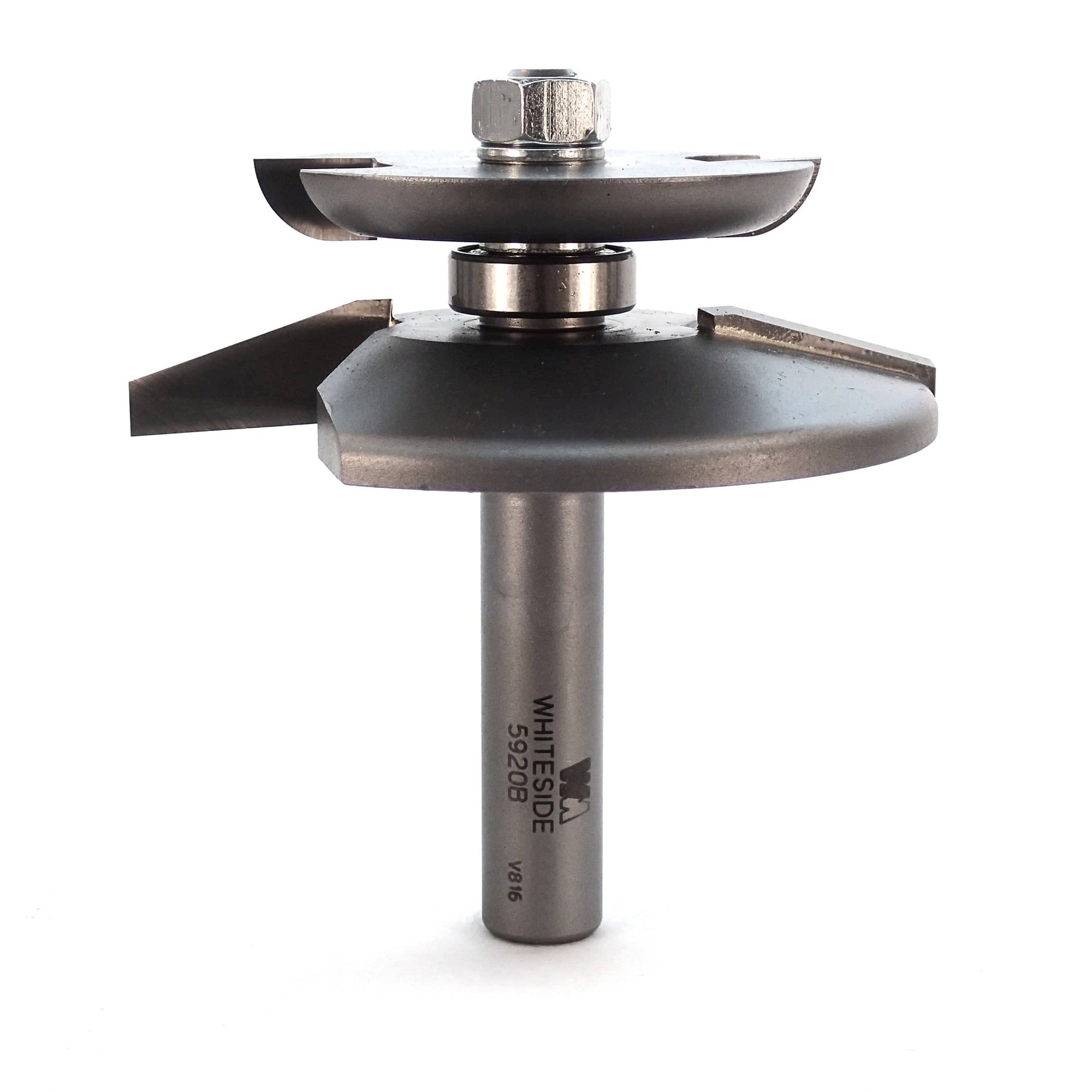

View a Larger Image of 5920B 2-Wing Large Raised Panel Router Bit 3-1/4" D with Back Cutter, Straight
Item 146200
Model 5920B

Whiteside - 5920B 2-Wing Large Raised Panel Router Bit 3-1/4" D with Back Cutter, Straight


  • - Contiguous 48 States Shipping Only

    Learn More
  • - Ships from Manufacturer, Expedited Shipping Unavailable

    Learn More
  • - Ships in 2-4 Business Days.

This item is out of stock with the manufacturer. Order now for an early July shipment.

Compare With


If you are going to make raised panels with the optional back cut, Whiteside’s large 2-wing bit with back cutter is a safe an economical way to do so. These bits have massive carbide cutters and a ball bearing guide which allow you to cut the front reveal and back cut at the same time with a guaranteed 1/4” tongue in the process. Whiteside recommends running these at 10,000 to 12,000 RPMs and that you make three passes when routing out the panels. For your convenience, we have added the cut profile to the bit’s image. Whiteside Machine Company has been making top quality router bits since 1970. Using the latest technology, up-to-date machinery, and expert craftsmen, they make a bit that features thick, high grade carbide, accurately ground to produce the smoothest finish cuts on your work. Each bit is inspected after every manufacturing step to ensure satisfaction and consistent quality.
• 1/2" shank
• 3-1/4", large, diameter size with bearing
• 5920B Style: Straight with Back Cut

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 2-4 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

Returns of Whiteside manufacturer-shipped items are subject to a 15% restocking fee. Returns will be accepted for 60 days.Customer pays return shipping. Please call our Customer Service Dept. at 1-800-535-4482 with any further questions.

If purchased at a Woodcraft Store, please return the item directly to the store where your purchase was made.

Warranty Information

Because this item is purchased and shipped directly from the manufacturer, its warranty supercedes any offered by Woodcraft.

Whiteside Product Guarantee:

All Whiteside tools are warranted to be free from defects in workmanship & materials. Warranty is limited to the cost of repair or replacement of the tool. Warranty is void if tools are altered in any way or show signs of abuse or misuse. Whiteside's Customer Service # is 1-800-225-3982.
