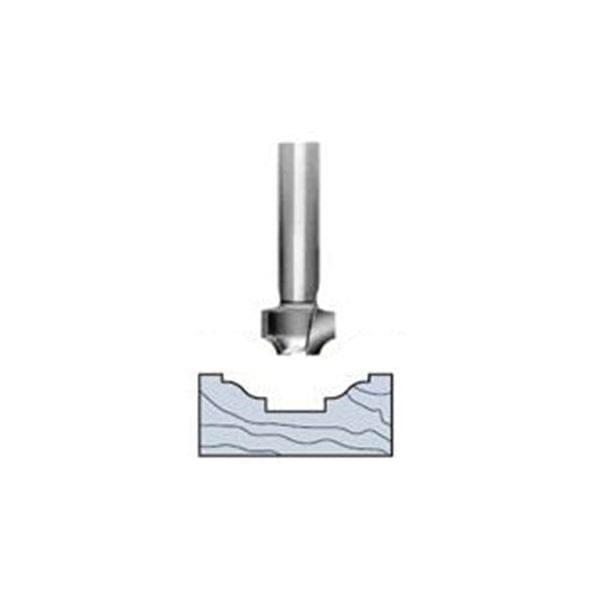

5630 Ogee Stile Profile Router Bit 1-1/4" D X 2-1/2" OL

Item #824136 Model 5630
Regular price $50.99
Sale price $50.99 Regular price $59.99
The tooling on this page is designed to give the illusion of raised panel door construction in MDF and solid panel doors. These bits, when used indivi. . . View More Details

Ships from Manufacturer

Shipping Info


The tooling on this page is designed to give the illusion of raised panel door construction in MDF and solid panel doors. These bits, when used individually, produce a nice, simple raised panel effect in one pass. Or use one of the Panel Bits in conjunction with one of the Stile Bits to create a more authentic raised panel reveal. Many different combinations are possible.Although designed for production routing on solid door machines and CNC routers, the addition of a bearing to the shank will allow the hobbyist to cut his pattern by following an edge guide.
The guide can be four strips clamped around the perimeter of the door. The top strip may be curved for an arched pattern. Follow the guide and route both profiles. There's no need to move the guide for the second cut. A larger bearing on the panel cutter takes care of the offset. When making the second cut, match the depth setting of the cut to obtain a pattern with a flat bottom - or vary the depth to add an extra distinctive "step" in the bottom of your reveal. Complete the door by adding a door edge pattern around the outside edge. Carbide tipped router bits, all have 1/2" shanks.
D = Diameter; CL = Cutting Length; R = Radius; SH = Shank Diameter; OL = Overall Length. Note: Products labeled "Ships Direct from Manufacturer" are shipped directly from the manufacturer, whose warranty supercedes any offered by Woodcraft. In-stock product will ship within 5 business days. All returns after 30 days are subject to a 25% restocking fee. For details, click on the "Ships Direct From Manufacturer" link below.

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 5-10 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

Returns of Whiteside manufacturer-shipped items are subject to a 15% restocking fee. Returns will be accepted for 60 days.Customer pays return shipping. Please call our Customer Service Dept. at 1-800-535-4482 with any further questions.
If purchased at a Woodcraft Store, please return the item directly to the store where your purchase was made.

Warranty Information

Because this item is purchased and shipped directly from the manufacturer, its warranty supercedes any offered by Woodcraft.

Whiteside Product Guarantee:

All Whiteside tools are warranted to be free from defects in workmanship & materials. Warranty is limited to the cost of repair or replacement of the tool. Warranty is void if tools are altered in any way or show signs of abuse or misuse. Whiteside's Customer Service # is 1-800-225-3982.
