TrueTrac

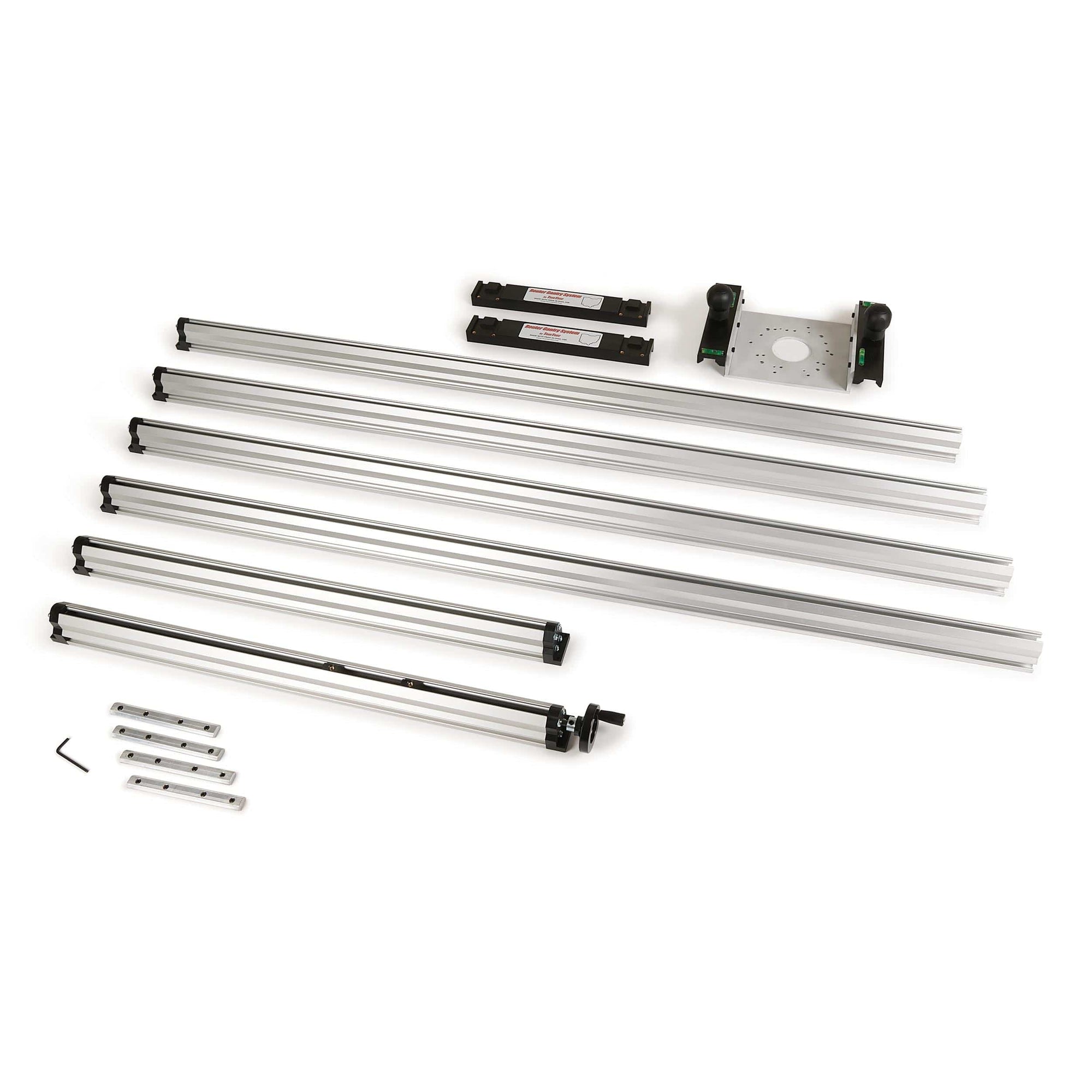

22" x 96" Threaded Slab Flattening Router Mill

Item #187357 Model RGS2296T
Regular price $999.99
Sale price $999.99 Regular price $999.99

This item has an additional shipping charge

The TrueTrac 22" x 96" Threaded Slab Flattening Router Mill is designed specifically to be able to handle large area planing operations. Eas. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Blank Router Base Plate for Slab Flattening Router Mill

    Regular price $79.99
    Sale price $79.99 Regular price $79.99
    Blank Router Base Plate for Slab Flattening Router Mill alt 0
  • Router Base Adapter Plate Assembly for Slab Flattening Router Mill

    Regular price $184.99
    Sale price $184.99 Regular price $184.99
    Router Base Adapter Plate Assembly for Slab Flattening Router Mill alt 0
  • 48" x 96" Threaded Slab Flattening Router Mill

    Regular price $1,049.99
    Sale price $1,049.99 Regular price $1,049.99
    48" x 96" Threaded Slab Flattening Router Mill alt 0

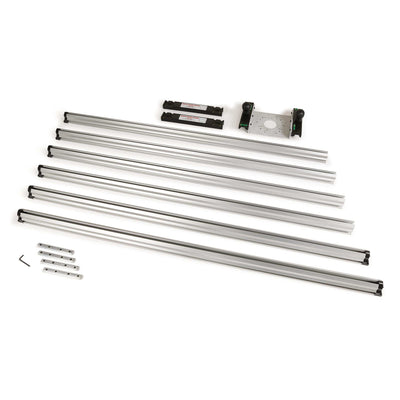

  • 48" x 96" Manual Slab Flattening Router Mill

    Regular price $949.99
    Sale price $949.99 Regular price $949.99
    48" x 96" Manual Slab Flattening Router Mill alt 0

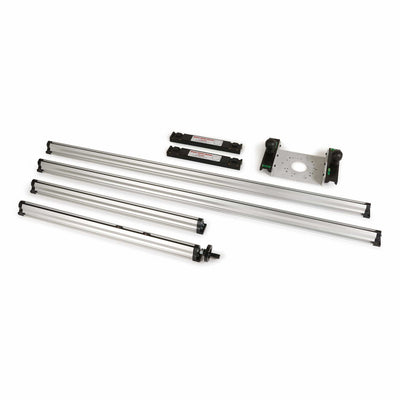

  • 22" x 48" Threaded Slab Flattening Router Mill

    Regular price $699.99
    Sale price $699.99 Regular price $699.99
    22" x 48" Threaded Slab Flattening Router Mill alt 0

Details

The TrueTrac 22" x 96" Threaded Slab Flattening Router Mill is designed specifically to be able to handle large area planing operations. Easily flatten large slabs, table top glue-ups, epoxy resin counter or table tops, or other large projects that don't easily fit into standard floor model equipment for a much lower cost. The Manual Feed allows the user to directly push the router back and forth across and down the length of the slab, providing more movement control. For use with a standard 2-1/2 to 3-1/2 HP router and a 1" to 3" diameter router bit, not included. With the addition of the Threaded Cross Feed to the base system you now have the ability to easily index your router across the bridge, which allows you the unique ability to pin the router in place and cut with the grain of the project rather than going cross-grain. Doing it in this manner drastically reduces the number of passes required to complete a project and results in a much more consistent surface, requiring less finish sanding. This has the added benefit of also allowing easy edge jointing, rabbits, dado grooves, and other linear routing operations requiring the router to be moved a specific amount consistently. 10 turns of the hand crank equals 1 inch of movement.


Features



  • Threaded Rod Index: 10 turns, 1 inch of travel
  • Pre-drilled for over 20 routers
  • Fully CNC machined Delrin linear slides
  • 1/4" Thick 6061 Aluminum Router Base Plate
  • Quick-reference bubble levels
  • Expandable with 27-1/2" or 55" Rail Extension Kits, sold separately


Specifications



  • Capacity: 22" W x 96" L
  • 2-1/4" Thickness capacity without raising bottom rails
  • Less than 0.005" of deflection
  • Outer Dimensions: 27-1/2" W x 112" L
  • Accepts up to a 3" Diameter router bit
  • Includes detailed support structure drawing (support structure materials not included)
  • All major components manufactured in Ohio, USA
