TrueTrac

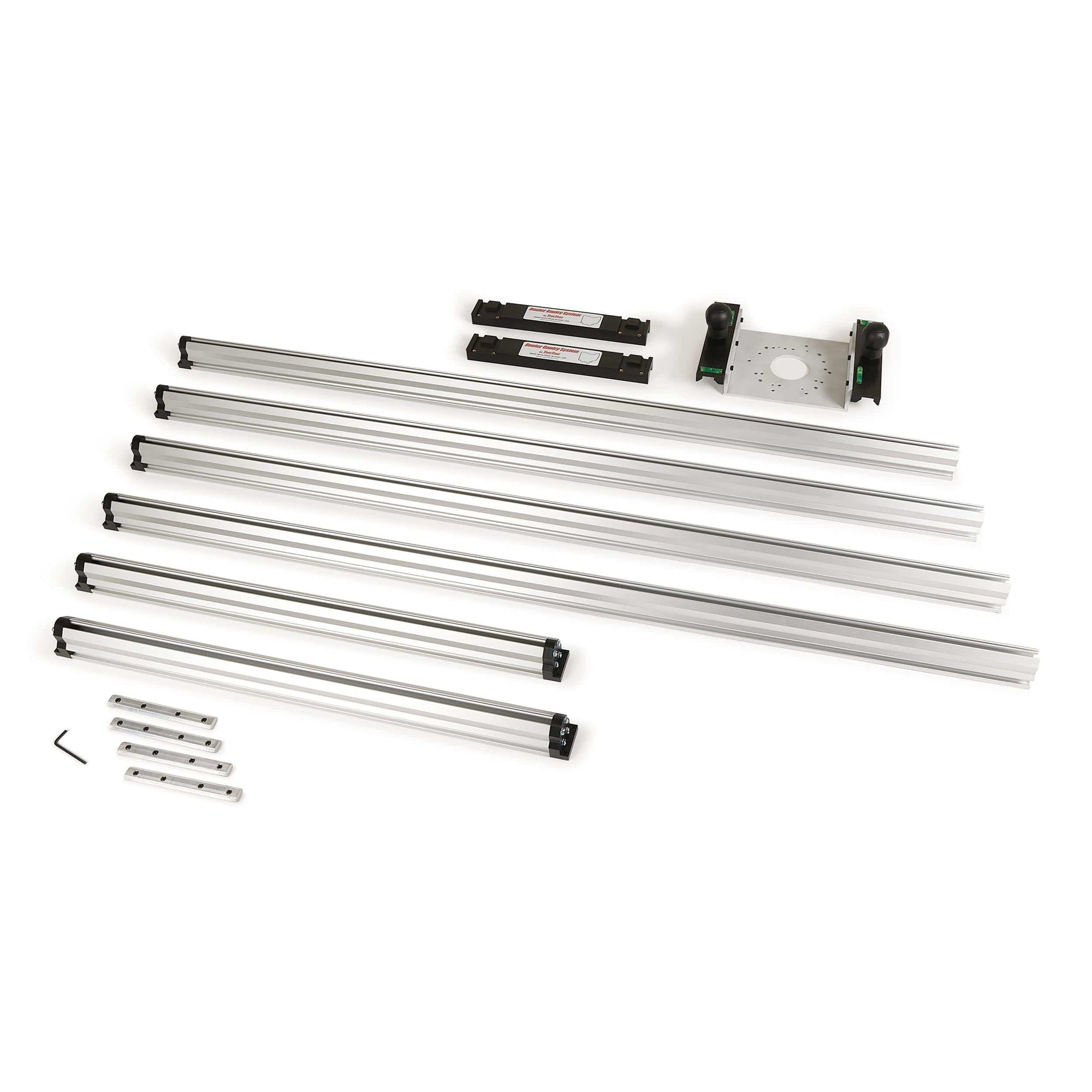

22" x 96" Manual Slab Flattening Router Mill

Item #187356 Model RGS2296M
Regular price $899.99
Sale price $899.99 Regular price $899.99

This item has an additional shipping charge

The TrueTrac 22" x 96" Manual Slab Flattening Router Mill is designed specifically to be able to handle large area planing operations. Easil. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Blank Router Base Plate for Slab Flattening Router Mill

    Regular price $79.99
    Sale price $79.99 Regular price $79.99
    Blank Router Base Plate for Slab Flattening Router Mill alt 0
  • 48" x 96" Threaded Slab Flattening Router Mill

    Regular price $1,049.99
    Sale price $1,049.99 Regular price $1,049.99
    48" x 96" Threaded Slab Flattening Router Mill alt 0
  • 48" x 96" Manual Slab Flattening Router Mill

    Regular price $949.99
    Sale price $949.99 Regular price $949.99
    48" x 96" Manual Slab Flattening Router Mill alt 0

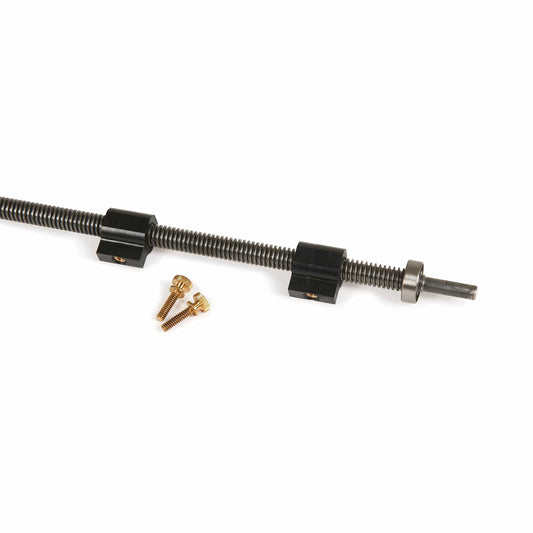

  • 27-1/2" Threaded Rod Lead Screw Kit 22" Capacity

    Regular price $104.99
    Sale price $104.99 Regular price $104.99
    27-1/2" Threaded Rod Lead Screw Kit 22" Capacity alt 0
  • Router Base Adapter Plate Assembly for Slab Flattening Router Mill

    Regular price $184.99
    Sale price $184.99 Regular price $184.99
    Router Base Adapter Plate Assembly for Slab Flattening Router Mill alt 0

Details

The TrueTrac 22" x 96" Manual Slab Flattening Router Mill is designed specifically to be able to handle large area planing operations. Easily flatten large slabs, table top glue-ups, epoxy resin counter or table tops, or other large projects that don't easily fit into standard floor model equipment for a much lower cost. The Manual Feed allows the user to directly push the router back and forth across and down the length of the slab, providing hand-controled movement. For use with a standard 2-1/2 to 3-1/2 HP router and a 1" to 3" diameter router bit, not included.


Features



  • Manual Feed: Router controlled by you physically moving it by hand
  • Pre-drilled for over 20 routers
  • Fully CNC machined Delrin linear slides
  • 1/4" Thick 6061 Aluminum Router Base Plate
  • Quick-reference bubble levels
  • Expandable with 27-1/2" or 55" Rail Extension Kits, sold separately


Specifications



  • Capacity: 22" W x 96" L
  • 2-1/4" Thickness capacity without raising bottom rails
  • Less than 0.005" of deflection
  • Outer Dimensions: 27-1/2" W x 112" L
  • Accepts up to a 3" Diameter router bit
  • Includes detailed support structure drawing (support structure materials not included)
  • All major components manufactured in Ohio, USA
