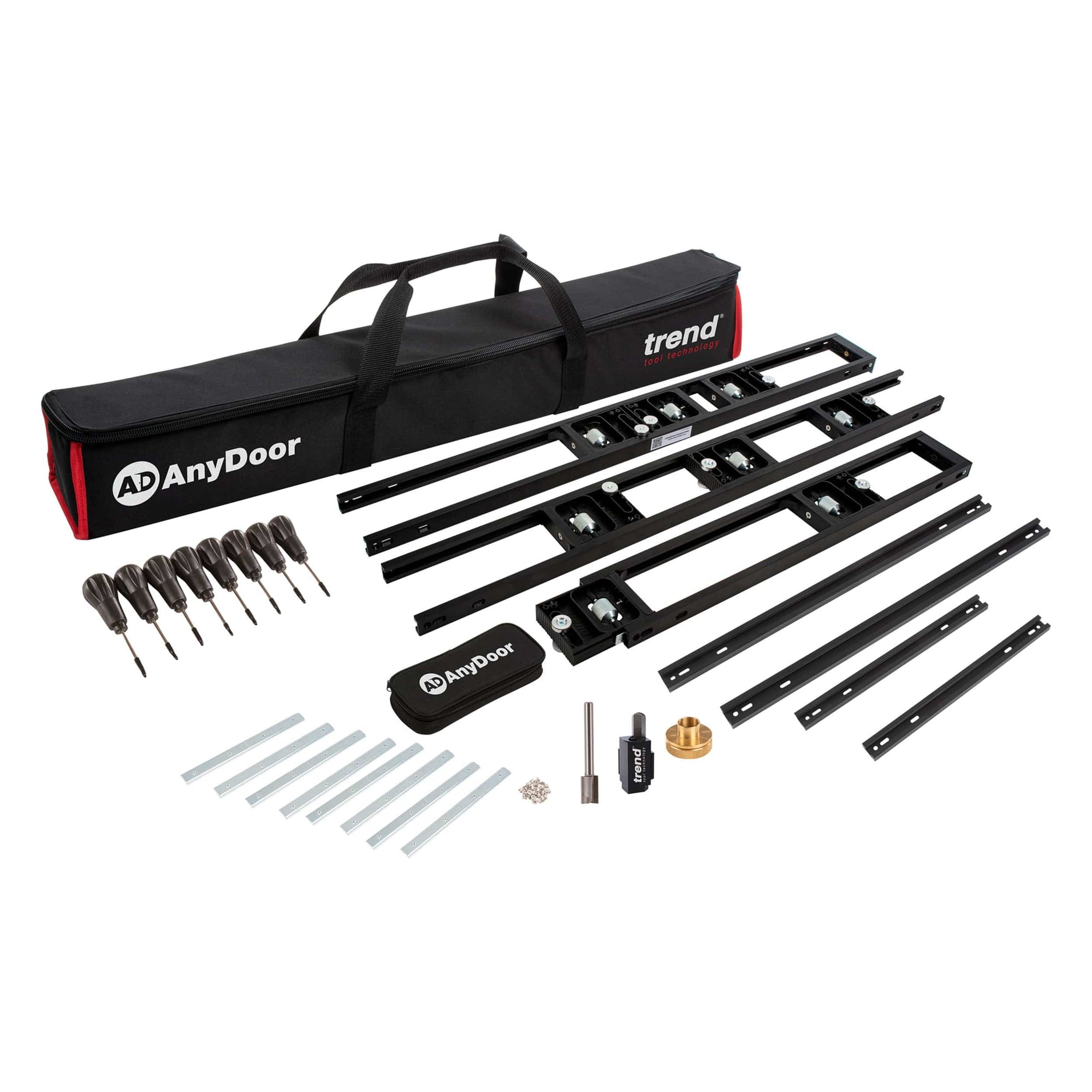

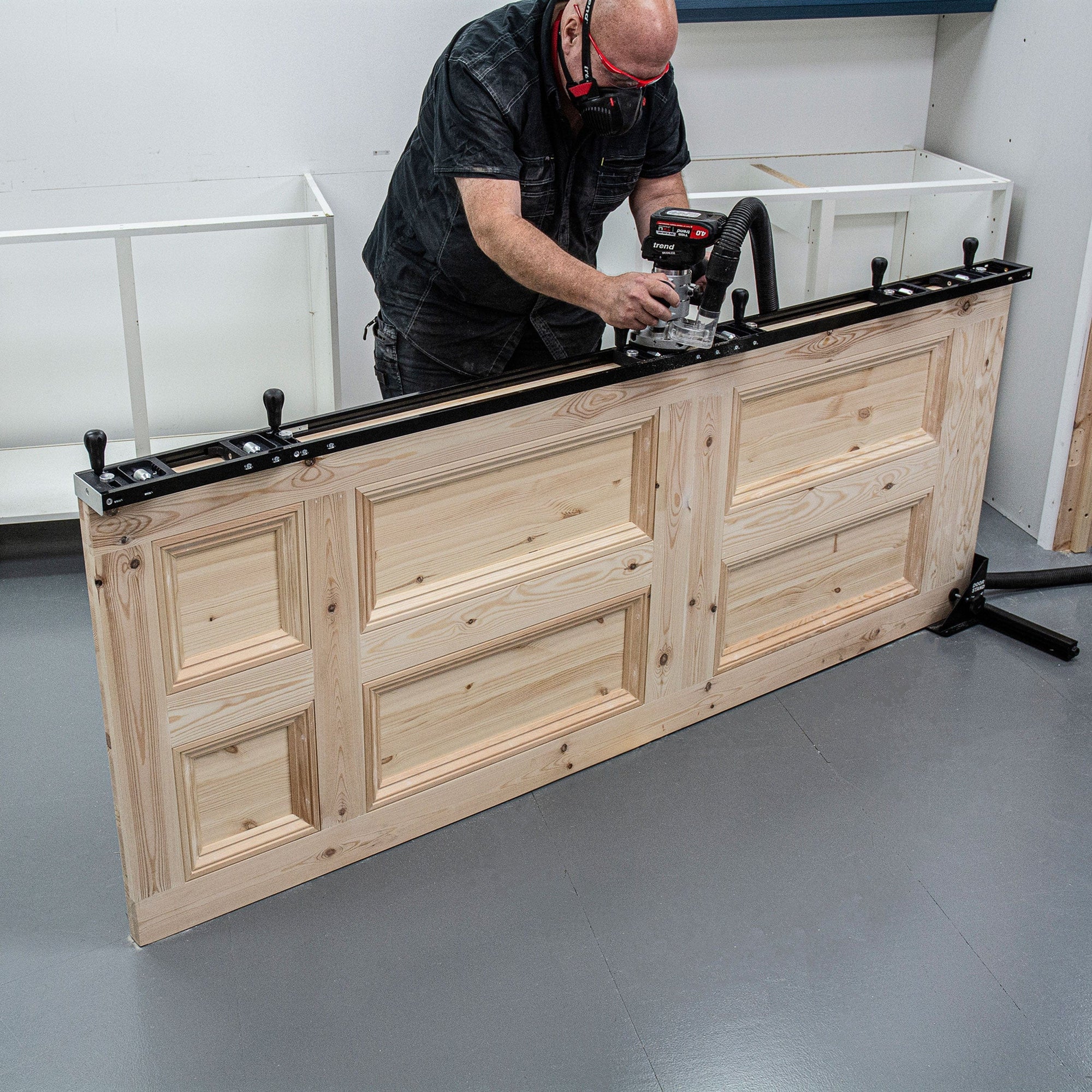

Make accurate hinge insets with the Anydoor Butt Hinge Jig Template model U*H/JIG/D9. Fully adjustable, modular router jig is designed to quickly and accurately recess square and radius (5/8” & 1/4”) hinges in timber doors & frames. Accommodates all hinge sizes, hinge positions and door heights.

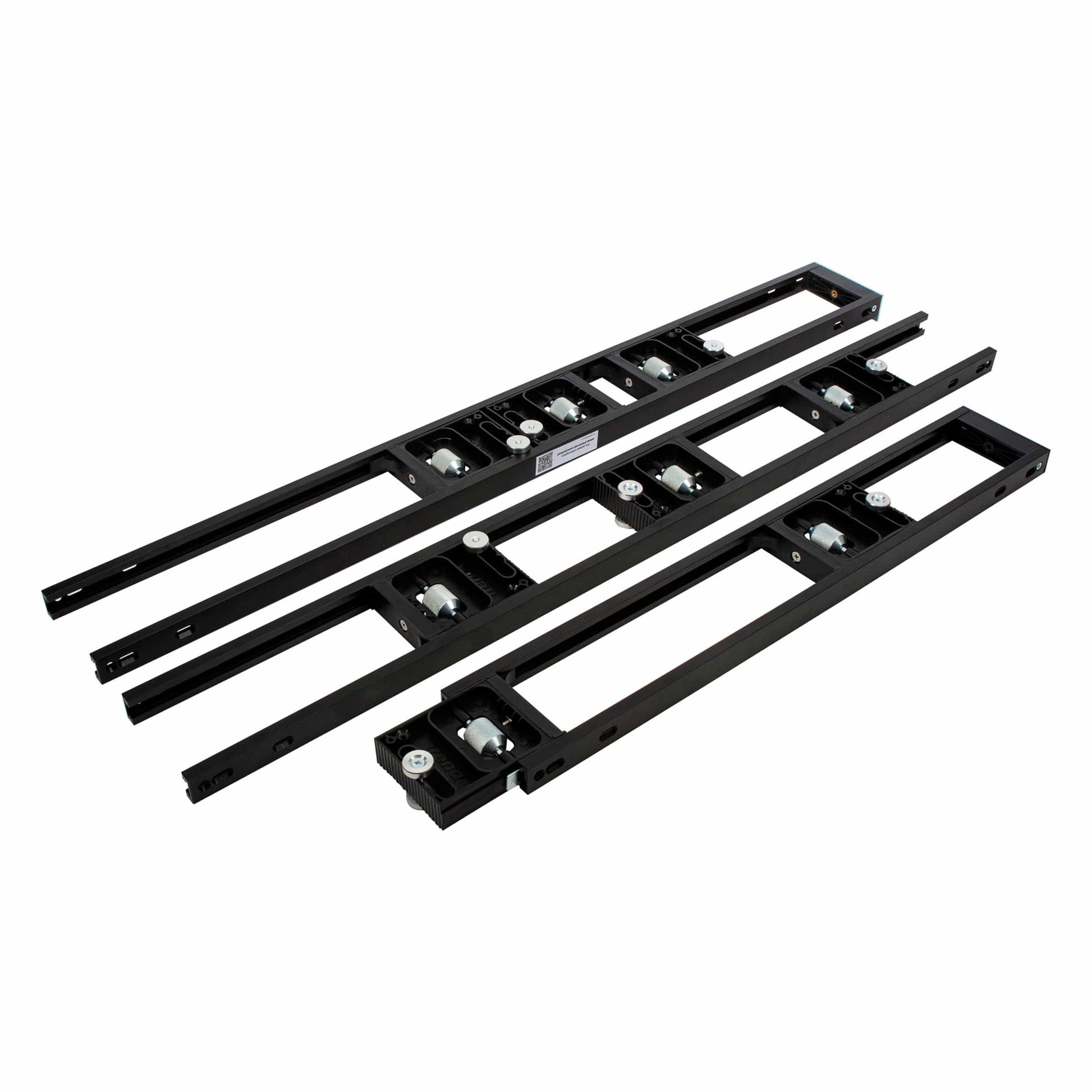

• Modular Rail Construction* allows the jig to be adjusted from 2’6” to 9’ out of the box, including all standard door sizes (6’6”, 6’8”, 7’0”, 8’0”, 9’0”)
• Twin-Rail System* provides unlimited hinge positions within the rail, making the jig perfect for both new and replacement installations
• Radius Hinge Compatibility allows fast and accurate installation of square, ¼” radius or ⅝” radius hinge profiles
• Attachment Options allow the jig to be secured with either bradawls for speed (included) or no.6 woodscrews for maximum stability

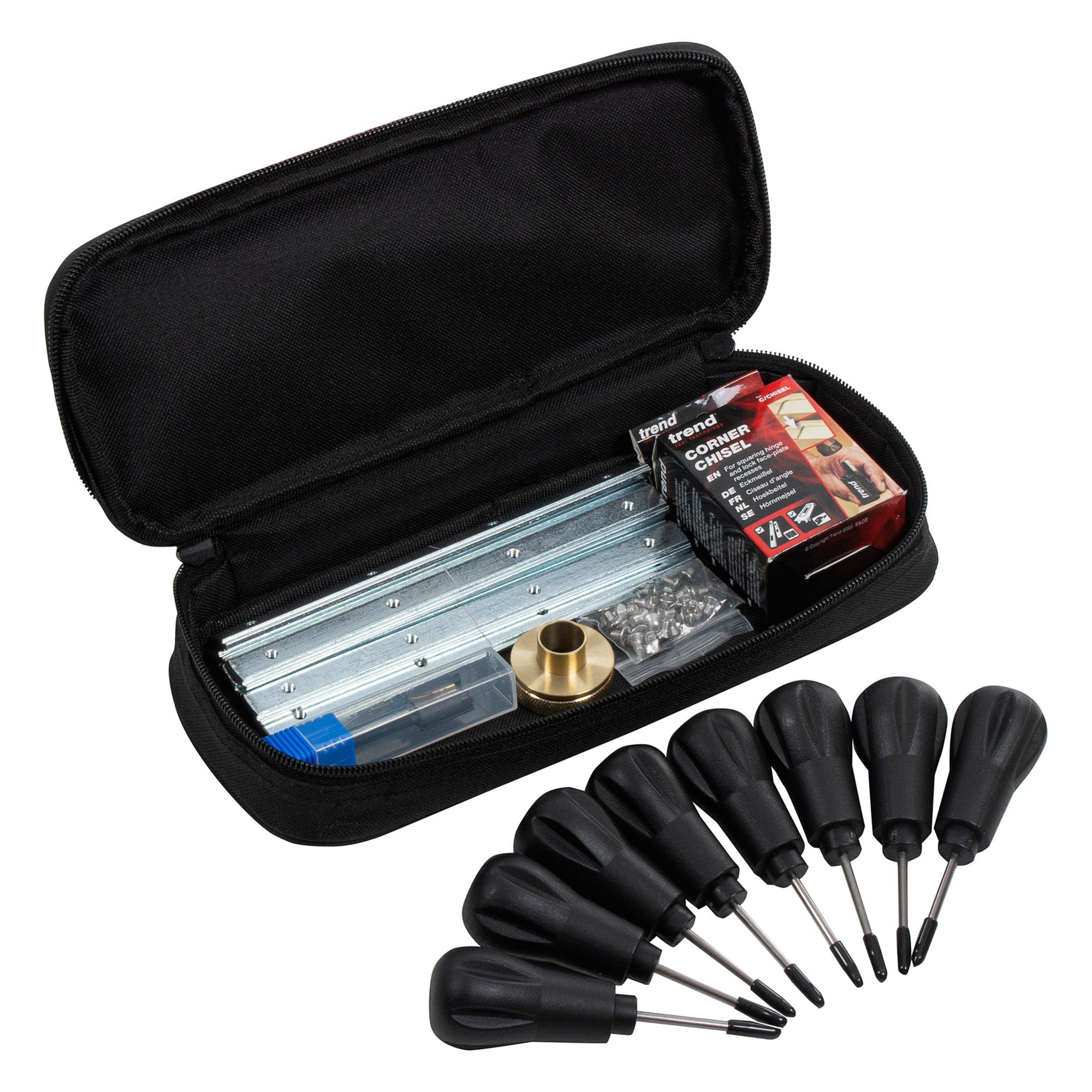

• Tough Carry Bag stores pre-built jig sections to minimize assembly time
• Lightweight Anodized Aluminum Rails for optimum strength, durability, accuracy and a smooth router-running surface

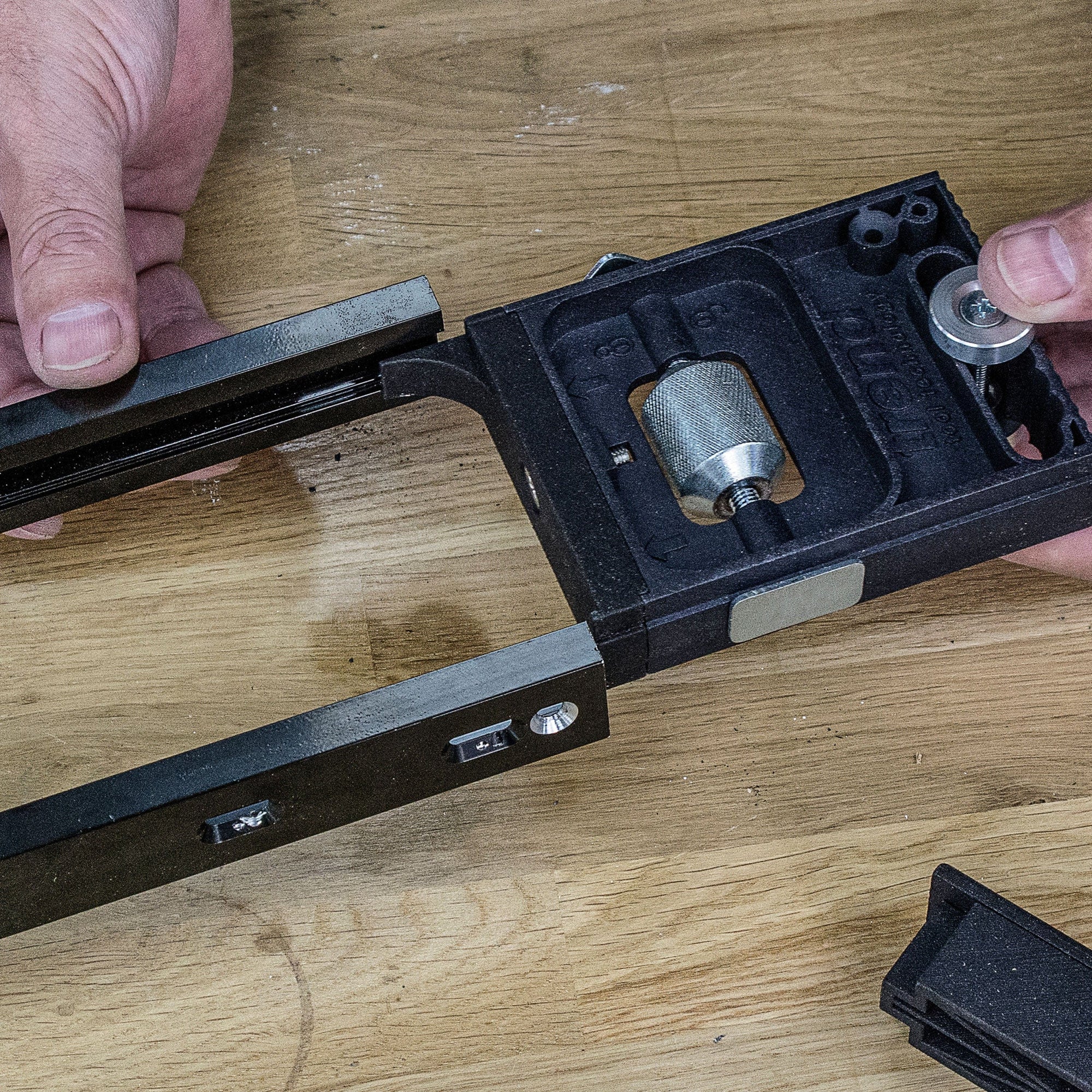

• Adjustable Edge Guides accommodate 1” to 2½” hinges with either four present positions or custom widths (for non-standard hinges)
• 1/8” (3.0mm) Steel End Plate allows the jig to fit both door and frame with minimal adjustment.
• 1” (25mm) Rail Depth allows jig to be used against fixed door stops.

• ½” (12.7mm) Router Bit

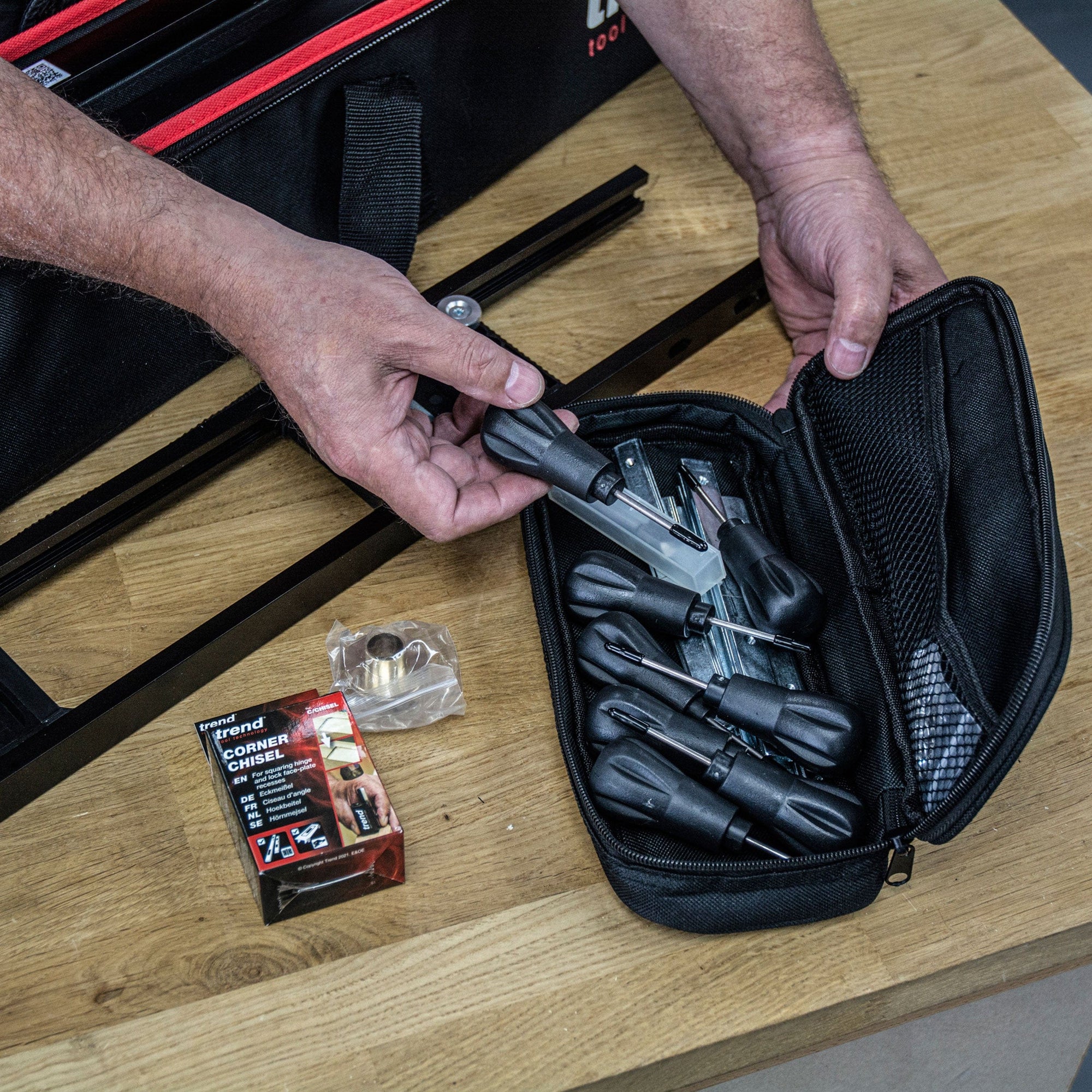

• 8 Bradawls

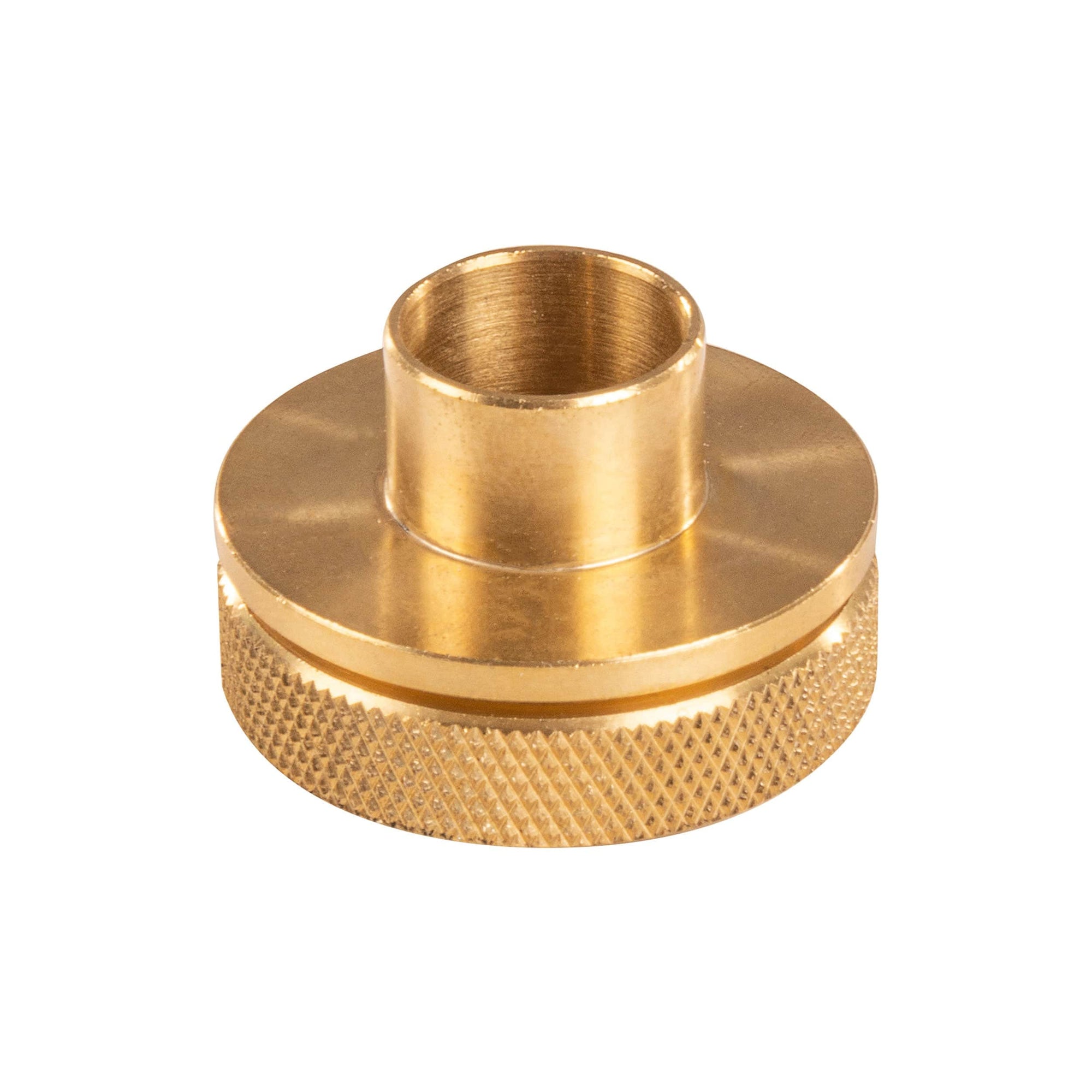

• 16.7mm Template Guide

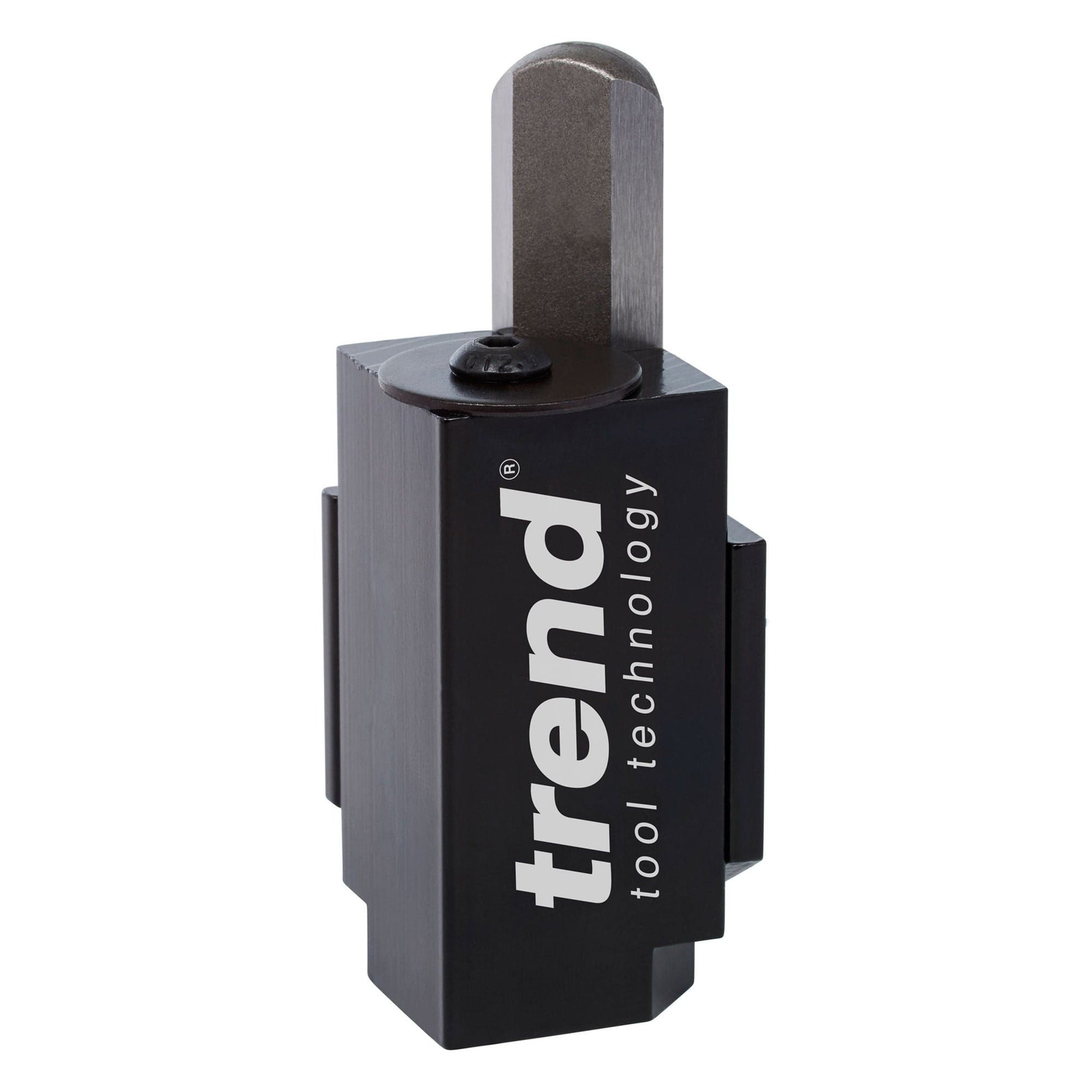

• 90° Corner Chisel
