Temple Tool Co.

Rip-Cut Timber Framing Saw

Item #300143 Model T-390-R

Temple Tool Co.

Rip-Cut Timber Framing Saw

Item #300143 Model T-390-R
Regular price $ 94 . 99
Sale price $ 94 . 99 Was $94.99
The 15” Rip-Cut Timber Framing Saw is a large Japanese pull saw developed for timber framing, post-and-beam construction and log cabin work where fast. . . View More Details
In Stock Online Shipping Info

About This Product

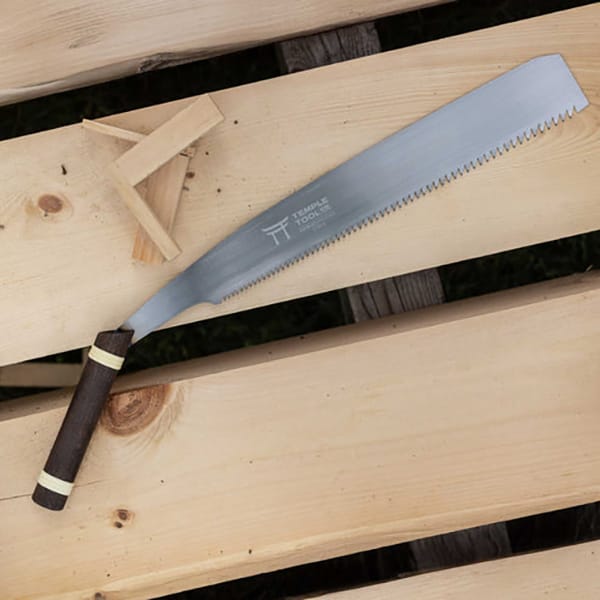

The 15” Rip-Cut Timber Framing Saw is a large Japanese pull saw developed for timber framing, post-and-beam construction and log cabin work where fast, accurate rip cuts are essential. Its narrow blade profile delivers greater control than traditional log ripping saws, helping maintain a clean-cut line while working through large timbers.

Inspired by the legendary Maebiki whale-back saw, this hand saw for wood adapts a centuries-old design for modern timber construction. The lighter-weight blade is easier to guide through rip cuts while still providing the aggressive cutting action needed for tenon cheeks and general ripping tasks in green, soft or hard wood. Progressive rip teeth increase from 4.5 to 7.5 TPI along the blade, allowing smooth starts near the handle and faster material removal as the stroke develops.

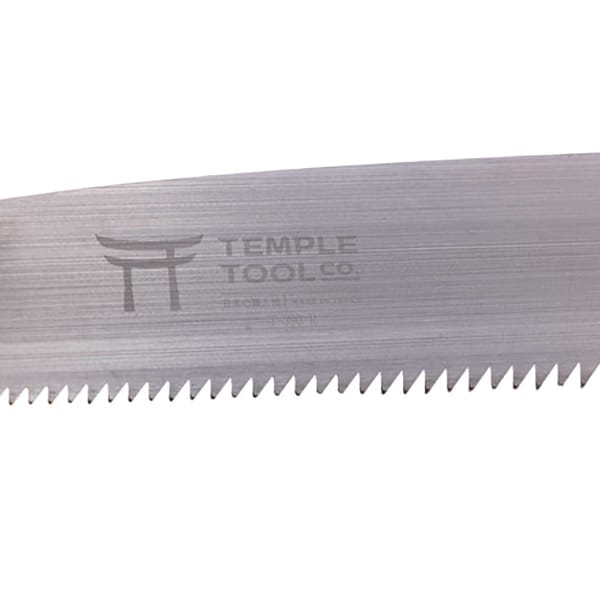

The 15.3" blade is made from SK85 Japanese tool steel with impulse-hardened teeth that stay sharp through extended use. A 30° bent Japanese wingnut wood handle creates additional leverage during the pull stroke, increasing cutting efficiency while helping maintain control. Natural rattan wrapping improves grip and comfort when working through demanding cuts.

Part of a growing collection of premium Japanese woodworking tools, this hand blade saw bridges the gap between traditional craftsmanship and modern timber construction. Pair it with the matching crosscut version (#300142) to create a complete two-saw timber framing system capable of handling layout cuts, joinery preparation and stock breakdown.

Features:

  • Traditional Maebiki whale-back inspired design

  • Rip-cut tooth geometry for timber framing and log construction

  • Progressive tooth pattern for smooth starts and faster cutting strokes

  • Optimized for green, wet, soft and hard wood

  • Narrower blade improves control along layout lines

  • SK85 Japanese tool steel blade with impulse-hardened teeth for extended edge life

  • 30° bent handle increases cutting leverage

  • Japanese wingnut wood handle with natural rattan wraps

  • Suitable for timber framing, pruning and bucking logs

  • Made in Japan

Specifications:

  • Blade Length: 15.3" (390 mm)

  • Overall Length: 24.8" (630 mm)

  • Tooth Count: 4.5-7.5 TPI

  • Blade Thickness: 0.031" (0.8 mm)

  • Kerf: 0.055" (1.4 mm)

  • Blade Material: SK85 Japanese tool steel

  • Tooth Style: Rip-cut

  • Handle Material: Japanese Wingnut wood

  • Handle Angle: 30°

  • Handle Wrap: Natural rattan

What's Included:

  • (1) Timber Framing Saw, Rip-Cut – 15"
