Teknatool

Nova Lite SUPERNOVA2 Chuck - Insert Version

Item #175708 Model 23264
Regular price $194.99
Sale price $194.99 Regular price $194.99
Skip to product information
1 of 2

Teknatool

Nova Lite SUPERNOVA2 Chuck - Insert Version

Item #175708 Model 23264
Regular price $194.99
Sale price $194.99 Regular price $194.99
The SuperNova2 with its patented gearing system delivers incredible gripping power. Large, rough and uneven work that you couldn't handle before can now be turned with greater. . . View More Details

In Stock

Shipping Info

Details

The SuperNova2 with its patented gearing system delivers incredible gripping power. Large, rough and uneven work that you couldn't handle before can now be turned with greater security. The SuperNova2 requires only one hand to operate using a ball nosed Allen key with a large easy grip handle (included). The ball nose allows the handle to operate at an angle while tightening the chuck. The SuperNova2 has a fully sealed heavy duty backing plate made from Duracon 25 composite which is reinforced with stranded glass fiber. Backing plate design incorporates a 24 division index for indexing accessories. Chuck body is approximately 3-7/8" diameter, depth is 1-7/8" and weighs in at 5-1/2 lbs. Handles up to 12"-diameter bowls and turnings with up to a 6"-long spigot when using the standard 50 mm jaws. Includes chuck body, 50 mm jaws, T-handled ball nose chuck key, manual, Allen wrenches and fasteners. Requires a threaded insert to fit your specific lathe’s spindle.

Features:


  • TuffLock™ Grip with precise, hardened gear action delivers a solid and vibration-free performance
  • Convenient one-handed operation with T bar handle – more time turning, less time preparing
  • Auto Safety Stop feature prevents the jaw slides from protruding past the chuck body
  • Suitable for a wide variety of lathes from 14" (350 mm) to 20″ (508 mm) swing
  • Fits a full range of Nova Chuck accessories

Specifications:

  • Model Number: Nova Tool - 23264
  • Chuck Body Diameter: 3-7/8"
  • Chuck Body Depth: 1-7/8"
  • Chuck Body Weight: 5-1/2 lb.
  • Bowl Capacity: Up to 12" diameter bowls using included standard 2" (50 mm) jaws
  • Spigot Capacity: Up to 6" length spigots using included 2" jaws (50 mm)
  • Designed for full size lathes 14"- 20" diameter swing
  • Construction: 1045 High Tensile Steel

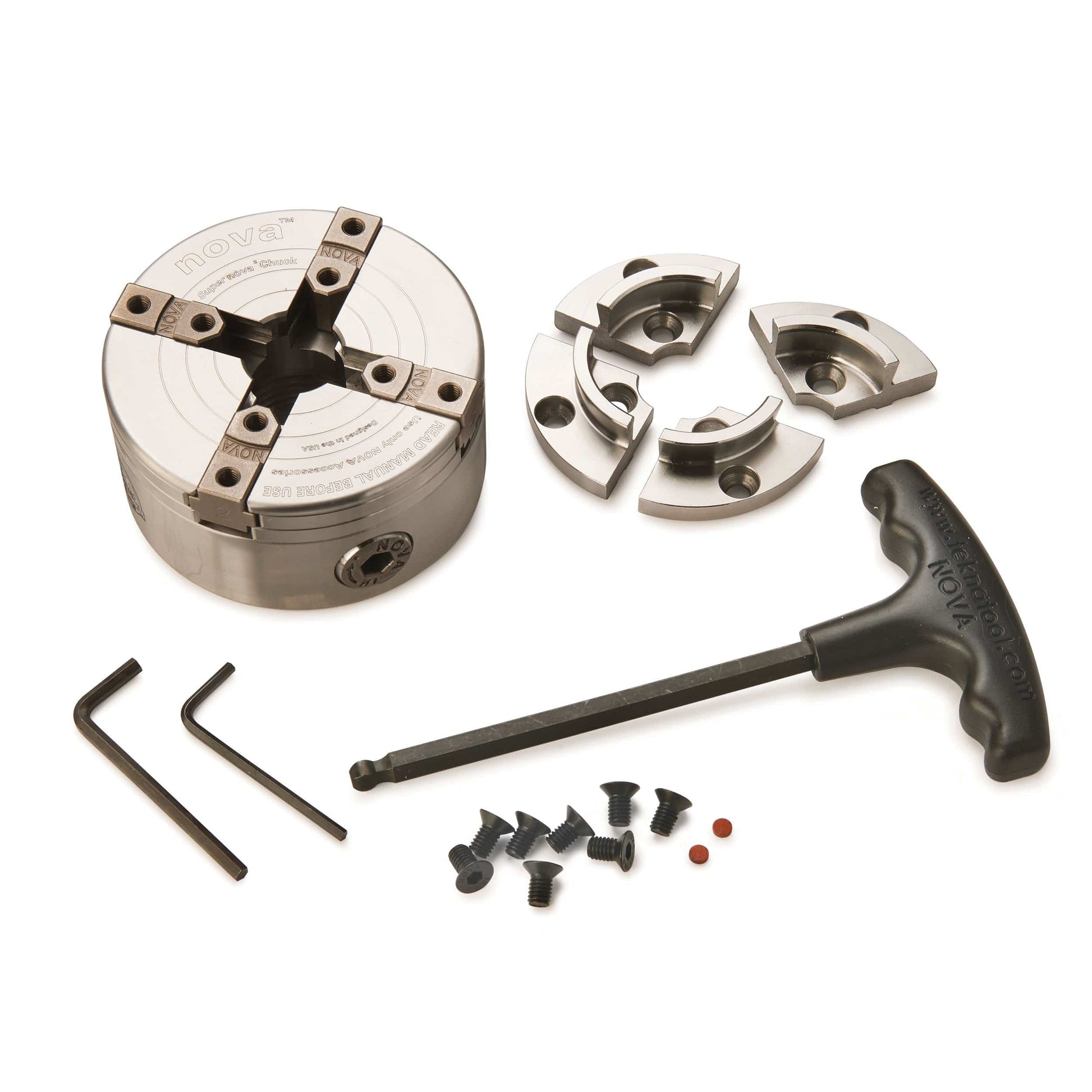

What's Included:

  • (1) LITE SuperNOVA 2 insert version chuck body complete with Tuff lock gearing and composite slides
  • (1) Tilt Away T-bar handle
  • (1) Set of Standard 2" (50 mm) Accessory Jaws
  • (1) Set of Fasteners
  • (1) Manual

Notes:

  • Threaded inserts sold separately
  • Requires a threaded insert to fit your specific lathe’s spindle.
