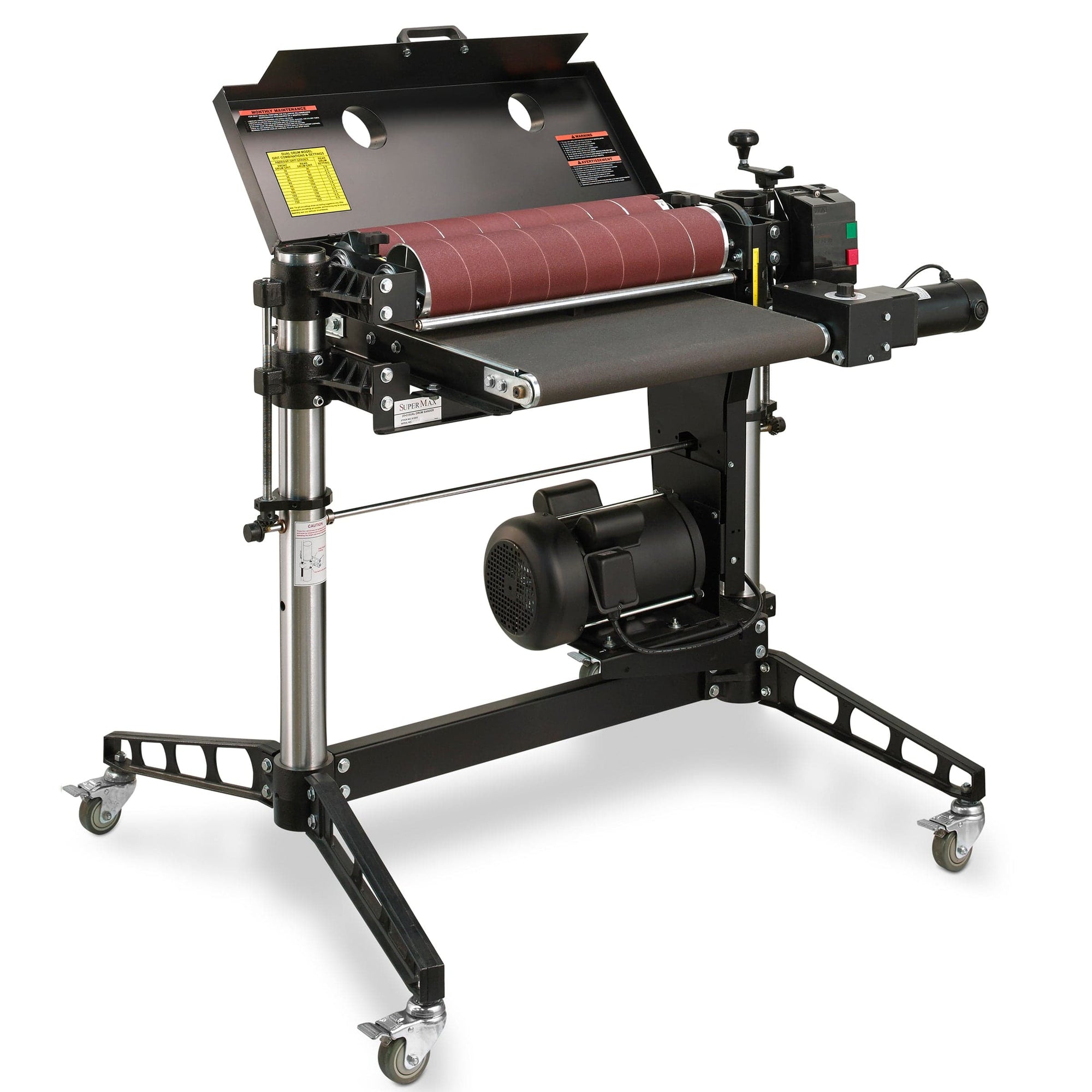

Sand two grits in a single pass with a 25×2 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding. Sand two grits in a single pass with a 25×2 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding. The 25×2 Double Drum Sander features INTELLISAND Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base and features a 5 HP motor.

Features:
INTELLISAND Technology: Automatically adjusts conveyor speed based on load. Prevents gouging, damaging, or burning stock. Provides consistent finish even with varying grain pattern and density. Greatly increases abrasive planing and dimensioning speed. Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander. Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner. Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap. Easiest access to abrasive fastening system of any drum sander!
Machine design includes additional space around abrasive, eliminating the need for special tools. The self-cooling drum prevents overheating and extends abrasive life. Drum ball bearing is sealed and permanently lubricated. Cast stand, zinc-plated steel bed, centerless ground column tubes.

Sanding Capacity:
Maximum Width (in): 25, 37, 50.
Minimum Length (in): 3-1/2.
Maximum Thickness (in): 25″ model: 6 37″ & 50″ models: 12.
Minimum Thickness (in): 1/32.

Specifications:

Dimensions HxWxD (in): 25″ model: 43 x 46 x 31 37″ model: 43 x 58 x 31 50″ model: 50 x 71 x 31 Drum (in): (extruded aluminum) 25″ model: 5 x 25 37″ model: 5 x 37 50″ model: 5 x 50

Drum speed: 1740 RPM

Dust Hood: (Steel hood, hinged at back 25” model: one (2) 4” vacuum port, min. 1000 CFM recommended 37″ & 50″ models: (3) – 4″ vacuum ports, min. 1800 CFM recommended.

Ball bearings (1”): 4, sealed and permanently lubricated.

Conveyor Motor: 25″ & 37″ models: 100 in. -lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM. 50″ model: 220 in.-lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM.

Drive Motor (TEFC): 25″ & 37″ models: 5 HP. 50″ model: 7-1/2 H.

Power Requirements: 208-230V, 60HZ; 1 Ph, 30 amp service; 3 Ph 20 amp service.
