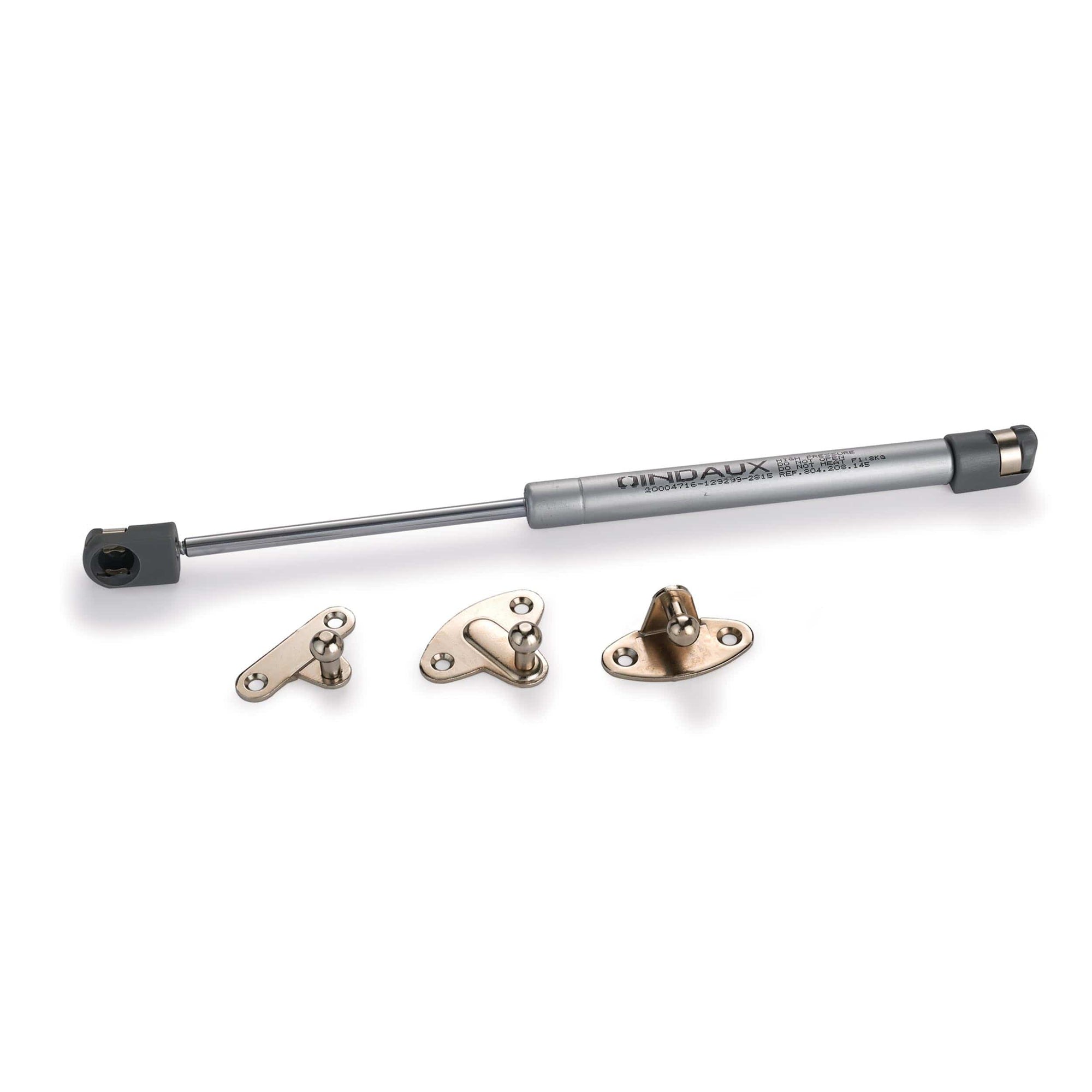

Gas Springs deliver quiet and effortless movement, far surpassing traditional metal springs or friction stays. Designed for both down and up-moving lids, these stays are easy to install. Simply attach the mounting brackets to the case and lid, then snap the stay in place. Each pneumatic stay is rated by its closing force in pounds, so choosing the correct rating is essential—too much force can prevent the lid from closing properly. For lids wider than 36", using two stays is recommended. Each unit includes screws, mounting plates for left or right installation, and installation instructions. Sold individually.
Features: Specifications: Whats Included: X=6xWxH/1000 X= closing force in lbs Example X=6x5x254/1000 = 7.62 kg Lid stays available in the following: 6 kg/13 lbs rated stay #162395
Formula to determine correct stay:
W=weight of lid in KG (2.2 lb per kg)
H=height of lid in mm (25.4 mm per inch)
A lid that weighs 11 pounds (5kg)
And is 10" high (254 mm):
8 kg/17 lbs rated stay #162396
10 kg/22 lbs rated stay #162397
12kg/26 lbs rated stay #162398
15 kg/33 lbs rated stay #162399
