Saw Trax

Varsity Series Vertical Compact Panel Saw - 52" Crosscut

Item #416417 Model C52VP
$3,149.00
$3,149.00 $3,149.00

This item has an additional shipping charge

1 2

Saw Trax

Varsity Series Vertical Compact Panel Saw - 52" Crosscut

Item #416417 Model C52VP
$3,149.00
$3,149.00 $3,149.00

This item has an additional shipping charge

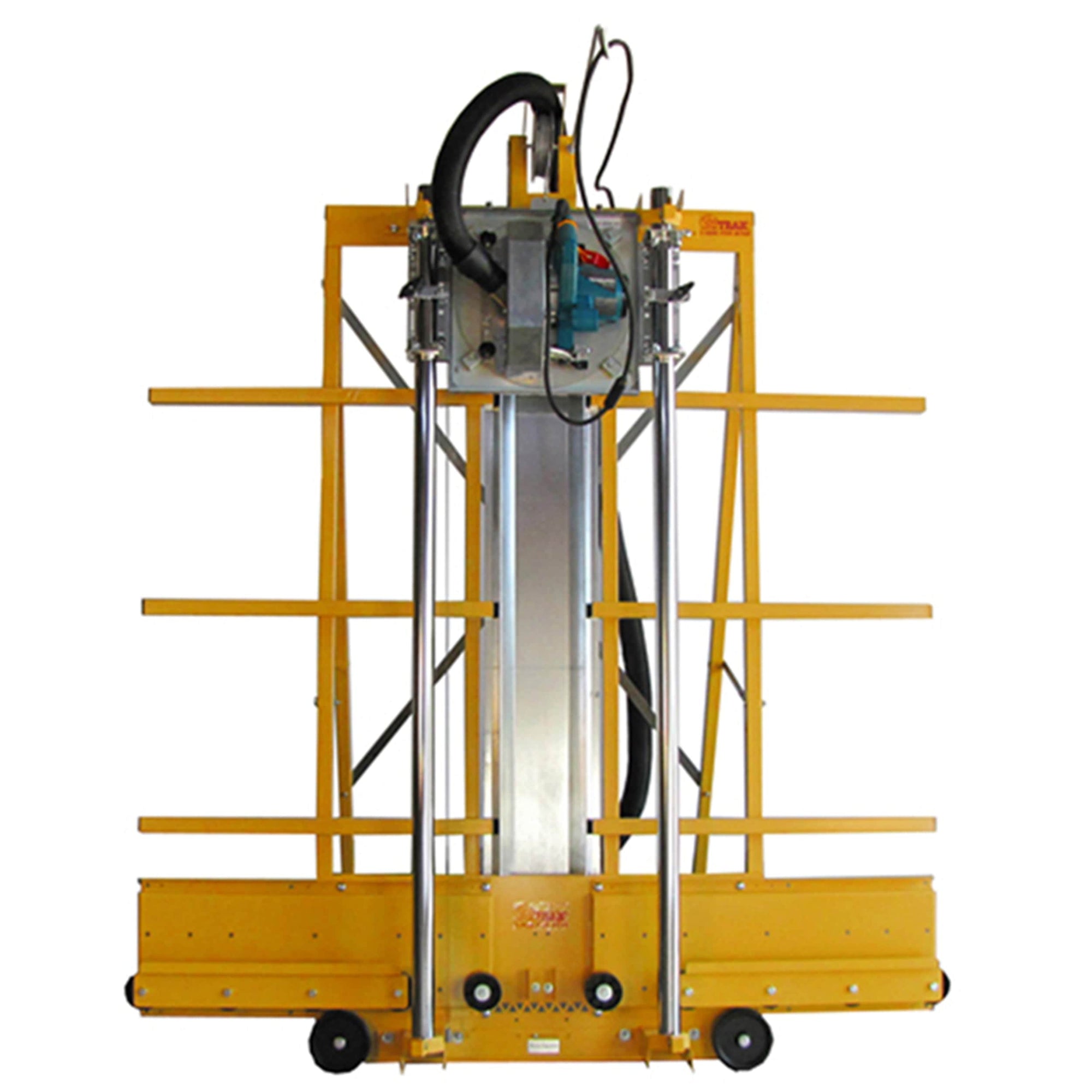

The Saw Trax Varsity Series Vertical Compact Panel Saw does everything a woodworker would want with a smaller footprint. At only 5' wide, it has 52" . . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Ships from Manufacturer

Shipping Info

Details

The Saw Trax Varsity Series Vertical Compact Panel Saw does everything a woodworker would want with a smaller footprint. At only 5' wide, it has 52" cross cut and unlimited rip cut capabilities. Ideal for breaking down sheet goods that are less than 1-3/4" thick with precision cuts.

Features a Makita 5007F 7-1/4" circular saw on a spinning saw insert and dust collection hook ups. The folding stand is as easy to open and close as a ladder while providing complete stability during operation. For portability and mobility, transport wheels are included.

Both the vertical and horizontal measuring systems ensure accurate cuts while the stop bar allows you to make repetitive cuts. The patented Accu-Square alignment system assures that your machine stays square. The unique sealed roller bearing system provides for smoother carriage action and tighter tolerances.

Specifications

  • Blade Size: 7-1/4"
  • Arbor: 5/8"
  • Depth of Cut: 1-3/4"
  • Frame Size: 5 ft.
  • Max. Cross Cut: 52"
  • Max. Rip Cut: unlimited
  • Shipping Weight: 337 lb.
  • Operating Dimensions: 65" W x 42" D x 78" H
  • Makita 7.25" Circular Saw
  • 120V, 15AMP
  • 5800 RPM
  • Single Phase
Includes: Accu-Square Bracket, Trigger Lock, Spinning Saw Insert, Dust Collection Hook Ups and Brush, Dual Rip Gauge, Measuring Tape, Stop Bar with two (2) Tapes, Material Rollers and Hubs, and a General Purpose Blade.

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships via ground to the 48 contiguous states.

Return Information

Saw Trax accepts returns on warranty claims only.


Warranty Information

Saw Trax offers a 1 year limited warranty. Contact Woodcraft Customer Service at 800-225-1153 if you have a warranty issue.
