Saw Trax

Sign Maker Compact 64" Vertical Panel Saw

Item #173980 Model C64SM
Regular price $3,949.00
Sale price $3,949.00 Regular price $3,949.00

This item has an additional shipping charge

The Saw Trax Sign Maker Compact 64" Vertical Panel Saw is designed specifically for the multitude of materials used in sign shops from wood to acrylic. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Ships from Manufacturer

Shipping Info

Details

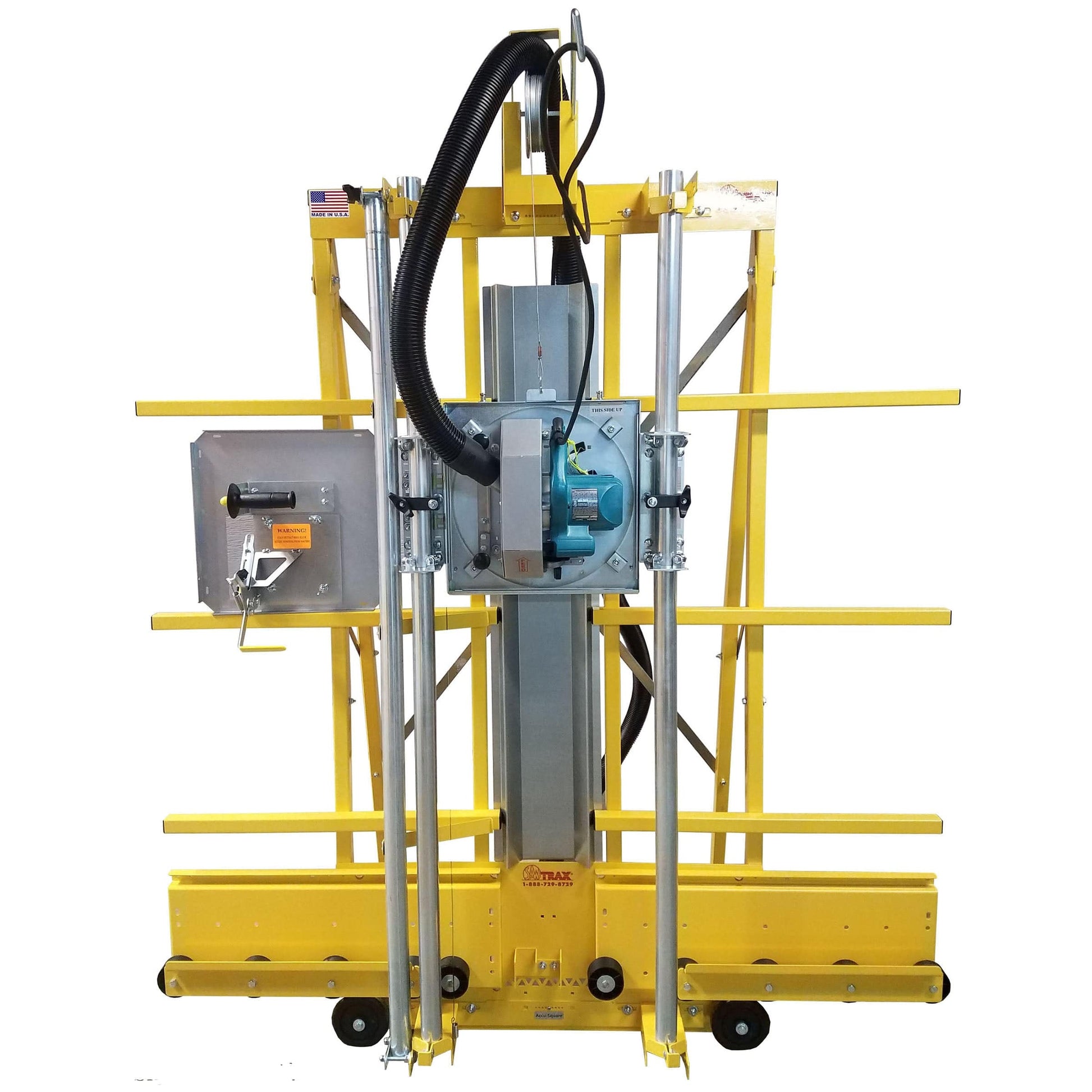

The Saw Trax Sign Maker Compact 64" Vertical Panel Saw is designed specifically for the multitude of materials used in sign shops from wood to acrylic and more. It includes a Makita 5007F circular saw on a spinning saw insert plate, a spring hold down to help support thinner material, and the pivoting knife cutter insert for cutting soft or thin materials such as Coroplast, foamboard, PVC, cardboard and more! Easily cut vertically or horizontally with the saw or knife.

This substrate cutter also features an industry-leading dust collection system. The Folding Stand is as easy to open and close as a ladder, yet provides complete stability while in operation. For portability and mobility, transport wheels are included. Both the vertical and horizontal measuring tapes help to ensure accurate cuts. The stop provides the capability to make repetitive cuts, and the bar on the stop allows for cutting strips.

The patented Accu-Square alignment system assures that your machine will never go out of square and the Accu-Glide sealed roller bearing system provides for smoother carriage action and tighter tolerances.

Includes Makita 5007F saw, spinning saw insert plate, pivoting knife cutter insert, dust hood, hose, brush, folding stand, transport wheels, dual rip gauge, stop bar, two measuring tapes and a spring hold down.

Features

  • Material cut accuracy of 1/64”
  • Accu-Square Patented Alignment System
  • Accu-Glide Steel Sealed Bearings
  • Pivoting OLFA Knife Cutter
  • Makita 5007F on spinning saw insert plate
  • Spring hold down for materials
  • Cuts a multitude of materials
  • Clean dust collection system
Specifications

  • Blade speed: 5800 RPM
  • Saw motor: 15 amp, 120v
  • Blade: 7-1/4" D
  • Arbor: 5/8"
  • Cross cut capacity: 64"
  • Max material thickness: 1-3/4"
  • Frame size (set up): 90" H x 65-1/4" W x 40" D
  • Shipping weight: 367 lbs.

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships via ground to the 48 contiguous states.

Return Information

Saw Trax accepts returns on warranty claims only.


Warranty Information

Saw Trax offers a 1 year limited warranty. Contact Woodcraft Customer Service at 800-225-1153 if you have a warranty issue.
