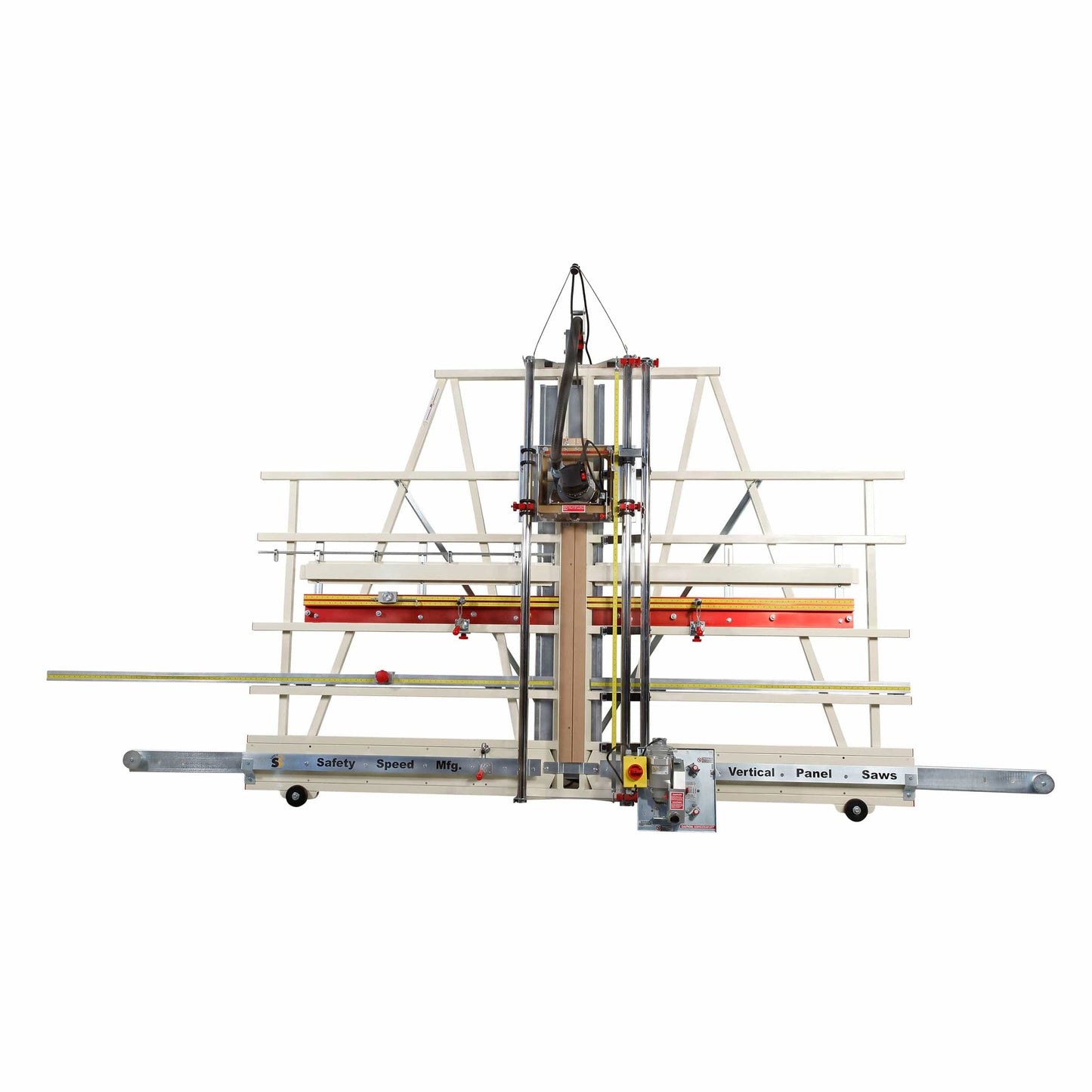

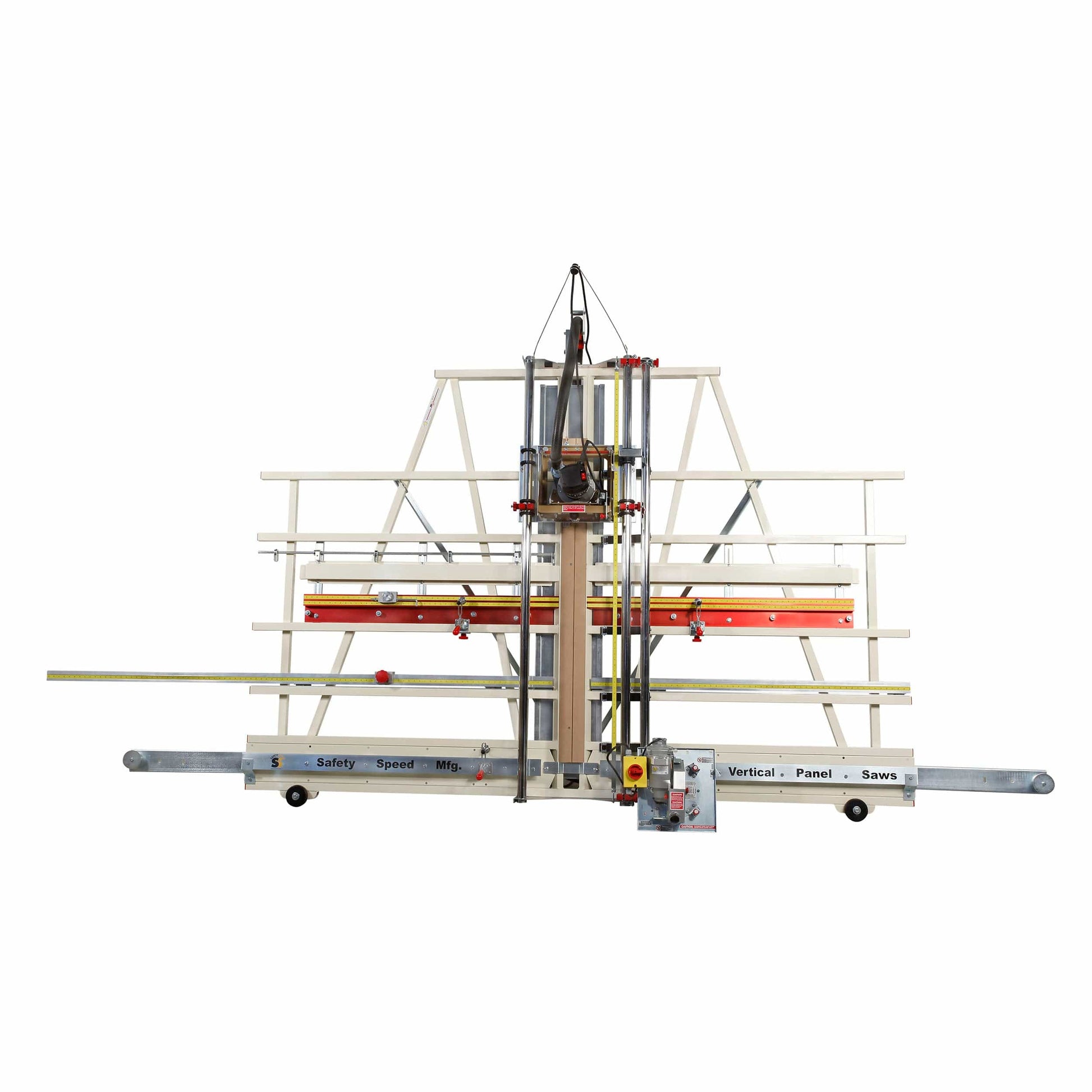

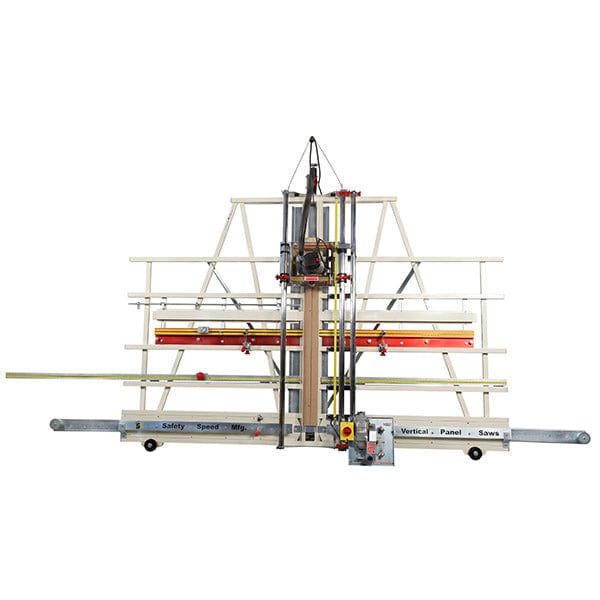

Accurately cut and v-groove ACM (aluminum composite material) panels with this SR5A panel saw / router combo. This unit is for serious work featuring a 3 HP worm drive saw motor and 3-1/4 HP router motor. It features a unique floating router with a nylon guide guaranteeing a consistent depth of cut. You can switch from saw to router in under a minute eliminating down time. It also features a dust system (hood and hose kit) to collect debris while cutting and routing.
Features

• 3 HP, 13 Amp 120V worm drive motor
• 3-1/4 HP, 15 Amp heavy duty router motor
• Max crosscut: 62”
• Unlimited rip cut
• Max cut thickness: 1-3/4”
• Cut accuracy (straight and square): 1/64”
• Saw Blade Diameter: 8”
• Frame Length: 120”
• 10’ welded steel frame
• Chrome plated 1-3/4” guide tubes
• 8 Nylatron roller bearing systems
• Adjustable vertical and horizontal rulers
• Quick change from vertical to horizontal cutting
• Thin material pressure guard
• Injection molded plastic material rollers
• Counterweight system
• Adjustable floating router head
• MID-WAY FENCE ™ with stop
• 4 material clamps
• 2 blind dado stops
• Wheels
• Fixed stand
• Extensions
• Left and right quick stop gauges
• MID-WAY FENCE ™ flip stop
• Dust hood and hose kit
• Hold down bar
• Specialty saw blade and router bit for v-grooving included
• 1 year parts warranty
• Dimensions: 120” x 17” x 92”
• 420 lbs.

Note: A lift gate is not available for this item. Delivery requires a forklift or dock delivery.
