Safety Speed

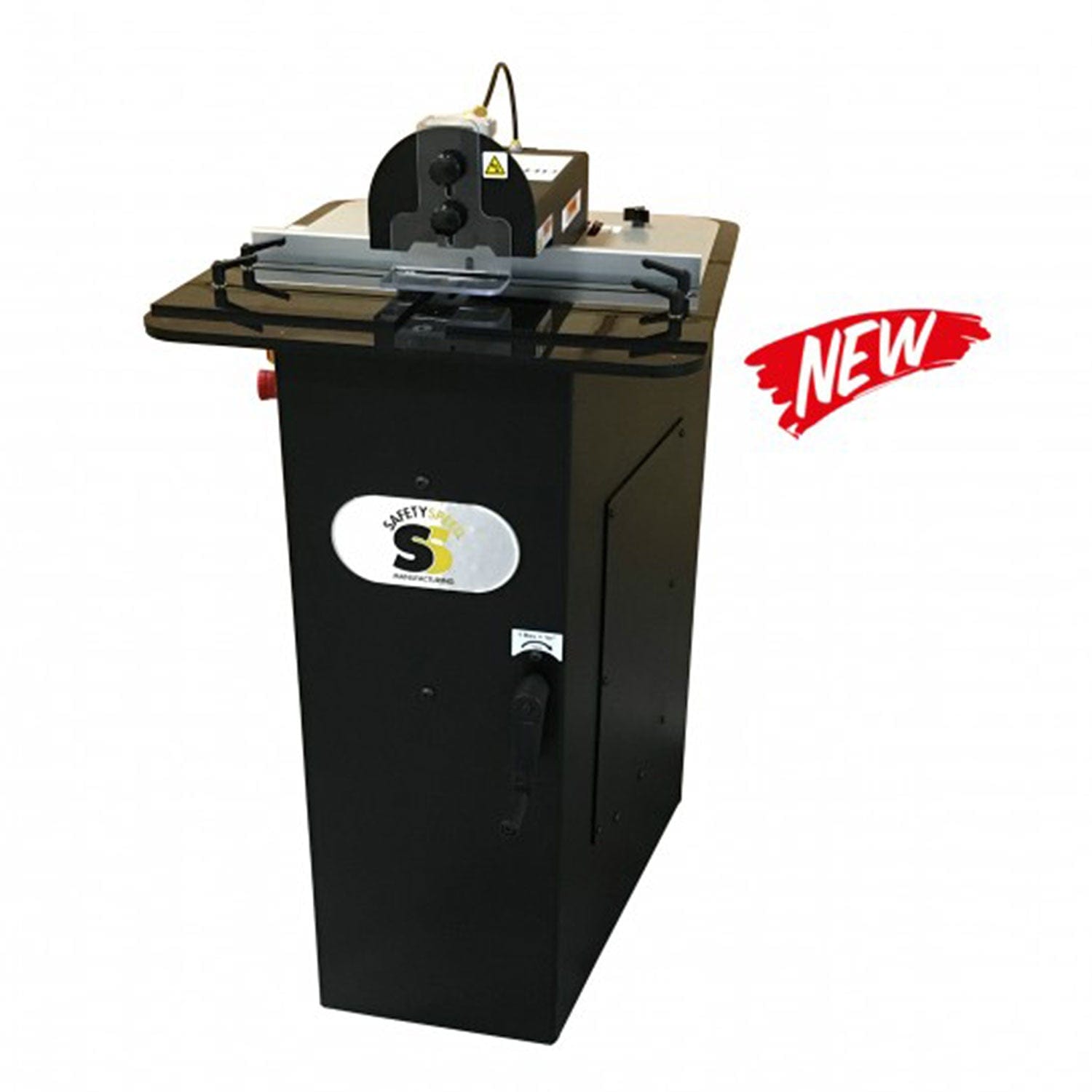

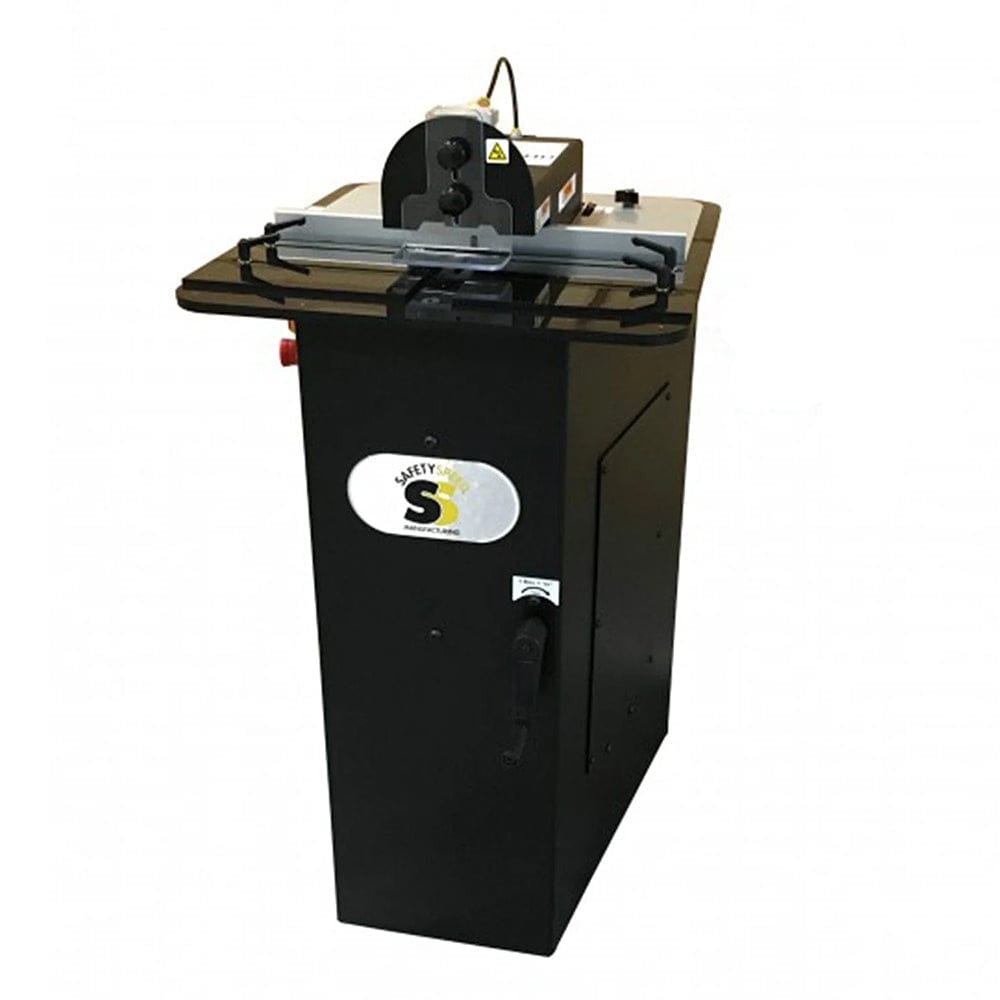

Screw Pocket Machine SPM301HD

Item #424436 Model SPM301HD
$8,199.00
$8,199.00 $8,199.00

This item has an additional shipping charge

1 2

Safety Speed

Screw Pocket Machine SPM301HD

Item #424436 Model SPM301HD
$8,199.00
$8,199.00 $8,199.00

This item has an additional shipping charge

The SPM301HD features a heavy-duty, direct drive continuous electric spindle motor for those jobs that just keep on coming. Unlike others of its kin. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Ships from Manufacturer

Shipping Info

Details

The SPM301HD features a heavy-duty, direct drive continuous electric spindle motor for those jobs that just keep on coming. Unlike others of its kind, the SPM301HD features cam-driven action providing fast, smooth cutting action under complete mechanical control throughout the machine cycle. The new pilot air drill and end mill produce superior low-angle 6 degree screw pockets. Requires standard 220V and 6.2 CFM at 90 PSI based on 25% load factor, 25% duty cycle.

Specifications:
  • Weight 294 lbs
  • Dimensions 32 x 22 x 44in
  • Crated Dimensions
  • 36" × 28" × 49"
  • Vacuum Diameter Required - 3" Hose Connection
  • Vacuum CFM Required - 220 CFM
  • Air Requirement - 6.2 CFM at 90 PSI (Rating based on 25% load factor, 25% duty cycle)
  • Spindle Motor - 5 amp/18,000 RPM, 3/8" (ER20) Collet
  • Screw Pocket Angle - Six Degrees
  • Spindle Motor Amps - 5 amps
  • Spindle Motor Collet - 3/8” Collet
  • Spindle Motor Max RPM - 18,000
  • Air Drill - 7HP
  • Air Drill Collet - 1/4" Collet
  • Air Drill Max RPM - 25,000
  • Screw Pocket Depth Range - .5" to 1.5"
220V Electrical and 30 CFM compressed air at 80PSI required for use

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-21 business days, depending on product ordered.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

If you have a return issue, contact Woodcraft Supply customer service @ 1-800-535-4482 for return details. Returns of Safety Speed Manufacturing manufacturer-shipped items are subject to a 25% restocking fee. Customer to pay return freight.

When returning product, please include the invoice number or customer number and refer to the back of the invoice for shipping instructions. If purchased at a Woodcraft Store, please return the item directly to the store where your purchase was made.

Warranty Information

Safety Speed Manufacturing offers a one-year warranty on parts.
