Safety Speed

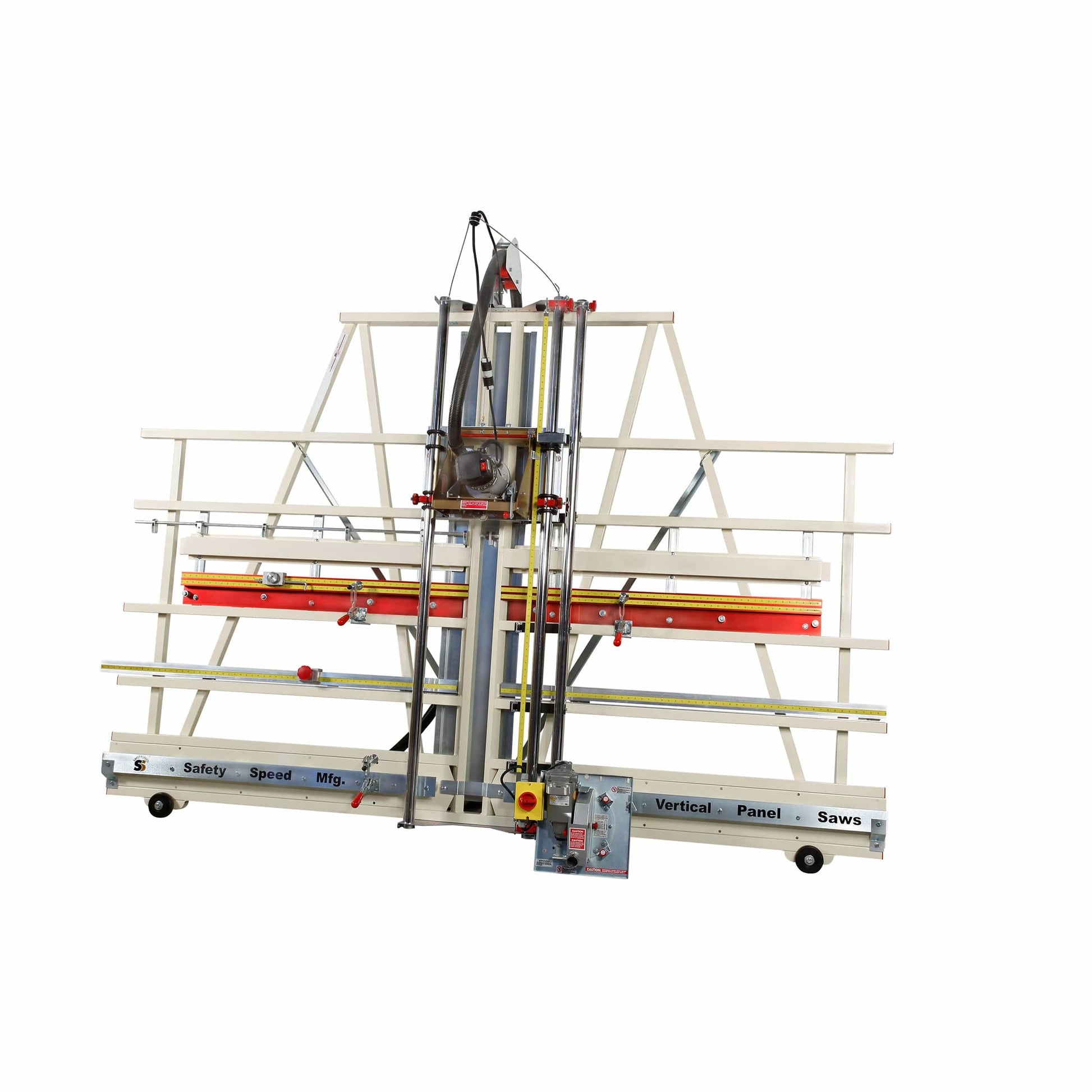

Safety Speed SR5U Vertical Panel Saw/Router

Item #415881 Model SR5U
Regular price $8,099.00
Sale price $8,099.00 Regular price $8,099.00

This item has an additional shipping charge

Skip to product information
1 of 1

Safety Speed

Safety Speed SR5U Vertical Panel Saw/Router

Item #415881 Model SR5U
Regular price $8,099.00
Sale price $8,099.00 Regular price $8,099.00

This item has an additional shipping charge

SHOWN WITH OPTIONAL WHEELS AND STAND. The SR5U is able to saw and route on one vertical steel welded frame, which is ideal for shops with limited space. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Ships from Manufacturer

Shipping Info

Details

SHOWN WITH OPTIONAL WHEELS AND STAND.

The SR5U is able to saw and route on one vertical steel welded frame, which is ideal for shops with limited space where both panel sizing and panel routing are performed. This model can be changed from saw to router in less than one minute and has accuracy of 1/64" straight and square. The Worm Gear Driven Saw and 3-1/4HP Router Motor make this a heavy duty machine that's ideal for cabinet shops, composite panel fabrication and other applications where panel sizing and routing are required.It comes equipped with a Mid-way fence system which makes the processing of small panels more efficient. Our patented self-adjusting router carriage provides for a consistent depth of cut when routing.

Specifications
  • 10 ft. Welded Steel Frame
  • Porter Cable 7519 Router
  • Uses 1/2" diameter router bits, not included
  • Chrome-Plated 1-3/4" Guide Tubes
  • 8 Nylatron Roller Bearing System
  • Adjustable Vertical and Horizontal Rulers
  • Quick Change from Vertical to Horizontal Cutting
  • Thin Material Pressure Guard
  • Four Material Clamps
  • Integrated Dust Collection Bonnets
  • Solid Aluminum Material Rollers
  • Enclosed Counterweight System
  • Adjustable Floating Router Head
  • Mid-Way Fence with Stop
  • 2 Blind Dado Stops
  • 1 Year Parts Warranty
  • Lifetime Frame Warranty
  • Saw Motor: 3 HP Worm Drive, 120V, 13Amp
  • Router Motor: 3-1/4 HP Heavy Duty, 120V, 15Amp
  • Max Crosscut: 62" (1575mm)
  • Max Rip Cut: Unlimited
  • Max. Cut Thickness: 1-3/4" (44mm)
  • Cut Accuracy, Straight and Square: 1-6/4" (0.4mm)
  • Saw Blade Diameter: 8"
  • Frame Length: 120"
  • Shipping Weight: 550 lb.
Note: A lift gate is not available for this item. Delivery requires a forklift or dock delivery.

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-21 business days, depending on product ordered.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

If you have a return issue, contact Woodcraft Supply customer service @ 1-800-535-4482 for return details. Returns of Safety Speed Manufacturing manufacturer-shipped items are subject to a 25% restocking fee. Customer to pay return freight.

When returning product, please include the invoice number or customer number and refer to the back of the invoice for shipping instructions. If purchased at a Woodcraft Store, please return the item directly to the store where your purchase was made.

Warranty Information

Safety Speed Manufacturing offers a one-year warranty on parts.
