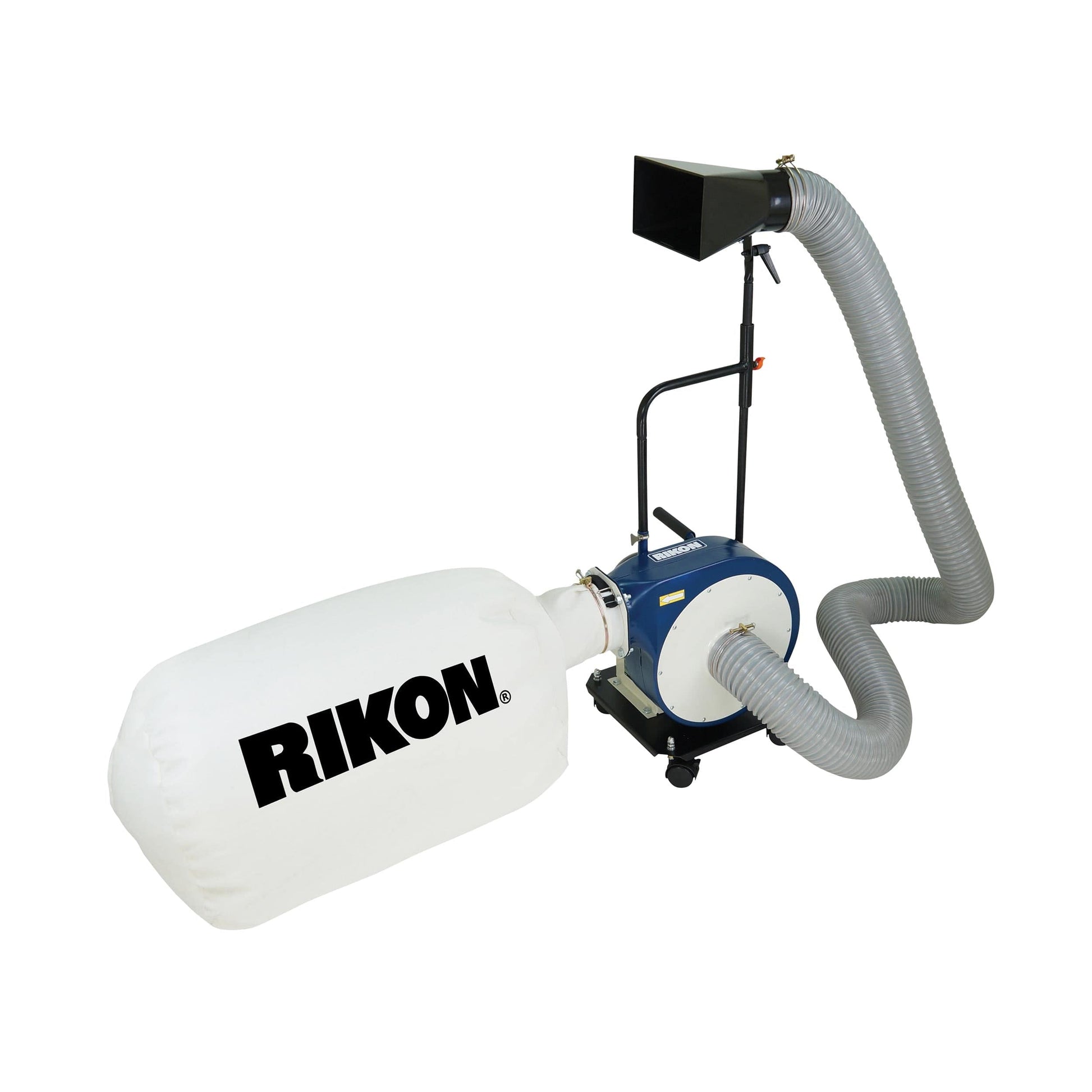

Portable Dust Collector with Wall Mount - 1 HP - 2 Micron Bag
Item #866003
Model 60-105
Regular price
$399.99
Sale price
$399.99
Regular price
$399.99
Unit price
per
Rikon® Model 60-105 1HP Portable Dust Collector is a convenient size and can be used for many small shop operations. This unit gives the shop owne. . .
View More Details
Details

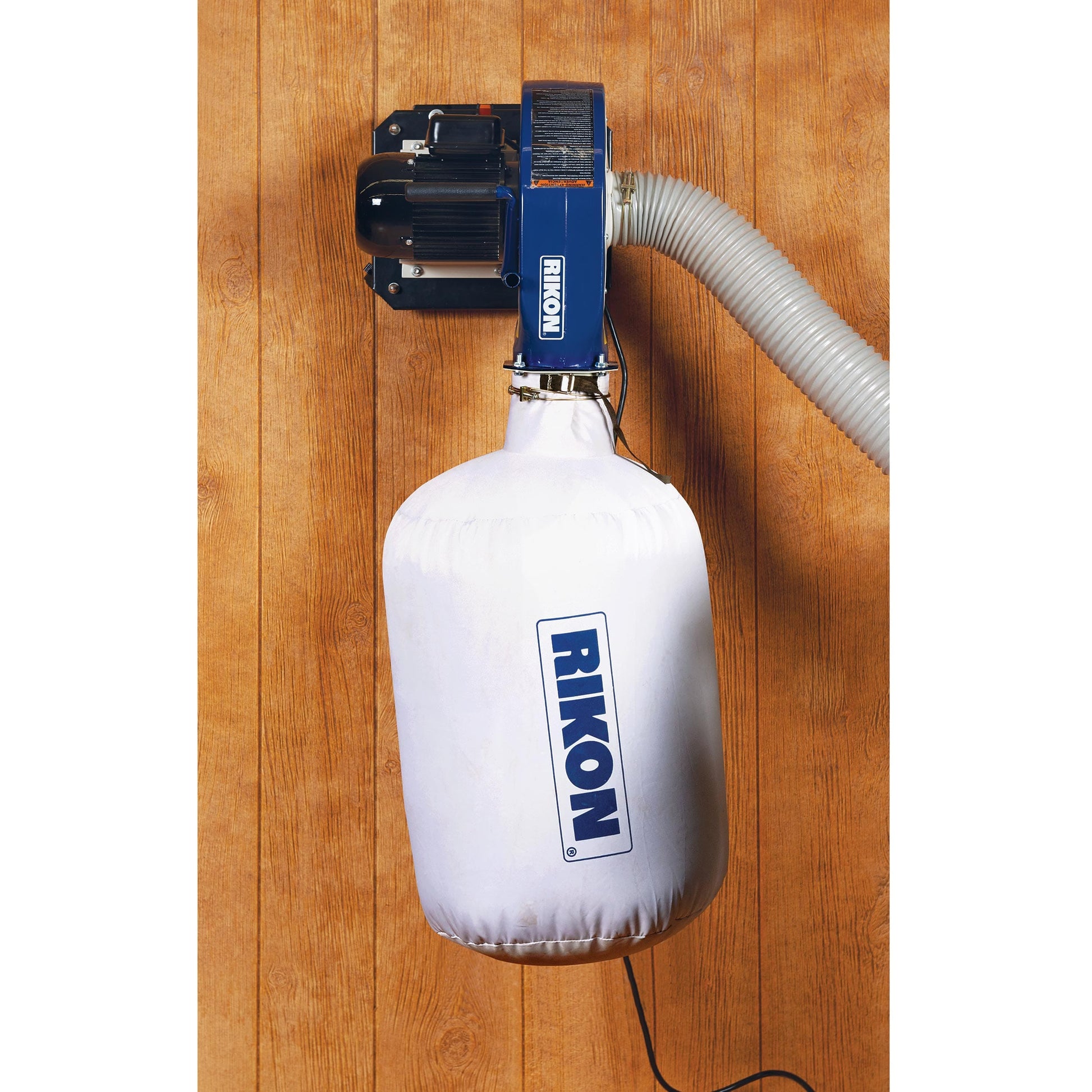

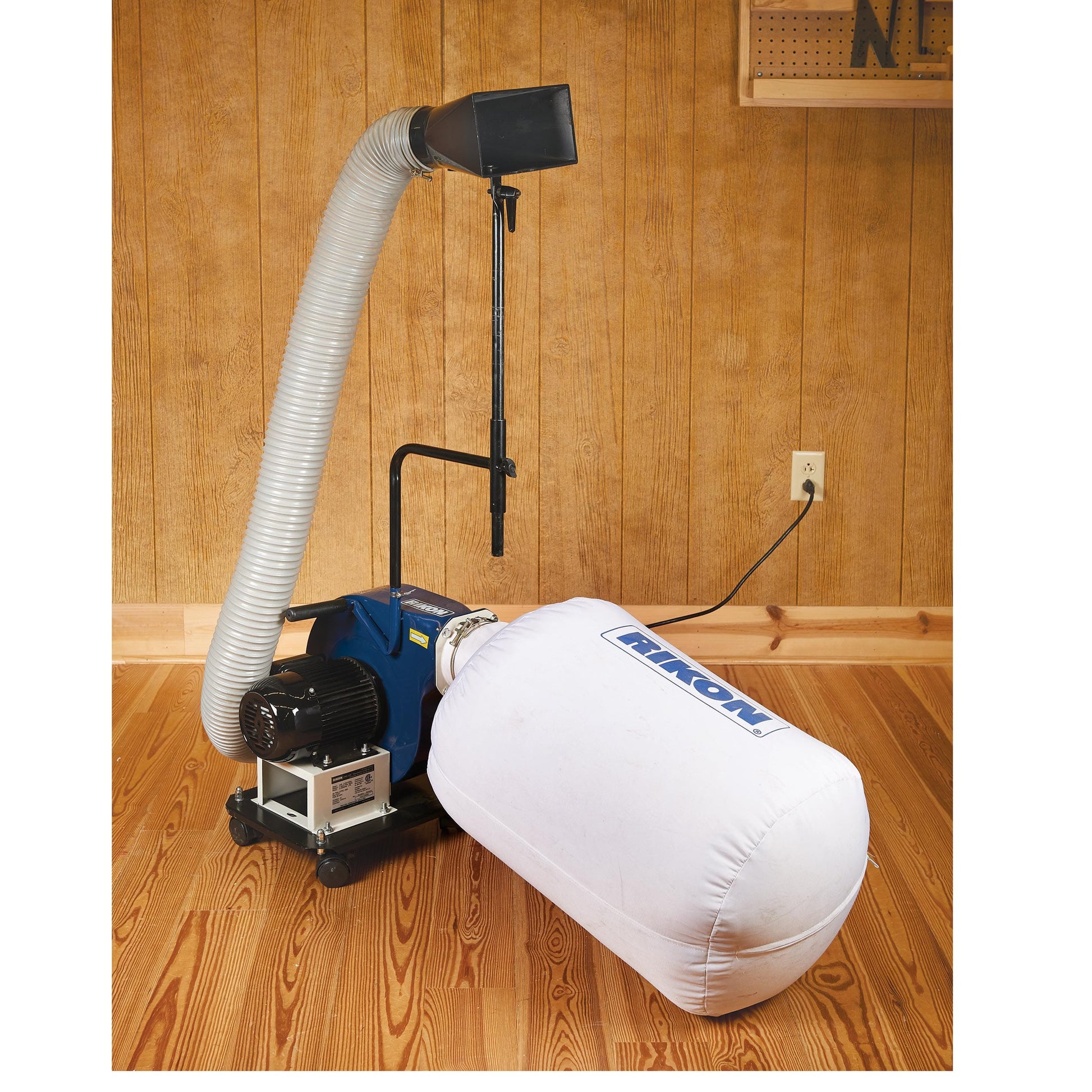

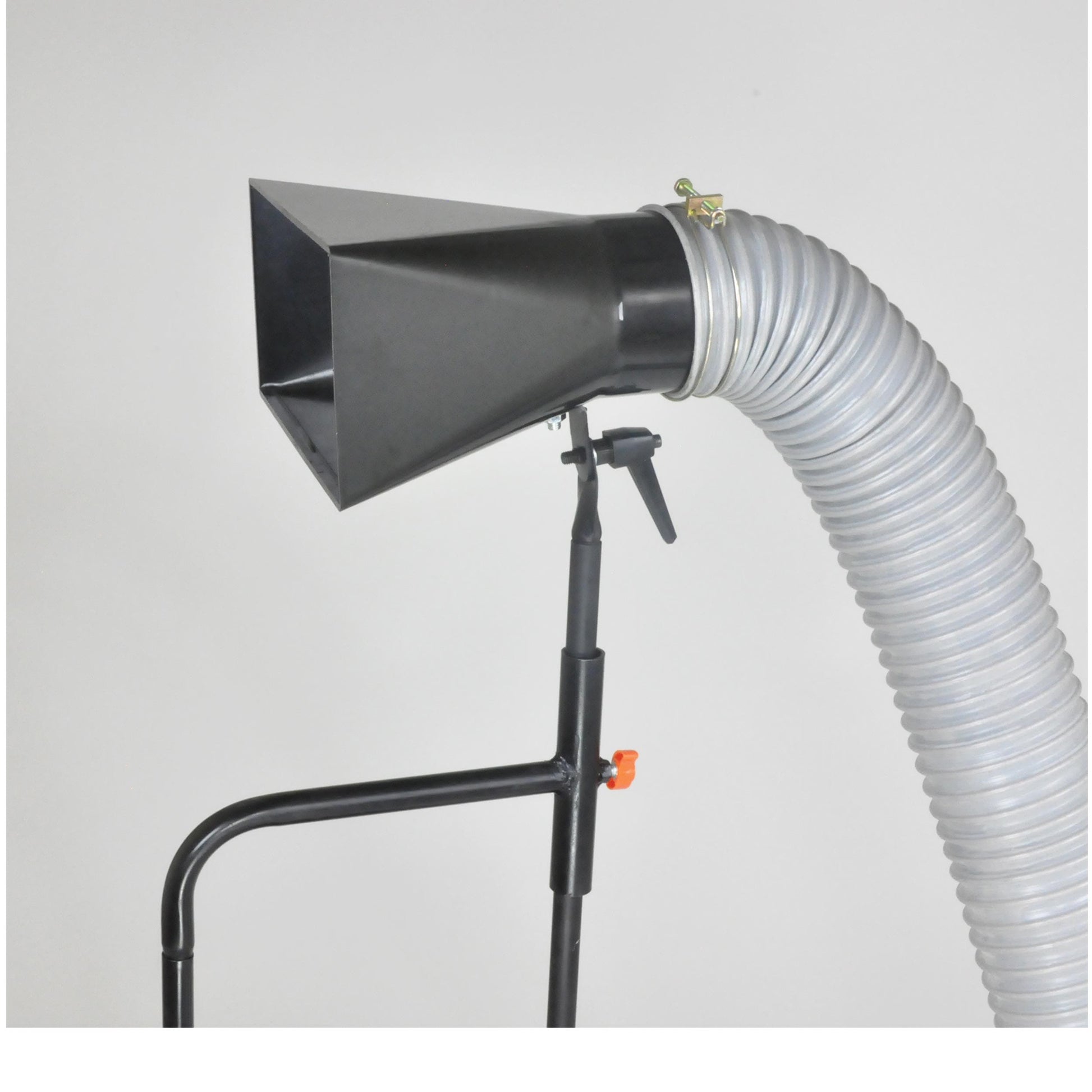

Rikon® Model 60-105 1HP Portable Dust Collector is a convenient size and can be used for many small shop operations. This unit gives the shop owner the versatility to mount the unit on the wall or use the built-in casters and handle to easily move it wherever it needs to go in the shop. The single 4" dust port draws 660 CFM, which is more than enough suction for single machine operation on the big chip makers like a jointer or planer. An adjustable pipe extension with chip collecting funnel allows the suction end to be positioned high for use with lathes, drill presses, workbenches, etc. Includes 2-micron cloth filter bag, 9' x 4" hose, adjustable pipe, funnel attachment system (9-1/4" x 5"), wall mounting bracket and mounting hardware.
Features:
- 1 HP motor is perfect for all cleanup jobs around the shop
- Great for small shops
- Versatile
- 2-Micron cloth bag

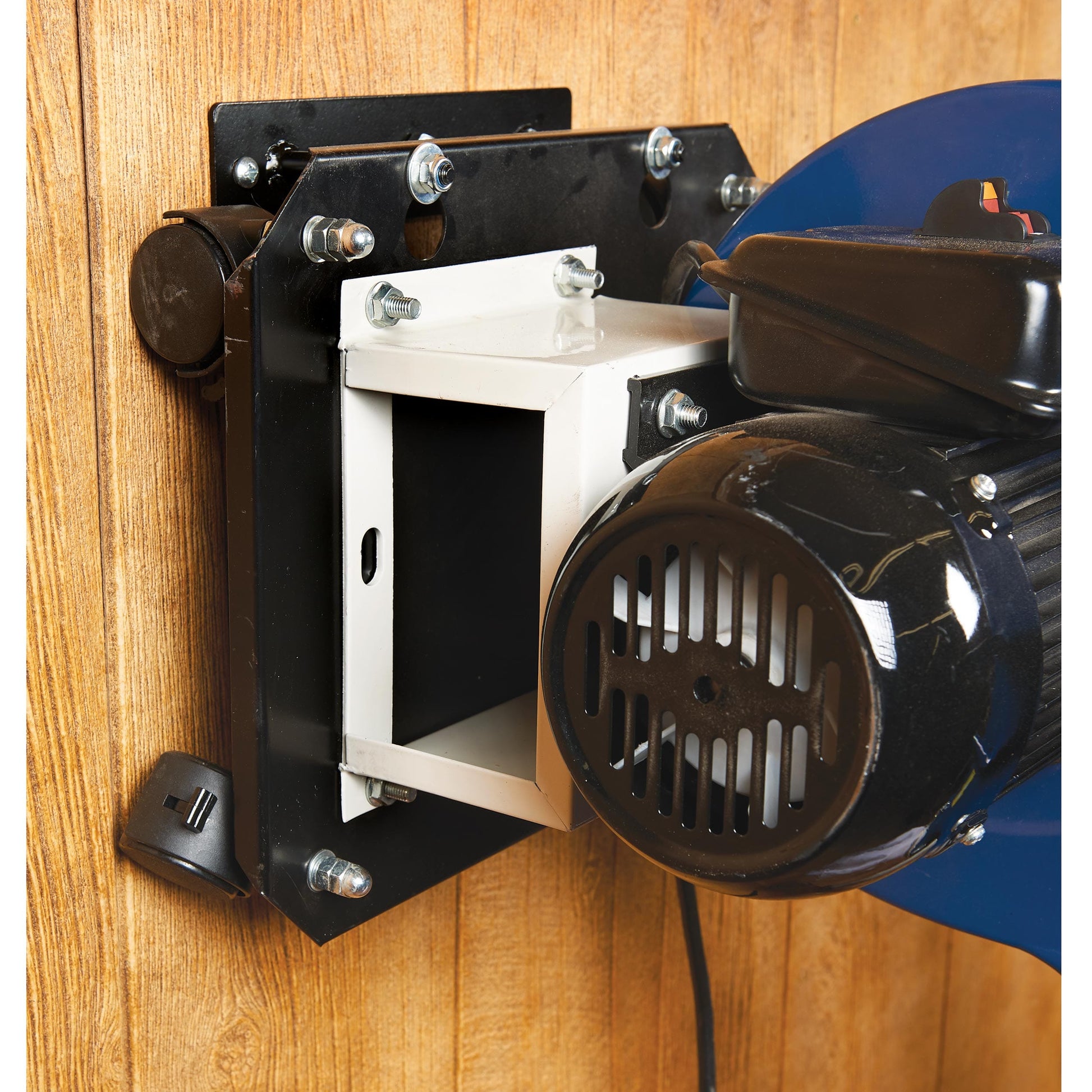

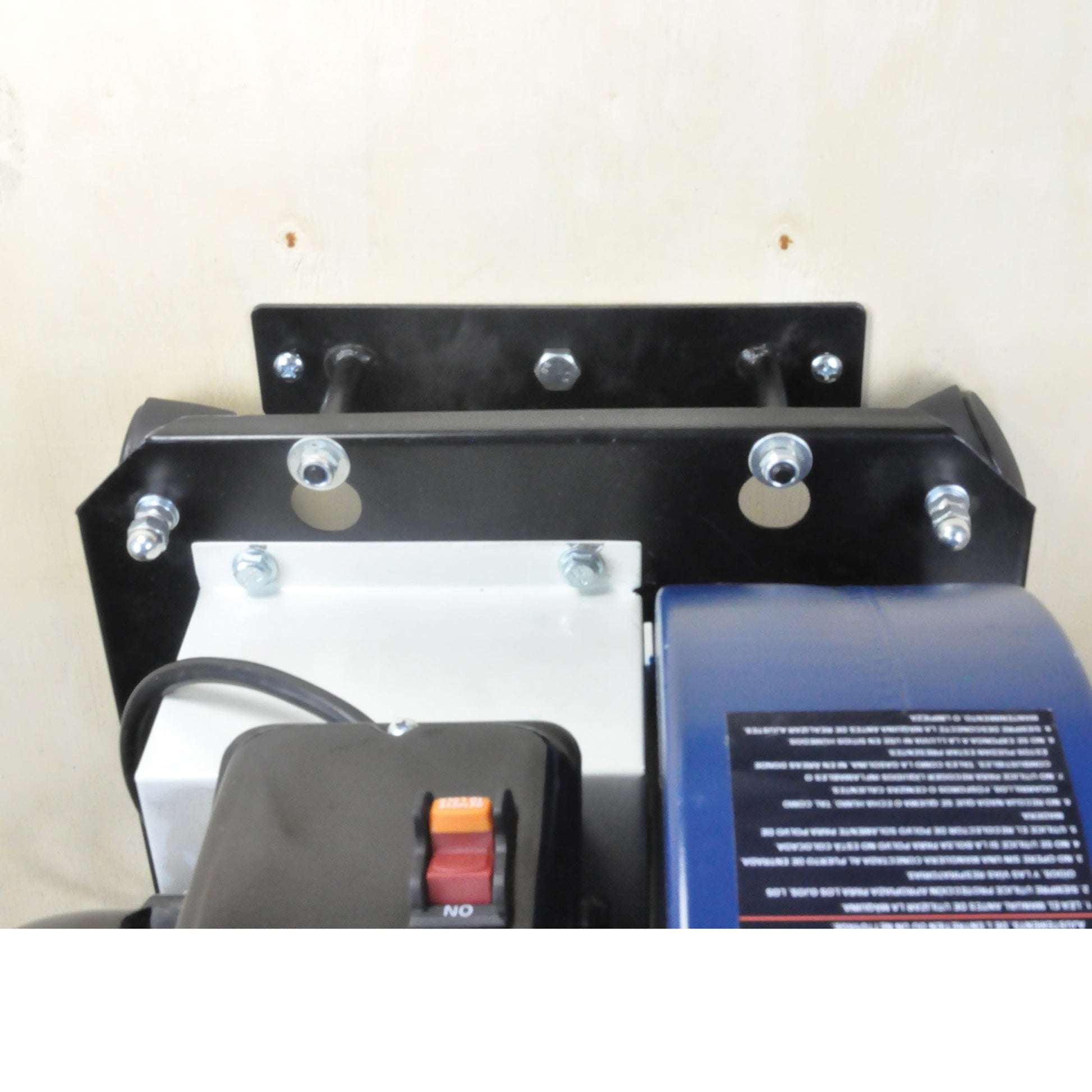

- Base has holes for wall mounting the unit
- Casters for mobility
- Includes a 4" diameter by 108" long flexible hose
Specifications:
- Motor Type: TEFC (totally enclosed, fan-cooled) continuous duty
- Motor Power: 1 HP
- Motor Volts: 115/230V (Wired for use with 3-wire 120V receptacles)
- Motor Amps, Hertz: 7.5 / 3.75A, 60 Hz
- Motor Speed (no load): 3,450 RPM
- Dust Collection Velocity - Cubic Feet Per Minute: 660 CFM
- Blower Impeller Diameter: 9"
- Blower Impeller Material: Steel
- Sound Rating @ 3 Feet: <78 dB
- Bag Filtration: 2-microns
- Bag Diameter: 16"
- Bag Capacity: 2.4 Cubic Feet
- Bag Length: 22"
- Hose Connection: 1 @ 4"
- Intake Funnel Height: 55"
- Dust Hose Size: 9' Length x 4" Diameter
- Dimensions (L x W x H): 18” x 14-1/2” x 19”
- Net Weight: 48 lbs.
- Warranty: 5 Years
What's Included:
- (1) Rikon® Portable Dust Collector with Wall Mount - 1 HP - 2 Micron Bag (Model 60-105)
