RIKON

Mortiser with Dual Axis Table - 1/2 HP

Item #861204 Model 34-260
Regular price $599.99
Sale price $599.99 Regular price $599.99
Skip to product information
1 of 1

RIKON

Mortiser with Dual Axis Table - 1/2 HP

Item #861204 Model 34-260
Regular price $599.99
Sale price $599.99 Regular price $599.99
The Rikon® Mortiser with Dual Axis Table - 1/2 HP - Model: 34-260, offers outstanding table movement and control for boring precise mortises. Like a mechanic’s vise,. . . View More Details

Items you may need

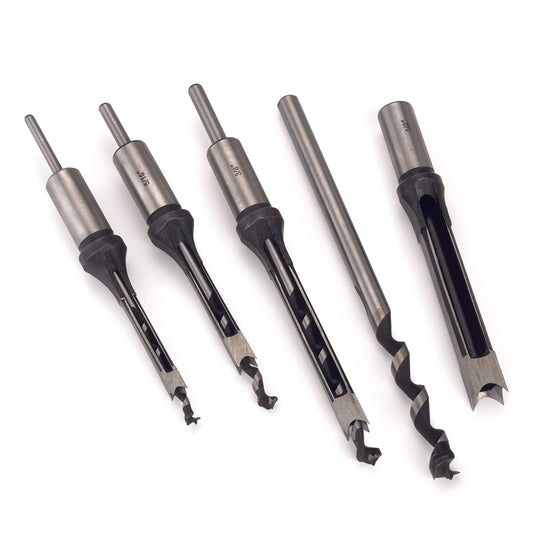

  • Mortise Chisel and Bit Boxed Set- 4 Piece

    Regular price $67.99
    Sale price $67.99 Regular price $77.99
    144010.0

Details

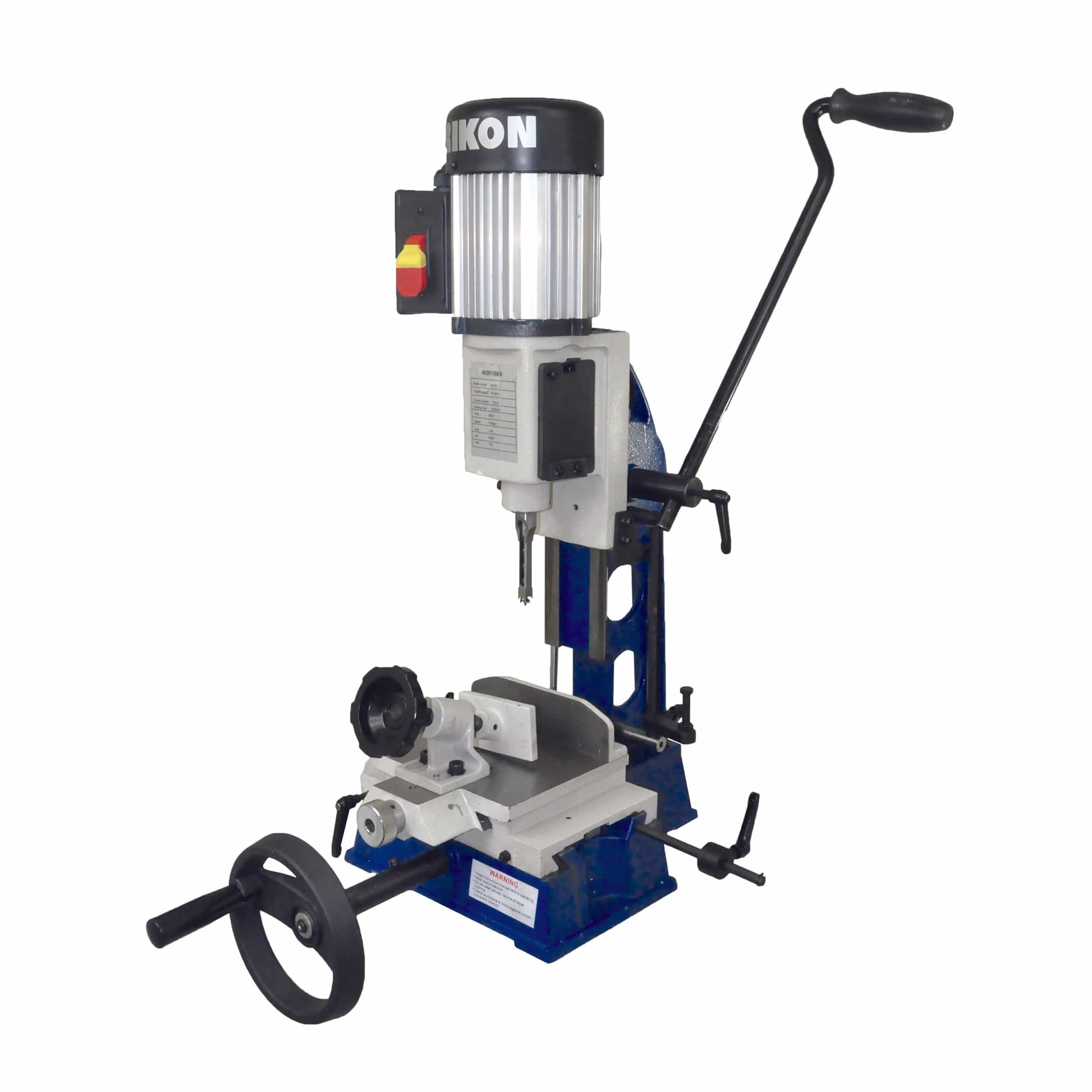

The Rikon® Mortiser with Dual Axis Table - 1/2 HP - Model: 34-260, offers outstanding table movement and control for boring precise mortises. Like a mechanic’s vise, the machined steel table easily moves left and right and forward and back on dovetail ways. It features adjustable stops for setting chisel depth and mortise lengths. Forward control wheels let you position your work in the precise spot your mortise needs to be, and the powerful 1/2 HP motor will not bog down, even when working the densest hardwood. The table is all cast-iron and machined steel construction. Includes: Mortiser with Dual Axis Table, 1/4", 5/16", 3/8" and 1/2" Mortise and Chisel Sets, 6" Extension Rods, Tool and Chisel Holder, and User’s Manual.

Features:


  • Dovetail Column Ways with Adjustable Stop
  • Gas Filled Stabilizer
  • Includes 2 Extensions
  • 5/8" & 3/4" Chisel Bushings
  • Includes: Fence, Hold Down, Tool Holder and 4 Chisels
  • Five-year warranty

Specifications:

  • Motor Horsepower: 1/2 HP TEFC
  • Motor Amps: 3.6A
  • Motor Voltage: 120V, 60 Hz
  • Motor RPM: 1,700
  • Type: Benchtop
  • Chisel Shank Diameter: 1" (with 5/8" & 3/4" Bushings)
  • Chisel Stroke: 4-3/4"
  • Chisel Range: 1/4" – 5/8"
  • Chisel Sizes Included: 1/4", 5/16", 3/8", 1/2"
  • Stock Width: 3-7/8"
  • Chuck Type: Keyed
  • Chuck Capacity: 1/2"
  • Table Size: 7" x 5-1/8"
  • Table Movement Side-to-Side: 6-1/2"
  • Table Movement Front-to-Back: 3-7/8"
  • Fence Size: 2" x 7"
  • Overall Dimensions: 21-3/4" W x 22-1/2" D x 32-1/2" H
  • Base Size: 10-3/4" x 12-1/2"
  • Net Weight: 86 lb.

What's Included:

  • (1) Rikon® Mortiser with Dual Axis Table - 1/2 HP

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-21 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Residential delivery fee applies for all LTL items.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

If you have a return issue, contact Woodcraft Supply customer service @ 1-800-535-4482 for return details. Customer pays return freight.

When returning product, please include the invoice number or customer number and refer to the back of the invoice for shipping instructions.

If purchased at a Woodcraft Store, please return the item directly to the store where your purchase was made.

To be eligible for credit for returned Rikon goods, customers must comply with each of the following requirements:
    Written authorization to return any products must be obtained from the RIKON Power Tools Customer Service Department before the products are returned. RIKON Power Tools will issue a Return Goods Authorization Number (RGA#), which must be clearly marked on the shipping label and bill of lading with the returned goods. RIKON Power Tools Will Not Accept Any Unauthorized Returns. A 15% restock fee will apply.

    Warranty Information

    Rikon offers a 5 year warranty.Customers with warranty claims, defective or damaged goods should contact RIKON Power Tools before returning any product to the distributor. RIKON Power Tools reserves the right to ship parts to effect repairs or replace product, whichever they may deem appropriate.

    Request to return defective or damaged goods by distributors must be submitted to RIKON Power Tools and will be reviewed for product misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear before giving authorization to return said goods.

    Defective/Damaged goods that are returned to RIKON Power Tools and show misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear are subject to a restocking charge equal to 15% of the credit given for the returned goods or $25.00, whichever is greater.
