RIKON

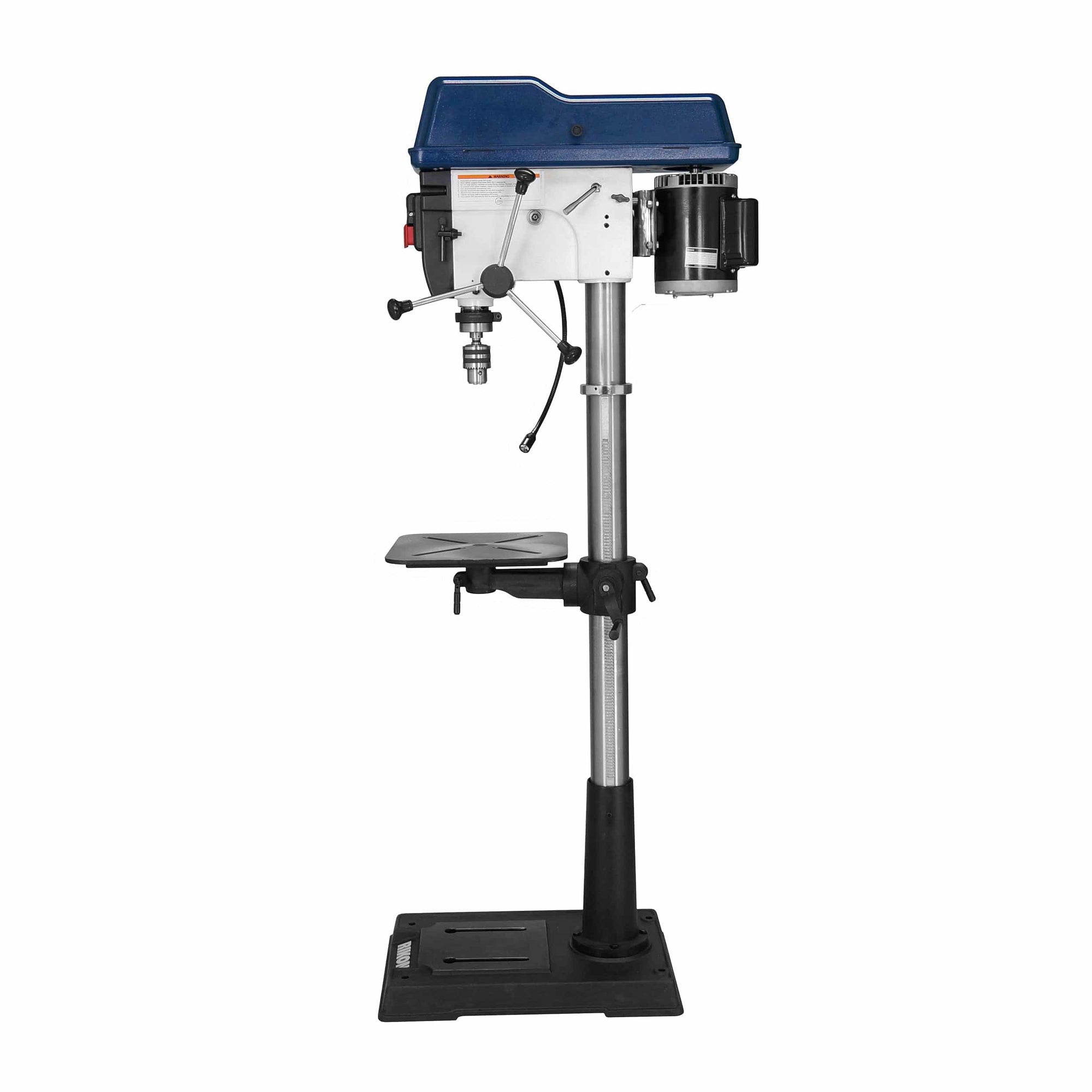

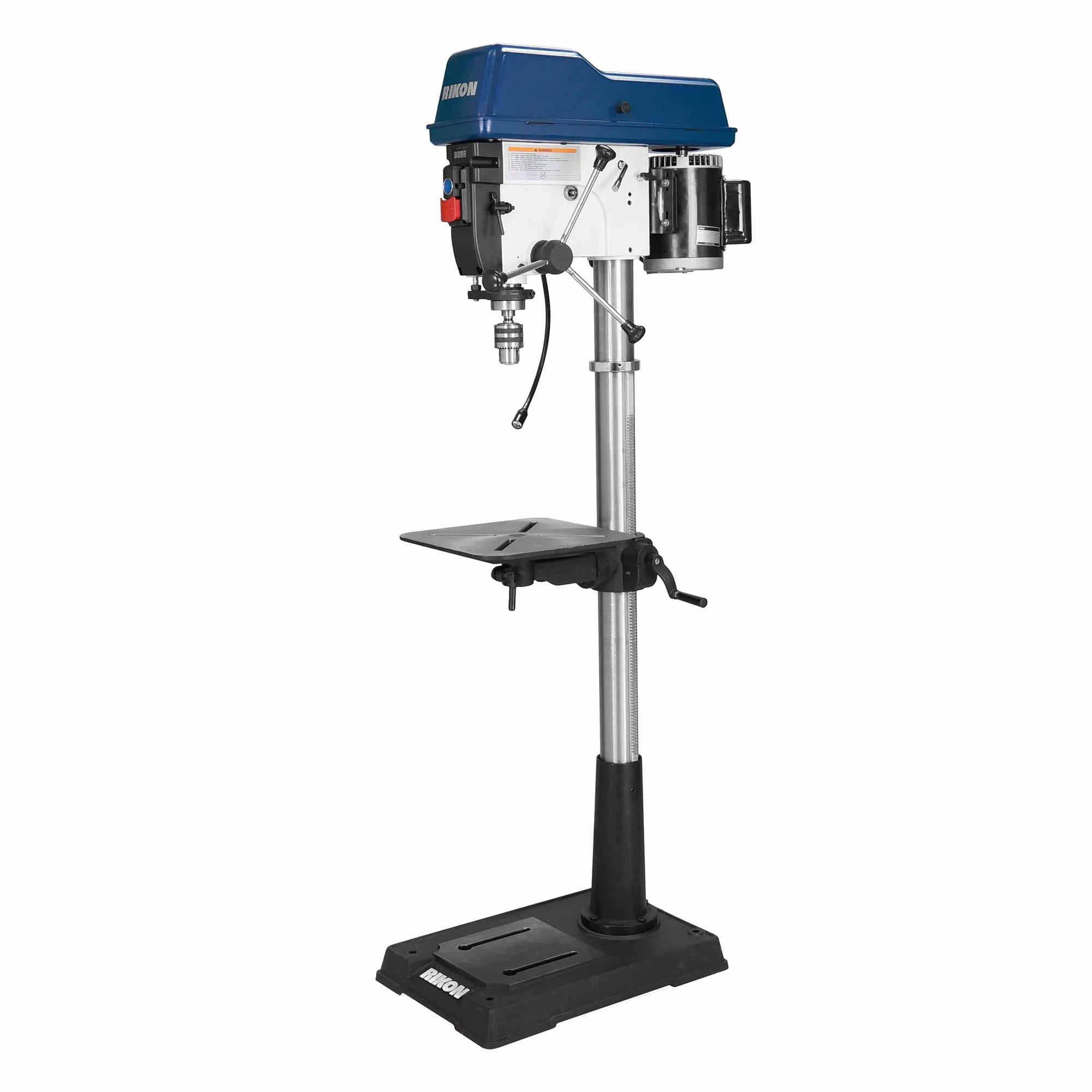

17" Variable Speed Drill Press - 1-1/2 HP

Item #865632 Model 30-217
$1,499.99
$1,499.99 $1,499.99
The Rikon 17" Variable Speed Drill Press - 1-1/2 HP - Model: 30-217, is the best in the 17" class. This drill press has been designed with . . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

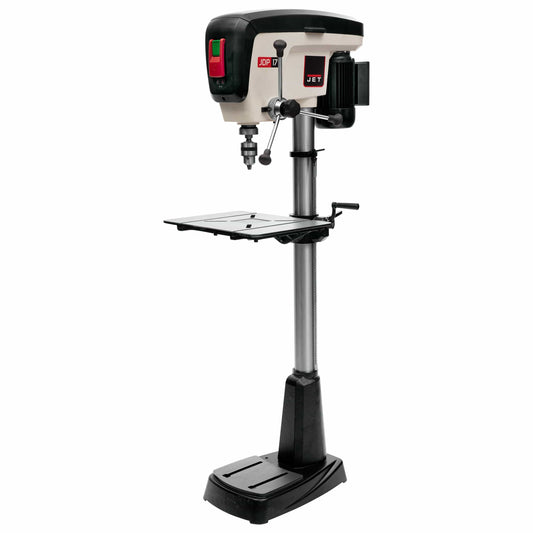

  • 17" Floor Drill Press - 3/4 HP 1 Ph 115V - JDP-17

    $1,299.99
    $1,299.99 $1,299.99
    861604.0

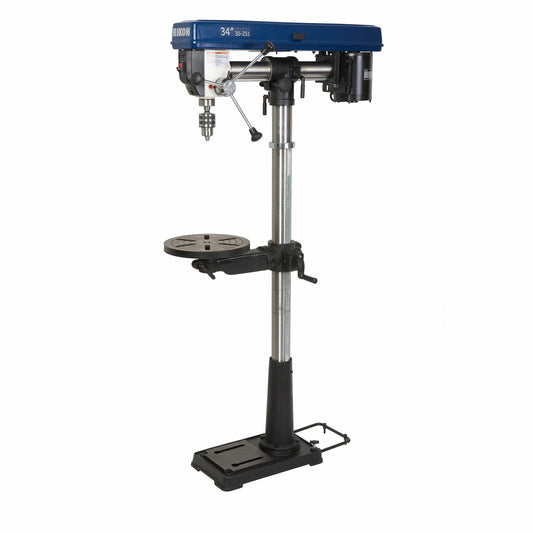

  • 34" Floor Radial Drill Press - 1/3 HP

    $679.99
    $679.99 $679.99
    833202.0

  • 17" Floor Drill Press - 1 HP

    $849.99
    $849.99 $849.99
    828561.0

  • 20" Floor Drill Press - 1 HP

    $1,299.99
    $1,299.99 $1,299.99
    828562.0

Details

The Rikon 17" Variable Speed Drill Press - 1-1/2 HP - Model: 30-217, is the best in the 17" class. This drill press has been designed with woodworkers requests and offers a more powerful motor, vari-speed pulley that adjusts the chuck speed with a simple turning of a lever, variable speeds, a digital RPM display and more. Perfect for hobbyists and professional users, this drill press will add some versatility to your workshop.

Features:


  • More powerful motor
  • Variable Speeds
  • Clutch depth stop
  • Cast iron table
  • Digital RPM display
  • LED light
  • Five year warranty

Specifications:

  • Motor: 1-1/2 HP, 115/230V, 60 Hz
  • Amps: 13.3 / 6.7
  • RPM: 1720
  • Swing: 17"
  • Chuck Size: 5/8"
  • Chuck Taper: JT3
  • Drilling Capacity: 1"
  • Spindle Travel: 6"
  • Spindle Taper: MT2
  • Head Rotates: 360°
  • Speeds: Variable
  • Speed Range: 200 – 700 / 600 – 2200
  • Quill Diameter: 2-5/8"
  • Table: 14" x 14"
  • Table Tilts: 90°
  • Table Rotates: 360°
  • Maximum Chuck to Table: 27-3/4"
  • Maximum Chuck to Base: 46-5/16"
  • Column Diameter: 3-1/8"
  • Height: 70-1/8"
  • Overall Base Size: 19-7/8" x 13-1/2"
  • Net Weight: 192 lb.

What's Included:

  • (1) Rikon® 17" Variable Speed Drill Press - 1-1/2 HP

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-21 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Residential delivery fee applies for all LTL items.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

If you have a return issue, contact Woodcraft Supply customer service @ 1-800-535-4482 for return details. Customer pays return freight.

When returning product, please include the invoice number or customer number and refer to the back of the invoice for shipping instructions.

If purchased at a Woodcraft Store, please return the item directly to the store where your purchase was made.

To be eligible for credit for returned Rikon goods, customers must comply with each of the following requirements:
    Written authorization to return any products must be obtained from the RIKON Power Tools Customer Service Department before the products are returned. RIKON Power Tools will issue a Return Goods Authorization Number (RGA#), which must be clearly marked on the shipping label and bill of lading with the returned goods. RIKON Power Tools Will Not Accept Any Unauthorized Returns. A 15% restock fee will apply.

    Warranty Information

    Rikon offers a 5 year warranty.Customers with warranty claims, defective or damaged goods should contact RIKON Power Tools before returning any product to the distributor. RIKON Power Tools reserves the right to ship parts to effect repairs or replace product, whichever they may deem appropriate.

    Request to return defective or damaged goods by distributors must be submitted to RIKON Power Tools and will be reviewed for product misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear before giving authorization to return said goods.

    Defective/Damaged goods that are returned to RIKON Power Tools and show misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear are subject to a restocking charge equal to 15% of the credit given for the returned goods or $25.00, whichever is greater.
