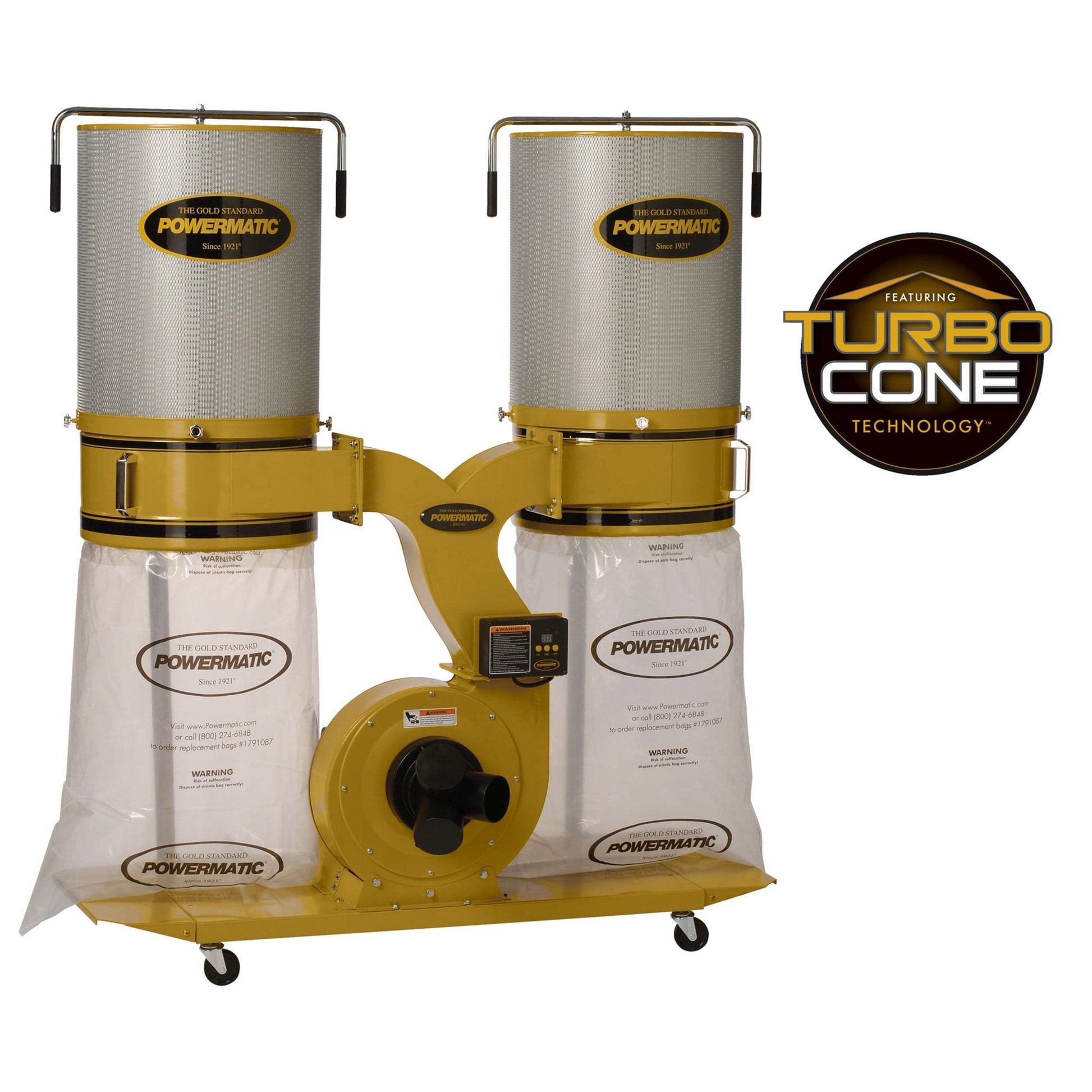

TurboCone Dust Collector with 2-Micron Canister Kit - 3 HP 3 Ph 230/460V - PM1900TX-CK3

Item #849663 Model 1792074K
Regular price $1,849.99
Sale price $1,849.99 Regular price $1,849.99

This item has an additional shipping charge

The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive Turbo. . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.


The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone™ improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.
Performance: Only fine particles move to the filter chamber making manual cleaning easier and decreasing health concerns
Prevention: Prevents the central airflow from floating chips into the filter chamber decreasing rapid performance drop due to premature clogging
Efficiency: Chips are better contained for increased packing density requiring fewer collection bag changes
TurboCone improves chip separation and collector bag packing efficiency
The cone eliminates premature filter clogging for sustained performance
All-metal duct construction for rigidity and improved air flow
2-micron canister filters offer over six times filtering surface area of standard bags
The large impeller is powered by a 3HP motor for peak performance
Triple 4” dust ports allow for several hoses to be attached at the same time
Collection bags use a snap ring for rapid installation/removal
10 cubic feet collection bag capacity reduces number of bag changes.
Four swivel casters for shop maneuverability
Length : 46 inch
Model Number: 1792074K
Overall Dimensions: 61" x 30" x 72"
Height: 45"
Width: 23"
Length: 46"
Net Weight: 264 lbs
Remote Control: No
Sound Rating: 75-90 dB
1-Hose Connection Diameter: 8"
2-Hoses Connection Diameter: 4"
3-Hoses Connection Diameter: 4"
Bag Diameter: 20"
Filter Bag/Canister Length: 26"
Collection Bag Capacity: 10 cubic foot
Collection Bag Length: 30"
Air Flow @ 4": 236 cu.ft/min
Air Flow @ 8": 1,782 cu.ft/min
Static Pressure: 11.31 inch of water
Particle Size (Micron): 86% of 1 micron
Velocity @ 4": 5,200 foot per minute
Air Inlet: (1) at 8" or (3) at 4"
Impeller Diameter: 14"
Impeller Fins: 7
Impeller Material: Steel
Separator Tank Diameter: 20"
Separator Tank Height: 10"
Motor Power: 3 HP
Motor Phase: 3 Ph
Motor Voltage: 230/460V
Prewired Voltage: 230V
