Powermatic

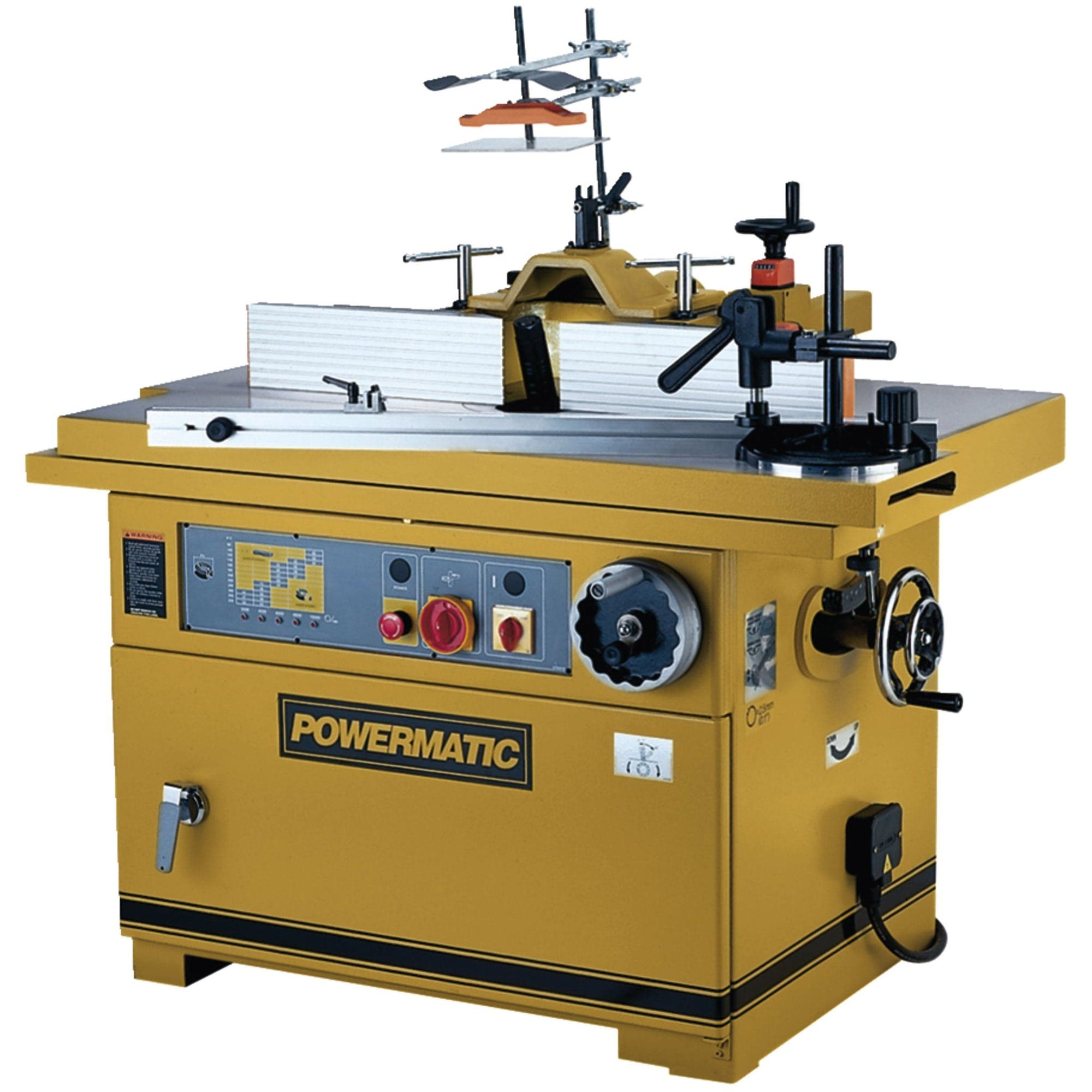

Shaper with Sliding Table - 7-1/2 HP 3 Ph 230/460V - TS29

Item #823891 Model 1791284
Regular price $12,499.99
Sale price $12,499.99 Regular price $12,499.99

This item has an additional shipping charge

The new TS29 Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently. . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power.  Most residential power is single or 1-phase.  Verify your power requirements before ordering.

Details

The new TS29 Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate set-ups. The full guard includes two stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. Powered by a big 7-1/2HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56" miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.

Features:
• Sliding table with 4-foot stroke works with miter head, hold-down and fence to accommodate everything from multiple end cuts to tenons
• Fully adjustable fence with dual digital readout for fast, accurate set-up and repeatability
• Large table with built-in slider with room for stock feeder
• 7" vertical spindle travel allows stacked tooling
• Spindle tilts negative 5° to positive 45° for increased versatility
• Large diameter multiple table inserts accommodate virtually any size cutter
• Five spindle speeds in forward and reverse with lighted indicator
Specifications:
Dust Collection Minimum CFM Required : 800
Dust Port Diameter (OD/in.) : 5 (dual ports)
Electrical Controls - Magnetic Starter : 24V Magnetic
Fence Size (L x H/in.) : 46 x 5
Fence Travel (Major and Minor/in.) : 5-3/8 and 3-5/8
Height (in): 53
Length (in): 51
Maximum Diameter Cutter Above Table (in) : 12
Maximum Diameter Cutter Below Table (in) : 9
Motor HP : 7-1/2HP
Motor Phase : 3PH
Motor Voltage : 230/460V
Net Weight (lb): 1,100
Overall Dimensions : 51 x 44 x 53
Part Number : 1791284
Prewired : Prewired 230V
Reversible : Yes
Router Bit Collet Diameter (in) : 1/4 and 1/2
Slide Table Size (in) : 11-1/4 x 51-1/4
Spindle Diameter (in) : 3/4, 1, and 1-1/4
Spindle Size Under Nut (in) : 3/4 Spindle - 3-1/2, 1 Spindle - 6-1/4, 1-1/4 Spindle - 6-1/4
Spindle Speed (RPM) : 3000, 4000, 6000, 8000, and 10,000
Spindle Travel (in) : 7
Table Inserts : one tilting, two straight
Table Size (in) : 51-1/2 x 33-1/2
Table Travel (in) : 49-1/4
Tilting Spindle (deg.) : 5° back, 45° forward
Width (in): 44
Shipping weight 1,280 lb.
