Powermatic

Shaper - 5HP 3 Ph 230/460V - PM2700

Item #412064 Model PM9-1280102C
$4,899.99
$4,899.99 $4,899.99

This item has an additional shipping charge

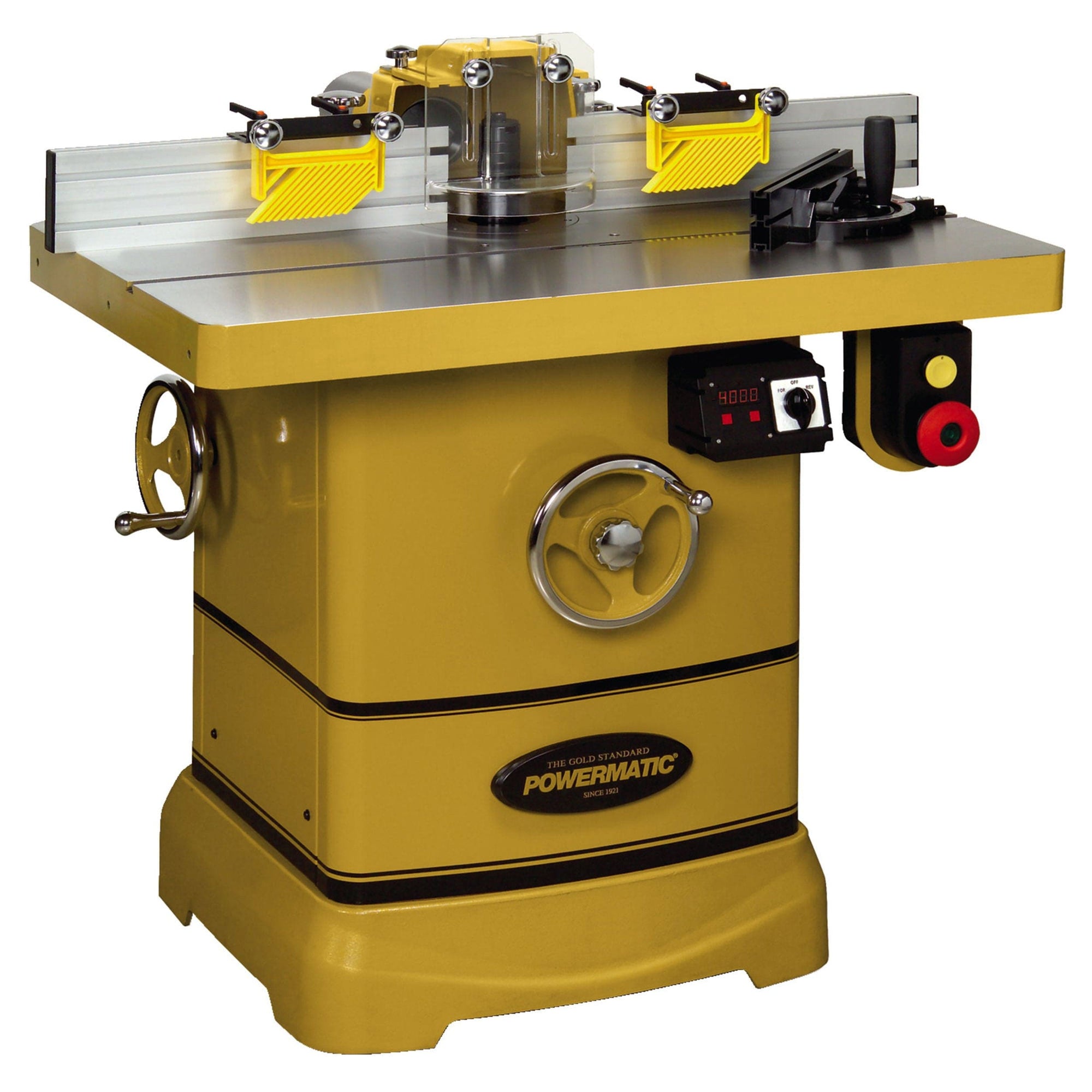

  • Shaper - 5HP 3 Ph 230/460V - PM2700 alt 0
1 1

Powermatic

Shaper - 5HP 3 Ph 230/460V - PM2700

Item #412064 Model PM9-1280102C
$4,899.99
$4,899.99 $4,899.99

This item has an additional shipping charge

The Powermatic PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30" x 40" precision ground cast iro. . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.

Details

The Powermatic PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30" x 40" precision ground cast iron table includes a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes.

The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need.

Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001" in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.
Features
  • Integrated caster system built into the cast iron base for instant shop mobility
  • Spindle height digital readout for making fine incremental adjustments on multiple passes
  • Heavy duty 30" x 40" precision ground tabletop for smooth stock feeding
  • Convenient quick lock belt tensioning for easy speed adjustment
  • Industrial fence system with fine adjust dials for more precise positioning
  • 5HP totally enclosed motor offers plenty of power
  • Two spindle speeds (reversible) for a variety of work
  • Superior clear cutter guard promotes safety, allows observation of the entire cut
  • Table predrilled and tapped for feeder mounting in two locations
  • Fence has dual featherboards for work holding

Specifications
  • 4" port for attachment to dust collection system
  • 3/4" and 1-1/4" interchangeable spindle collets
  • Featherboard hold downs
  • Deluxe miter gauge
  • Integrated caster system
  • Dust Collection Minimum CFM Required : 600
  • Dust Port Diameter (OD/in) : 4 (dual ports)
  • Electrical Controls - Magnetic Starter : magnetic
  • Fence Size (L x H/in) : 18-3/4 & 4-7/8
  • Height (in) : 45
  • Length (in) : 40
  • Model Number : PM2700
  • Motor HP : 5HP
  • Motor Phase : 3Ph
  • Motor Voltage : 230V/460V*
  • Net Weight : 664 pound
  • Overall Dimensions : 40x37x45
  • Part Number : 1280102C
  • Prewired : Prewired 230V, *requires 460V magnetic switch
  • Reversible : Yes
  • Router Bit Collet Diameter (in) : 1/4 and 1/2 (optional)
  • Spindle Diameter (in) : 3/4, 1-1/4
  • Spindle Size Under Nut (in) : 3/4 spnd = 3-3/4, 1-1/4 spnd = 6
  • Spindle Speed (RPM) : 7,500 & 10,000
  • Spindle Travel (in) : 4
  • Table Height From Floor (in) : 35-1/2
  • Table Insert Opening Diameter (in) : 2.55, 4.16, 5.75
  • Table Inserts : (3) 2.55", 4.16", 5.75" I.D.
  • Table Opening Diameter (in) : 7-3/8
  • Table Size (in) : 40 x 30
  • Table T-Slot (in) : standard
  • Width (in): 37
  • Shipping weight 690 lb.
