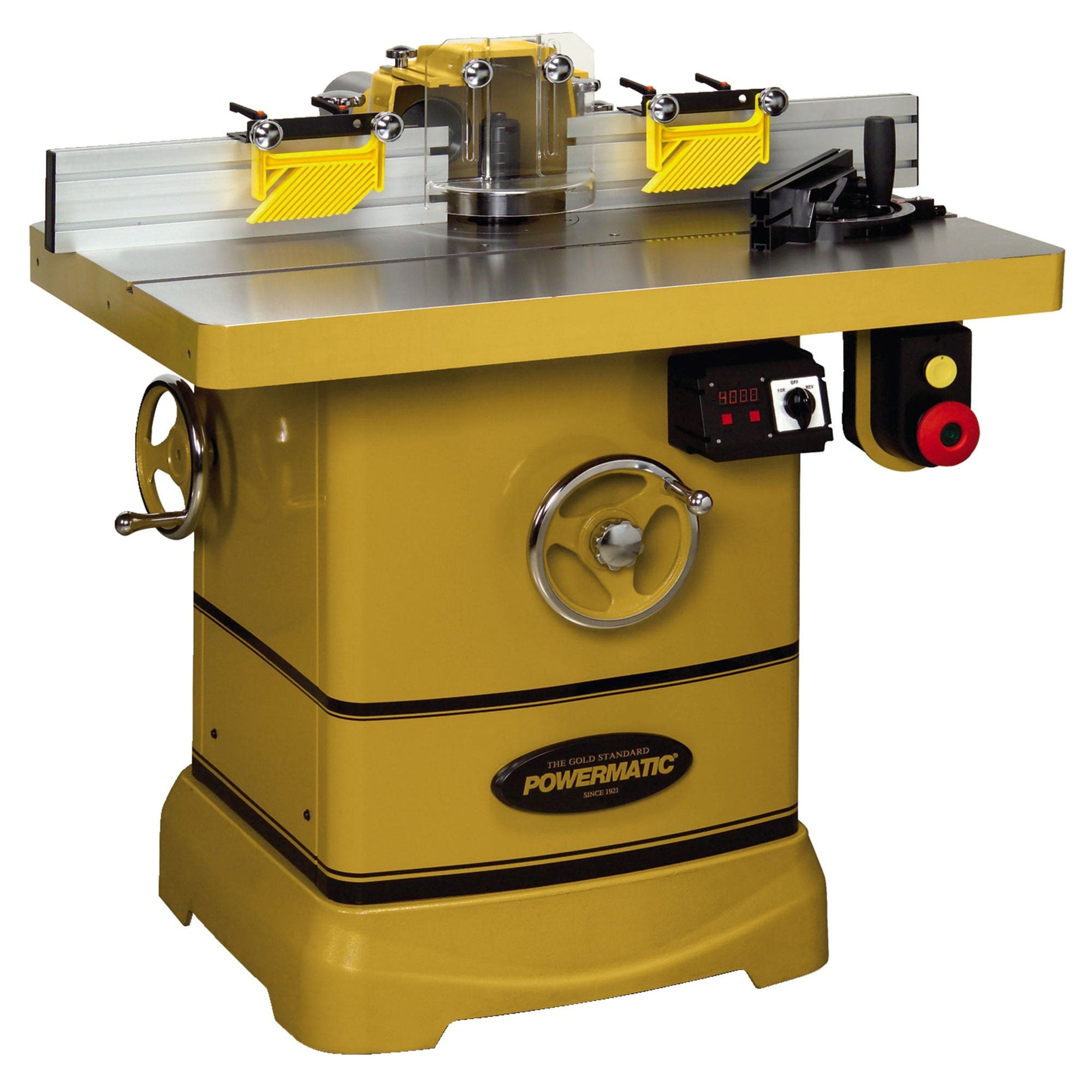

Shaper - 5 HP 1 Ph 230V - PM2700

Item #836688 Model PM9-1280101C
Regular price $4,409.99
Sale price $4,409.99 Regular price $4,899.99

This item has an additional shipping charge

Skip to product information
1 of 1

Powermatic

Shaper - 5 HP 1 Ph 230V - PM2700

Item #836688 Model PM9-1280101C
Regular price $4,409.99
Sale price $4,409.99 Regular price $4,899.99

This item has an additional shipping charge

This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30" x 40" precision ground cast iron table. . . View More Details

Ships from Manufacturer

Shipping Info

Details

This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30" x 40" precision ground cast iron table includes a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001" in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.

Features:
Integrated caster system built into the cast iron base for instant shop mobility
Spindle height digital readout for making fine incremental adjustments on multiple passes
Heavy duty 30" x 40" precision ground tabletop for smooth stock feeding
Convenient quick lock belt tensioning for easy speed adjustment
Industrial fence system with fine adjust dials for more precise positioning
3HP totally enclosed motor offers plenty of power
Two spindle speeds (reversible) for a variety of work
Superior clear cutter guard promotes safety, allows observation of the entire cut
Table predrilled and tapped for feeder mounting in two locations
Fence has dual featherboards for work holding

4" port for attachment to dust collection system
3/4" and 1-1/4" interchangeable spindle collets
Spindle height digital readout
Featherboard hold downs
Deluxe miter gauge
Integrated caster system
Specifications:
Amps : 14
Digital Readouts : spindle height
Dust Collection Minimum CFM Required : 600
Dust Port Diameter (OD/in) : 4 (dual ports)
Electrical Controls - Magnetic Starter : magnetic
Fence Size (L x H/in) : 18-3/4 x 4-7/8
Height (in): 45
Length (in): 40
Motor HP : 3HP
Motor Phase : 1PH
Motor Voltage : 230V
Net Weight : 664 pound
Overall Dimensions : 40x37x45
Part Number : 1280100C
Reversible : Yes
Router Bit Collet Diameter (in) : 1/4 and 1/2 (optional)
Spindle Diameter (in) : 3/4, 1-1/4
Spindle Size Under Nut (in) : 3/4 spnd = 3-3/4, 1-1/4 spnd = 6
Spindle Speed (RPM) : 7,500 & 10,000
Spindle Travel (in) : 4
Table Height From Floor (in) : 35-1/2
Table Insert Opening Diameter (in) : 2.55, 4.16, 5.75
Table Inserts : (3) 2.55", 4.16", 5.75" I.D.
Table Opening Diameter (in) : 7-3/8
Table Size (in) : 40 x 30
Table T-Slot (in) : standard
Width (in): 37
Shipping weight 698 lb.
