Powermatic

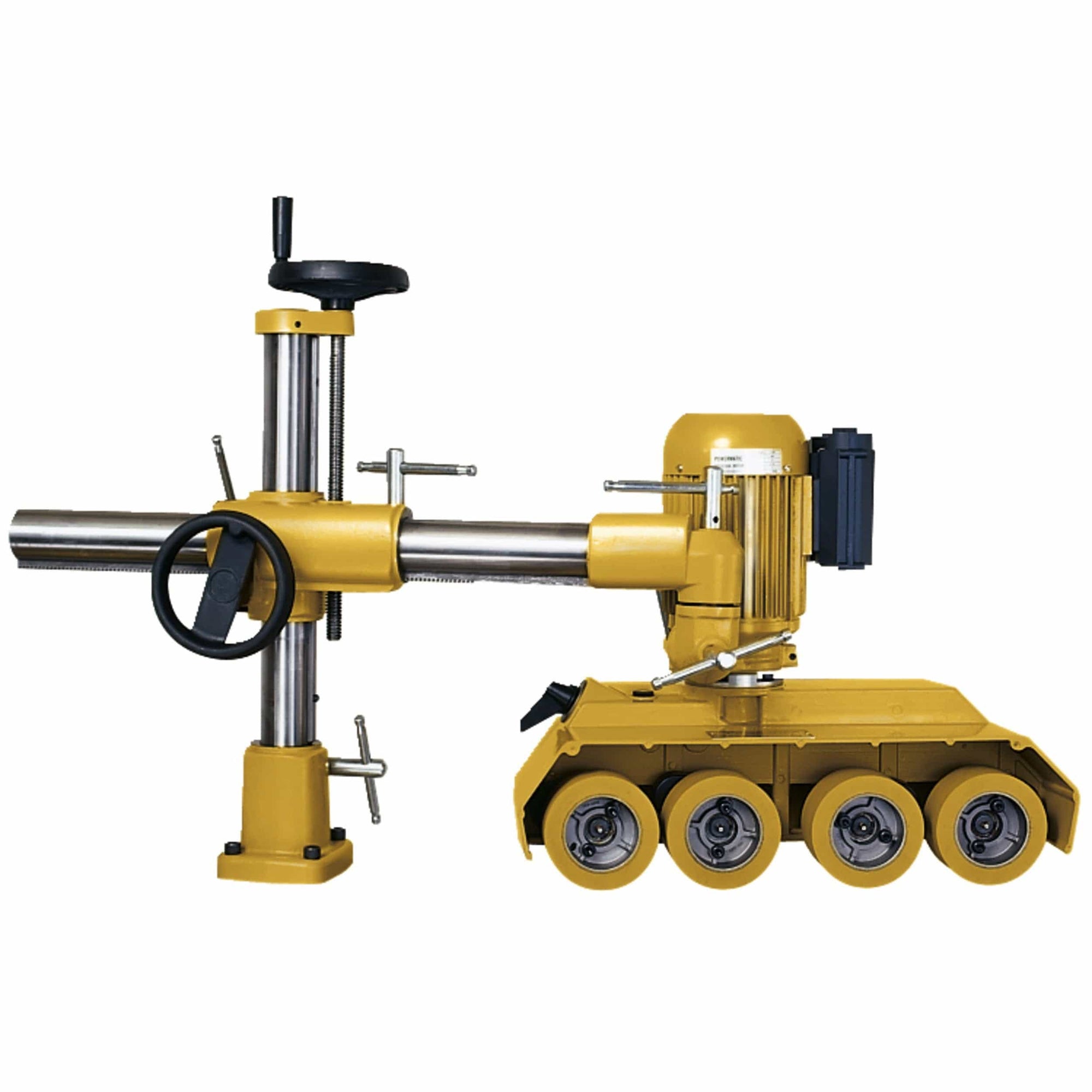

Powerfeeder - 1 HP 3 Ph 230V - 4-Speed - 4 Wheel - PF-43
Powermatic
Powerfeeder - 1 HP 3 Ph 230V - 4-Speed - 4 Wheel - PF-43
Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.
Details
It features continuous-duty motors that transfer power from the gear box to the feed roller through the roller chain and sprockets. The fully adjustable support columns feature moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of bodies, bases and universal joints provide stability with vibration-free feeding.
Features:
• Roller chain and sprockets provide positive feeding for a variety of work
• Support column is fully adjustable for horizontal, vertical or angled feeder position
• Feeder body, column base and joints are cast iron for heavy duty operation
• Rollers can be changed out easily and quickly
Specifications:
Column Diameter (in) : 2.28
Distance Between Rollers - Center to Center (in) : 5.23 - 5.93 - 5
Feed Rate (FPM) : variable
Height (in) : 29.48
Length (in) : 43.23
Maximum Height of Rollers Parallel to Tabletop (in) : 8.45
Model Number : PF-43
Motor HP : 1HP
Motor Phase : 3 Ph
Motor Voltage : 230V
Movement - Horizontal (in) : 18.07
Movement - Vertical (in) : 9.83
Net Weight : 150 pound
Number of Speeds : 4 speeds
Overall Dimensions : 43.23 x 23.58 x 29.48
Part Number : 1790811K
Range of Speeds (FPM) : 13, 26, 33, 66 FPM
Rollers (in) : 4-3/4 x 2-1/4
Rotation (Forward/Reverse) : Forward/Reverse
Swing (deg.) : 360
Width (in) : 23.58
