Powermatic

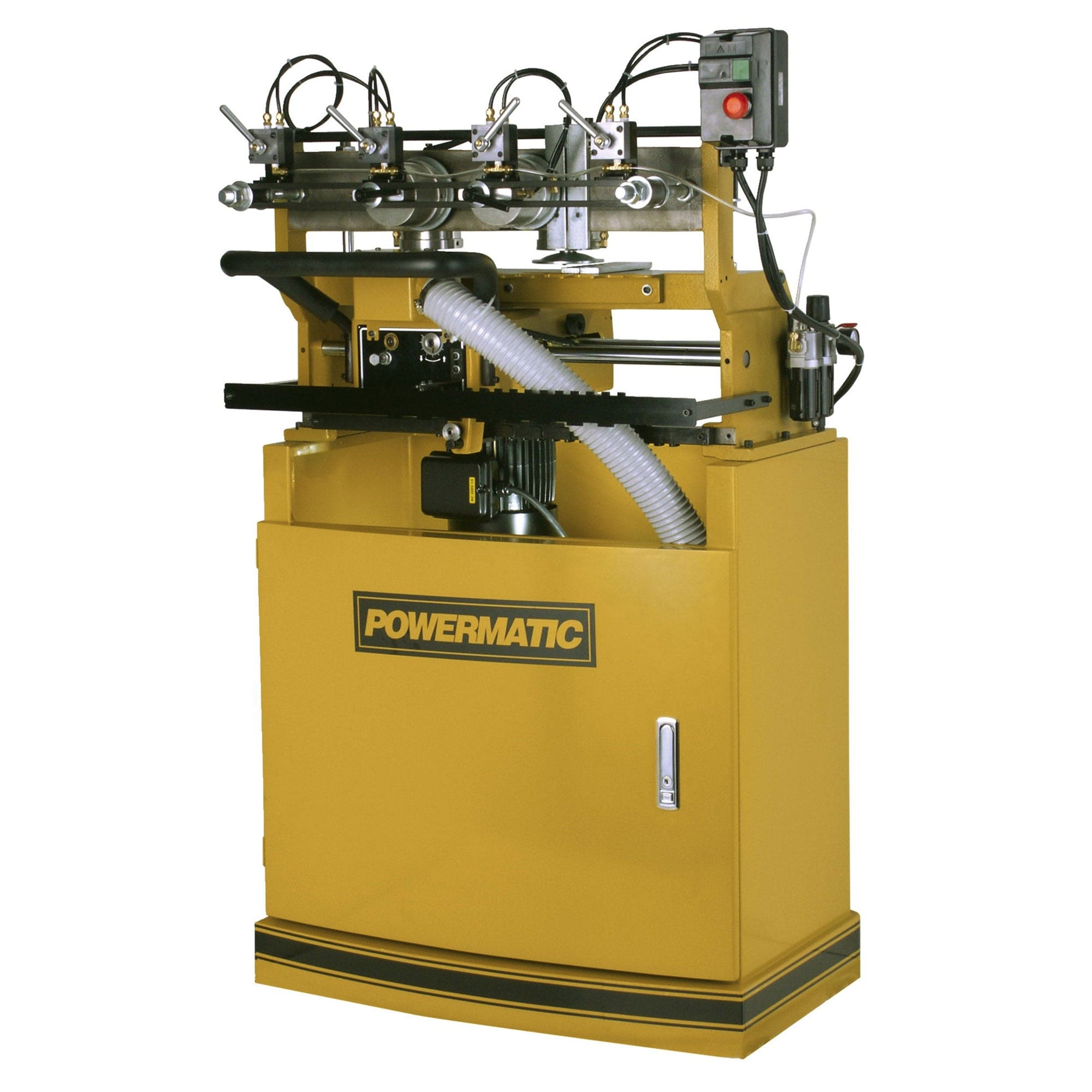

Dovetailer with Pneumatic Clamping - 1 HP 1 Ph 230V - DT65
Powermatic
Dovetailer with Pneumatic Clamping - 1 HP 1 Ph 230V - DT65
Details
Features:
• Four centerlines - 1", 1-1/2", 2" and 2-1/2" - create a custom appearance
• Pneumatic clamping provides quick locking and unlocking of the work piece
• Eccentric spindle collet for resharpened cutters
• Spring loaded carriage makes for smooth, effortless dovetail cutting
• Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
• Extra large soft grip handle provides positive control and comfort
• The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
• Visual stylus and template aid in guiding the carriage
• Material stops provide convenient positioning of the workpiece
• Cast iron and steel construction for added stability and durability
• 1HP motor transfers plenty of power via the drive belt to the spindle
Specifications:
Magnetic starter for safety
Four-sided template
Workstops
Tool kit
Dovetail bit
Dust chute with hose
Center to Center Dovetail Spacing (in) : 1, 1-1/2, 2 and 2-1/2
Dust Collection Minimum CFM Required : 500
Dust Port Diameter (OD/in) : front 2-1/2, rear 4
Height (in): 63
Length (in): 37
Maximum Dovetail Height (in) : 3/4
Maximum Front Thickness (in) : 2-3/8
Maximum Side Thickness (in) : 1-3/16
Maximum Work Piece Size (L x W/in) : 59 x 16-1/2
Minimum Dovetail Height (in) : 3/16
Minimum Front Thickness (in) : 9/32
Minimum Side Thickness (in) : 3/8
Minimum Work Piece Size (L x W/in) : 7-7/8 x 2-3/8
Motor HP : 1HP
Motor Phase : 1Ph
Motor Voltage : 230V only
Net Weight(lb): 531
Number of Spindles : 1
Overall Dimensions : 37 x 44 x 63
Part Number : 1791305
Spindle Speed (RPM) : 18500
Table Height From Floor (in) : 45
Width (in): 44
Shipping weight 564 lb.
