Powermatic

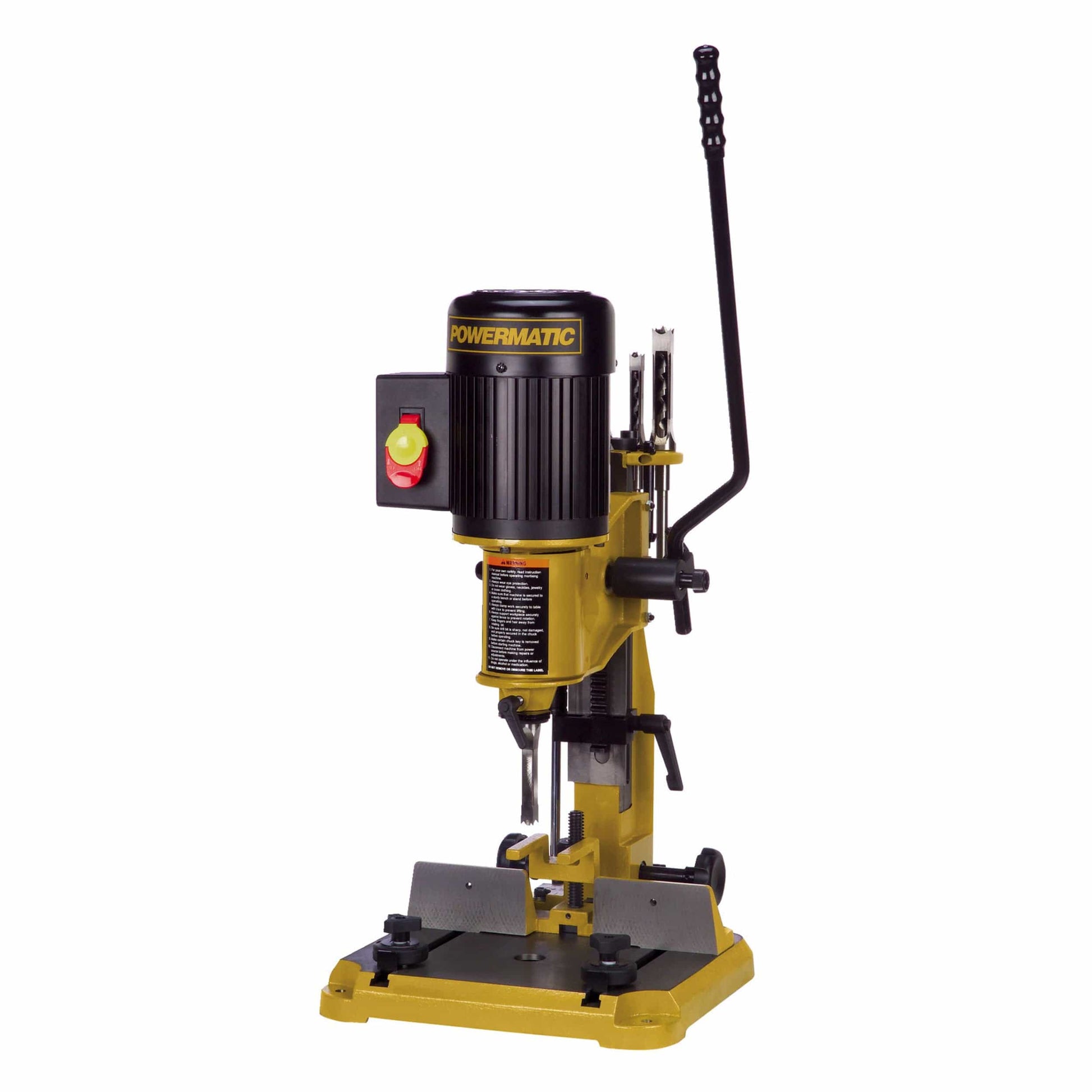

Benchtop Mortiser - 3/4 HP 1 Ph 115/230V - PM701

Item #831998 Model PM9-1791310
$999.99
$999.99 $999.99

This item has an additional shipping charge

The Powermatic® PM701 Benchtop Mortiser features an in-line depth stop allowing the user to stop at preset depths without racking the mortiser bit. . . View More Details

Ships from Manufacturer

Shipping Info

Details

The Powermatic® PM701 Benchtop Mortiser features an in-line depth stop allowing the user to stop at preset depths without racking the mortiser bit to the base. Designed for both left- and right-handed use, the heavy-duty reversible handle can quickly and easily be changed from one side to the other without using tools. This mortiser utilizes a double-locking stock hold-down system, top and side, to eliminate slippage when removing the chisel from the workpiece. The hold-down is also reversible, capturing stock from 0 to 5" thick underneath it. A reliable hold-down and ample work surfaces in the table and fence allow for more stability and accurate cuts.

Set-up has never been easier or more precise. For example, PM701 features a quick-action cam lock that will quickly lock the fence into position with one 90° movement. The integrated bit and chisel spacer system uses two spacers to swiftly and accurately account for the space needed between the bit and chisel during set-up. The mortiser also includes a large hinged chuck door with a magnetic catch. This unique element allows the user to easily access the drill chuck with the standard 4" chuck key to lock the bit in place. In addition, its rack and pinion allow for simple and quick fence adjustments.

Features:

  • In-line depth stop allows stopping at pre-set depths without racking the bit to the base
  • Heavy-duty reversible handle can be installed to either side of the head without tools
  • Stock hold-down with a double lock system, top and side, to eliminate slippage of workpiece
  • Quick action cam lock will quickly lock fence in position with one 90° movement
  • Large work surfaces on both table and fence for greater stability and accuracy
  • Large, hinged chuck door with magnetic catch for rapid access to the chuck
  • Rack and pinion design for simple fence adjustments
  • Integrated chisel and tool holder with sharpening stone
  • 1/2" drill chuck with 4" chuck key
  • Removable safety switch key

Specifications:

  • Part Number : 1791310
  • Style: Benchtop
  • Motor Amps : 15A
  • Motor Power : 3/4 HP
  • Motor Phase : 1 PH
  • Motor Voltage : 115/230V (Prewired @ 115V)
  • Spindle Speed: 1725 RPM
  • Chuck Size: 1/2"
  • Chisel Shank Capacity: 3/4"
  • Chisel Stroke: 5-1/2" maximum
  • Chisel Center to Fence Distance: 4-3/8" maximum
  • Bushing Sizes: 5/8" and 3/4"
  • Capacity Under Hold-Down: 5"
  • Fence Size (L x H) : 2-5/8" x 12-1/2"
  • Base Size (L x W): 16-5/16" x 13-3/4"
  • Overall Dimensions (L x W x H): 24.2" x 19.2" x 17.4"
  • Net Weight: 93 lbs.
  • Shipping Weight: 100 lbs.

What's Included:

  • (1) PM701 - Mortiser
  • (1) 3/4" Chisel Bushing
  • (1) Chuck Extension Adaptor
  • (1) Chuck Key
  • (1) Operating Handle
  • (1) Operating Instructions and Parts Manual
