Powermatic

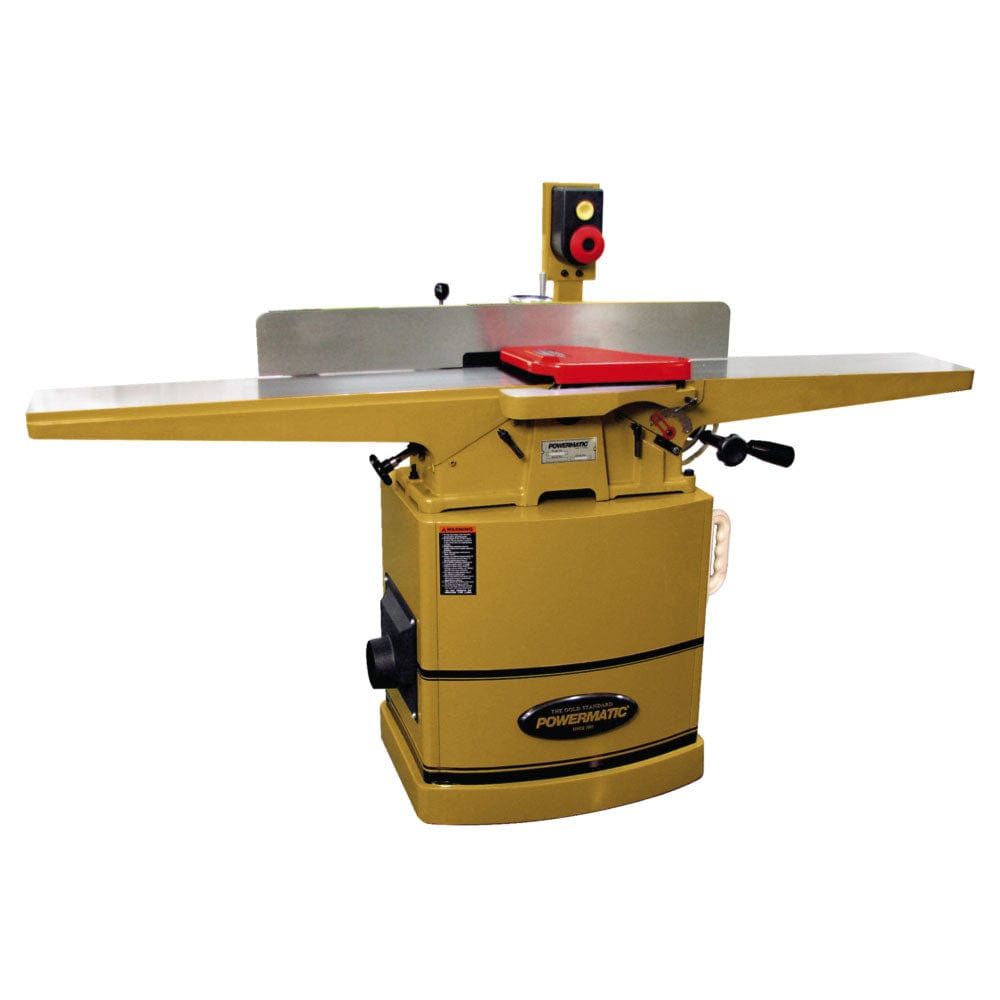

8" Jointer - 2 HP 1 Ph 230V - Straight Knife - 60C
Powermatic
8" Jointer - 2 HP 1 Ph 230V - Straight Knife - 60C
Details
The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73" long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The operating switch is mounted high so you can easily reach it, and the push blocks have a magnetic base – you can store them on any metallic surface for instant access.
Features:
• High-speed heat-treated steel knives
• Extra-long tables are mounted on dovetailed ways for extended workpiece support
• Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
• High mount switch for operator convenience
• Handwheel operated worm gear system for smooth fence tilting
• Magnetic push blocks can be stored on the machine within constant reach
• Non-mar fence insert protects table surface
• Large extension rest on infeed table for rabbeting
Specifications:
Motor: 2HP, 1PH, 230V, 9Amp
Number of Knives: 3
Standard Knife Size (L x W x T) (In.): 8 x 11/16 x 1/8
Cuts Per Minute: 21,000
Cutterhead Diameter (In.): 3
Cutterhead Speed (RPM): 7,000
Cutting Capacity (W x D) (In.): 8 x 1/2
Table Size (L x W) (In.): 73 x 8-1/2
Table Height from Floor (In.): 32
Infeed Table Length (In.): 35-1/4
Outfeed Table Length (In.): 35-1/2
Rabbeting Capacity (In.): 1/2
Fence Size (L x H) (In.): 38 x 4-3/4
Fence Tilt (Deg.): 45 Forward, 45 Backward
Fence Positive Stops (Deg.): 45, 90, -45
Dust Collection Minimum CFM Required (CFM): 600
Dust Port Outside Diameter (In.): 4
Recommended Circuit Size (Amps.): 2
