Powermatic

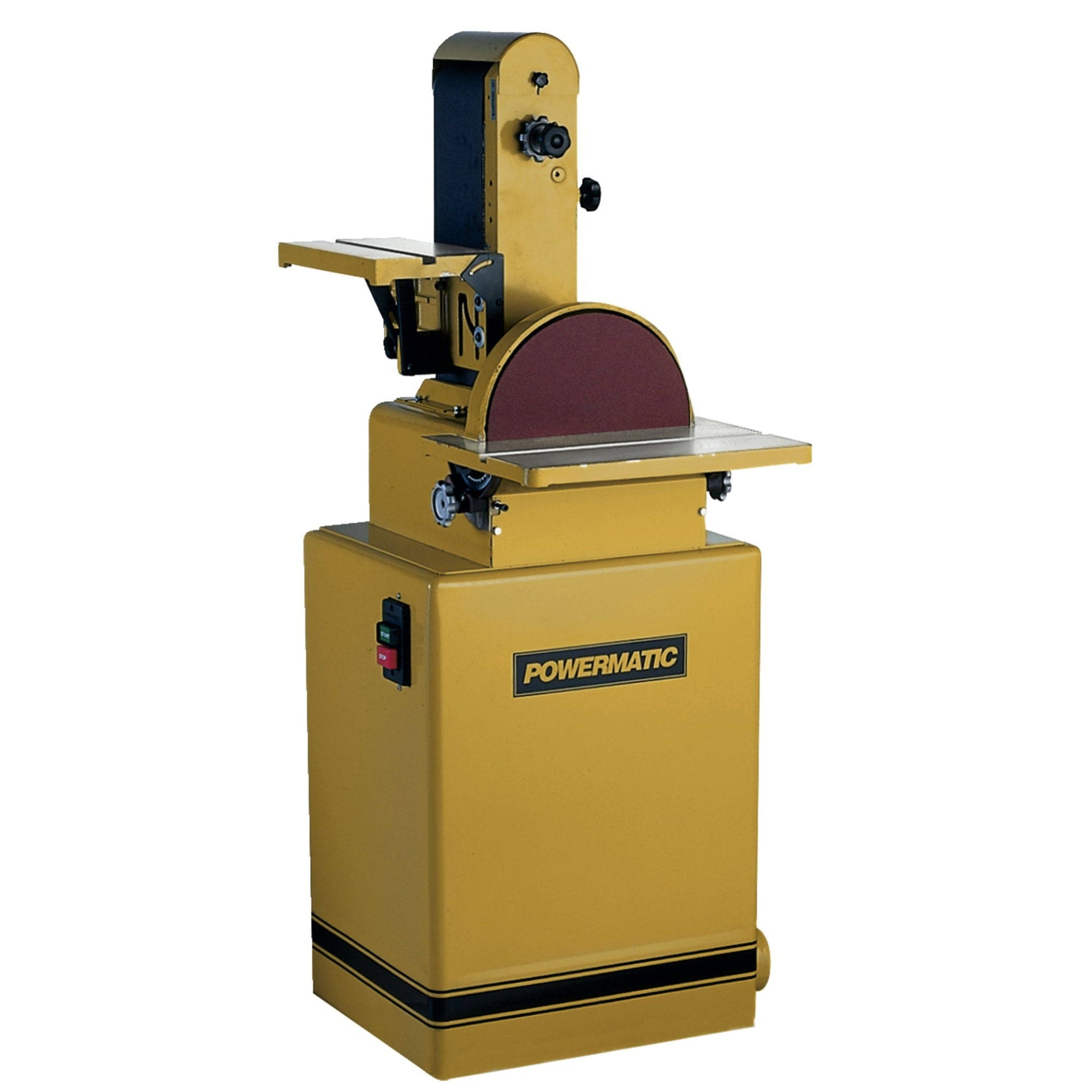

6" x 48" Belt / 12" Disc Sander - 2 HP 3 Ph 230/460V - 31A

Item #836778 Model PM9-1791292K
$2,199.99
$2,199.99 $2,199.99

This item has an additional shipping charge

Loaded with features, the 31A from Powermatic can tackle the most demanding tasks. Full cast iron construction allows both metal and woodworking to be done on the same machine. . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.

Details

Loaded with features, the 31A from Powermatic can tackle the most demanding tasks. Full cast iron construction allows both metal and woodworking to be done on the same machine and the Integral Dual Dust Port keeps both belt and disc portions clean, extending abrasive life. The articulating table mounted on the 6" x 48" belt sander head can be used vertically, horizontally, or angled to accommodate diverse jobs. The belt head has an indexing pin with stops at 0, 45° and 90° and the head lock allows use at any angle in-between. Removing the top guard allows contour sanding and the cast iron tables with miter gauge slots and positive stops make set-up fast, accurate, and simple for any angle.

Features:
• Multi-position belt head locks at any angle from 0° to 90°; includes indexing pin for 0, 45°, and 90° stops
• Belt and disc tables are precision ground cast iron with miter slots
• Belt table tilts down to 45°, and can be set for beveled and mitered angle sanding
• Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support
• 12" disc is balanced for flat, even coverage
Specifications:
Amps : 7/3.5
Base Size (in) : 20W x 17-1/4D x 27-1/2H
Belt Size (L x W/in) : 48 x 6
Belt Speed (SFPM) : 2410
Belt Table Size (L x W/in) : 13-1/4 x 7-1/2
Belt Table Tilt (deg.) : 45 down
Disc Diameter (in) : 12
Disc Speed (RPM) : 2375
Disc Table Size (L x W/in) : 17-1/4 x 9
Disc Table Tilt (deg.) : 15 up, 45 down
Dust Collection Minimum CFM Required : 400
Dust Port Diameter (OD/in) : 4
Height (in) : 54.5
Length (in) : 24
Model Number : 31A
Motor HP : 2
Motor Phase : 3
Motor Voltage : 230/460
Net Weight : 247 pound
Overall Dimensions : 24 x 31-1/4 x 54-1/2
Part Number : 1791292K
Prewired : Prewired 230, magnetic switch
Sanding Arm Locking Positions (deg.) : 0, 45, and 90
Table Working Height (disc/belt/in) : 34 disc, 36 belt
Width (in) : 31.25
