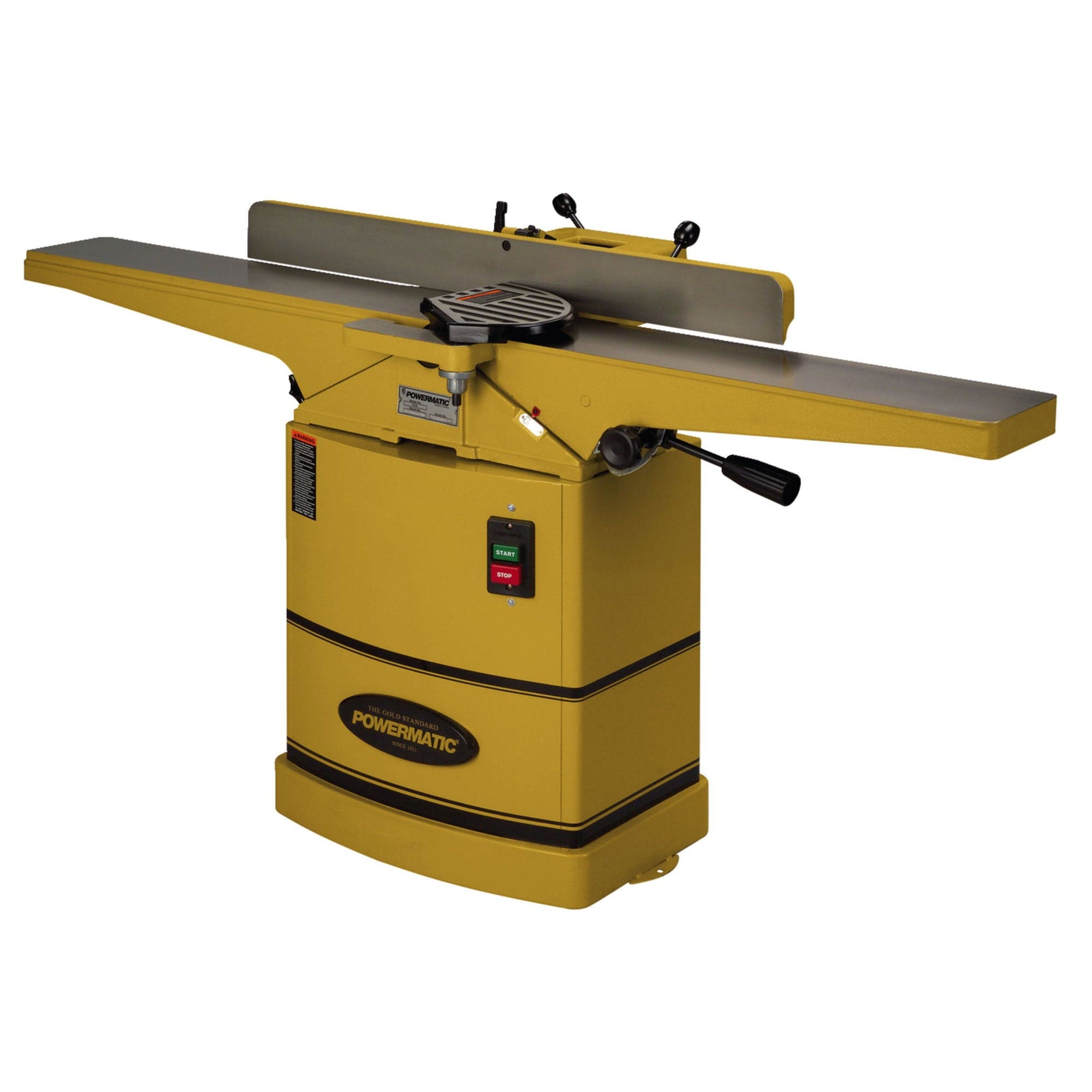

Features:
• The 6" Jointer features three auto-set knives that align themselves in the cutterhead for rapid knife changes
• Oversized 66" adjustable infeed/outfeed tables provide more working surface and are mounted on dovetailed ways and have a built-in ledge for 1/2" rabbeting capacity
• Two-way tilting fence is 38" in length, with positive stops at 90° and 45° right and left
• Fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut
• Heavy steel stand provides a sturdy base and features a powerful 1HP motor with a non-slip v-belt drive for maximum performance
• 4" dust port offers easy connection to any dust collection system
• Fence controls are center-mounted for convenience
• Push button switch is lockable to prevent accidental starting
Specifications:
Cuts Per Minute: 18000
Cutterhead Speed: 6000 RPM
Cutting Capacity: 6" W x 1/2" D
Dust Collection Minimum CFM Required: 800
Dust Port Diameter: 4" OD
Fence Positive Stops (degrees): 45 left, 90, 45 right
Fence Size: 38" L x 4" H
Fence Tilts (degrees): 45 left, 45 right
37-1/2" H x 66" L x 24" W
Infeed Table Length: 32-1/2"
Motor: 1HP, 1PH, 115/230V, 13/6.5A, prewired 115V
Number of Knives (Helical/Standard): 3
Outfeed Table Length: 32-1/2
Rabbeting Ledge: 9" L x 2-1/2" W
Standard Knife Size: 6-1/16"L x 3/4"W x 5/64"T
Table Height: 31-1/2"
Table Size: 66"L x 7-1/4"W
Standard Equipment:
1HP TEFC Motor
Two push blocks
Dust collection port
Cutterhead guard
Industrial push-button switch
Set of three high-speed, heat-treated auto-set steel knives
