Powermatic

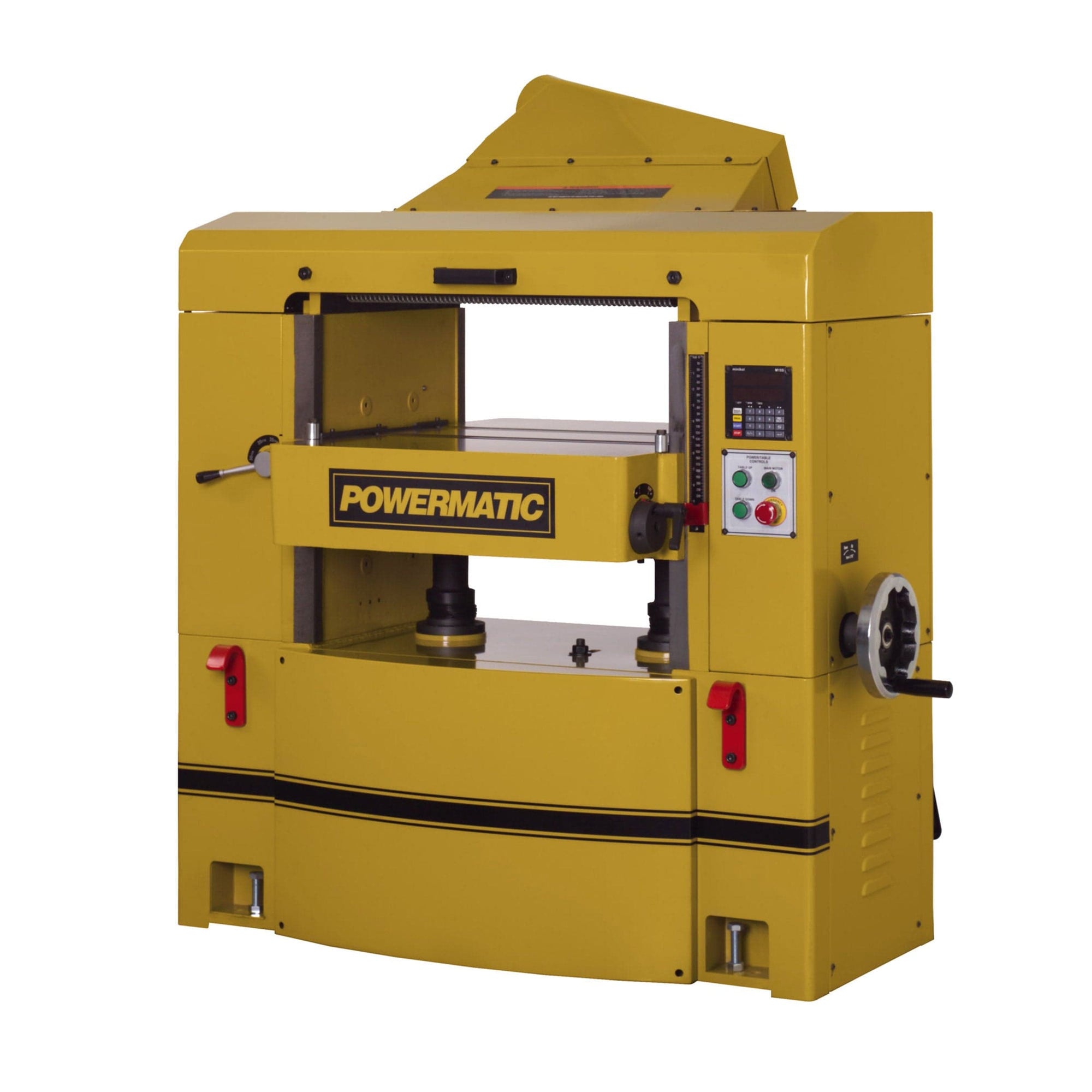

25" Planer - 15 HP 3 Ph 230/460V - Helical Cutterhead - WP2510

Item #833823 Model PM9-1791303
Regular price $18,499.99
Sale price $18,499.99 Regular price $18,499.99

This item has an additional shipping charge

Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levelsDigital readout and simple PC. . . View More Details

Estimated Ship Date May 28, 2024

Shipping Info

Details

  • Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels
  • Digital readout and simple PC controller make quick and easy table height set ups
  • Segmented serrated infeed roll with segmented chip breakers has 1/4" independent yield, for planing multiple height stock
  • Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers
  • 3" diameter infeed and outfeed rollers are supported by four large, sealed, needle bearings for long life
  • Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch
  • Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment
  • Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding
  • 3 speed feed selector allows you to quickly change feed rates
  • Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock
  • Dust hood features built-in 5" dust chute for efficient dust collection
  • Helical head with four sided inserts
  • Dust hood with 5" diameter dust port
  • Segmented infeed rollers
  • Segmented chip breakers
  • Tool kit with pneumatic screwdriver for removing the cutterhead insert blades
  • Bed Rollers Adjustable from Front : 0" to 0.05"
  • Column Diameter (in) : 2-1/2
  • Cuts Per Minute : 30000
  • Cutterhead Diameter (in) : 3-3/8
  • Cutterhead Speed (RPM) : 5000
  • Dust Collection Minimum CFM Required : 600
  • Dust Port Diameter (OD/in) : 5
  • Feed Rate (FPM) : 30-25-20
  • Height (in): 59
  • Length (in): 52
  • Maximum Depth of Cut (in) : 1/4
  • Maximum Full Width Depth of Cut (in) : 1/8
  • Maximum Height of Rollers Parallel to Tabletop (in) : 0.05"
  • Maximum Planing Thickness (in) : 9
  • Maximum Planing Width (in) : 25
  • Minimum Planing Length (in) : 10
  • Model Number : WP2510
  • Motor HP : 15HP
  • Motor Phase : 3Ph
  • Motor Voltage : 230/460V
  • Net Weight (lb): 1,725
  • Number of Knives : 168 Four-sided inserts
  • Outfeed Roller Diameter (in) : 3
  • Overall Dimensions : 52 x 36 x 59
  • Part Number : 1791303
  • Prewired : Prewired 230V
  • Readout Scale : in/mm
  • Rollers (in) : (1) infeed, (2) outfeed
  • Rotation (Forward/Reverse) : Fwd only
  • Segmented Infeed Roller Diameter (in) : 3
  • Table Height Adjust Manual : 1 handwheel revolution = 1/32"
  • Table Size (in) : 32-3/16 x 26
  • Table Support : 2 column
  • Tool Supplied : tool kit
  • Width (in): 36
  • Shipping weight 1,850 lb.
