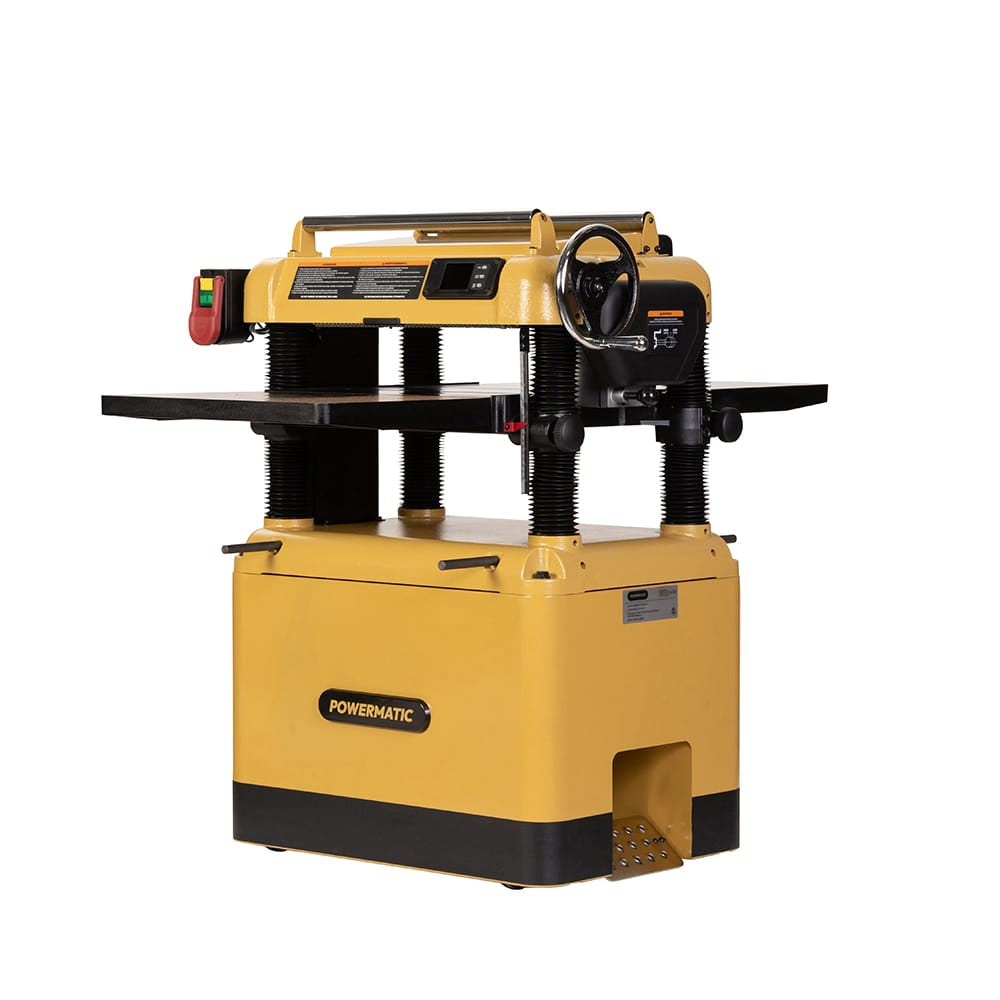

The Powermatic 209BHH-4 Planer PM1-480 is a 20" wood planer built for shops operating on 460V three-phase power that require steady output across wide stock. A 5 HP motor maintains feed rate through dense hardwoods and large panels, supporting continuous production without loss of consistency.

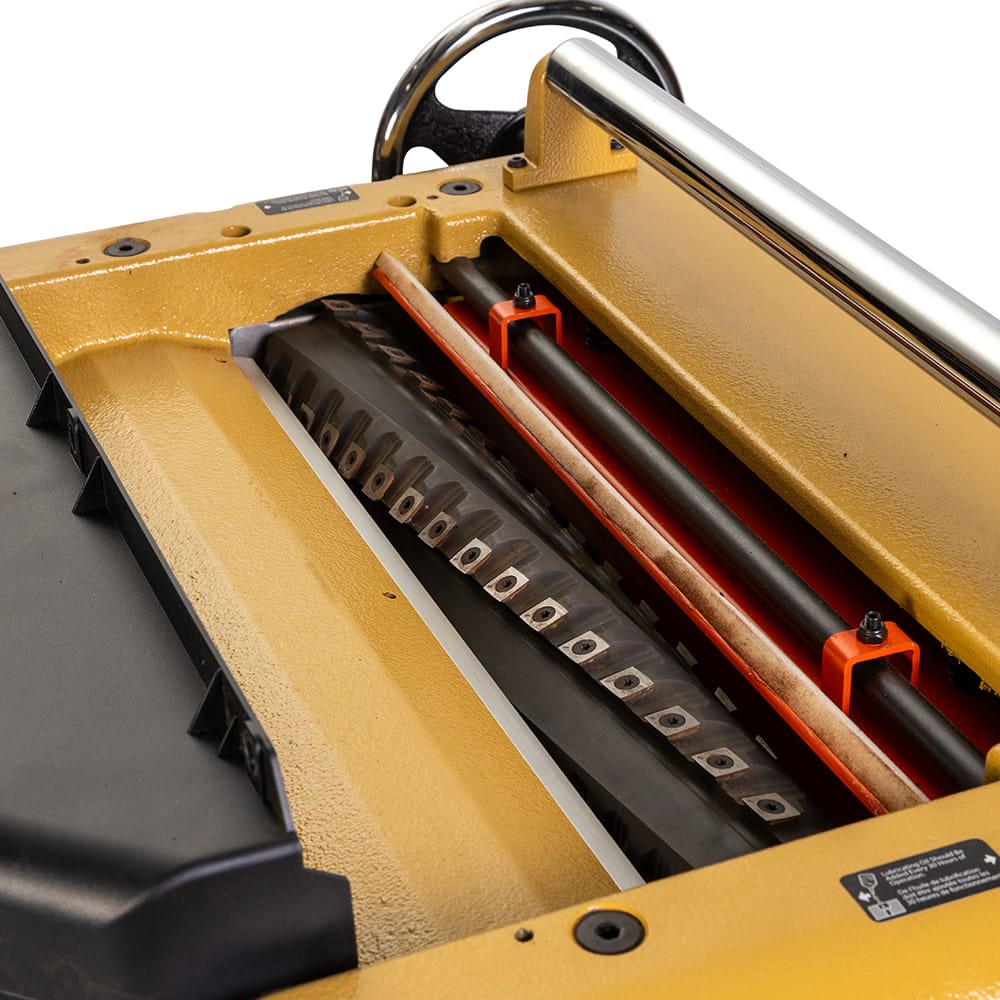

A four-row helical cutterhead with 68 carbide inserts rotates at 5,200 RPM to reduce tearout and produce a smoother surface. Insert rotation extends cutting life and keeps results consistent across longer runs. Dual feed speeds of 16 and 28 FPM allow control over material removal, giving the option to move quickly through rough stock or slow the cut to improve finish quality.

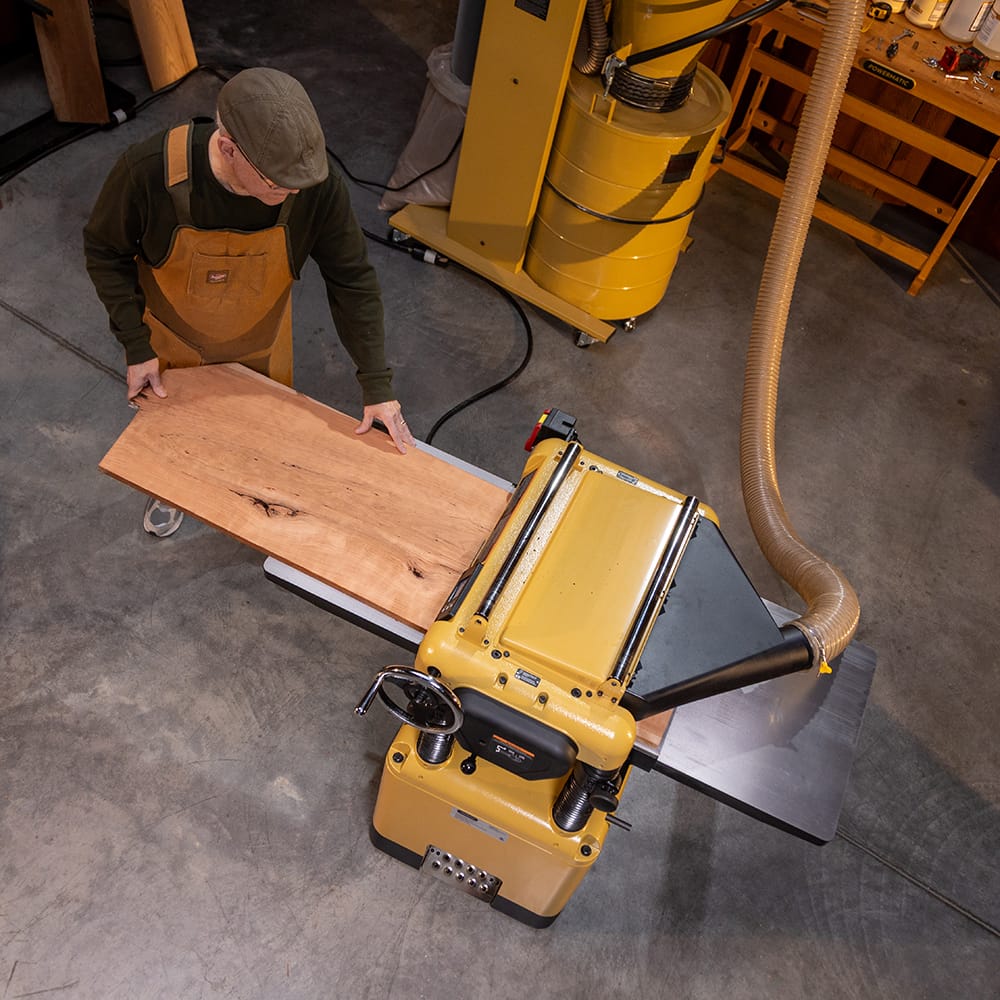

The extended 51-1/2" cast iron table stabilizes longer boards and reduces movement during cutting, which helps maintain accuracy across the full 20" width. A digital readout supports repeatable thickness settings without trial passes. A 4" dust port with a 900 CFM requirement supports chip removal to prevent buildup that can affect cutterhead performance.
This woodworking planer supports larger stock processing with consistent output when running on dedicated three-phase power systems.
Features:
- Four-row helical cutterhead with 68 four-sided inserts
- Two-speed feed rate for stock removal and finish control
- Digital readout for repeatable thickness settings
- Solid cast iron infeed and outfeed tables
- Cutterhead access for insert rotation and replacement

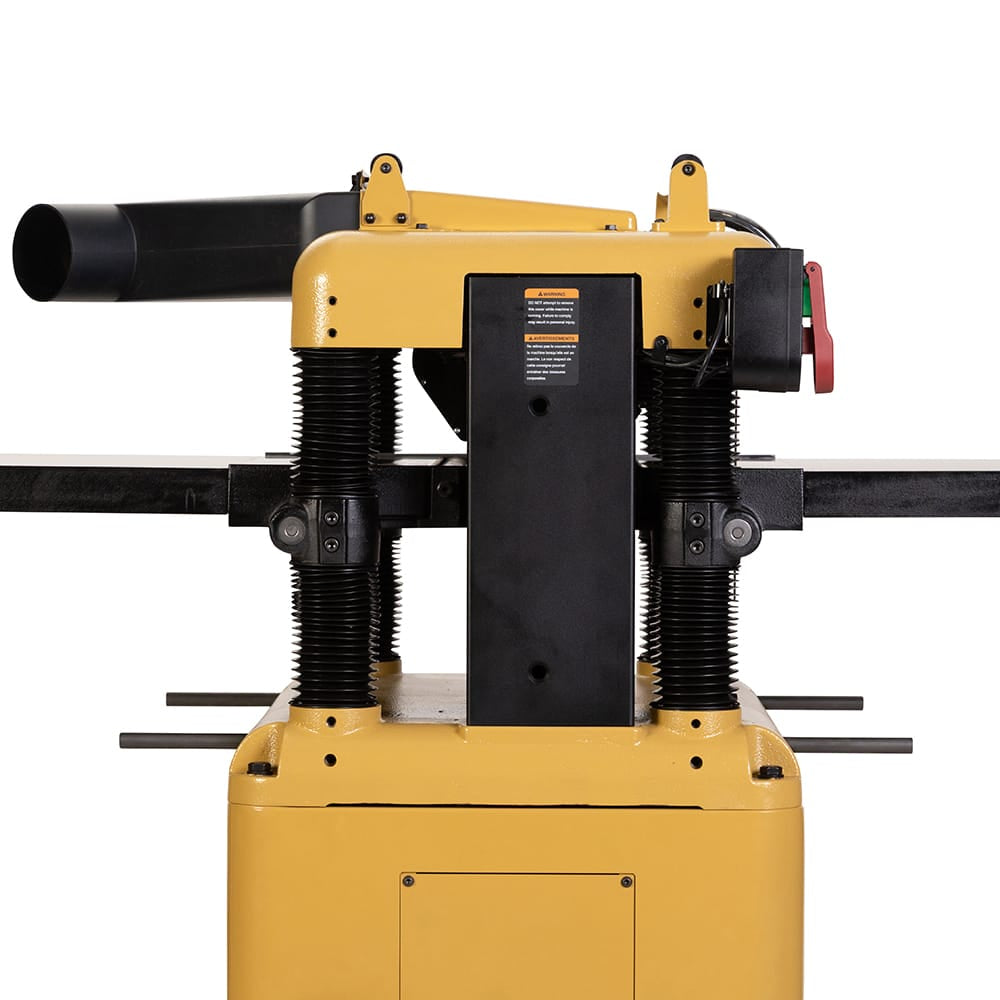

- 4" bi-directional dust port for chip management

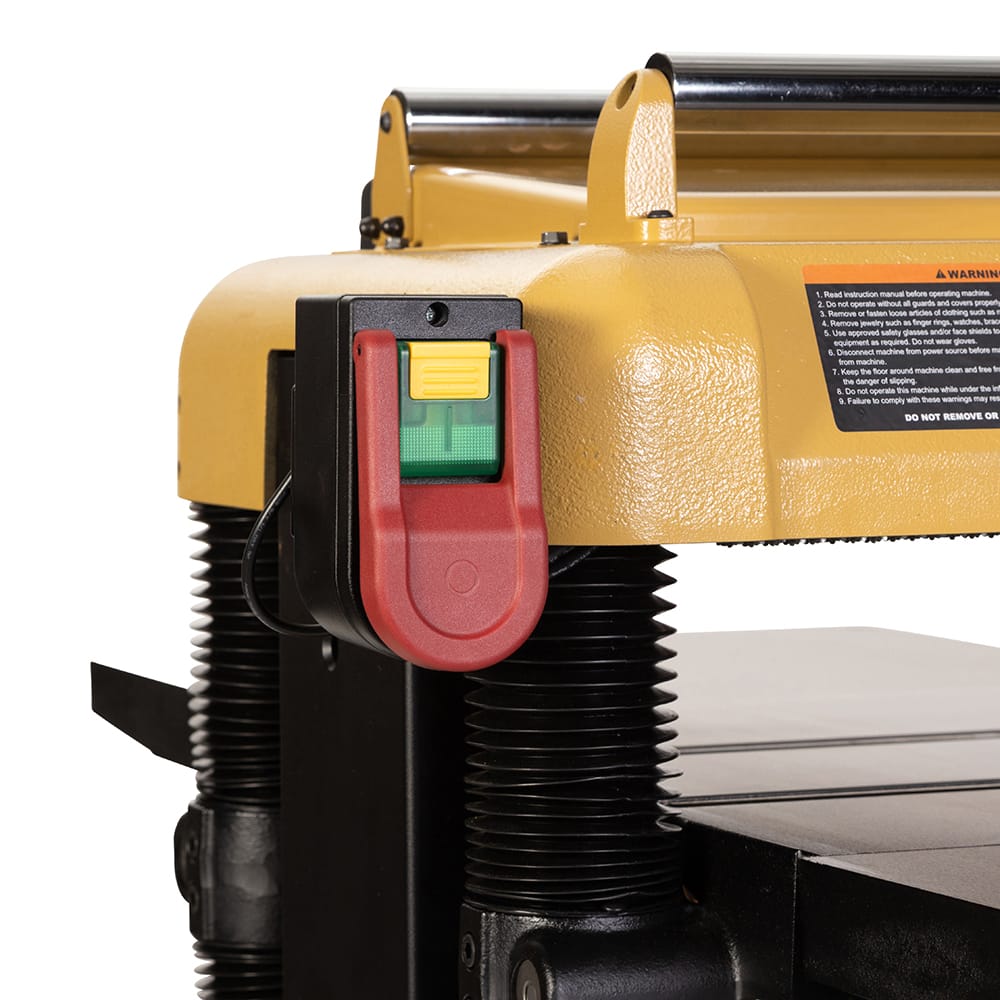

- Oversized emergency stop for quick shutdown
- Height adjustment handle for controlled table movement
- Caster locking and braking system for mobility and stability
- Dual lifting handles for repositioning
Specifications:
- Model: 209BHH-4
- Stock Number: PM1-480
- Warranty: 5 Years
- Motor Power: 5 HP
- Phase: 3 PH
- Voltage: 460V
- Recommended Circuit Size: 40 A
- Max Cutting Width: 20"
- Max Cutting Thickness: 8"
- Min Cutting Thickness: 1/8"
- Full Width Cutting Depth: 3/32"
- Min Planing Length: 8"
- Cutterhead Type: 4 Rows, 68 Inserts
- Insert Size: 0.59" x 0.59" x 0.10"
- Cutterhead Speed: 5,200 RPM
- Cutterhead Diameter: 3-7/32"
- Minimum CFM Required: 900 CFM
- Feed Rate: 16/28 FPM
- Main Table Size: 21-1/2" x 20"
- Full Table Size: 51-1/2" x 20"
- Dust Port Diameter: 4"
- Overall Dimensions: 51-1/2" x 37-3/8" x 43-3/8"
- Packaging Dimensions: 37-5/8" x 29-23/32" x 50-3/16"
- Net Weight: 606 lb
- Shipping Weight: 704 lb
